Cost-Effective High Precision Rotary Linear Motion Motors Frame Inner Rotor Torque Motor Direct Drive

HAN'S MOTOR Self R&D Frame Inner Rotor Torque Motor

Product description:

Compact design, low inertia, light weight, portable size, easy installation, suit for high speed and

high frequency motion.

Widely used in machine tools and Robot applications.

Features:

High precision: Repeatability accuracy≤±2″

After positioning accuracy compensation ≤±5″

Self-research absolute encoder, no need Hall

No commutation jitter Serial design

Peak torque maximum 1100Nm

Brand:
HAN'S MOTOR
Order(MOQ):
1

Inquiry now

Product Detail

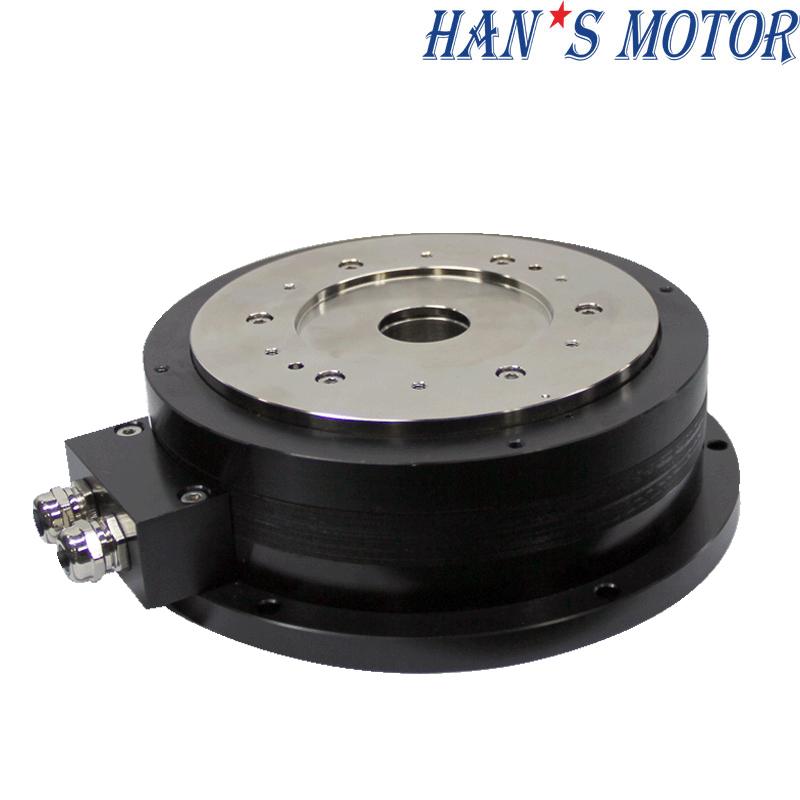

Products Name: HAN'S High Precision Torque Motor HANS-H Series Frame Inner Rotor Torque Motor HANS-H-015-D154-H90-1-T25-G

Product Specifications

Frame inner Rotor Torque Motor HANS-H Series Specification
Motor Model No.： HANS-H-xxx-Dxxx-Hxxx-T25-1-A			H-005	H-010	H-015
Performance Parameters	Symbol	Unit	H-005	H-010	H-015
Cable Outlet			1	1	1
Outer Diameter	D1	mm	154	154	154
Center Hole	D2	mm	25	25	25
Installation Height	H	mm	55	73	90
Continuous torque (Tmax)	Tc	Nm	5.0	10.0	17.7
Peak torque	Tp	Nm	15	30	51
Vmax,Tc@Vbus=310Vdc	Nmax,Tc	Rpm	600	600	350
Vmax,Tp@Vbus=310Vdc	Nmax,Tp	Rpm	500	500	200
Vmax,0@Vbus=310Vdc	Nmax,0	Rpm	800	800	450
Encoder (BISS-C)		P/rev	23bits	23bits	23bits
Positioning Accuracy		arc sec	±10/±5	±10/±5	±10/±5
Repeat Accuracy		arc sec	±1.5	±1.5	±1.5
Maximum axial load (recommend)	Fa	N	3000	3000	3000
Maximum torque load (recommend)	T	Nm	200	200	200
Motor outlet		M	0.2	0.2	0.2
Cable bending radius (within drag chain）		mm	37.5	37.5	37.5
Continuous current (Tmax)	Ic	Arms	2.3	2.3	2.3
Peak Current (1s)	Ip	Arms	7	7	7
Torque Constant (within 25℃±5℃）	Tf	Nm/Arms	2.16	3.70	7.70
Electromotive constant (within 25℃±5℃）	Te	Vrms/rad/s	0.72	1.23	2.60
Resistance (within 25℃±5℃）	R	Ω(p-p)	6	8	13
Inductance (within 25℃±5℃）	L	mH(p-p)	15	20	35
Pole pairs	p		8	8	8
Max.coil temperature	Tmax	℃	120	120	120
Motor Mass		KG	4.2	5.5	8.0
Mover Mass	Mc	KG	1.1	1.5	2.5
Rotor Moment of Inertia	Jm	Kg*m2	0.0021	0.0029	0.0049
Axial Runout		mm	0.03	0.03	0.03
Radial Runout		mm	0.03	0.03	0.03

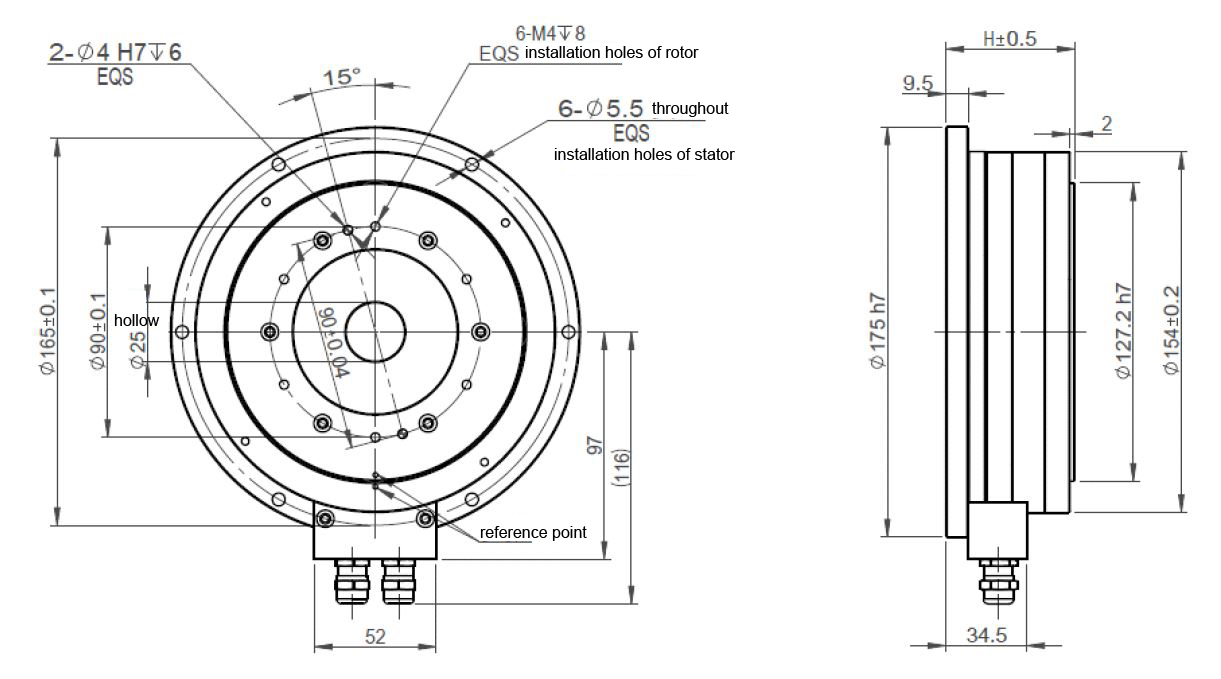

Dimension

HAN'S LASER Frame Inner Rotor Torque Motor

Characteristics:

Standardization：Single interface of encoder, good versatility of power cable and encoder cable.

User-friendly：Absolute encoder, needn’t change hall commutation, power-on without jitter.

Short lead-time：Core materials are made in China, with sufficient stock.

High precision：It can reach ±5 arc-sec before and after compensation

Replaceable：For the main competitors.: Hiwin, Akribis, Kollmorgen

Wide ranges of specifications：Continuous torque is from 1Nm to 380Nm, peak torque is 3Nm to 1100Nm

Customization：Large hollow, easy for wiring,customs winding to save cost of driver

China Best DDR motor Supplier HAN'S LASER

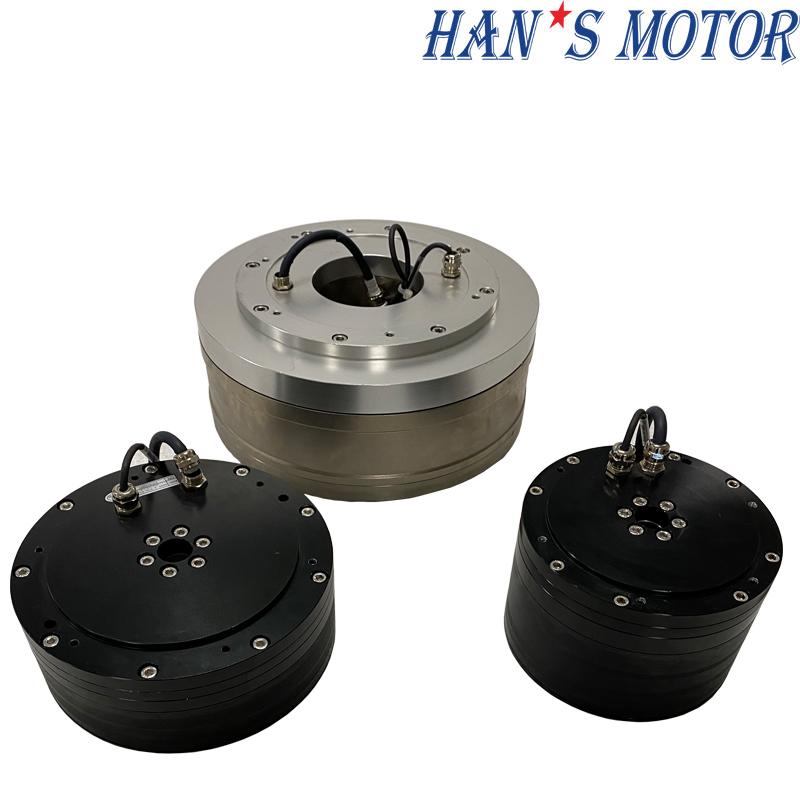

HAN'S MOTOR DDR Torque Motor Products Series.:

direct drive rotary motors China Best DDR motor Supplier

High Power Frame Inner Rotor Torque Motor HAN'S MOTOR

Why choose us?

Q1: What's the advantage of HAN'S MOTOR HANS series DDR torque motors?
A1: Self-research absolute encoder, high rigidity, high precision, high speed, high acceleration and small noise

Q2: What's hot industry that it can be used?
A2: Semi-conductor industries.

Q3: What's the features of custom motor?
A3:  Super vacuum environment operation, Non-contact transmission, Super low cogging torque

Q4: What about the products characteristics?

Specialized in direct drive system in the domestic R&D, promotion, application.

Including linear motor、Torque motor 、Motion stage 、AC servo system 、 Variable-Frequency Drive etc.

HAN'S LASER Frame Inner Rotor Torque Motor

HAN'S LASER direct drive rotary DDR High Precision Torque Motors

HAN'S MOTOR direct drive rotary DDR High Precision Torque Motors

Applications:

Products are mainly used in machine tool 、Laser 、 Electron 、 Lithium electricity 、 photovoltaic 、Panel 、

semi-conductor 、 Medical treatment 、 Life sciences industries high-end equipment.

direct drive rotary DDR High Precision Torque Motors

Direct Drive Motor used on Photovoltaic Industry

Requirement: High precision, high speed, high acceleration, fast response

HAN'S LASER Frame Inner Rotor Torque Motor

Exhibitions & International market

HAN'S Laser Frame Torque Motor Direct Drive

HAN'S Laser Frame Outer Rotor Torque Motor Direct Drive

Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order

Related Tags :

Contact Us

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Submit

Related Products

208mm Outer Diameter G Series Frame Inner Rotor High Frequency Torque Motors

High Power Frame Inner Rotor Torque Motor HAN'S-G Series Features: 1. Direct drive, high dynamic response; 2. High accuracy; 3. Integrated BISS-C interface absolute position feedback; 4. Inner rotor/outer rotor structure; 5. High speed/low speed winding design; 6. Reliable performance, mature process, fast delivery Applications.: Widely used in Industrial Automation、semiconductor、medical indutries etc.

details

H Series Frame Inner Rotor Large Torque Motors

High Power Frame Inner Rotor Torque Motor HAN'S-H Series Features: 1. Direct drive, high dynamic response; 2. High accuracy; 3. Integrated BISS-C interface absolute position feedback; 4. Inner rotor/outer rotor structure; 5. High speed/low speed winding design; 6. Reliable performance, mature process, fast delivery Advantages.: Compact design, low inertia, light weight, portable size, easy installation, suit for high speed and high frequency motion

details

145mm Outer Diameter Cost-Effective TX Series Direct Drive 5Nm High Reliability Frame Inner Rotor Torque Motors

TX Series High Dynamic Performance Frame Inner Rotor Torque Motor TX-005-D145-H62-T25-1-A Product description: 1. High dynamic performance and high reliability; 2. High dynamic response and high drive control; 3. Simplified mechanical designandSimple installation; 4. Outer diameter 145mm, continuous torque 5Nm, peak torque 15Nm, Max. speed 300RPM and 23bit absolute encoder, positioning accuracy:±15 arc sec and 2.1A continuous current. Features: 1. The Direct Drive Rotary or DDR motor technology eliminates the mechanical transmissions and many of the negative aspects associated with conventional servo systems. 2. They are rigid, more compact, provide high dynamic performance, reduce cost of ownership, simplify the design of the machine and reduce wear and maintenance.

details

High Power Frame Inner Rotor Torque Motor

FI5 Series Frame Inner Rotor High Precision Direct Drive Torque Motors

HAN'S High Precision Frame Inner Rotor Torque Motors Features: 1. Direct drive, high dynamic response; 2. Inner rotor/outer rotor structure; 3. High speed/low speed winding design; 4. Integrated precise optical grating/magnetic grid,bearing; 5. Reliable performance, mature process, fast delivery Advantages.: Torque motors are permanent-magnet direct drive motors that rotate along an axis,they can be used wherever a rotary movement is required. Wide applications in markets such as semiconductor, medical, machine tool, printing, rotary tables, factory automation, and robotics.

details

FID Series Low Noise Long Life Inner Rotor Frame Torque Motor Solutions

HAN'S Frame Inner Rotor High Torque Motor For Automatic Applications Features: 1. Design: Direct drive, high dynamic response with high level of control; 2. Size: Powerful motor in a small space/ Hollow shaft/ Power density 3. Performance: High speed/precision/efficiency 4. Durability: Reliable performance, maintenance free, encapsulated design Advantages.: Torque motors (also known as direct drive rotary motors (DDR) ) Torque motors have benefitted greatly from the design,they can provide even greater efficiency and power, especially at low rpm.Meanwhile minimizing maintenance requirements,which are used in a wide variety of products from rotary tables to robotic arms.

details

China Best DDR motor Supplier High Torque DDR High Speed Frame Rotor Torque Motor FI Series

Frame Inner Rotor High Precision Torque Motor direct drive rotation（DDR） Product description: Torque motors supply high torque at low speeds, increased rigidity and greater accuracy. Provided in a range of frameless kits and standard constructions, our direct drive torque motors can be used to replace traditional gearbox-based systems in many applications. It is designed with the aim of ensuring excellent performance with high quality, through the use of modern digital control technology our devices are highly productive and flexible, providing effective automated solutions across many of the major industrial markets. Features: Size.: Powerful motor in a small space/ Hollow shaft/ Power density,Low mass. Performance.: High rigidity,high precision,high speed,high acceleration and small noise Durability.: Smooth motion even at low speeds and excellent efficiency

details

High Torque Frame Motor Direct Drive Motor

Low Noise High Torque DDR Torque Motor Industrial Robot Arm Joints HANS-G Series

HAN'S High-Precision Large Hollow Frame Inner Rotor Torque Motor Product description: Highly integrated precision design, easier to use Large hollow frame torque motor, more powerful Features: Small volume, high torque, high precision, standardization,Simplification, low cost

details
