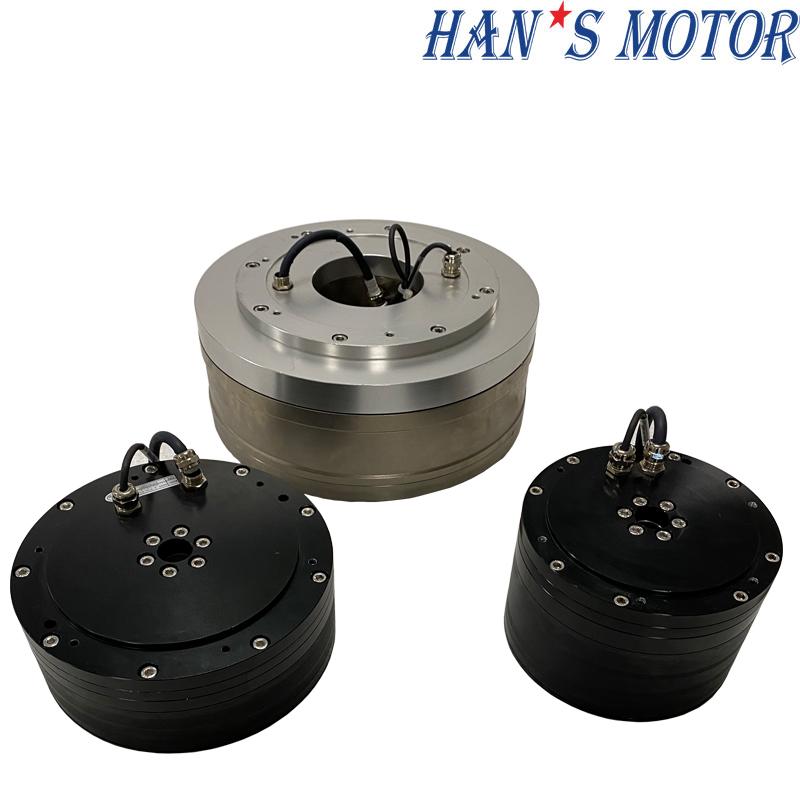

HAN'S MOTOR Direct Drive HAN'S-B Series Frame Outer Rotor Torque Motor
Product description:
Torque is the rotational analog of the force that motor generates during operation, in a given application, the torque for each axis is defined by the specific requirement in the machine, which is required to move the object driven by the motor. And the torque requirement of the axis determines the size of the motor and any gearing necessary. With specialities of high rigidity、high precision、high speed、high acceleration and small noise.
Features:
1. Easy integration
2. Dynamic performance
3. Wide torque-speed range
4. Direct drive rotary technology
5. High level of control and low mass
Brand:
HAN'S MOTOROrder(MOQ):
1Products Name: HAN'S MOTOR Direct Drive High Speed Frame Outer Rotor Torque Motor HAN'S-B Series
Product Specifications
|
Frame Outer Rotor Torque Motor HANS-B Series Specification |
||||
|
Motor Model No.：HANS-B-xxx-Dxx-Hxx-Txx-x-A |
B-001 |
B-003 |
||
|
Performance Parameters |
Symbol |
Unit |
||
|
Cable Outlet |
|
|
1 |
1 |
|
Outer Diameter |
D1 |
mm |
85 |
112 |
|
Center Hole |
D2 |
mm |
10 |
19 |
|
Installation Height |
H |
mm |
74 |
65 |
|
Continuous torque (Tmax) |
Tc |
Nm |
1.9 |
3.0 |
|
Peak torque |
Tp |
Nm |
5.5 |
10.0 |
|
Vmax,Tc@Vbus=310Vdc |
Nmax,Tc |
Rpm |
1000 |
700 |
|
Vmax,Tp@Vbus=310Vdc |
Nmax,Tp |
Rpm |
800 |
500 |
|
Vmax,0@Vbus=310Vdc |
Nmax,0 |
Rpm |
1200 |
800 |
|
Encoder (BISS-C) |
|
P/rev |
19bits |
19bits |
|
Positioning Accuracy |
|
arc sec |
±10 |
±10 |
|
Repeat Accuracy |
|
arc sec |
±2 |
±2 |
|
Maximum axial load (recommend) |
Fa |
N |
200 |
200 |
|
Maximum torque load (recommend) |
T |
Nm |
10 |
10 |
|
Motor outlet |
|
M |
0.3 |
0.3 |
|
Cable bending radius (within drag chain） |
|
mm |
30 |
30 |
|
Continuous current (Tmax) |
Ic |
Arms |
1.6 |
1.5 |
|
Peak Current (1s) |
Ip |
Arms |
4.8 |
4.5 |
|
Torque Constant (within 25℃±5℃） |
Tf |
Nm/Arms |
1.18 |
2.00 |
|
Electromotive constant (within 25℃±5℃） |
Te |
Vrms/rad/s |
0.39 |
0.67 |
|
Resistance (within 25℃±5℃） |
R |
Ω(p-p) |
8.3 |
6.1 |
|
Inductance (within 25℃±5℃） |
L |
mH(p-p) |
15.6 |
6.3 |
|
Pole pairs |
p |
|
5 |
8 |
|
Max.coil temperature |
Tmax |
℃ |
120 |
120 |
|
Motor Mass |
|
KG |
2.1 |
3.9 |
|
Mover Mass |
Mc |
KG |
1.1 |
1.4 |
|
Rotor Moment of Inertia |
Jm |
Kg*m2 |
0.0013 |
0.0027 |
|
Axial Runout |
|
mm |
0.03 |
0.03 |
|
Radial Runout |
|
mm |
0.03 |
0.03 |

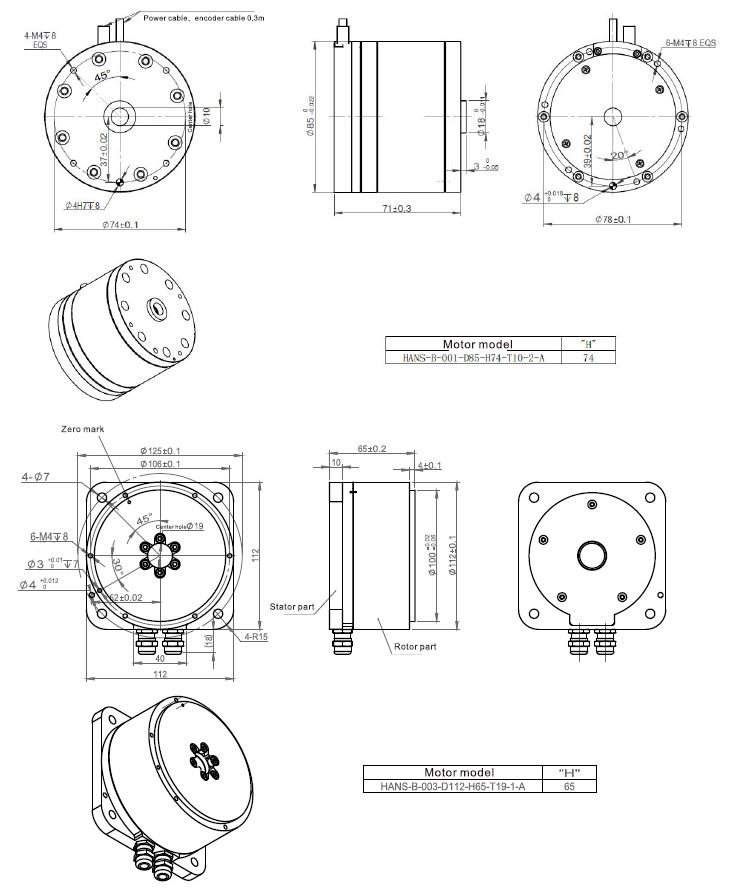

Dimension
Characteristics:
1. Dynamic performance
Dynamic performance is drastically improved by
using direct drive due to the very high control loop bandwidth that can be
achieved on the overall system. The direct coupling of the load
and position feedback to the motor has the advantage of eliminating all
phenomena that limit the dynamic performance on non direct driven
machines. Eliminating long-time drift, elasticity, and backlash is a huge
advantage for machine performance and lifetime.
2. DDR torque motors are controlled much like other brushless motors, but require certain special provisions.
A Direct Drive Motor can be used for various applications, such as applications where a high positioning accuracy is needed. Moreover, these torque motors are used for situations where small size, low weight, maximum power and optimal speed control is desired.
HAN'S MOTOR DDR Torque Motor Products Series.:
Why choose us?
Q1: What is a direct drive motor?
A1: Torque motors are permanent-magnet direct drive motors that rotate along
an axis,they can be used wherever a rotary movement is required and offer
numerous advantages over conventional servo drives.
Q2: Guarantee time of HAN’S Motor?
A2: One particular year warranty for products and
technical support in accordance to your needs.
Q3: What’s direct drive?
A3: Direct drive：The load and the motor are directly coupled, without intermediate transmission link, direct drive Including：direct drive linear（DDL）and direct drive rotation（DDR）
Q4: What's your quality standard?
Passed ISO 9001and ISO 14001 management system certification and CE certificate.
Applications:
Torque motors are used in a wide variety of products, from rotary tables to robotic arms.
CNC high speed machining center, automatic CNC cutting machine, precision CNC grinder,
precision milling machine, marking machine, die bonding machine, engraving machine and printing machine etc.
