constant natural cooling torque motor
constant natural cooling torque motor

DDR BI5 Series Constant Torque Motor Machine Tools

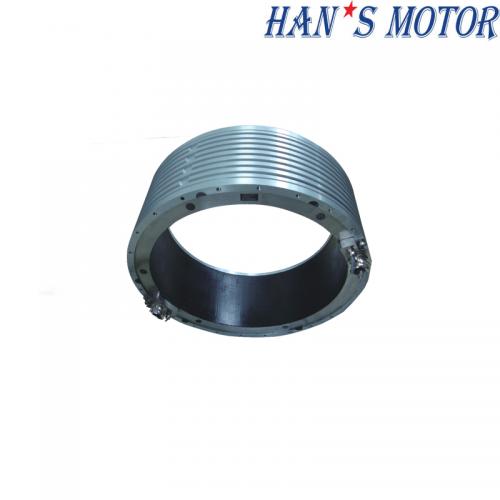

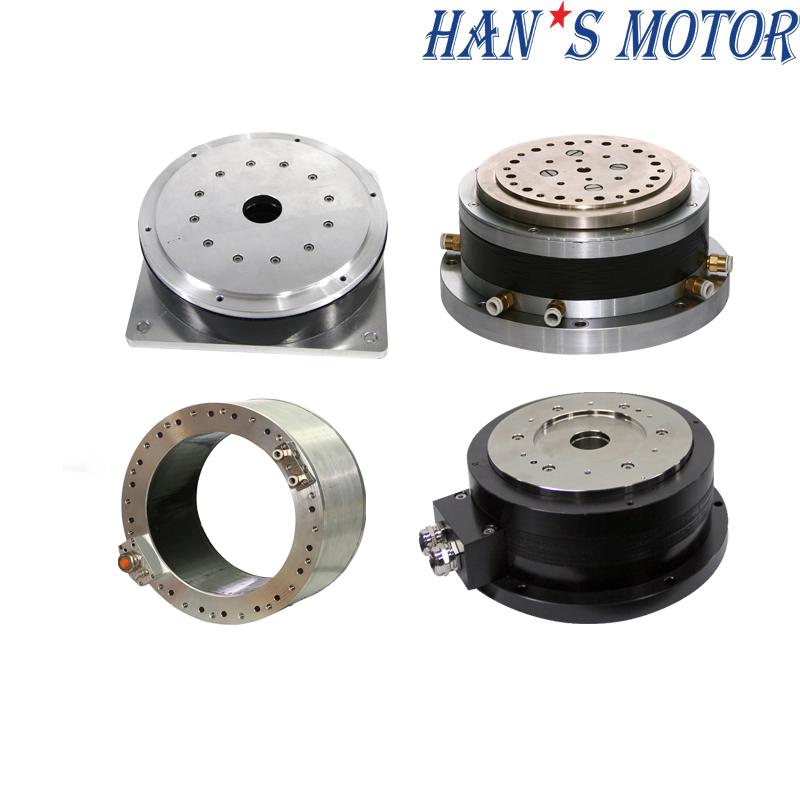

High Torque Frameless Inner Rotor Torque Motor BI Series

DDR BI5 Series


Features:

1. Direct drive, high dynamic response;

2. Inner rotor/outer rotor structure;

3. High speed/low speed winding design;
4. HEIDENHAIN absolute encoder;

5. It can be divided into stator and rotor, the maximum peak torque is 5500Nm;
6. Reliable performance, mature process, fast delivery


Natural cooling type.:

Flexible usage, used in nonstandard and compact applications, such as Robot joint.


  • Brand:

    HAN'S MOTOR
  • Order(MOQ):

    1
Product Detail

Products Name:         High Torque Frameless Inner Rotor Torque Motor BI Series



Product Specifications

Torque Motor BI5 Series Specification

Motor Model No.:BI5-xxx-P-x-0-W



050-P-A-0

080-P-B-0

120-P-B-0

140-P-A-0

Performance Parameters

Symbol

Unit





Pole pairs

p

33

33

33

33

Max.Working Bus Voltage

Vdc

V

540

600

600

600

Peak torque

Tp

Nm

1000.0

1453.2

2156.8

2440.0

Continuous torque (Water cooling)

Tcw

Nm

546.0

844.2

1226.1

1365.0

Continuous torque (Natural cooling)

Tc

Nm

234.0

365.4

549.0

585.0

Peak Current

Ip

Arms

50

173

165

48.8

Continuous current (Water cooling)

Icw

Arms

21

67

67

21

Continuous current ((Natural cooling)

Ic

Arms

9

29

30

9

Torque Constant

Kt

Nm/Arms

26.0

12.6

18.3

65.0

Back EMF Constant

Ke

Vrms/rad/s

8.7

4.2

6.1

21.7

Back EMF Constant

Ke

Vrms/(1000r/min)

1572.0

761.8

1106.4

3930.0

Line Resistance

R

Ω

3.2

0.5

0.6

6.8

Line Inductance

L

mH

14.0

1.2

2.6

38.0

Max.speed,Tcw

Nmax,Tcw

rpm

130

450

300

56

Max.speed,Tc

Nmax,Tc

rpm

190

500

340

85

Max.speed,Tp

Nmax,Tp

rpm

10

330

180

35

Max.speed,0

Nmax

rpm

230

535

370

105

Power consumption, output Tcw

Plw

W

5557.0

4242.1

5656.1

6483.0

Power consumption, output Tc

Plc

W

1021.0

794.7

1134.0

1191.0

Motor constant

Km

Nm/√W

10.0

13.0

16.3

17.0

Cooling water flow

dV/dt

L/min

6.8

7.5

9.5

10.0

Cooling water temperature difference setting

△θ

k

5

5

5

5

Rated winding temperature

θ

130

130

130

130

Motor Mass

Ms

Kg

25.5

34.0

47.0

60.0

Rotor Mass

Mr

Kg

7.5

10.5

15.5

17.8

Rotor Moment of Inertia

Jm

Kg*m2

0.1420

0.2020

0.3020

0.3505

Cable length (Can be extended optional)

L

M

3.0

3.0

3.0

6.0

Cable Minimum bending radius

R

mm

102.0

102.0

102.0

102.0


Dimension

constant natural cooling torque motor

Model

Center Hole(mm)

Outer Diameter

Height/mm

Spec.

Continuous torque/Nm

Peak torque/Nm

BI5 (water cooling)

265

385

130

BI4-010

546

1000

160

BI4-015

844

1453

210

BI4-020

1226

2157

235

BI4-030

1365

2440



Characteristics:
• Low-noise, and insulation of high temperature
• High-torque

• CE and EMC quality certification

Running smoothly, high quality and excellent performance




FAQ

1) Are you manufacturer or trading company?

Han’s Motor is a global supplier in direct drive technology, ranging from linear motors, torque motors, servo drives, robots to customized motors and other industrial automation solutions. Founded in Shenzhen, China in 2005

2) What’s your main products?

torque motor, linear motor, arc motor, voice coil motor, motion platform, servo module

3) What's the lead time?

According to the order quantity, 10 days for the small order and 20 days for the bulk order.

4) How can we know the product quality?

Please order sample for quality test after we confirmed the design of products.

5) What I need to provide if I want to make a customized order?

Please kindly tell us the voltages, speed, torque and overall dimension.


constant natural cooling torque motor


Packaging & Delivery:

Packaging Details.: plywood packing

Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)

Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
