Features：
1. Ultra-thin design
2. Direct drive technology
3. High dynamic response
4. High precision grating
5. Fast speed
Brand:
HAN'S MOTOROrder(MOQ):

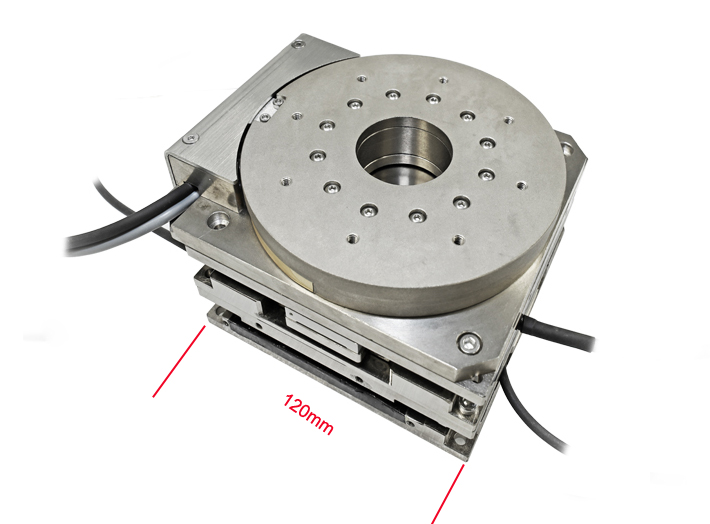

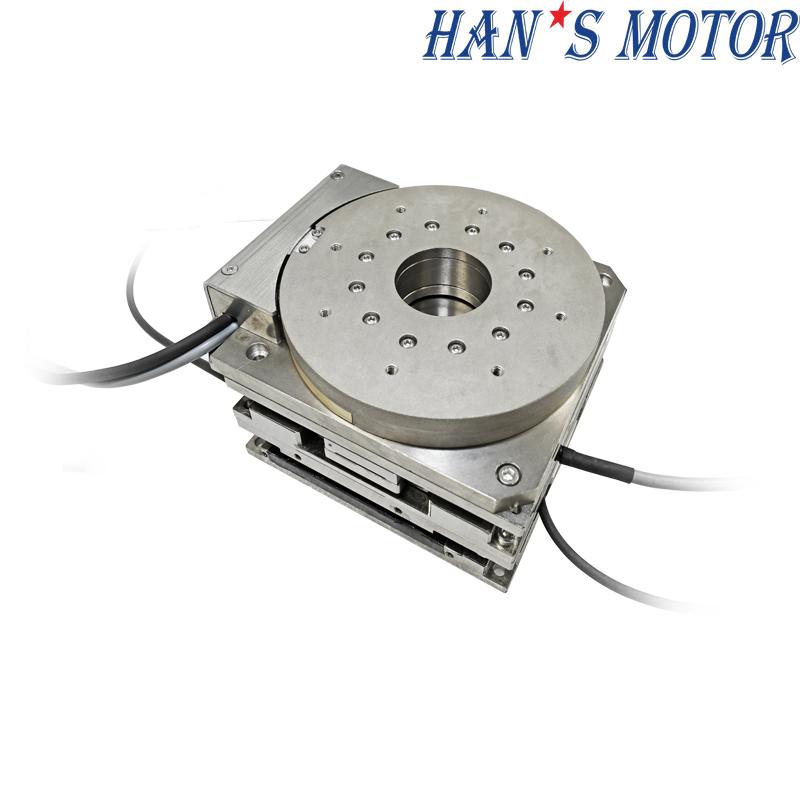

1Product name：Ultra-thin micro XYθ 3 axis linear motor positioning platform
Characteristic:
1. Ultra-thin micro-linear motor positioning stage
2. 13mm traveling distance
3. Built-in high precision grating, repeated positioning accuracy up to ±0.1um
4. Typical application areas: suitable for sub-micron positioning, optical counterpoint
Model Naming：
LMA120-25-25-T-XXX-A
XXX = G01: Grating feedback, resolution: 0.1μm
G05: Grating feedback, resolution: 0.5μm
Stage Specifications
|
X aixs (lower aixs）specifications |
||
|
|
Units | Value |
|
Continuous Force (Tmax） |
N | 17 |
|
Peak Force |
N | 85 |
|
Continuous Current (Tmax） |
Arms | 0.5 |
|
Peak Current (1S) |
Arms |
2.5 |
|
Max. Load |
kg |
4 |
|
Effective Stroke |
mm | 25 |
|
Resolution |
μm |
0.1 |
|
Max.Speed（1） |
mm/s |
700 |
|
Repeat accuracy |
μm |
±0.5 |
|
Y aixs (upper aixs）specifications |
||
|
Continuous Force (Tmax） |
N | 17 |
|
Peak Force |
N |
85 |
|
Continuous Current (Tmax） |
Arms |
0.5 |
|
Peak Current (1S) |
Arms | 2.5 |
|
Max. Load |
kg |
4 |
|
Effective Stroke |
mm | 25 |
|
Resolution |
μm |
0.1 |
|
Max.Speed（1） |
mm/s |
700 |
|
Repeat accuracy |
μm |
±0.5 |
|
T aixs (rotation aixs）specifications |
||
|
Continuous Force (25℃，±5%） |
Nm |
0.4 |
|
Peak Force |
Nm | 1.2 |
|
Continuous Current (Tmax） |
Arms | 1.3 |
|
Peak Current (1S) |
Arms |
3.9 |
|
Max. Load |
kg | / |
|
Max.Speed |
Rpm | 120 |
|
Repeat accuracy |
arc sec |
±2 |
| Stage weight | kg | 5.5 |
|
Working environment temperature
and humidity
|
0-40℃、20-80%RH |
|

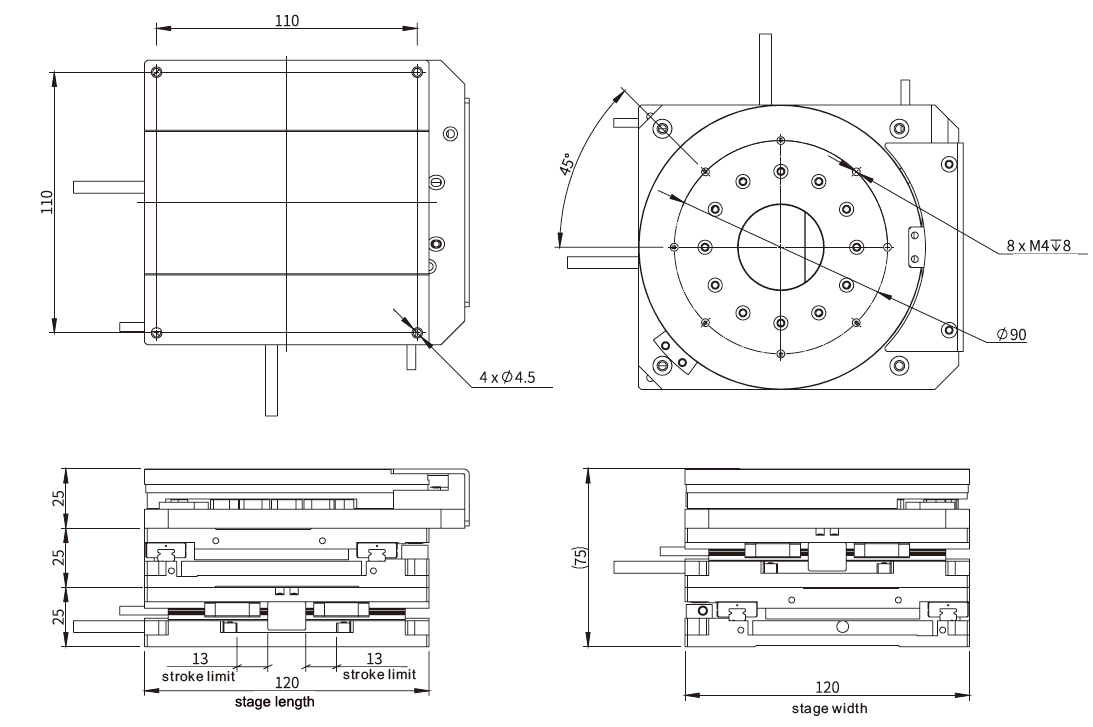

Installation dimensions
