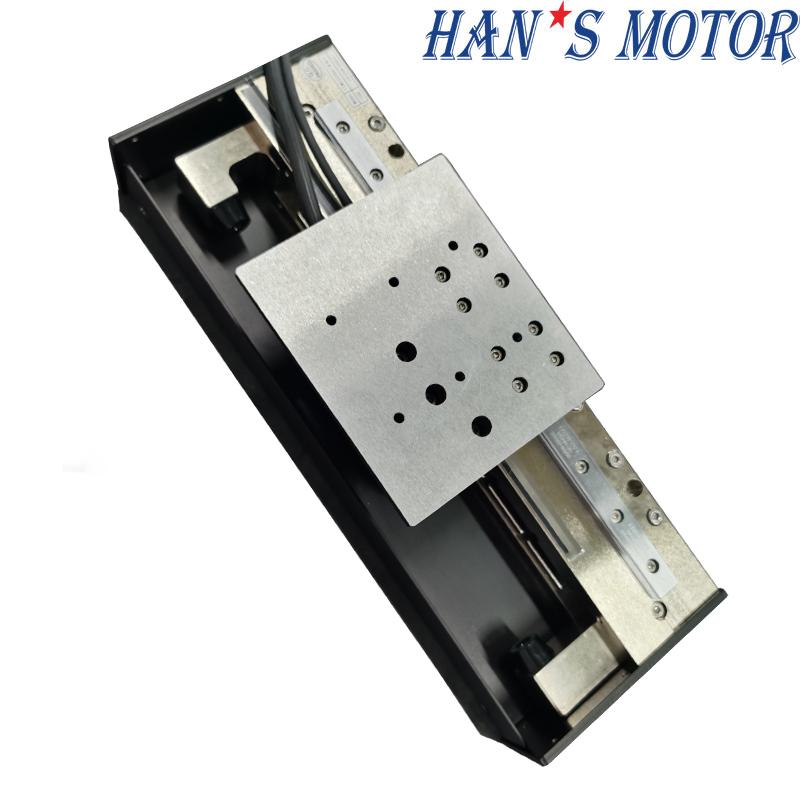

High Precision Linear Motor Motion Stage LMB130-200-G01-A
Features:
1. High positioning accuracy and high positioning repeatability
2. High-precision and high rigidity
3. Qualified raw material, low cost, short lead-time, quick assembly and easy maintenance
Advantages:
Efficient, stable and powerful;
Stable and reliable low noise and smooth;
High-quality and fast speed, easy installation.
Brand:
HAN'S MOTOROrder(MOQ):
1
Products Name: High Precision Linear Motion Stage LMB130-200-G01-A
Product Specifications
Motor Model/ Parameter
|
Motor Parameters |
||
|
Performance |
Unit |
Data |
|
Continuous Force (Tmax） |
N |
15 |
|
Peak Force |
N |
150 |
|
Max. Load |
kg |
5 |
|
Effective Stroke |
mm |
100-2200 |
|
Resolution |
μm |
0.5 |
|
Max.Speed (1) |
mm/s |
1500 |
|
Repeat accuracy |
μm |
±1 |
|
Weight |
kg |
1.8 |
|
Working environment temperature |
0-40℃、20-80%RH |
|
|
Parameter\ Stroke (mm) |
100 |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1200 |
|
K |
6 |
8 |
10 |
12 |
14 |
14 |
16 |
26 |
18 |
20 |
24 |
24 |
|
N |
2 |
3 |
5 |
5 |
6 |
6 |
7 |
5 |
8 |
9 |
11 |
11 |
|
Stage Total Length (mm) |
380 |
480 |
580 |
680 |
780 |
880 |
980 |
1080 |
1180 |
1280 |
1380 |
1480 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached,
so the specific speed should be communicated with the engineer

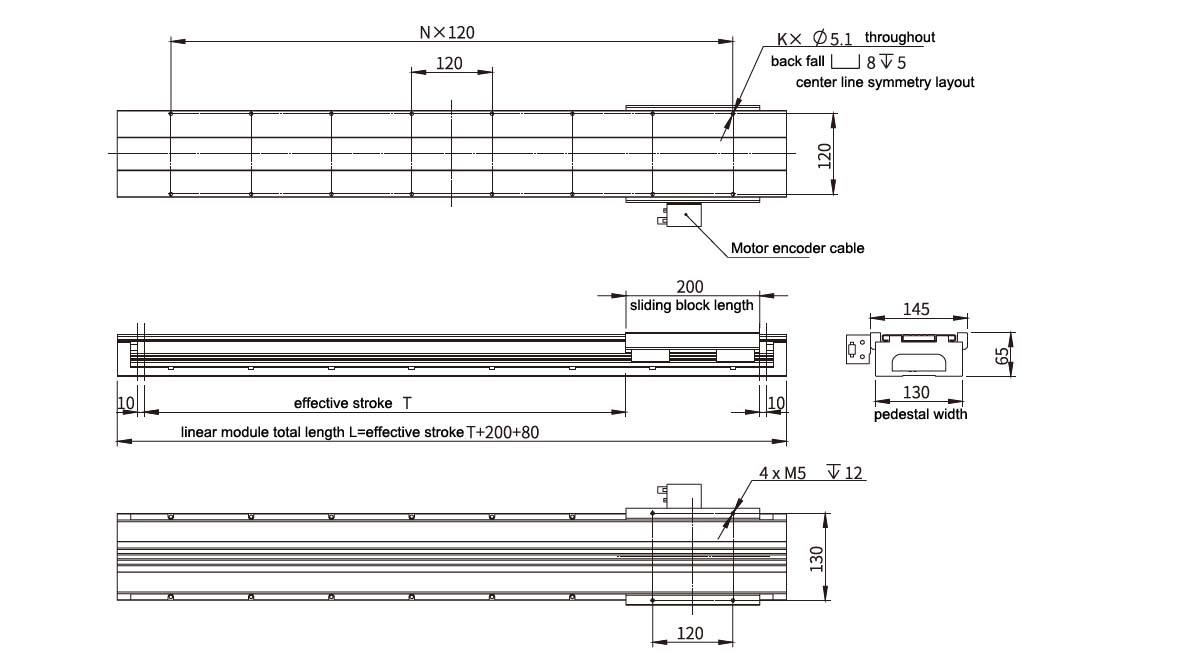

Dimension
Characteristics:
1. Efficient, stable and powerful;
2. Stable, reliable low noise and smooth;
3. High-quality and fast speed, easy installation;
4. Low friction, smooth, accurate motion for nearly any moment or normal loading condition;
5. Independent research and development products;
6. Uniform production management, immediately after-sales service.
Why choose us?
Q: May I know your company’s main business?
A: We mainly design and produce linear motors, torque motors, motor modules, motion stages,
AC servo systems and so on.
Q: How long is the warranty period of your products?
A: 12-months warranty is provided for linear motors, torque motors, motor modules, motion stages and AC servo systems.
Q: What is the best shipment way for your products?
A: one-week transfer to destination by air.
Achievements as national “Specialized Refinement Differential Innovation” Enterprise
for the leader of linear motor market share.
Warranty Statement:
Integration of production and marketing that provided you with affordable price.
The warranty period is 12 months since you receive the goods.
Standard samples will be delivered within 15 days and customized samples will be delivered within 31 days.
Delivery date for bulk order depends on order quantity.
Applications:
Semi-conductor industry, general industry machinery, medical equipment,
machine tool, semi-conductor industry, general industry machinery
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
