Features：
1. Simple structure, maintenance-free
2. High precision, high response
3. No cogging force effect
4. No need for reversing
Brand:
HAN'S MOTOROrder(MOQ):
1Product name：High speed mini permanent magnet voice coil motor
Specifications
|
Motor model |
VCMC100101A |
VCMC30-25-0.5 |
VCMC40-20.0.5 |
VCMI1-035-6520-L0.5 |
||
|
PERFORMANCE PARAMETERS |
Symbol |
Units |
|
|||
|
Stroke |
S |
mm |
10 | 25 | 20 | 20 |
|
Continuous Force (Tmax） |
Fc | N | 12 | 7 | 10 | 35 |
|
Peak Force |
Fp | N | 29.0 | 47.0 | 58.0 | 165.0 |
|
Motor Constant |
Km25 |
N/Sqrt(W) |
4 | 2 | 4 | 7 |
|
Max.Continuous Power Dissipation |
Pc | W | 8.7 | 15.6 | 7.3 | 27.6 |
|
Continuous Current |
Ic |
Arms |
1.6 | 1.6 |
0.8 |
3.2 |
|
Peak Current (1S) |
Ip |
Arms |
3.4 | 10.0 | 4.5 | 15.0 |
|
Force Constant (25℃，±5%） |
Kf |
N/Arms |
9.0 | 4.7 | 12.9 | 11.0 |
|
Back EMF Constant (25℃，±5%） |
Ke |
Vrms/m/s |
9.0 | 4.7 | 12.9 | 11.6 |
|
Electrical Resistance(25℃，±5%）P-P |
R |
Ω |
4.8 | 6.1 | 12.3 | 2.7 |
|
Inductance(25℃，±20%）P-P |
L | mH | 3 | 2 | 5 | 3 |
|
Max Coil Temperature |
Tmax |
℃ |
120 | 120 | 120 | 120 |
|
Mover Mass |
Mp | Kg | 0.1 | 0.0 | 0.1 | 1.1 |
|
Stator Mass |
Ms | Kg | 0 | 0 | 0 | 0 |

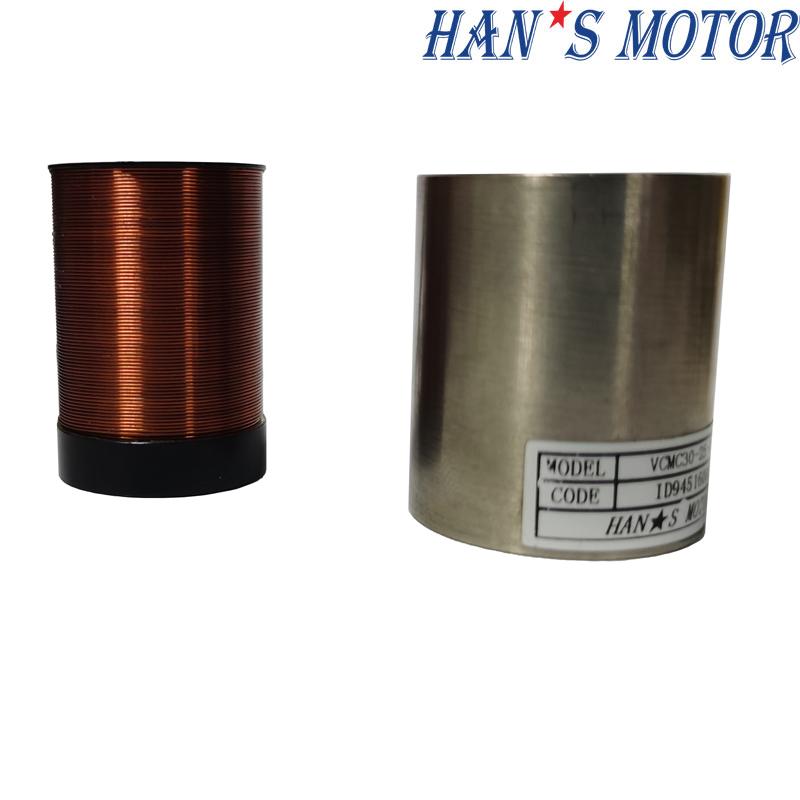

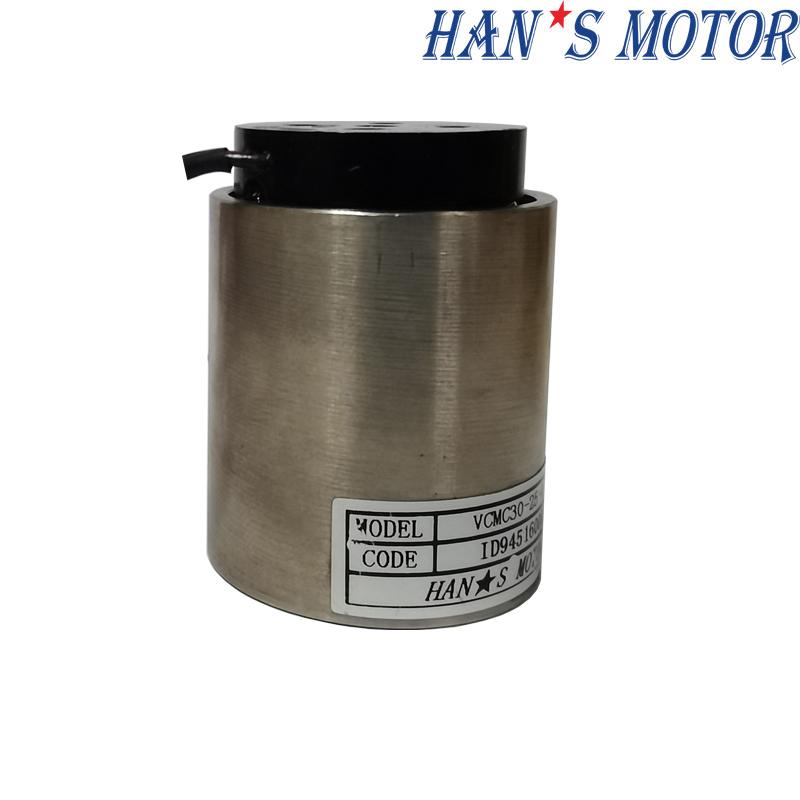

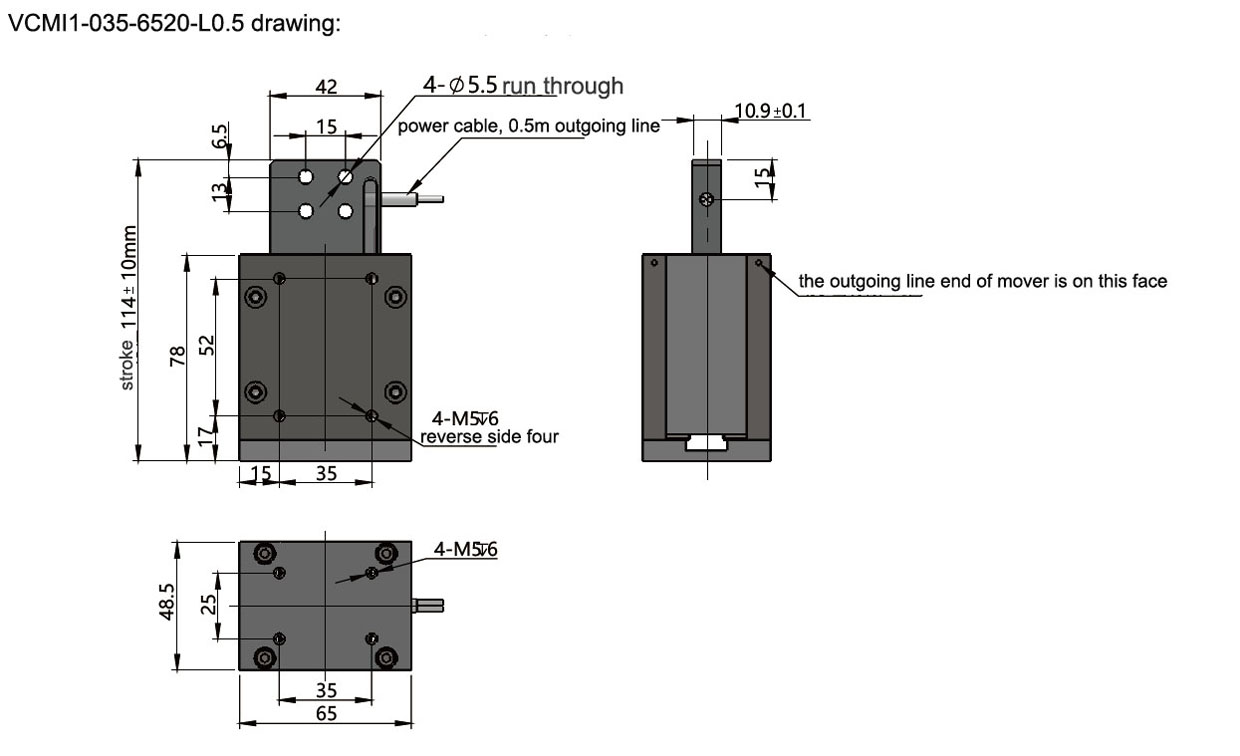

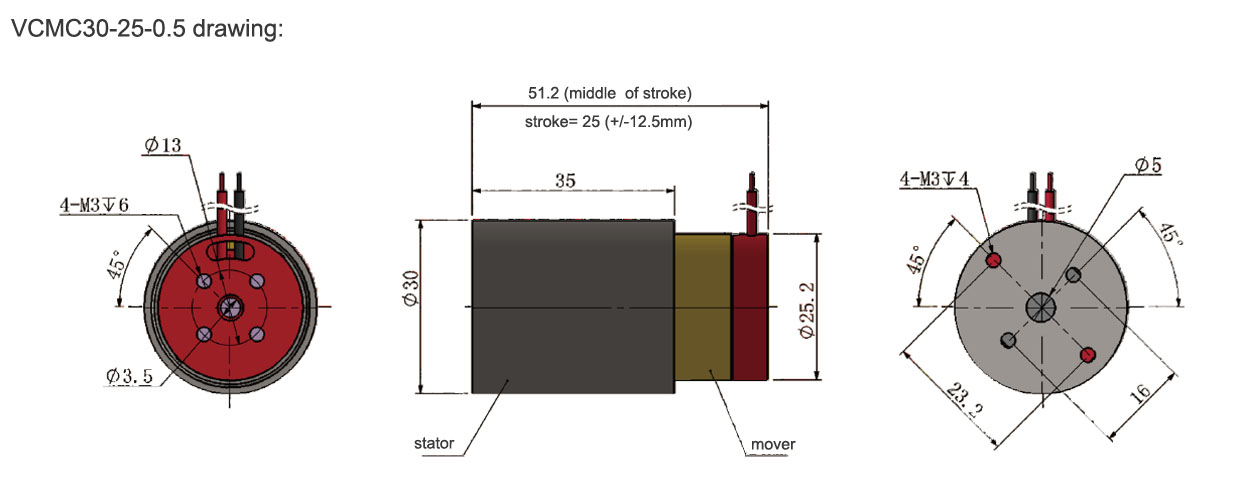

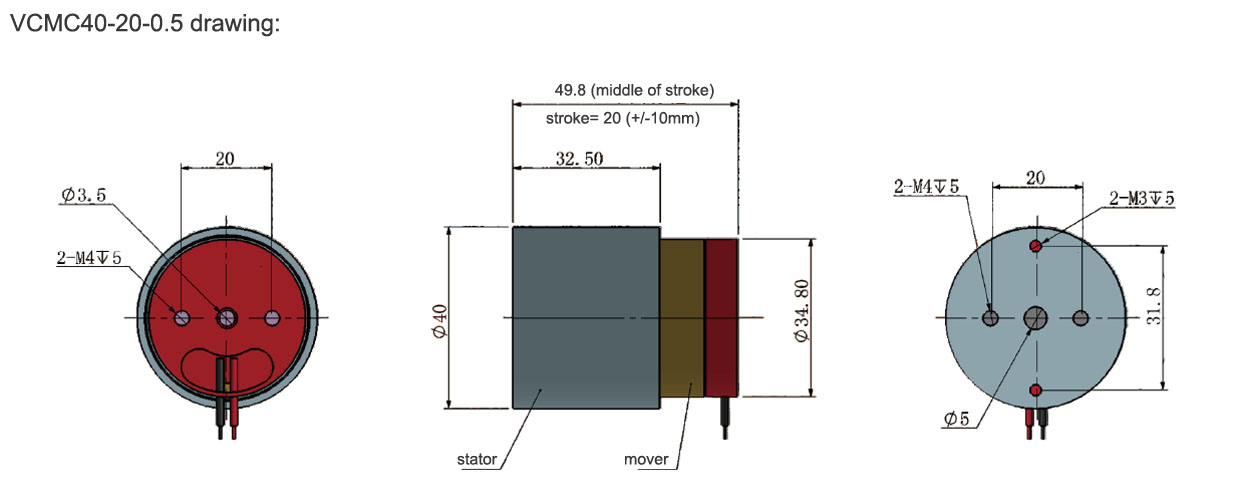

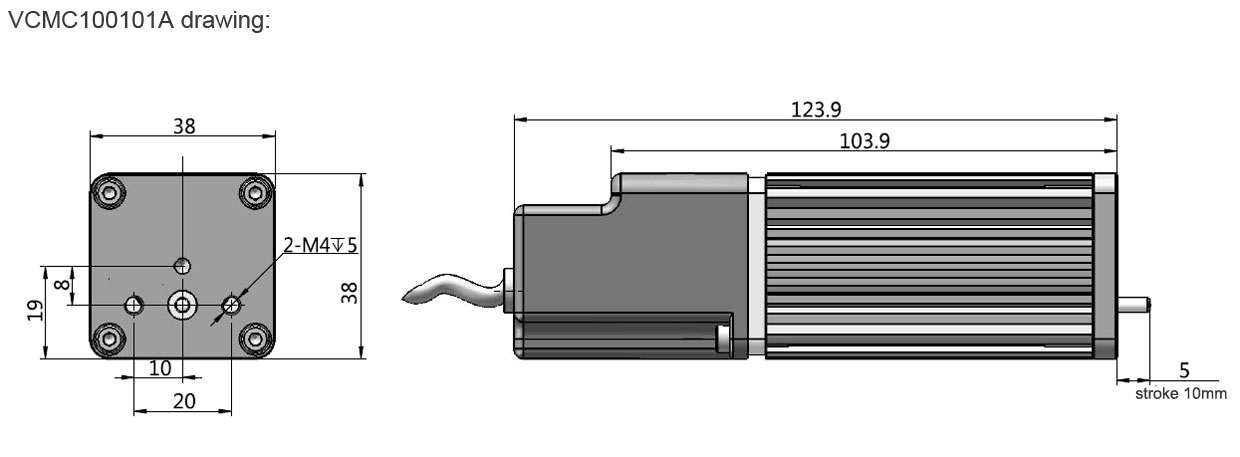

Dimension
Advantages：
Simple structure, high precision, high efficiency, high response, maintenance-free, no cogging effect, no need for reversing, the repeated positioning accuracy of up to ±1µm, especially suitable for short stroke, fast response, high precision closed-loop servo control.
Mian application:
1. Vibration System: Shaking table, vibration platform.
2. Semiconductor industry: Wiring, cutting, drilling, welding etc.
3. Micro Machine industry: Feed systems, micro drilling, precision stamping.
4. Medical field: Micro-injection system, respiratory equipment, testing equipment.
5. Valve operation in the field: pressure test systems, pneumatic valve chemistry injection system.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order.
