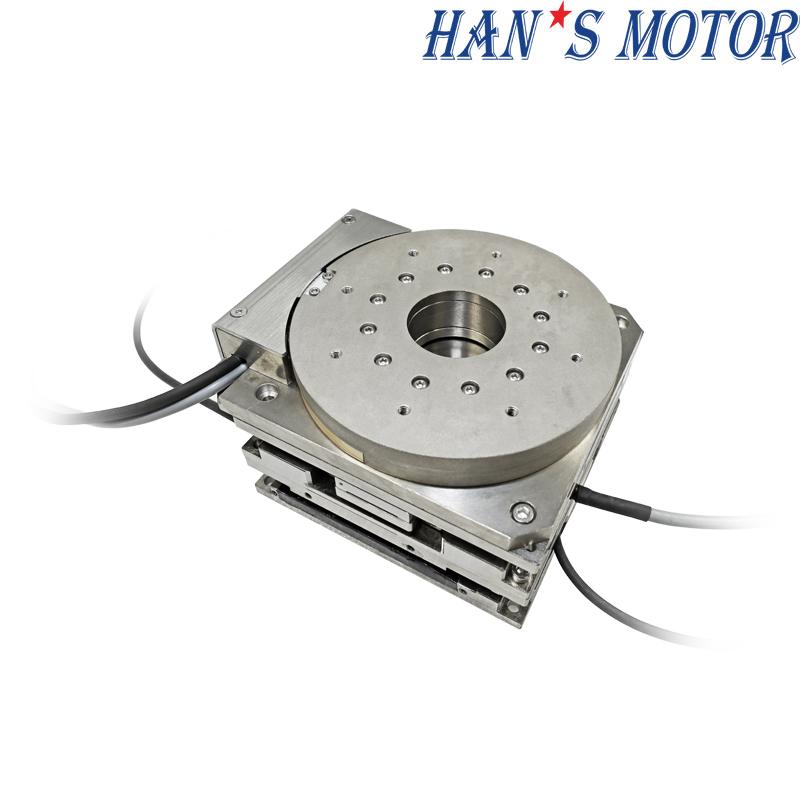

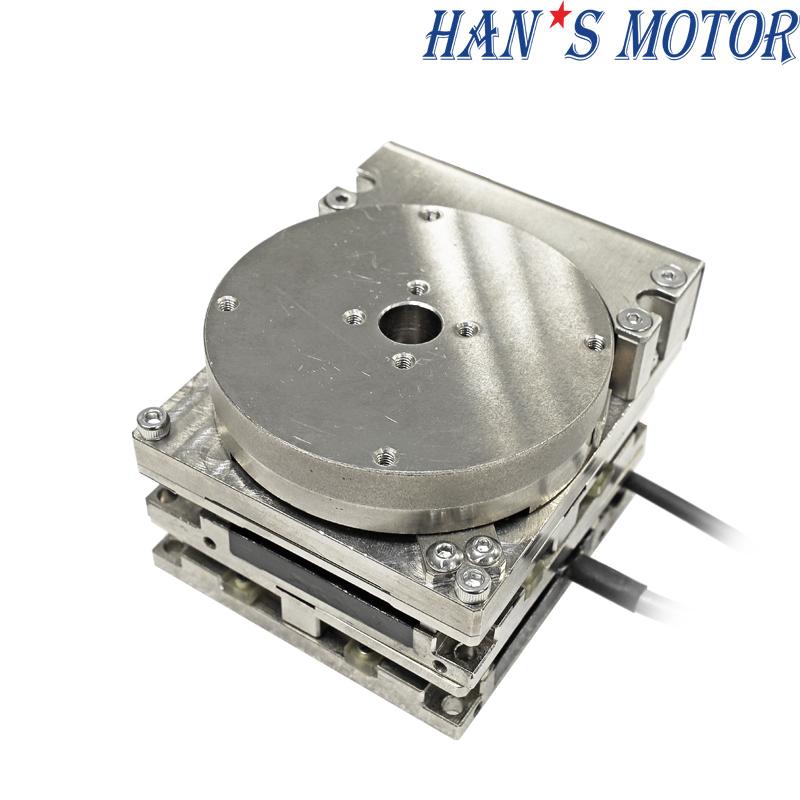

High-Precision Rotary Motion control Linear Stages
Features:
Adopts an open structure, which is convenient for disassembly and maintenance;
Built-in grating or magnetic grating feedback system;
Adopt moving magnet flat linear motor;
Repeat accuracy up to ±1um;
Small size and simple structure, which is suitable for light load and high precision occasions.
Advantages:
1. A linear motor stage, also known as direct drive linear stage, good in performance.
2. Linear motor stages are well-suited for industry and research positioning,scanning applications and precision automation.
3. High-performance, non-cogging, non-contact, high-speed, high-resolution and high-accuracy technology.
Brand:
HAN'S MOTOROrder(MOQ):
1
Products Name: Linear Motor Stages Miniature Stages（LMA65-T Series ) LMA65-10-10-T-__-A
Product Specifications
Motor Model/Parameter
|
LMA65-10-10-T-□□□-A |
||
|
Motor Model/Parameter |
||
|
Performance Parameter |
Unit |
Data |
|
X-axis（Lower axis） |
||
|
Continuous Force (Tmax） |
N |
3.5 |
|
Peak Force |
N |
24.5 |
|
Continuous Current (Tmax） |
Arms |
0.6 |
|
Peak Current (1S) |
Arms |
4.2 |
|
Max. Load |
kg |
2.4 |
|
Effective Stroke |
mm |
10 |
|
Resolution |
μm |
0.1 |
|
Max.Speed（1） |
mm/s |
270 |
|
Repeat accuracy |
μm |
±0.5 |
|
Y-axis（Lower axis） |
||
|
Continuous Force (Tmax） |
N |
3.5 |
|
Peak Force |
N |
24.5 |
|
Continuous Current (Tmax） |
Arms |
0.6 |
|
Peak Current (1S) |
Arms |
4.2 |
|
Max. Load |
kg |
2.4 |
|
Effective Stroke |
mm |
10 |
|
Resolution |
μm |
0.1 |
|
Max.Speed（1） |
mm/s |
270 |
|
Repeat accuracy |
μm |
±0.5 |
|
T-axis（Rotation axis） |
||
|
Continuous Force （25℃,±5%） |
N |
0.062 |
|
Peak Force |
N |
0.46 |
|
Continuous Current (Tmax） |
Arms |
0.6 |
|
Peak Current (1S) |
Arms |
4.5 |
|
Max. Load |
kg |
/ |
|
Max.Rotation Speed |
Rpm |
120 |
|
Repeat accuracy |
arc sec |
±2 |
|
Weight |
kg |
1 |
|
Working environment
temperature |
0-40℃、20-80%RH |
|

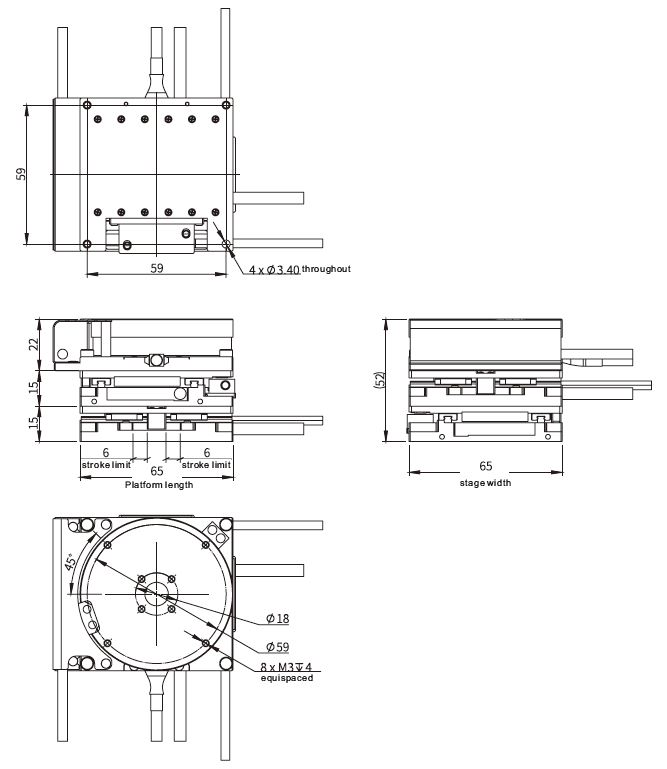

Dimension
Note (1): According to the actual load, the maximum speed maybe cannot be reached, so the specific speed should be communicated with the engineer
Characteristics:
1. superior speed, positioning accuracy, torque capacity and reliability
2. High accurancy and easy setting up;
3. Low friction, smooth, accurate motion for normal loading condition;
4. High stiffness, high positional accuracy, very smooth veloci
Why choose us?
Q1: What's kind of your company?
A: Shenzhen Han's Motor S&T Co.,Ltd was established in 2005, It’s a subsidiary of Han’s Laser
(Stock Code: 002008), Han’s laser is a public company which has now became the flagship of Chinese national laser industry and the world's famous laser equipment manufacturer.
Q2: What about your products range?
HAN's Motor focus on linear motors, torque motors, motor modules, motion stages, AC servo systems,
variable frequency drives,and so on. Which has specialized in direct drive system in the domestic research, development, promotion, application for 16 years.
Q3: How about your
company’s quality control?
A: HAN’S motor has strong design with R&D capabilities, high production
capabilities and excellent service team based on Quality Management System
Certification.: ISO9001:2000
Achievements as national “Specialized Refinement Differential Innovation” Enterprise
for the leader of linear motor market share.
Applications:
medical equipment,
laser cutting equipment, 3D printing machine,automatic
feeding machine, engraving machine, and automation
application etc.
HAN'S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
