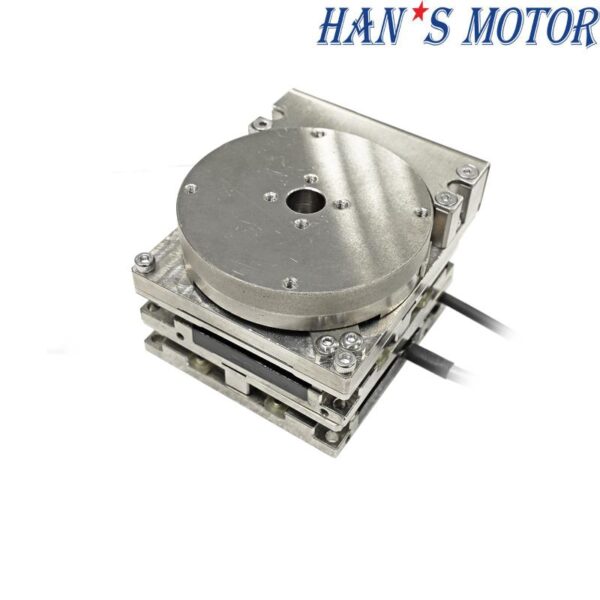

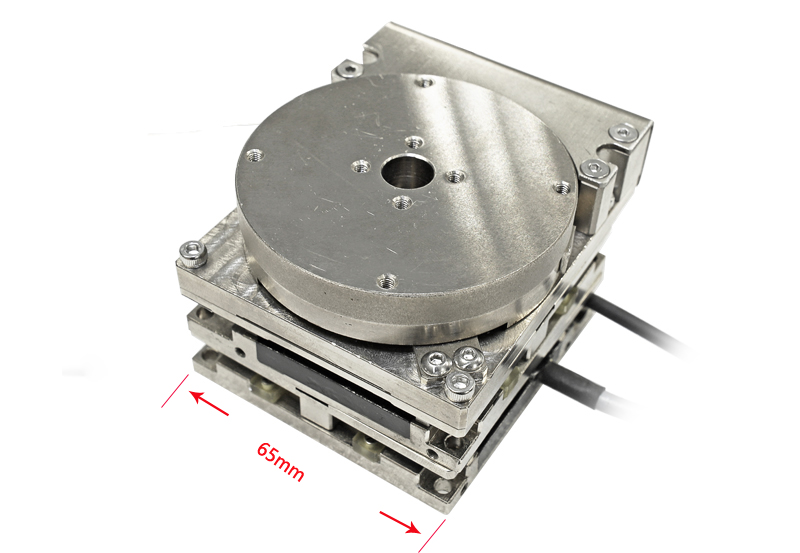

XY 3-Axis Micro Linear Motion System
This system delivers coordinated XY three-axis motion in a compact form. Designed with micro linear motors for high accuracy and fast response. It supports synchronized multi-axis motion in micro-assembly and semiconductor processes. Offers low noise and minimal heat generation. Easily integrated into cleanroom and lab automation environments.
Brand:
Order(MOQ):
1
Product Detail
Characteristic:
Industry manufacturers choose linear stgae for the following reasons:
1, high speed, high acceleration and deceleration, high precision, greatly improve production efficiency and production quality;
2, the moving parts mainly adopt direct drive system, with high speed and high precision;
3. the stage adopts complex multi-axis synchronous control with strong mechanical coupling;
4, product reliability and stability, long time trouble-free operation;
Stage Specifications
| Model： | LMA65-10-10-T-XXX–A | |
| G01 | Grating feedback, resolution: 0.1μm | |
| G05 | Grating feedback, resolution: 0.5μm | |
| X aixs (lower aixs）specifications | ||
| Units | Value | |
| Continuous Force (Tmax） | N | 3.5 |
| Peak Force | N | 24.5 |
| Continuous Current (Tmax） | Arms | 0.6 |
| Peak Current (1S) | Arms | 4.2 |
| Max. Load | kg | 2.4 |
| Effective Stroke | mm | 10 |
| Resolution | μm | 0.1 |
| Max.Speed（1） | mm/s | 270 |
| Repeat accuracy | μm | ±0.5 |
| Y aixs (upper aixs）specifications | ||
| Continuous Force (Tmax） | N | 3.5 |
| Peak Force | N | 24.5 |
| Continuous Current (Tmax） | Arms | 0.6 |
| Peak Current (1S) | Arms | 4.2 |
| Max. Load | kg | 2.4 |
| Effective Stroke | mm | 10 |
| Resolution | μm | 0.1 |
| Max.Speed（1） | mm/s | 270 |
| Repeat accuracy | μm | ±0.5 |
| T aixs (rotation aixs）specifications | ||
| Continuous Force (25℃，±5%） | Nm | 0.062 |
| Peak Force | Nm | 0.46 |
| Continuous Current (Tmax） | Arms | 0.6 |
| Peak Current (1S) | Arms | 4.5 |
| Max. Load | kg | / |
| Max.Speed | Rpm | 120 |
| Repeat accuracy | arc sec | ±2 |
| Stage weight | kg | 1 |
Working environment temperature and humidity | 0-40℃、20-80%RH | |

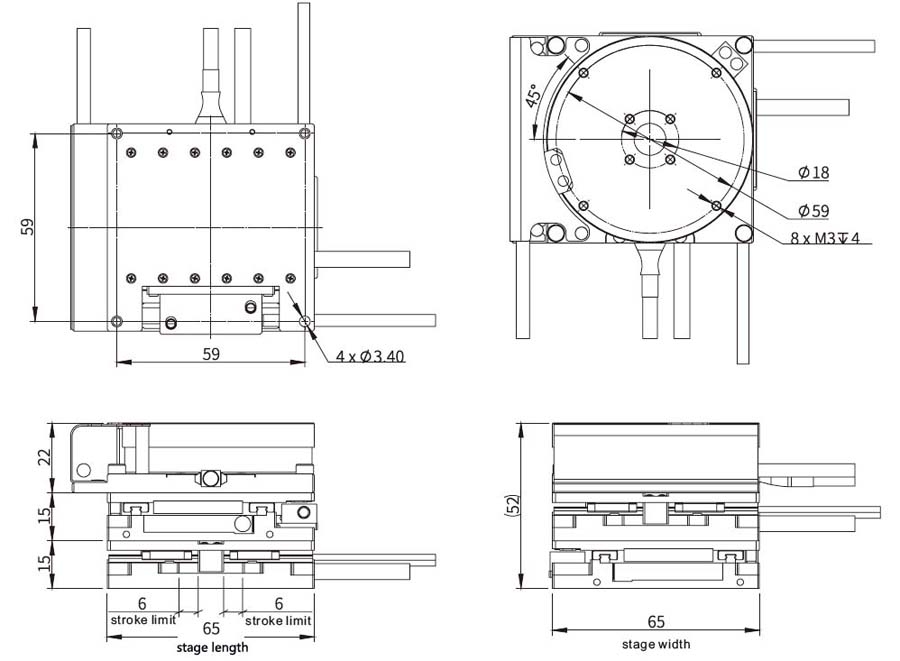

Installation dimensions
