Water Cooling Torque Motor

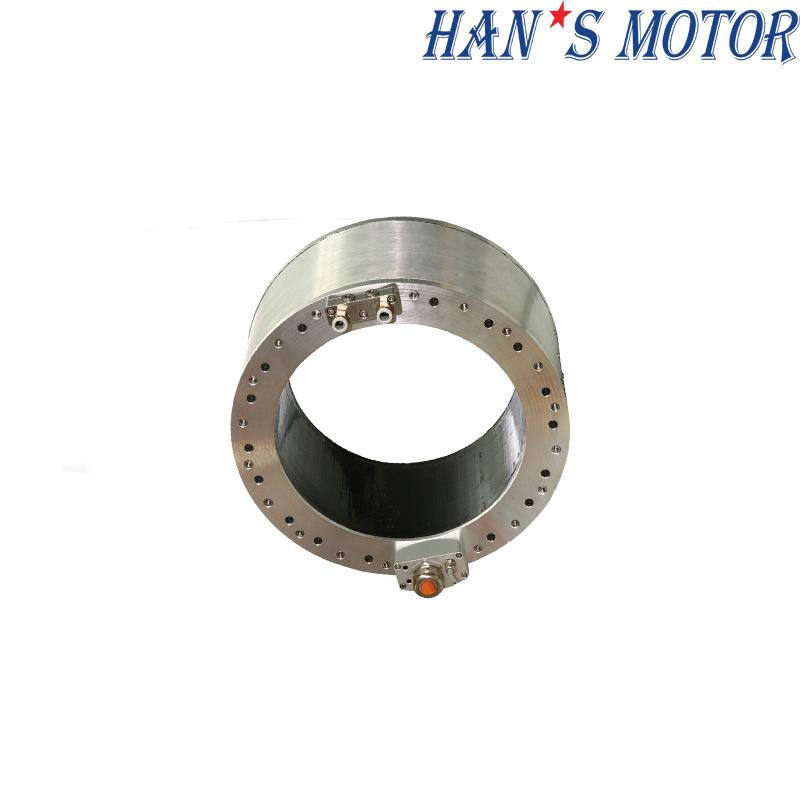

This water-cooled torque motor offers high continuous torque with effective thermal management. Designed for continuous duty operation, it features a frameless inner-rotor structure with low cogging and compact size. Ensures long-term stability in demanding industrial environments.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
| Torque Motor BI16 Series Specification | |||
| Motor Model No.：BI16-xxx-S-A-0-W | 003-S-A-0 | ||
| Performance Parameters | Symbol | Unit | |
| Pole pairs | p | — | 11 |
| Max.Working Bus Voltage | Vdc | V | 310 |
| Peak torque | Tp | Nm | 90 |
| Continuous torque (Water cooling) | Tcw | Nm | 30 |
| Continuous torque (Natural cooling) | Tc | Nm | 24.6 |
| Peak Current | Ip | Arms | 9.0 |
| Continuous current (Water cooling) | Icw | Arms | 2.7 |
| Continuous current ((Natural cooling) | Ic | Arms | 2.2 |
| Torque Constant | Kt | Nm/Arms | 11.2 |
| Back EMF Constant | Ke | Vrms/rad/s | 4.05 |
| Back EMF Constant | Ke | Vrms/(1000r/min) | 731 |
| Line Resistance | R | Ω | 16.8 |
| Line Inductance | L | mH | 40.2 |
| Max.speed,Tcw | Nmax,Tcw | rpm | 200 |
| Max.speed,Tc | Nmax,Tc | rpm | 180 |
| Max.speed,Tp | Nmax,Tp | rpm | 50 |
| Max.speed,0 | Nmax | rpm | 300 |
| Power consumption, output Tcw | Plw | W | 184 |
| Power consumption, output Tc | Plc | W | 122 |
| Motor constant | Km | Nm/√W | 2.2 |
| Cooling water flow | dV/dt | L/min | 4 |
| Cooling water temperature difference setting | △θ | k | 5 |
| Rated winding temperature | θ | ℃ | 120 |
| Motor Mass | Ms | Kg | 3.58 |
| Rotor Mass | Mr | Kg | 1.37 |
| Rotor Moment of Inertia | Jm | Kg*m2 | 0.0050 |
| Cable length (Can be extended optional) | L | M | 0.5 |
| Cable Minimum bending radius | R | mm | 37.5 |

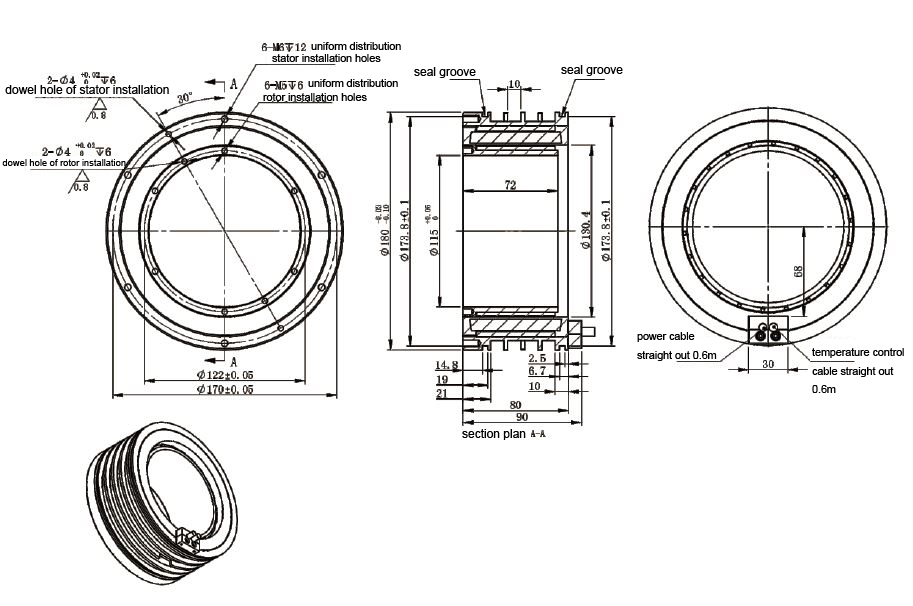

Dimension
| Model | Center Hole(mm) | Outer Diameter | Height/mm | Spec. | Continuous torque/Nm | Peak torque/Nm |
| BI16 (water cooling) | 115 | 180 | 90 | BI16-003 | 30 | 90 |
