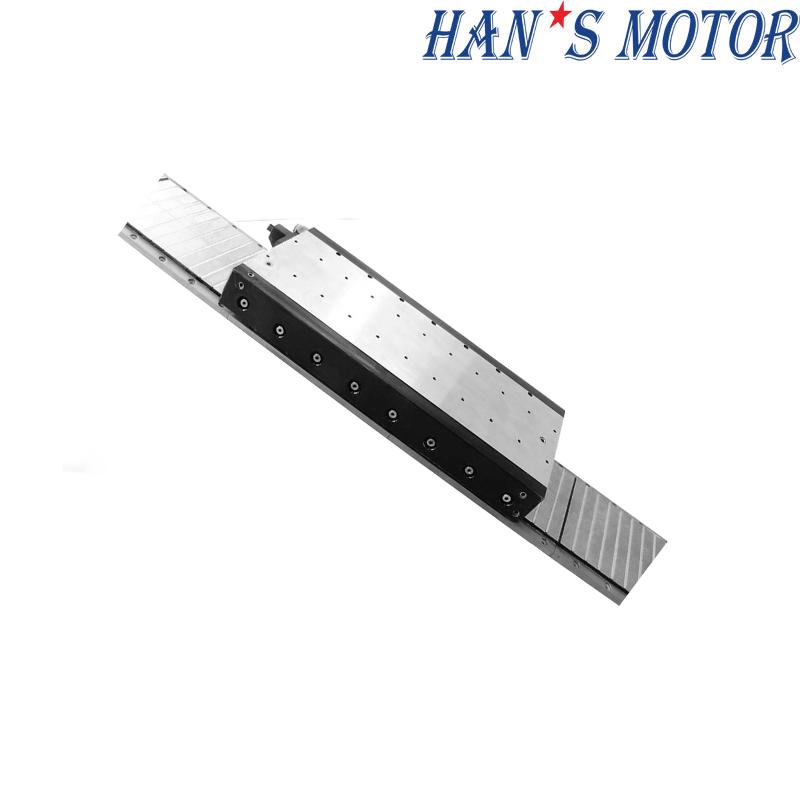

Water-Cooled High-Thrust Linear Motor
Equipped with a water cooling system, this iron core linear motor offers strong thrust capacity and stable operation. The design minimizes thermal deformation for long-cycle tasks. Built for enhanced force delivery in compact mechanical systems.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec.：LSMF610xxxx-x-H-WC | 201B-S | 401C-P | ||
| PERFORMANCE PARAMETERS | Symbol | Units | ||
| Continuous Force (Tmax） | Fc | N | 1000 | 2000 |
| Peak Force | Fp | N | 2600 | 5100 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 54.7 | 73.8 |
| Max.Continuous Power Dissipation | Pc | W | 459 | 1009 |
| Continuous Current (Tmax） | Ic | Arms | 7.2 | 9.9 |
| Peak Current (1S) | Ip | Arms | 18.5 | 26.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 143.0 | 208.0 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 47.7 | 69.3 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 4.3 | 5.0 |
| Inductance(25℃，±20%）P-P | L | mH | 52.5 | 57.0 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 47.6 | 47.6 |
| Minimum flow of cold water | Wmin | L/min | 4.5 | 4.5 |
| Temperature difference between inlet and outlet | △T | ℃ | 5.1 | 5.1 |
| Pressure drop (stator loop series) | △P | Bar | 0.7 | 0.7 |
| Magnetic Attraction | Fa | kN | 4.7 | 9.4 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 3.6 | 2.3 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 2.2 | 1.2 | |
| Vmax,0@Vbus=310Vdc | m/s | 4.5 | 3.1 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 2.2 | 1.4 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 1.2 | 0.5 | |
| Vmax,0@Vbus=537Vdc | m/s | 2.9 | 2.0 | |
| Mover Mass | Mp | Kg | 9.5 | 18.0 |
| Stator Mass within unit length | Ms | Kg/m | 14.0 | 14.0 |

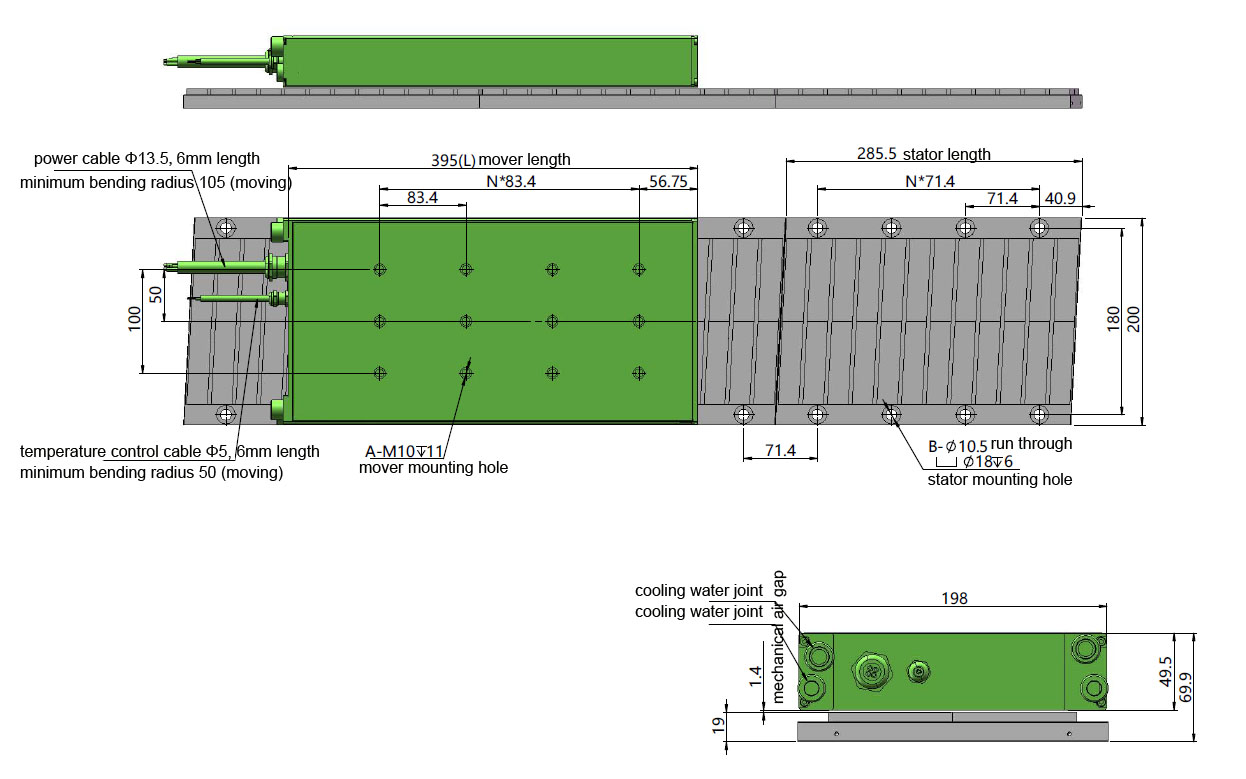

Dimension
| Mover Length | ||||
| Mover model | Mover length L | C | D | Mover mounting hole A |
| LSMF510201C-S-H-WC | 228 | 0 | 0 | 4 |
| LSMF510401C-S-H-WC | 407 | 95.3 | 83.4 | 8 |
Remarks: 1. Standard cable length is 6m, maximum outer diameter(d) of motor(201B) cable is d= 11.5mm, minimum bending radius within chain is 115mm; maximum outer diameter(d) of motor(401C) cable is d= 13.5mm, minimum bending radius within chain is 101.25mm. the length can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMF5201A | 285.5 | 3 | 8 |
| LSMF5203A | 142.8 | 1 | 4 |
Suitable for any mover of this series.
Advantages：
1. High efficiency: fast moving speed is more than 1 times higher than rotary servo motor.
2. Isolated cooling: proprietary cooling structure design, low temperature rise < 3K (degrees Celsius).
3. High protection grade: IP65 high protection grade, suitable for harsh environment.
4. High precision: ultra-high positioning accuracy, bidirectional repeatable positioning accuracy up to 1μm.
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
