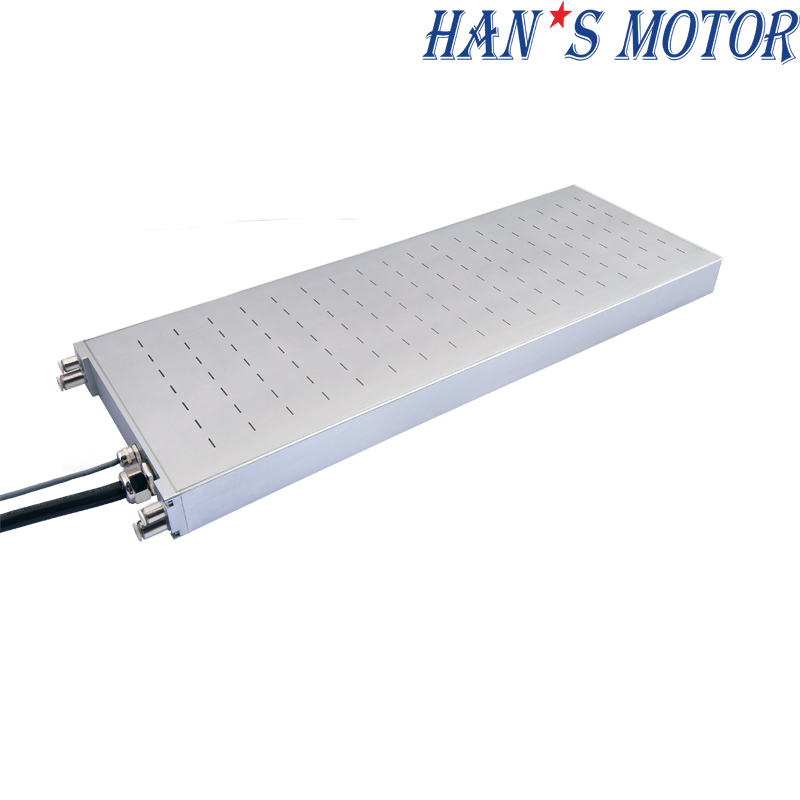

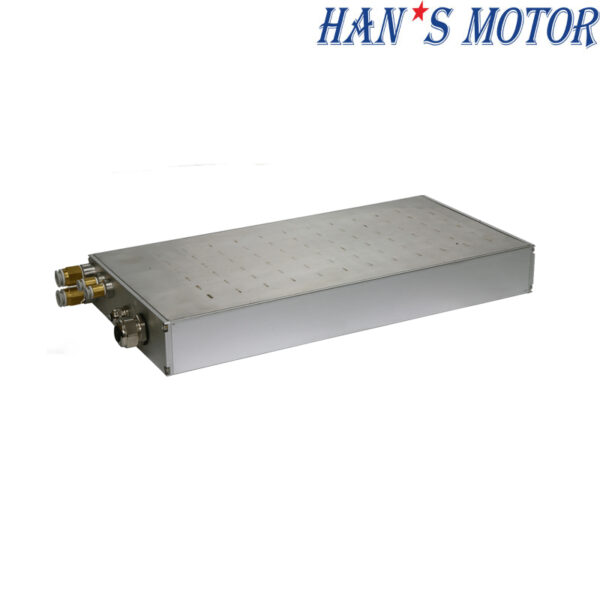

Water-Cooled 7800Nm high thrust Ironcore Linear Motor
Water-Cooled Ironcore Linear Motors feature high thrust density and efficient heat dissipation, enabling stable high-performance operation in demanding applications.
Brand:
Order(MOQ):
1
Product Detail
Feature:
1. High thrust density
Ironcore design delivers large continuous force 7800Nm.
2. Superior cooling performance
Integrated water-cooling significantly reduces temperature rise for stable long-term operation.
3. High dynamic response
Supports high speed, high acceleration, and frequent reciprocating motion.
4. Energy saving and low noise
Compared with air cooling, water cooling is more efficient and quieter, suitable for cleanroom environments.
5. Wide applicability
Maintains performance even under high power density or high temperature conditions.
Application:
These motors are widely used in semiconductor equipment, high-speed laser cutting machines, precision machine tools, and industrial automation systems, especially in high-speed handling scenarios that demand both stability and efficiency.
Specification
| Mover Spec.：LSMF610602C-P-H-WC | |||
| PERFORMANCE PARAMETERS | Symbol | Units | |
| Continuous Force (Tmax） | Fc | N | 4041 |
| Peak Force | Fp | N | 7800 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 106 |
| Max.Continuous Power Dissipation | Pc | W | 1994 |
| Continuous Current (Tmax） | Ic | Arms | 22 |
| Peak Current (1S) | Ip | Arms | 45 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 183.7 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 61.2 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 2 |
| Inductance(25℃，±20%）P-P | L | mH | 17 |
| Max Coil Temperature | Tmax | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 48 |
| Minimum flow of cold water | Wmin | L/min | 6.5 |
| Temperature difference between inlet and outlet | △T | ℃ | 7 |
| Pressure drop (stator loop series) | △P | Bar | 3 |
| Magnetic Attraction | Fa | kN | 18 |
| Max.DC Bus Voltage | Ubus | V | 600 |
| Vmax,Fc@Vbus=537Vdc | m/s | 2.8 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 2 | |
| Vmax,0@Vbus=537Vdc | m/s | 3.5 | |
| Vmax,Fc@Vbus=350Vdc | m/s | 1.7 | |
| Vmax,Fp@Vbus=350Vdc | m/s | 1.1 | |
| Vmax,0@Vbus=350Vdc | m/s | 2.3 | |
| Mover Mass | Mp | Kg | 32 |
| Stator Mass within unit length | Ms | Kg/m | 16.7 |
Dimension
| Mover Dimension | |||
| Mover Model | Mover Length L | M | Mover mounting hole A |
| LSMF610602C-P-H-WC | 619 | 11 | 24 |
Remarks:
1. Standard cable length is 6m, maximum outer diameter (d)of motor cable is d= 13.5mm , minimum bending radius within chain is 101.3mm, the length can be customized if there are special requirements;
2. Optional temperature sensor;
| Stator Dimension | |||
| Stator Model | Stator Length TL | N | Stator mounting hole B |
| LSMF4210A | 287.9 | 5 | 12 |
| LSMF4211A | 143.9 | 2 | 6 |
Suitable for any mover of this series, and stator installation mode can be selected
