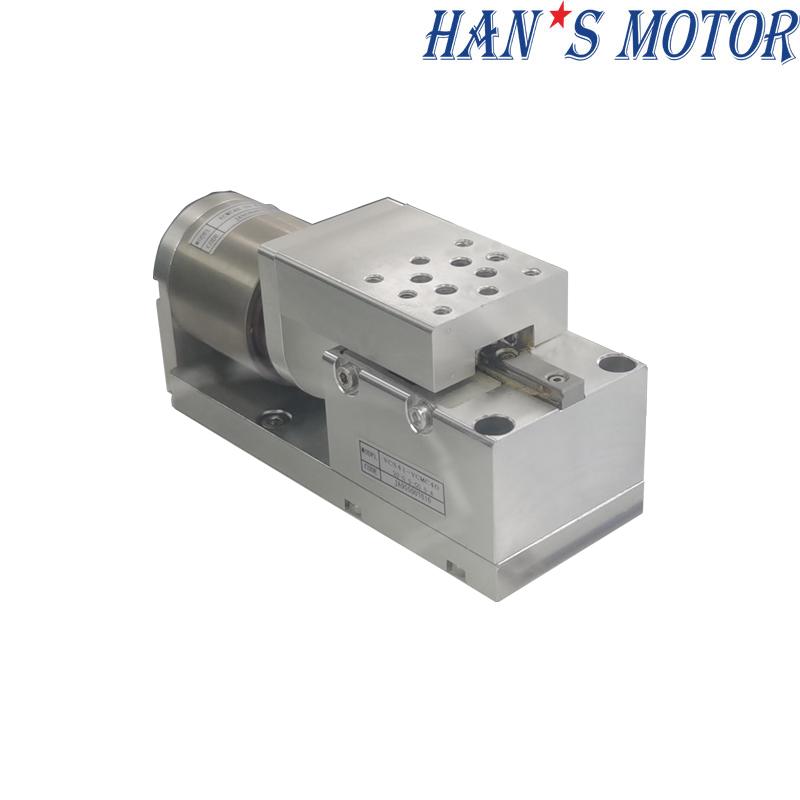

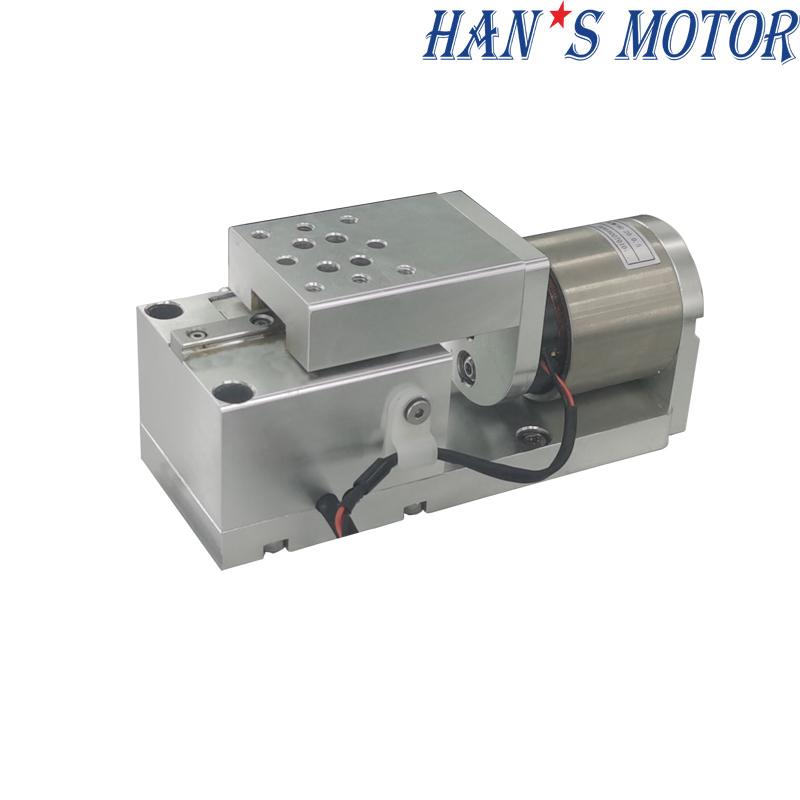

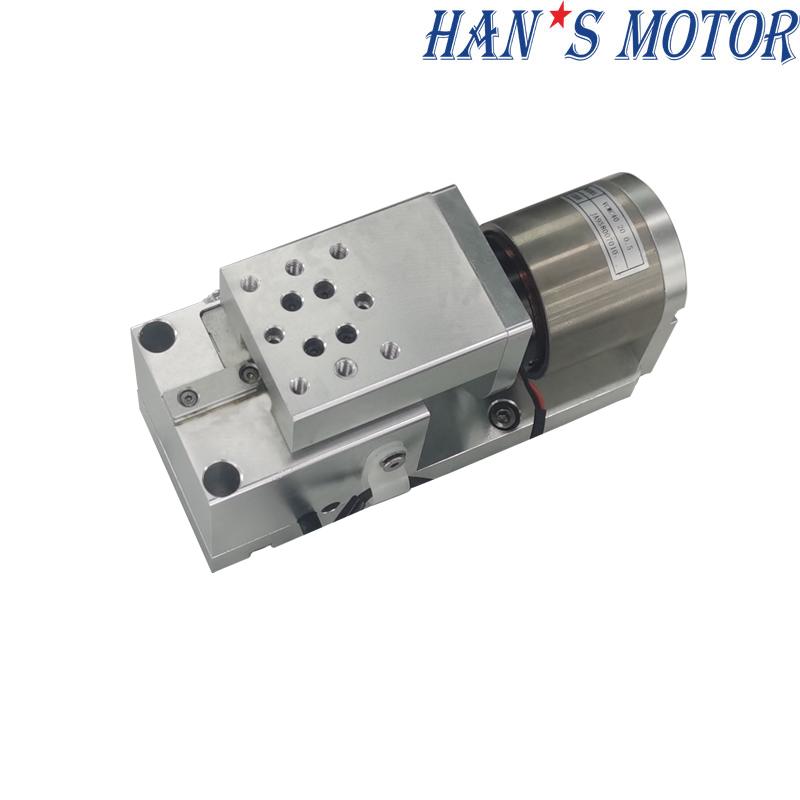

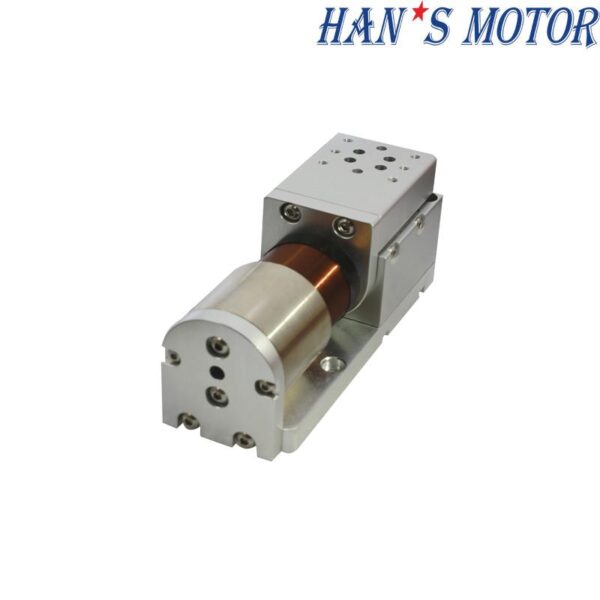

Voice Coil Linear Motor Stage
This voice coil linear motor stage provides precise force control and smooth linear movement. It is ideal for applications demanding ultra-fine positioning and vibration simulation. Compact structure and low noise enable reliable and quiet performance.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Motor model | VCS41-VCMC40-20-0.5-G0.5-B | ||
| PERFORMANCE PARAMETERS | Symbol | Units | |
| Stroke | S | mm | 20 |
| Continuous Force (Tmax） | Fc | N | 10 |
| Peak Force | Fp | N | 58 |
| Motor Constant | Km25 | N/Sqrt(W) | 4 |
| Max.Continuous Power Dissipation | Pc | W | 7.3 |
| Continuous Current | Ic | Arms | 0.8 |
| Peak Current (1S) | Ip | Arms | 4.5 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 12.9 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 12.9 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 12.3 |
| Inductance(25℃，±20%）P-P | L | mH | 5 |
| Max Coil Temperature | Tmax | ℃ | 120 |
| Mover Mass | Mp | Kg | 0.2 |
| Total Weight | M | Kg | 1 |
| Mechanical air gap | δ | mm | 1 |
| Straightness | μm | ±3μm/25mm | |
| Flatness | μm | ±3μm/25mm | |
| both-way Repeat positioning accuracy | μm | ±1.5μm | |

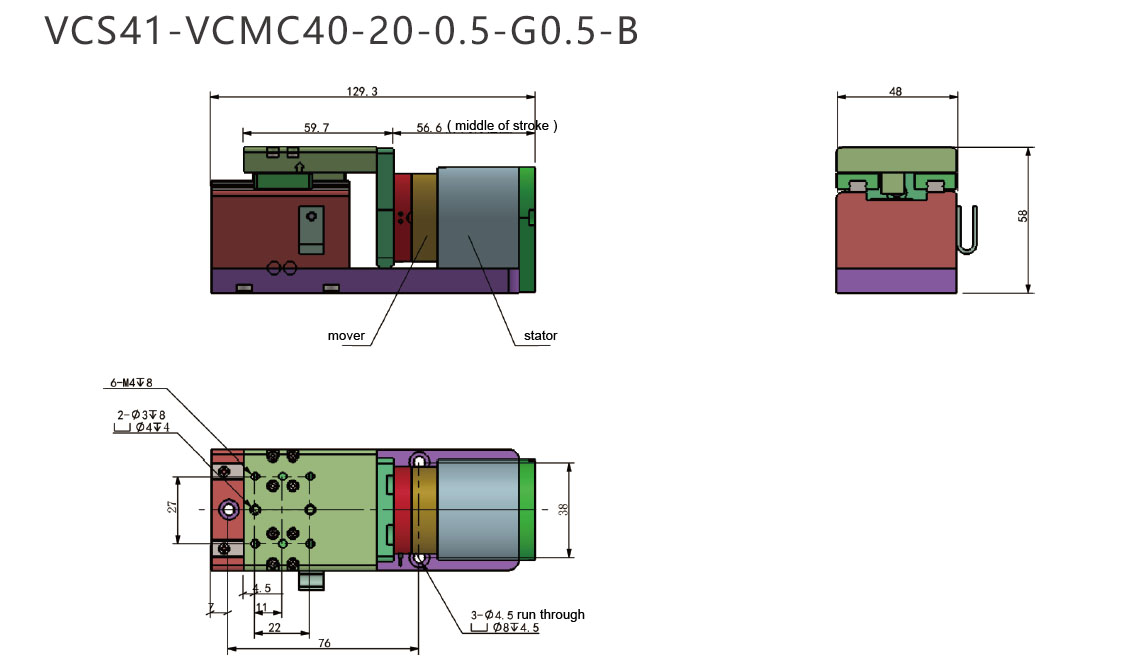

Dimension
The main application of voice coil motor stage:
1. Semiconductor industry: Wiring, cutting, drilling, welding etc.
2. Vibration System: Shaking table, vibration platform.
3. Micro Machine industry: Feed systems, micro drilling, precision stamping.
4. Medical field: Micro-injection system, respiratory equipment, testing equipment.
5. Control valve field: Type metering valves, pressure test systems, pneumatic valve chemistry injection system.
