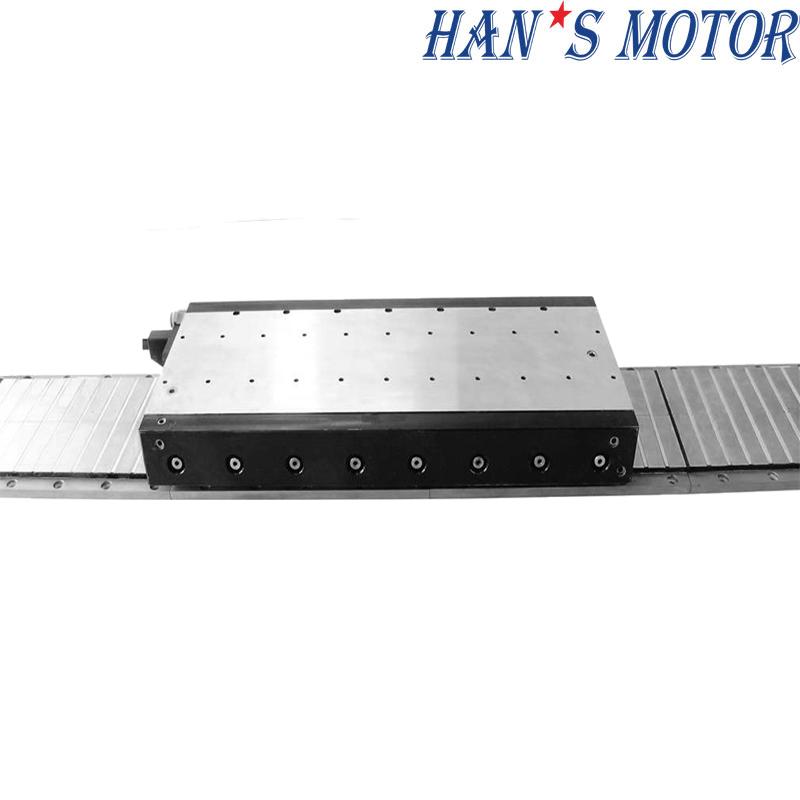

Ultra-Thin Iron Core Linear Motor
The LSMF1 Series ultra-thin iron core linear motor delivers high torque and precision in limited spaces. Designed for compact automation systems, it offers fast acceleration and excellent heat dissipation. Ideal for high-performance devices requiring slim motor profiles. Its efficient coil design supports reliable long-term use.
Brand:
Order(MOQ):
1
Product Detail
Advantages：
1. High efficiency: the moving speed is more than 1 times higher than servo motor.
2. Isolation cooling: Proprietary cooling structure design, low temperature rise < 3K (Celsius).
3. High protection level: IP65 high protection level, suitable for harsh environment.
4. High precision: ultra-high positioning accuracy, bidirectional repetitive positioning accuracy up to 1μm.
Specifications
| Mover Spec: LSMF110xxxx-x-H-NC | 101A-S | 203A-S | 302A-S | 302C-S | 401A-S | ||
| Performance Parameters | Symbol | Units | Series | Series | Series | Series | Series |
| Continuous Force (Tmax） | Fc | N | 115 | 230 | 340 | 340 | 453 |
| Peak Force | Fp | N | 230 | 460 | 680 | 680 | 900 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 19.8 | 27.7 | 33.3 | 31.9 | 38.3 |
| Max.Continuous Power Dissipation | Pc | W | 46 | 95 | 143 | 156 | 192 |
| Continuous Current (Tmax） | Ic | Arms | 3.2 | 3.2 | 3.2 | 5.4 | 3.2 |
| Peak Current (1S) | Ip | Arms | 6.4 | 6.4 | 6.4 | 11.0 | 6.4 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 36 | 71 | 107 | 62.8 | 142 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 12 | 24 | 36 | 20.9 | 47.5 |
| Resistance(25℃，±5%）P-P | R | Ω | 2.2 | 4.5 | 6.8 | 2.6 | 9.1 |
| Inductance(25℃，±20%）P-P | L | mH | 20 | 40 | 60 | 35 | 80 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 42 | 42 | 42 | 42 | 42 |
| Magnetic Attraction | Fa | kN | 0.7 | 1.4 | 2.0 | 2.0 | 2.7 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 9.3 | 4.5 | 2.8 | 4.6 | 2.0 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 7.6 | 3.5 | 2.1 | 3.1 | 1.4 | |
| Vmax,0@Vbus=310Vdc | m/s | 10.4 | 5.3 | 3.5 | 5.9 | 2.6 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 16.5 | 8.1 | 5.3 | 8.3 | 3.9 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 13.7 | 6.6 | 4.2 | 5.7 | 3.0 | |
| Vmax,0@Vbus=537Vdc | m/s | 18.1 | 9.2 | 6.1 | 10.4 | 4.6 | |
| Mover Mass | Mp | Kg | 1.5 | 3.1 | 4.4 | 4.4 | 5.7 |
| Stator Mass within unit length | Ms | Kg/m | 1.3 | 6.2 | 6.2 | 6.2 | 6.2 |

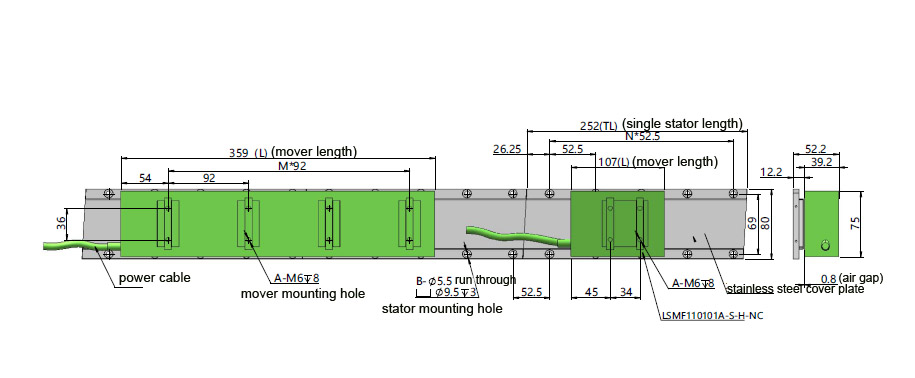

Dimension
| Mover Length | |||
| Mover model | Mover length L | M | Mover mounting hole A |
| LSMF110101A-S-H-NC | 107 | / | 4 |
| LSMF110203A-S-H-NC | 191 | 1 | 4 |
| LSMF110203B-S-H-NC | 191 | 1 | 4 |
| LSMF110302A-S-H-NC | 275 | 2 | 6 |
| LSMF110302B-S-H-NC | 275 | 2 | 6 |
| LSMF110302C-S-H-NC | 275 | 2 | 6 |
| LSMF110401A-S-H-NC | 359 | 3 | 6 |
| LSMF110101A-S-H-NC | 359 | 3 | 8 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*d, the moving minimum bending radius of chain is 5*d， the cable length and terminal can be customized.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMF1209A | 210 | 3 | 8 |
| LSMF1201A | 252 | 4 | 10 |
| LSMF1214A | 147 | 2 | |
| LSMF1215A | 105 | 1 | 6 |
Suitable for any mover of this series.
Application Cae：
Laser industry – cutting applications
Features: Laser cutting, can match with marble, ultra-high precision, vertical height.
HAN’S LASER Group
Our Company Show

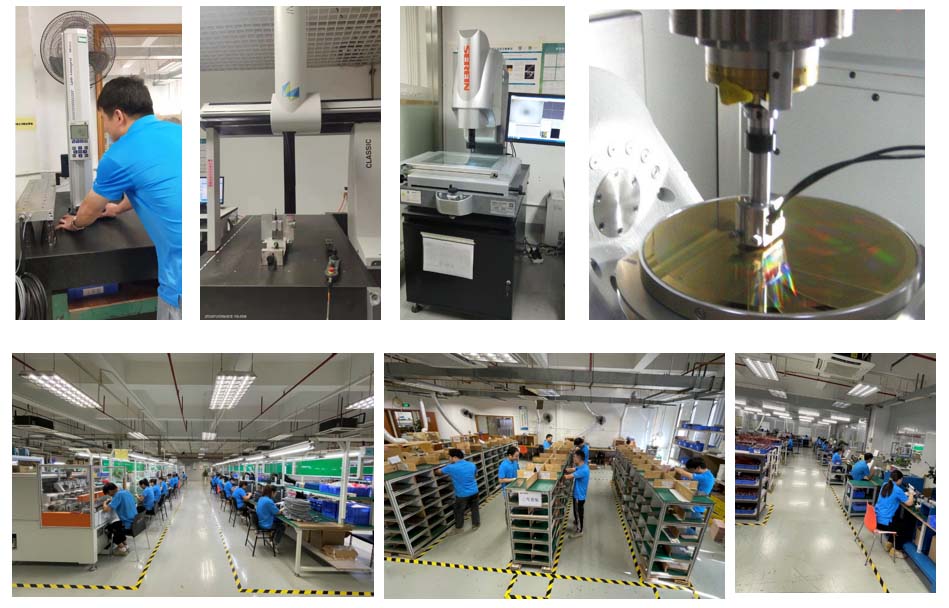

Production Line Show
Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
