Tubular Linear Motor

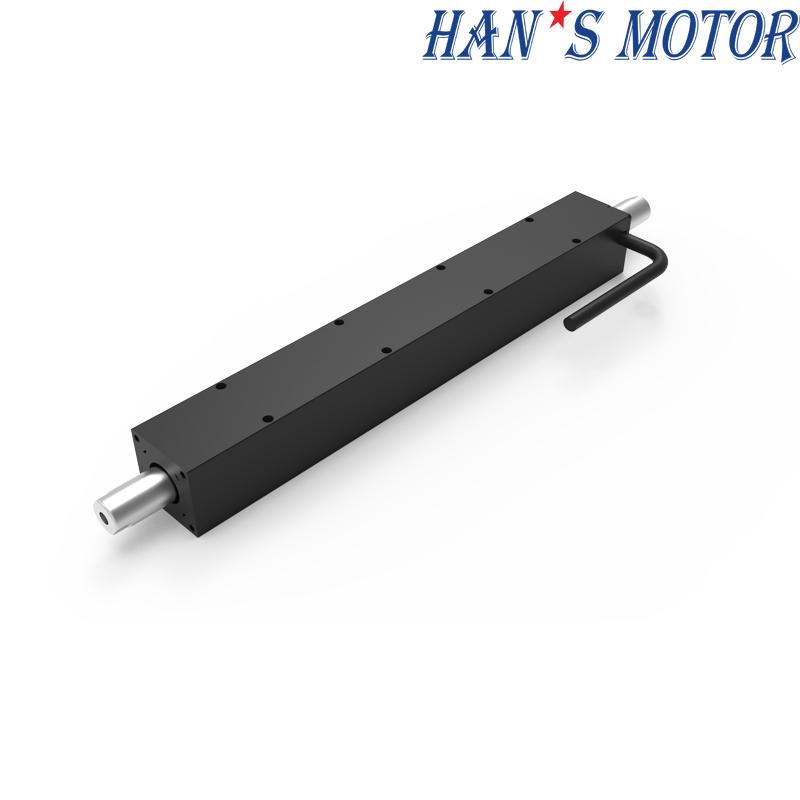

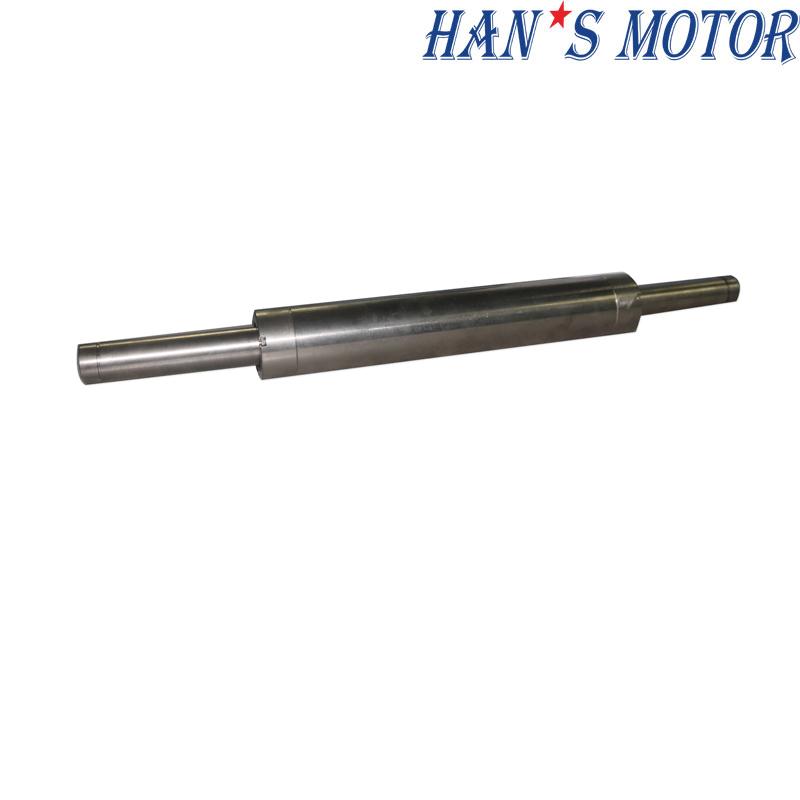

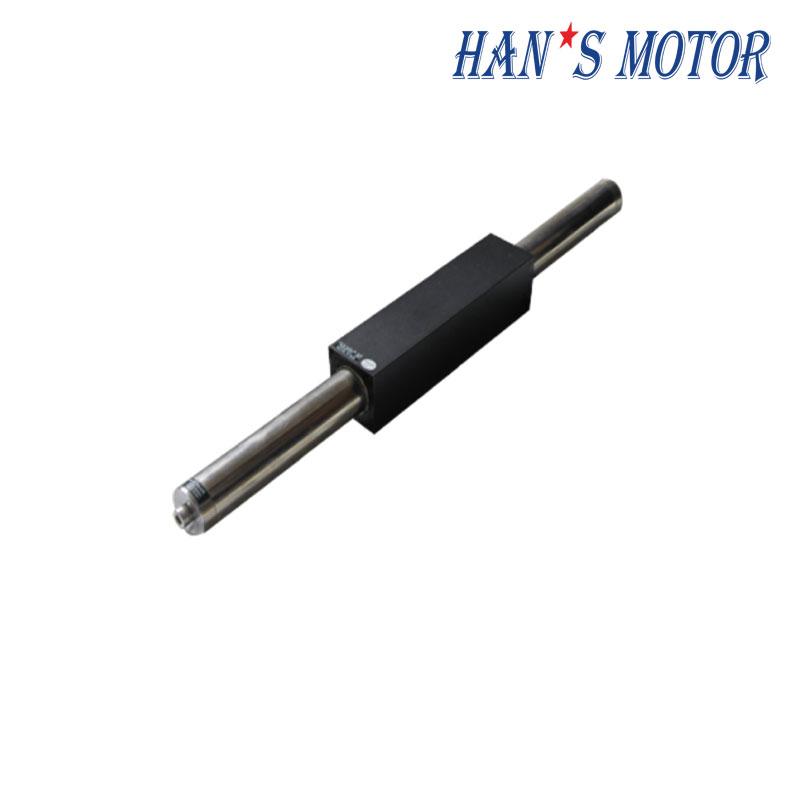

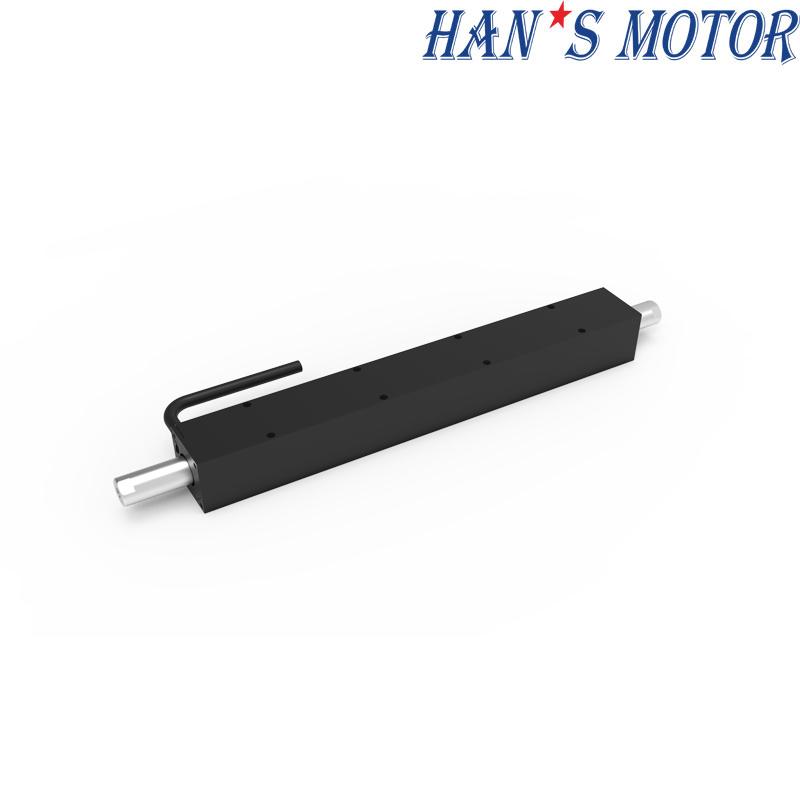

This LSMS27 enclosed tubular linear motor offers precise and smooth thrust performance with built-in protective casing. Designed for clean, fluid-sensitive environments, it supports accurate linear displacement. Low-friction motion ensures stable long-term reliability.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec.：LSMSS01-27-xxx-xx | 96-01 | 96-02 | 192-01 | ||
| PERFORMANCE PARAMETERS | Symbol | Units | |||
| Continuous Force (Tmax） | Fc | N | 13 | 12 | 26 |
| Peak Force (1S） | Fp | N | 52 | 48 | 104 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 2.9 | 3.2 | 4.3 |
| Max.Continuous Power Dissipation | Pc | W | 27 | 19 | 50 |
| Continuous Current (Tmax） | Ic | Arms | 2.4 | 0.7 | 2.4 |
| Peak Current (1S) | Ip | Arms | 9.6 | 2.8 | 9.6 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 5.5 | 17.0 | 11.0 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 1.8 | 5.7 | 3.7 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 2.3 | 19.0 | 4.2 |
| Inductance(25℃，±20%）P-P | L | mH | 0.4 | 19.2 | 0.8 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 48 | 48 | 48 |
| Magnetic Attraction | Fa | kN | 0.0 | 0.0 | 0.0 |
| Max.DC Bus Voltage | Ubus | V | 330 | 330 | 330 |
| Vmax,Fc@Vbus=310Vdc | m/s | 66.3 | 20.2 | 32.3 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 59.5 | 13.8 | 26.3 | |
| Vmax,0@Vbus=310Vdc | m/s | 68.4 | 22.1 | 34.2 | |
| Mover Mass | Mp | Kg | 0.3 | 0.3 | 0.5 |
| Stator Mass within unit length | Ms | Kg/m | 0.2 | 0.2 | 0.2 |
Dimension
What is tubular linear motor？
A: the mover and stator are use closed cylindrical structure, no lateral edge effect. Hall sensor and circuit integrated in the mover, through signal feedback to achieve positioning. External position sensors can also be connected to achieve higher precision requirements.
Features:
1. Compact structure, smooth movement
2. High acceleration, maximum up to 10g
3. easy to maintenance, long service life
4. High repetition accuracy. The accuracy depends on the position detection element, with appropriate feedback device can up to sub-micron level
