Tubular Linear Motor

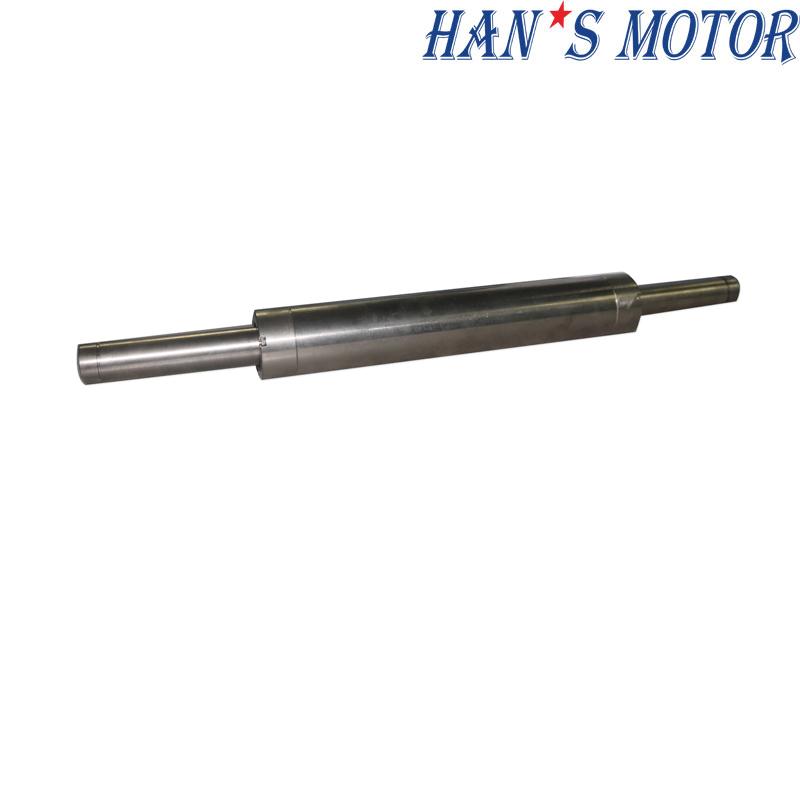

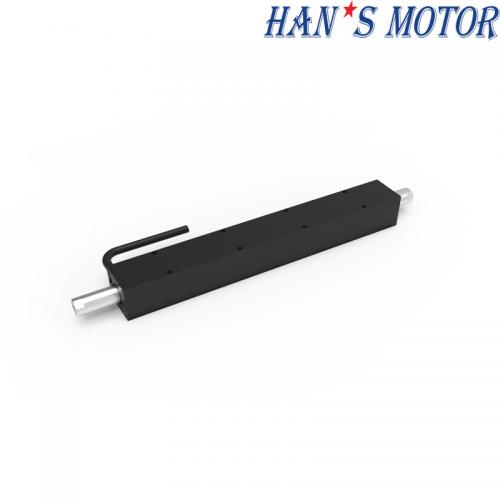

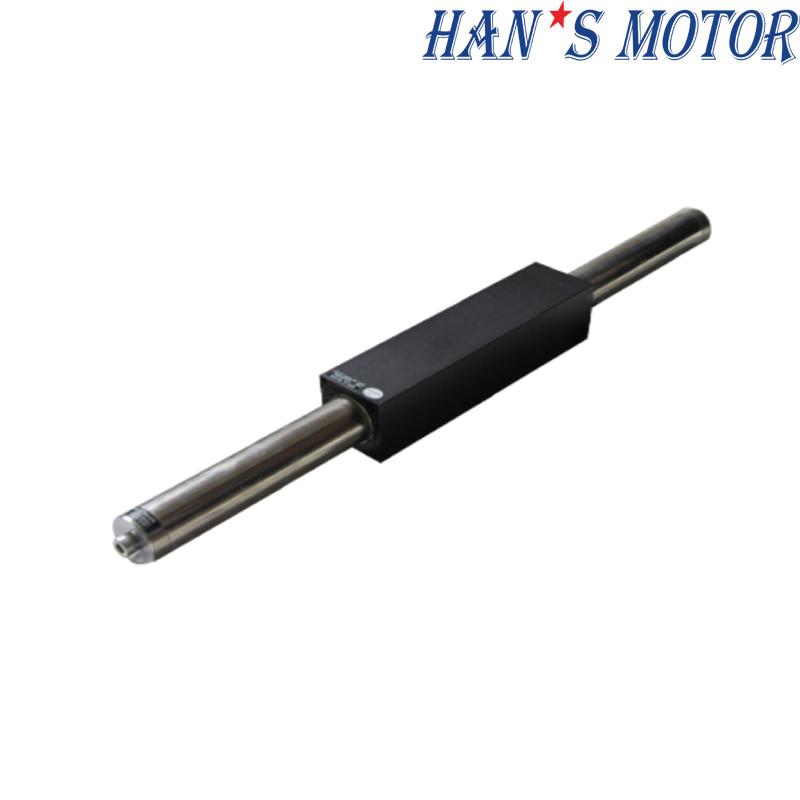

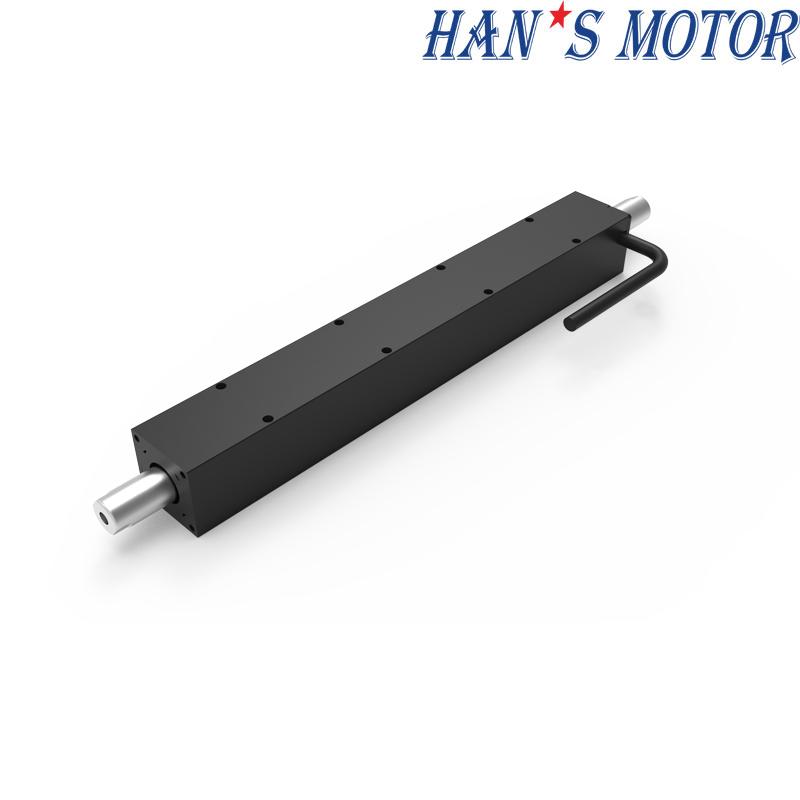

The LSMS38 tubular linear motor features a full magnetic seal for enhanced stability and dust protection. Its cylindrical compact structure ensures smooth and low-vibration operation. Suitable for long-life, closed-loop motion systems with minimal maintenance.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec.：LSMSS01-38-xxx-xx | 96-01 | 144-01 | 144-02 | 192-01 | ||
| PERFORMANCE PARAMETERS | Symbol | Units | ||||
| Continuous Force (Tmax） | Fc | N | 28 | 42 | 42 | 56 |
| Peak Force (1S） | Fp | N | 112 | 167 | 167 | 223 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 4.8 | 5.8 | 5.7 | 6.8 |
| Max.Continuous Power Dissipation | Pc | W | 48 | 72 | 75 | 93 |
| Continuous Current (Tmax） | Ic | Arms | 1.7 | 1.7 | 3.9 | 1.7 |
| Peak Current (1S) | Ip | Arms | 6.8 | 6.8 | 15.6 | 6.8 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 16.4 | 24.6 | 10.8 | 32.8 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 5.5 | 8.2 | 3.6 | 10.9 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 8.0 | 12.1 | 2.4 | 15.6 |
| Inductance(25℃，±20%）P-P | L | mH | 2.6 | 4.3 | 0.8 | 5.2 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 48 | 48 | 48 | 48 |
| Magnetic Attraction | Fa | kN | 0.0 | 0.0 | 0.0 | 0.0 |
| Max.DC Bus Voltage | Ubus | V | 330 | 330 | 330 | 330 |
| Vmax,Fc@Vbus=310Vdc | m/s | 21.2 | 13.5 | 33.0 | 9.7 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 15.7 | 8.1 | 27.0 | 4.6 | |
| Vmax,0@Vbus=310Vdc | m/s | 22.9 | 15.3 | 34.8 | 11.4 | |
| Mover Mass | Mp | Kg | 0.5 | 0.7 | 0.7 | 1.0 |
| Stator Mass within unit length | Ms | Kg/m | 0.5 | 0.5 | 0.5 | 0.5 |

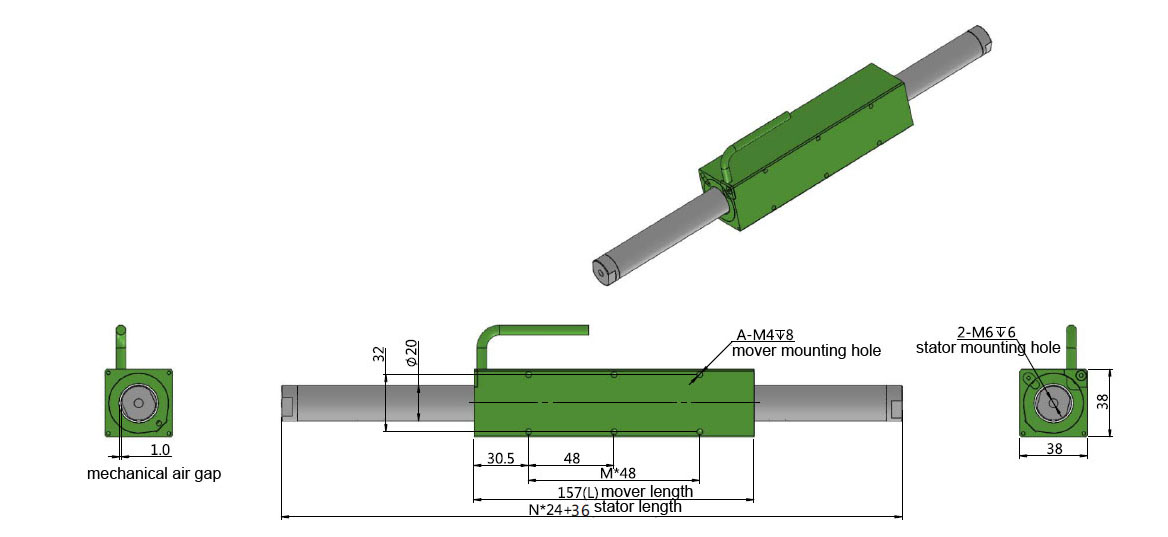

Dimension
What is tubular linear motor？
Tubular linear motor, the mover and stator are use closed cylindrical structure, no lateral edge effect. Hall sensor and the circuit integrated in the mover, do signal feedback to achieve positioning, compact structure. External position sensors can also be connected to achieve higher precision requirements.
Features: Compact structure, high protection grade, long service life, low cost, convenient maintenance, easy to achieve mass production.
Applications：It widely used in packaging, assembly, handling, semiconductor, electronics, automation, printing and other industries.
