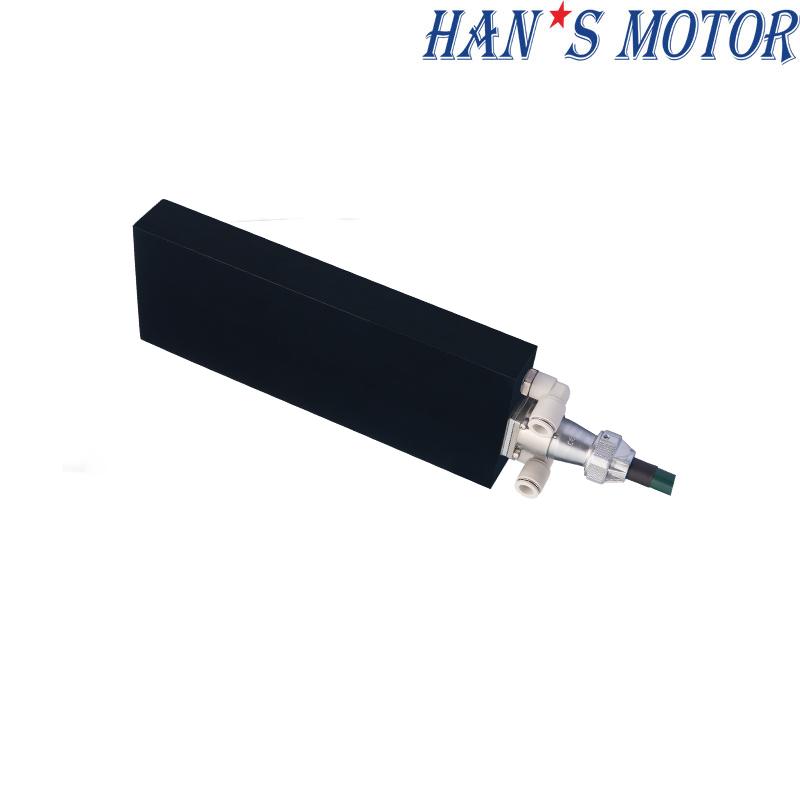

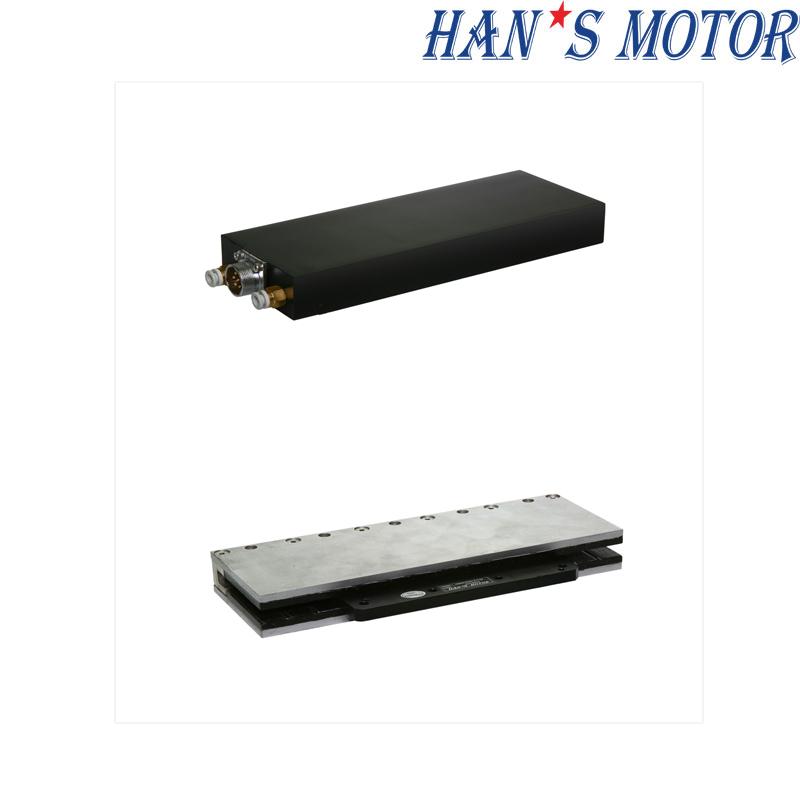

Synchronous Iron Core Linear Motor
The LSMFL-50 permanent synchronous linear motor is engineered for AOI and optical inspection systems. It offers high resolution and dynamic control with stable linear motion. Efficient design enables accurate positioning across a wide range of industrial applications. Ideal for semiconductor and panel inspection.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec: LSMF610xxxx-x-H-NC-N-C00.5 | 101G-S | 101A-S | 102G-S | 102A-S | 102G-P | 102A-P | 103G-P | 103A-P | 103B-P | 104A-P | 104B-P | ||
| Performance Parameters | Symbol | Units | Series | Series | Series | Series | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Continuous Force (Tmax） | Fc | N | 391 | 366 | 715 | 755 | 715 | 755 | 1475 | 1562 | 1562 | 1296 | 1280 |
| Peak Force | Fp | N | 926 | 896 | 1778 | 1836 | 1778 | 1836 | 3650 | 3767 | 3767 | 2981 | 2945 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 37.6 | 37.4 | 52.0 | 54.5 | 54.4 | 54.5 | 74.8 | 79.7 | 72.8 | 71.7 | 72.9 |
| Max.Continuous Power Dissipation | Pc | W | 148 | 132 | 259 | 264 | 237 | 262 | 534 | 527 | 633 | 448 | 424 |
| Continuous Current (Tmax） | Ic | Arms | 6.0 | 4.0 | 6.0 | 4.0 | 12.0 | 8.0 | 12.0 | 8.0 | 16.0 | 8.0 | 11.0 |
| Peak Current (1S) | Ip | Arms | 18.0 | 12.0 | 18.0 | 12.0 | 36.0 | 24.0 | 36.0 | 24.0 | 48.0 | 24.0 | 33.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 65.2 | 91.5 | 119.0 | 189.6 | 60.0 | 94.8 | 123.0 | 195.3 | 97.6 | 162.0 | 116.4 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 21.7 | 30.5 | 39.7 | 63.2 | 20.0 | 31.6 | 41.0 | 65.1 | 32.5 | 54.0 | 38.8 |
| Resistance(25℃，±5%）P-P | R | Ω | 2.0 | 4.0 | 3.5 | 8.0 | 0.9 | 2.0 | 1.8 | 4.0 | 1.2 | 3.5 | 1.8 |
| Inductance(25℃，±20%）P-P | L | mH | 28.0 | 63.0 | 50.0 | 126.0 | 12.0 | 32.0 | 25.0 | 64.0 | 16.0 | 64.8 | 29.3 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 |
| Magnetic Attraction | Fa | kN | 1.6 | 1.6 | 3.4 | 3.4 | 3.4 | 3.4 | 6.8 | 6.8 | 6.8 | 5.3 | 5.3 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 4.7 | 3.2 | 2.4 | 1.4 | 5.2 | 3.1 | 2.3 | 1.4 | 3.0 | 1.6 | 2.5 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 2.5 | 1.6 | 1.2 | 0.6 | 2.9 | 1.6 | 1.2 | 0.5 | 1.5 | 0.7 | 1.2 | |
| Vmax,0@Vbus=310Vdc | m/s | 5.7 | 4.1 | 3.1 | 1.9 | 6.2 | 3.9 | 3.0 | 1.9 | 3.8 | 2.3 | 3.2 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 8.4 | 5.8 | 4.5 | 2.7 | 9.3 | 5.6 | 4.3 | 2.6 | 5.4 | 3.0 | 4.5 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 4.7 | 3.1 | 2.4 | 1.3 | 5.4 | 3.0 | 2.4 | 1.3 | 2.9 | 1.4 | 2.3 | |
| Vmax,0@Vbus=537Vdc | m/s | 10.0 | 7.1 | 5.5 | 3.4 | 10.9 | 6.9 | 5.3 | 3.3 | 6.7 | 4.0 | 5.6 | |
| Mover Mass | Mp | Kg | 3.9 | 3.9 | 7.4 | 7.4 | 7.4 | 7.4 | 13.6 | 13.6 | 13.6 | 10.8 | 10.8 |
| Stator Mass within unit length | Ms | Kg/m | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |

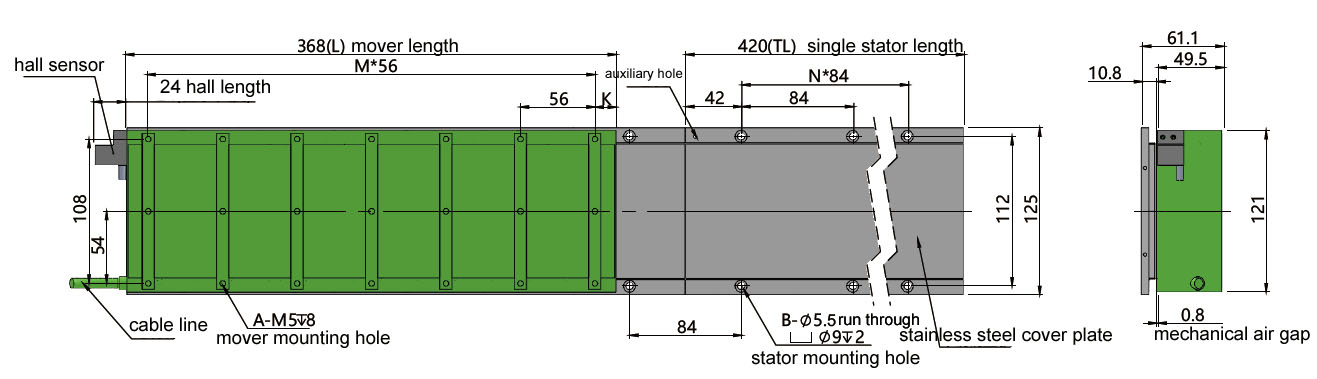

Dimension
| Mover Length | ||||
| Mover model | Mover length L | M | Mover mounting hole A | K |
| LSMF610101G-S-H-NC-N-C00.5 | 101 | 1 | 6 | 22.5 |
| LSMF610101A-S-H-NC-N-C00.5 | 101 | 1 | 6 | 22.5 |
| LSMF610102G-S-H-NC-N-C00.5 | 200 | 3 | 12 | 16 |
| LSMF610102A-S-H-NC-N-C00.5 | 200 | 3 | 12 | 16 |
| LSMF610102G-P-H-NC-N-C00.5 | 200 | 3 | 12 | 16 |
| LSMF610102A-P-H-NC-N-C00.5 | 200 | 3 | 12 | 16 |
| LSMF610103G-P-H-NC-N-C00.5 | 368 | 6 | 21 | 16 |
| LSMF610103A-P-H-NC-N-C00.5 | 368 | 6 | 21 | 16 |
| LSMF610104A-P-H-NC-N-C00.5 | 278 | 4 | 15 | 27 |
| LSMF610104B-P-H-NC-N-C00.5 | 278 | 4 | 15 | 27 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMF6201B | 168 | 1 | 4 |
| LSMF6202B | 252 | 2 | 6 |
| LSMF6203B | 420 | 4 | 10 |
Suitable for any mover of this series.
Advantages：
1. Fast speed, high acceleration
2. High accuracy, high rigidity, large thrust
3. No mechanical wear, long service life
4. Simple structure and high transmission efficiency
5. Low noise, quiet operation
