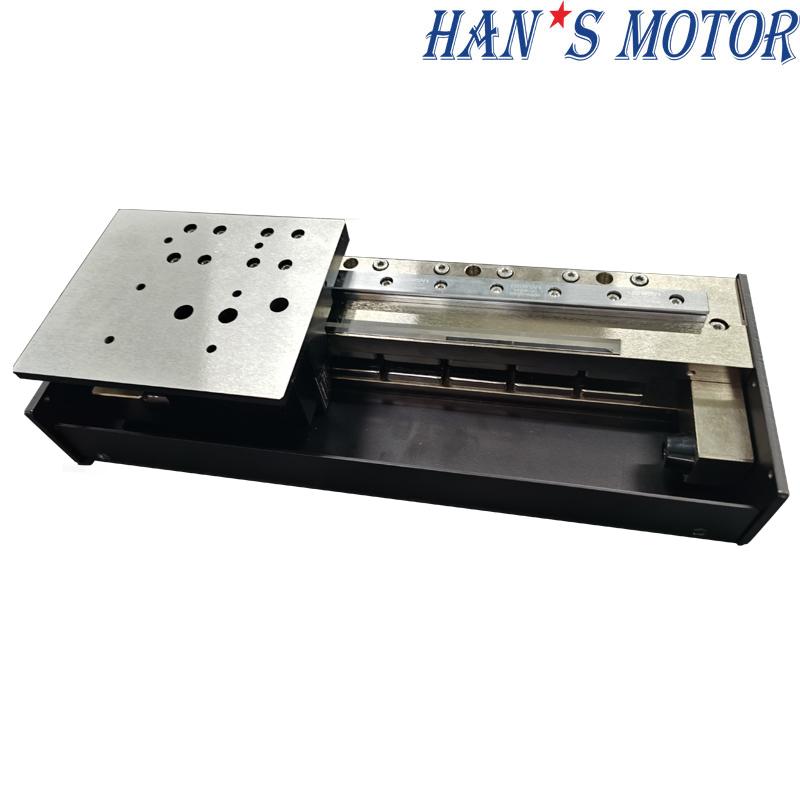

Square Slide Linear Motion Module
This linear motion module features a square slide unit with a modular profile stage. Certified with ISO9001, it ensures quality consistency and structural rigidity. The unit supports precision linear motion under medium to heavy loads. It is commonly used in automation systems, laser processing, and electronics manufacturing. Custom stroke lengths and mounting options are available.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
Motor Model/Parameter
| Motor Parameters | ||
| Performance | Unit | Data |
| Continuous Force (Tmax） | N | 120 |
| Peak Force | N | 900 |
| Max. Load | kg | 90 |
| Effective Stroke | mm | 100-2500 |
| Resolution | μm | 0.5 |
| Max.Speed（1） | mm/s | 2000 |
| Repeat accuracy | μm | ±1 |
| Weight | kg | 4.5 |
| Working environment temperature and humidity | 0-40℃、20-80%RH | |
Stage Performance Paramater
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 6 | 8 | 8 | 10 | 10 | 12 | 14 | 14 | 16 | 18 | 18 | 20 |
| N | 2 | 3 | 3 | 4 | 4 | 5 | 6 | 6 | 7 | 8 | 8 | 9 |
| Stage Total Length (mm) | 470 | 570 | 670 | 770 | 870 | 970 | 1070 | 1170 | 1270 | 1370 | 1470 | 1570 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached, so the specific speed should be communicated with the engineer

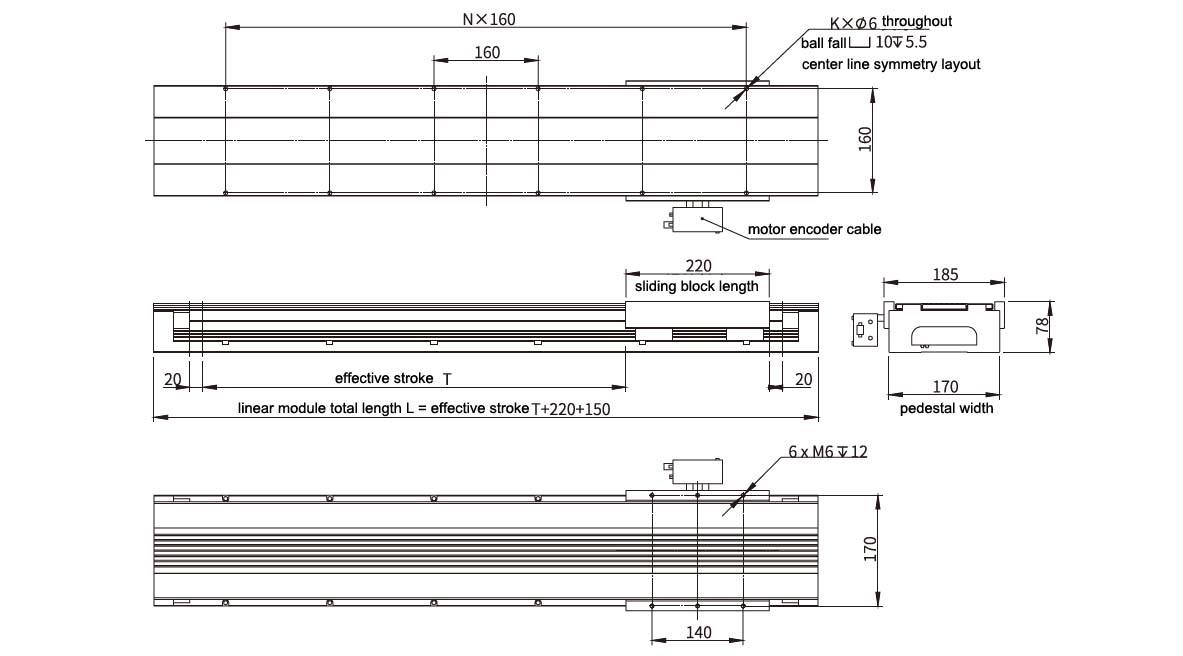

Dimension
Characteristics:
1.Linear bearings and guides provide low friction, smooth, accurate motion for nearly any moment or normal loading condition.
2.High positioning accuracy and repeat positioning accuracy by increasing the preload,
also the rigidity is greatly enhanced
3.Easy to measure the function of positioning accuracy, positioning repeatability and moving parallelism.
4.Professional processing and outstanding design, it shows the specialty of high precision and strong stiffness.
5.Superior materials selection and easy maintenance: Sand blasting and anodic oxidation on machine parts.
Dust-proof and moisture-proof which make the maintenance easily and increase the usage life greatly.
Why choose us?
Q1: What’s property of your company?
A: We are an integrated company specializing in manufacturing linear motors, DDR torque motors,
motor modules, motion stages, AC servo systems, variable frequency drives and so on.
And share the global marketing system of Han’s Group.
Q2: What about the technical design?
A: This linear motor motion stage is being developed continuously to respond to the market requirements while it is evaluated as excellent direct acting actuator and the results are built up as drive shaft of the automated production equipment.
Q3: How about your company’s quality control?
A: HAN’S motor has strong design with R&D capabilities, high production capabilities and excellent service team based on Quality Management System Certification.:ISO9001:2000
Applications:

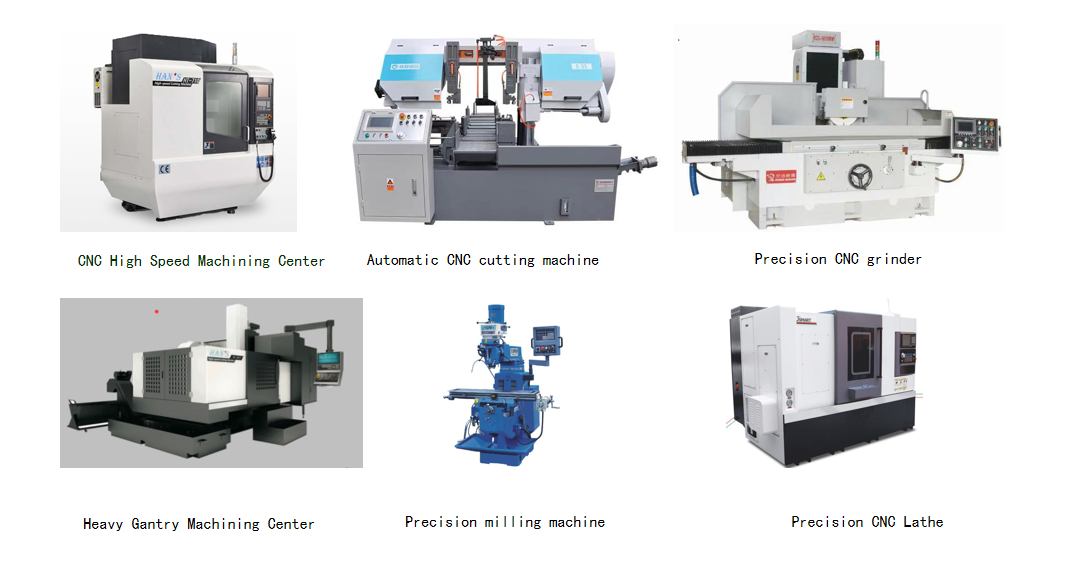

Mainly used in precision positioning, glue dispensing, rubber coating, painting, oil-spraying, handling & palletizing, grasping& moving, cutting & welding, CNC machining, automatic assembly, cleaning equipment etc.

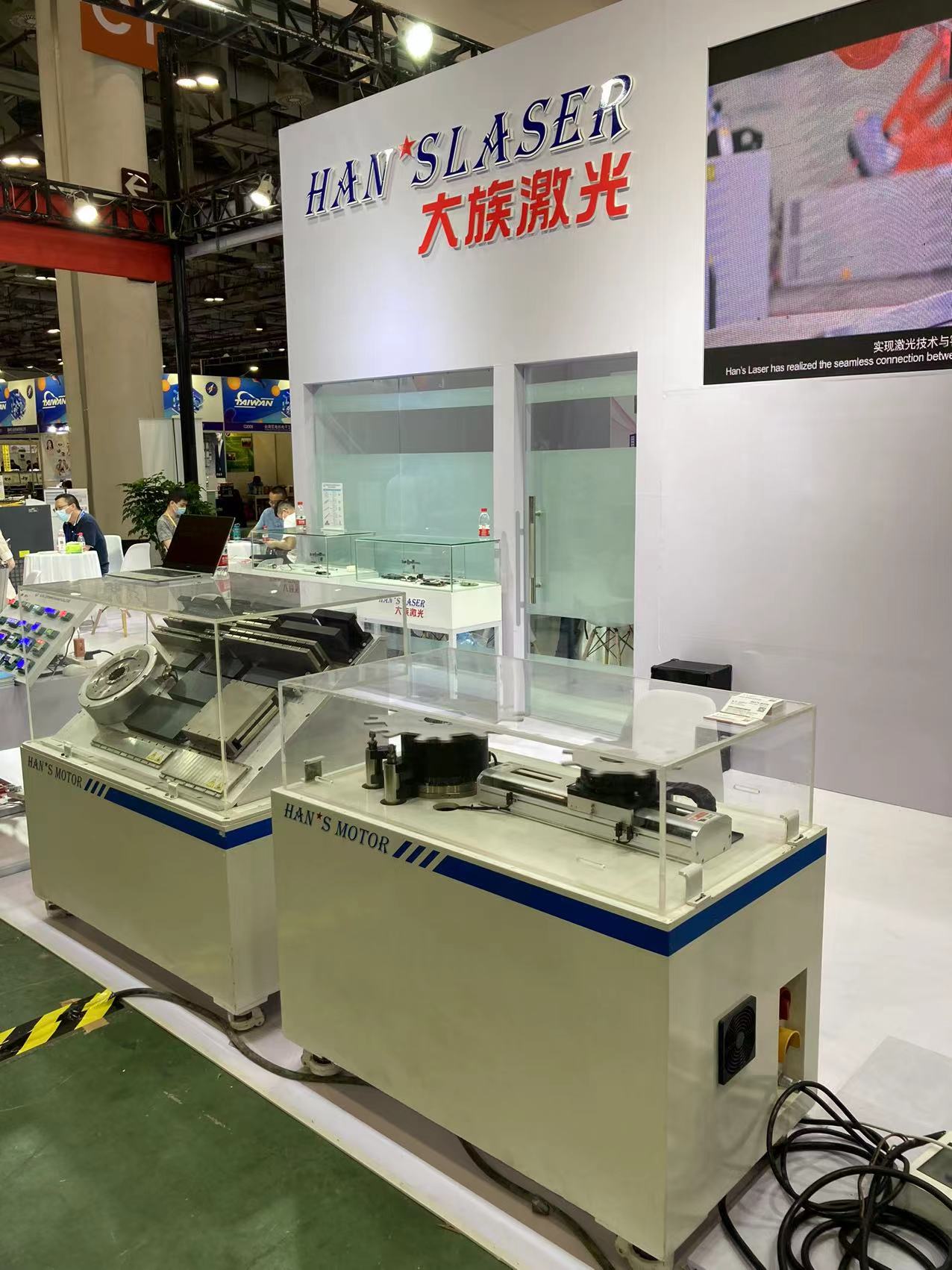

Exhibitions & Global Market Mapping:

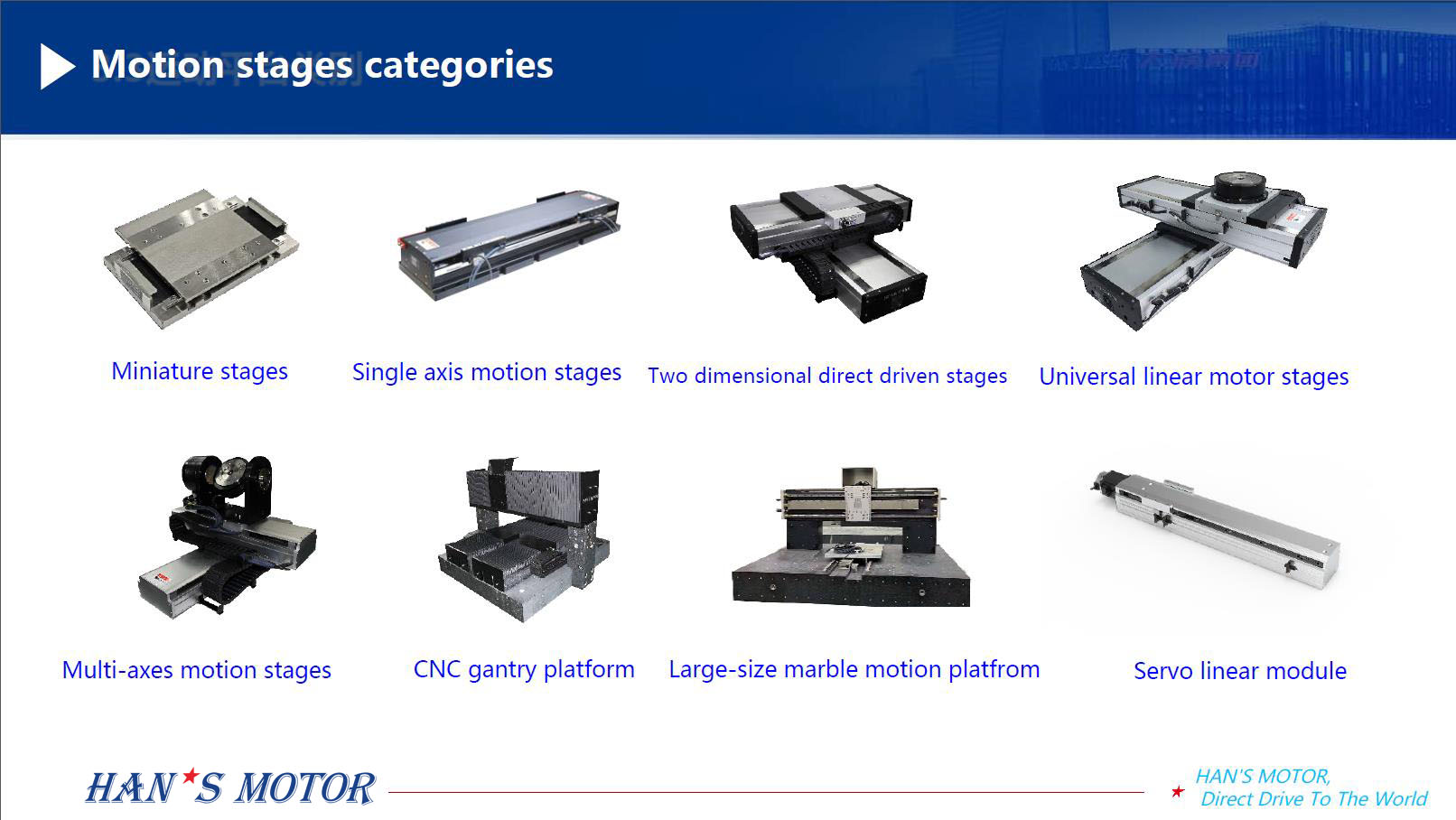

HAN’S MOTOR Motion Stages Products Series.:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
Sample
