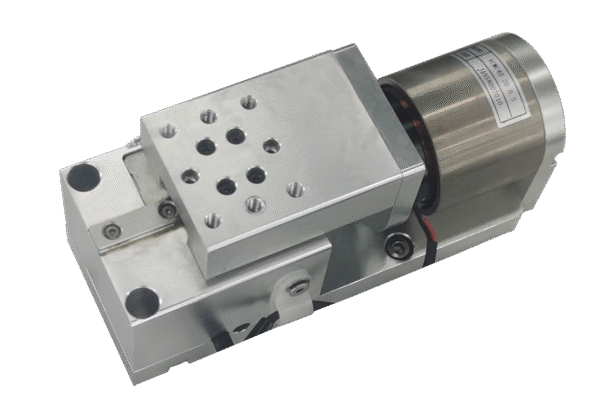

Specialized Linear Motor for Semiconductor Packaging Equipment
This linear motor is specially designed for semiconductor packaging equipment, featuring high precision, fast response, and stable performance to meet the demanding requirements of advanced packaging processes.
Brand:
Order(MOQ):
1
Product Detail
Feature:
1. High thrust density with compact structure
2. Excellent precision and dynamic response
3. Stable performance for long-term operation
4. Optimized for semiconductor packaging equipment
Application:
The motor is widely used in semiconductor packaging equipment, providing precise motion control, high-speed positioning, and reliable performance to support advanced packaging processes.
Specification
| Motor model | 301503A | 401002A | ||
| PERFORMANCE PARAMETERS | Symbol | Units | ||
| Stroke | S | mm | 2 | – |
| Continuous Force (Tmax） | Fc | N | 16 | 1 |
| Peak Force | Fp | N | 100.0 | 7.0 |
| Motor Constant | Km25 | N/Sqrt(W) | 5.5 | 0.9 |
| Max.Continuous Power Dissipation | Pc | W | 8.4 | 1.7 |
| Continuous Current | Ic | Arms | 1.5 | 0.5 |
| Peak Current (1S) | Ip | Arms | 9.0 | 2.8 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 11.0 | 2.5 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 11.0 | 2.5 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 2.7 | 5.1 |
| Inductance(25℃，±20%）P-P | L | mH | 2 | 3 |
| Max Coil Temperature | Tmax | ℃ | 120.0 | 120.0 |
| Mover Mass | Mp | Kg | 0.030 | 0.004 |
| Stator Mass | Ms | Kg | 0.050 | 0.010 |
| Stator Model | VCMF301503B | VCMF401002B | ||
Dimension
Sample
