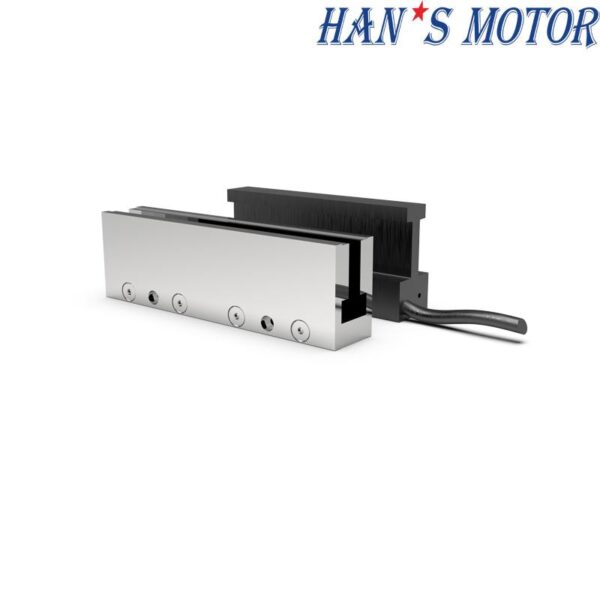

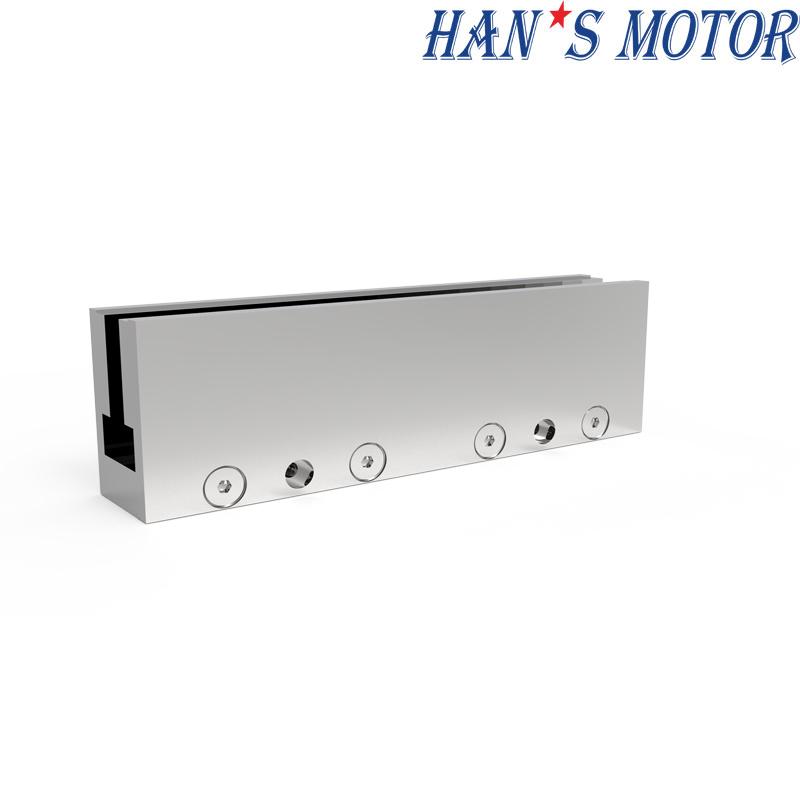

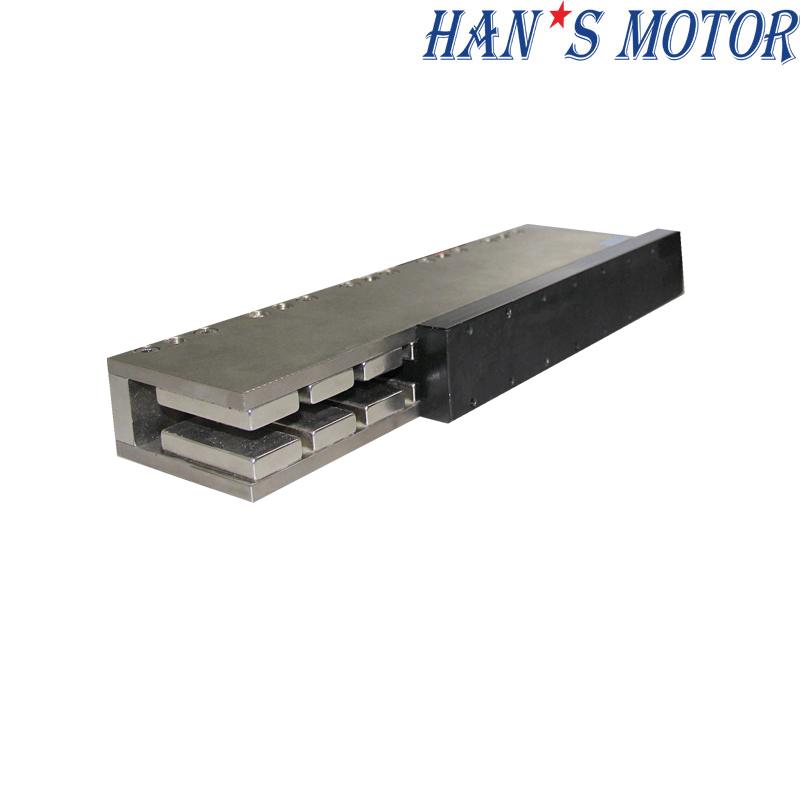

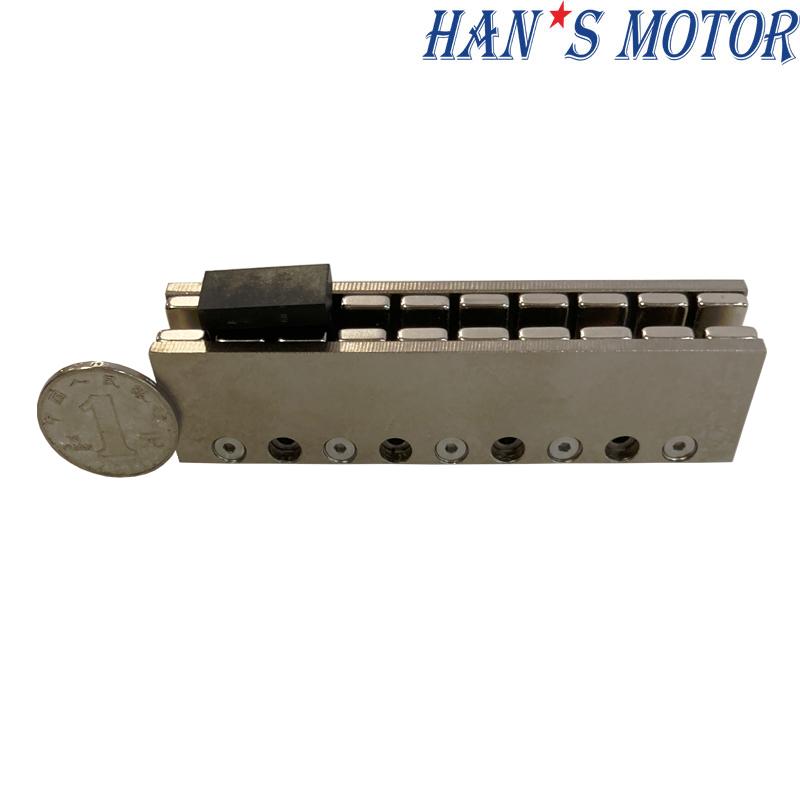

Small Ironless U-Type Linear Motor
This compact U-type LSMU4 linear motor is ideal for semiconductor equipment with limited installation space. Its slotless design provides high acceleration, zero cogging, and excellent thermal management. Suitable for precise wafer and optics positioning systems. Ensures durability and consistent operation in cleanroom conditions.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec: LSMU410xxxx-x-H-NC-N-D00.5 | 101A-S | 201A-S | 201A- P | 301A-S | 301A- P | 401A-S | 401A- P | 601A-S | 601B- P | ||
| Performance Parameters | Symbol | Unit | Series | Series | Parallel | Series | Parallel | Series | Parallel | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 36 | 72 | 72 | 108 | 108 | 144 | 144 | 216 | 216 |
| Peak Force | Fp | N | 144 | 288 | 288 | 432 | 432 | 576 | 576 | 864 | 864 |
| Motor Constant | Km25 | N//Sqrt (W) | 7.8 | 11.0 | 10.8 | 13.5 | 13.2 | 15.6 | 15.6 | 19.2 | 18.9 |
| Max.Continuous Power Dissipation | Pc | W | 29.4 | 58.8 | 61.0 | 88.2 | 91.5 | 116.6 | 117.7 | 174.3 | 178.7 |
| Continuous Current (Tmax） | Ic | Arms | 2.3 | 2.3 | 4.6 | 2.3 | 4.6 | 2.3 | 4.6 | 2.3 | 4.6 |
| Peak Current (1S) | Ip | Arms | 9.2 | 9.2 | 18.4 | 9.2 | 18.4 | 9.2 | 18.4 | 9.2 | 18.4 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 15.7 | 31.4 | 15.7 | 47.1 | 23.6 | 62.8 | 31.4 | 94.2 | 47.1 |
| Back EMF Constant (25℃，±5%） | Ke | Vrm/rad /s | 5.2 | 10.5 | 5.2 | 15.7 | 7.9 | 20.9 | 10.5 | 31.3 | 15.7 |
| Electrical Resistance (25℃，±5%）P-P | R | Ω | 2.7 | 5.4 | 1.4 | 8.1 | 2.1 | 10.7 | 2.7 | 16.0 | 4.1 |
| Inductance (25℃，±20%）P-P | L | mH | 2.0 | 4.0 | 1.0 | 6.0 | 1.5 | 8.0 | 2.0 | 12.0 | 3.0 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Magnetic Attraction | Fa | kN | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Max.DC Bus Voltage | Ubus | V | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 |
| Vmax,Fc@Vbus=310Vdc | Vmax,Fc | m/s | 23.1 | 11.1 | 23.1 | 7.1 | 15.0 | 5.1 | 11.1 | 3.1 | 7.1 |
| Vmax,Fp@Vbus=310Vdc | Vmax,Fp | m/s | 20.3 | 8.5 | 20.2 | 4.6 | 12.3 | 2.6 | 8.5 | 0.7 | 4.5 |
| Vmax,0@Vbus=310Vdc | Vmax,0 | m/s | 23.9 | 11.9 | 23.9 | 7.9 | 15.9 | 5.9 | 11.9 | 3.9 | 7.9 |
| Mover Mass | Mp | Kg | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 1.2 | 1.2 | 1.8 | 1.8 |
| Stator Mass within unit length | Ms | Kg/m | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |

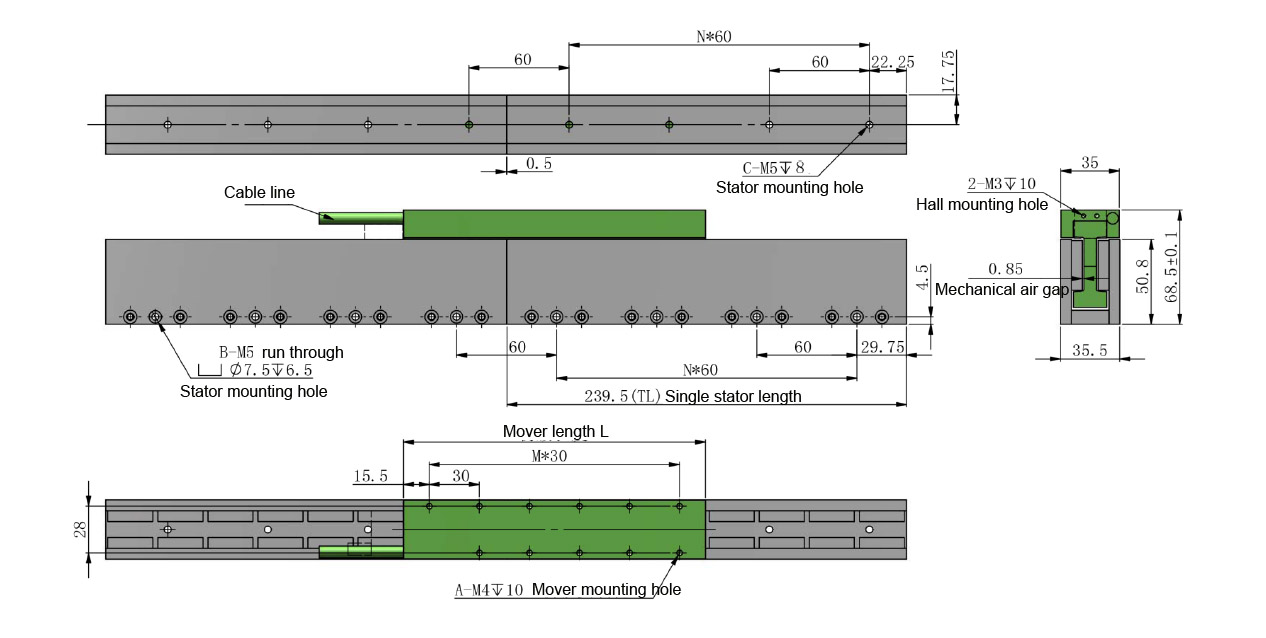

Dimension
| Mover Length | |||
| Mover model | Mover length L | M | Mover mounting hole A |
| LSMU410101A-S-H-NC-N-D00.5 | 61 | 1 | 3 |
| LSMU410201A-S-H-NC-N-D00.5 | 121 | 3 | 7 |
| LSMU410201A-P-H-NC-N-D00.5 | 7 | ||
| LSMU410301A-S-H-NC-N-D00.5 | 181 | 5 | 11 |
| LSMU410301A-P-H-NC-N-D00.5 | 11 | ||
| LSMU410401A-S-H-NC-N-D00.5 | 241 | 7 | 15 |
| LSMU410401A-P-H-NC-N-D00.5 | 15 | ||
| LSMU710601A-S-H-NC-N-D00.5 | 361 | 11 | 23 |
| LSMU710601A-P-H-NC-N-D00.5 | 23 | ||
Remark: 1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter d of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
2. optional temperature sensor.
| Stator Length | ||||
| Stator model | Stator length TL | N | Stator mounting hole B | Stator mounting hole C |
| LSMU4202A | 119.5 | 1 | 2 | 2 |
| LSMU4203A | 179.5 | 2 | 3 | 3 |
| LSMU4204A | 239.5 | 3 | 4 | 4 |
| LSMU4205A | 299.5 | 4 | 5 | 5 |
| LSMU4206A | 599.5 | 9 | 10 | 10 |
Suitable for any mover of series mover, stator installation mode can be selected.
Advantages:
1. No gravity, using balanced double magnetic track, safe and easy to operate.
2. No tooth groove effect, easy to keep movement more stable and maintain higher accuracy.
3. Motor stator can be connected, stroke can be extended indefinitely.
4. The absence of a core represents higher acceleration and deceleration.

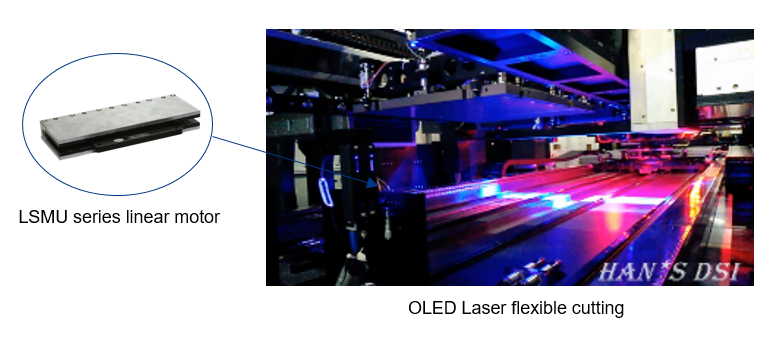

Application Case：Panel Industry
It is suitable for high precision, high straightness, low speed fluctuation, large stroke, good clean environment.
