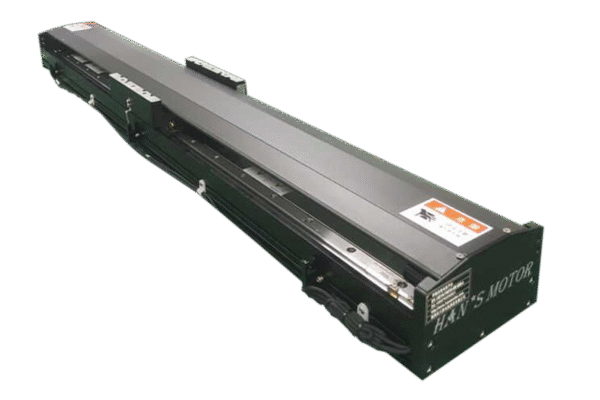

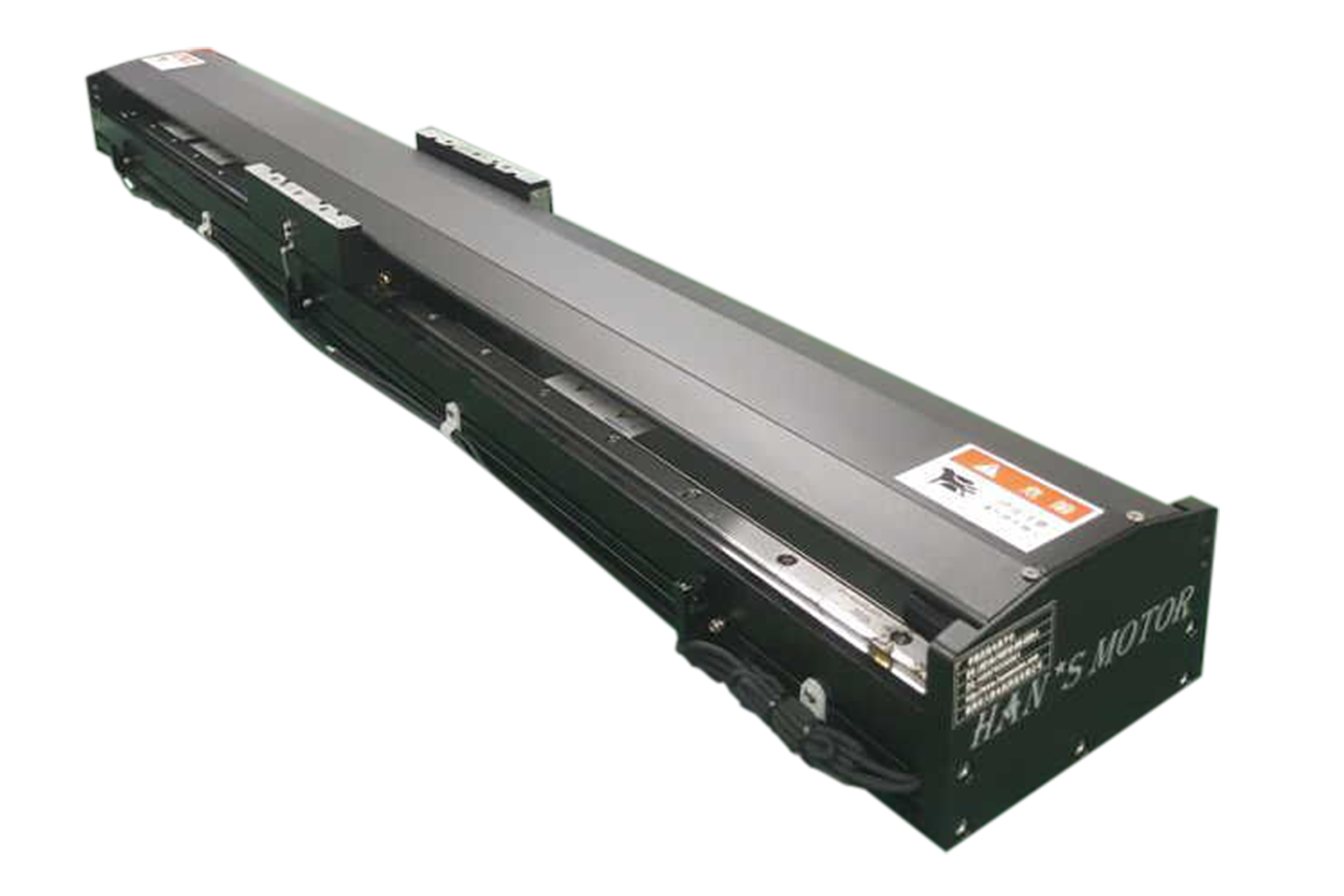

Single axis linear motor stage
The Single-Axis Linear Motor Stage delivers precise linear motion without the need for lead screws or belts. Driven by a contactless linear motor, it ensures zero backlash, high repeatability, and smooth operation. With high acceleration and speeds up to several meters per second, it is ideal for applications requiring high precision, rapid movement, and low-maintenance performance in industrial automation, robotics, and advanced manufacturing.
Brand:
Order(MOQ):
1
Product Detail
Feature:
1.LM135-FL11AS-1200-C10-A Single-Axis Linear Motor Stage with 135 mm aluminum base, ideal for small to medium load applications.
2.Flexible Multi-Axis Assembly: supports free assembly/disassembly for multi-axis configurations and synchronized motion applications.
3.Customizable Stroke Options: allows combination of stages with varying strokes to meet diverse precision automation needs.
4.Integrated Magnetic Encoder Feedback (Tsun) with high-rigidity precision Hiwin linear guide rails for accurate and stable motion.
5.Semi-Enclosed Protective Design: easy maintenance and safe operation.
6.High Repeatability & Long Stroke: ±2 µm repeatability within any 500 mm stroke, maximum stroke exceeding 4 meters.
7.48VDC Servotronix Driver for reliable and smooth high-speed operation.
Highlights：
· High-Precision Single-Axis Linear Motion: Provides repeatability up to ±2 µm and smooth contactless movement for high-accuracy applications.
· Long Stroke Capability: Supports strokes exceeding 4 meters, ideal for industrial automation and robotics requiring extended travel.
· Flexible Multi-Axis Configuration: Easily assemble or disassemble multiple stages for synchronized motion and customized layouts.
· Advanced Feedback & Guidance: Integrated Tsun magnetic encoder and high-rigidity Hiwin linear guides ensure stable, reliable motion control.
· Durable & Maintainable Design: Semi-enclosed structure allows easy maintenance while protecting components; compatible with 48VDC Servotronix driver for high-speed operation.
Application:
It is widely used in semiconductor manufacturing & packaging、precision electronics assembly、precision machining & metrology、life sciences & medical Devices、photovoltaic industry、kitchen and bathroom fixtures and scientific research.
Specification
| Stage Performance Indicators | ||
| Item | Unit | Value |
| Total length | mm | 1440 |
| Effective stroke | mm | 1200 |
| Repeat accuracy | μm | ±5 |
| Positioning Accuracy | mm | 0.5 |
| Load | kg | 12 |
| Maximum speed | m/s | 2 |
| Acceleration | m/s^2 | 3.5 |
| Others | Horizontal installation, black color,2m encoder cable and power cable, Sodron photoelectric switch (NPN) | |
| Linear Motor parameters | ||
| Motor model | Unit | LSMFL/101A-S |
| Continuous force | N | 59 |
| Peak force | N | 157 |
| Continuous current | Arms | 4 |
| Peak Current | Arms | 12 |
| Motor constant | N/√W | 11.5 |
| Force constant（25℃） | N/Arms | 14.8 |
| Back EMF constant（25℃） | (V/m/s) | 4.9 |
| Resistance (p-p)(25℃) | Ω | 1.1 |
| Inductance (p-p)(25℃) | mH | 4.5 |
| Max. coil allowable temperature | ℃ | 120 |
| Motor mover mass | kg | 0.9 |
| Polar distance | mm | 20 |
Product Structure

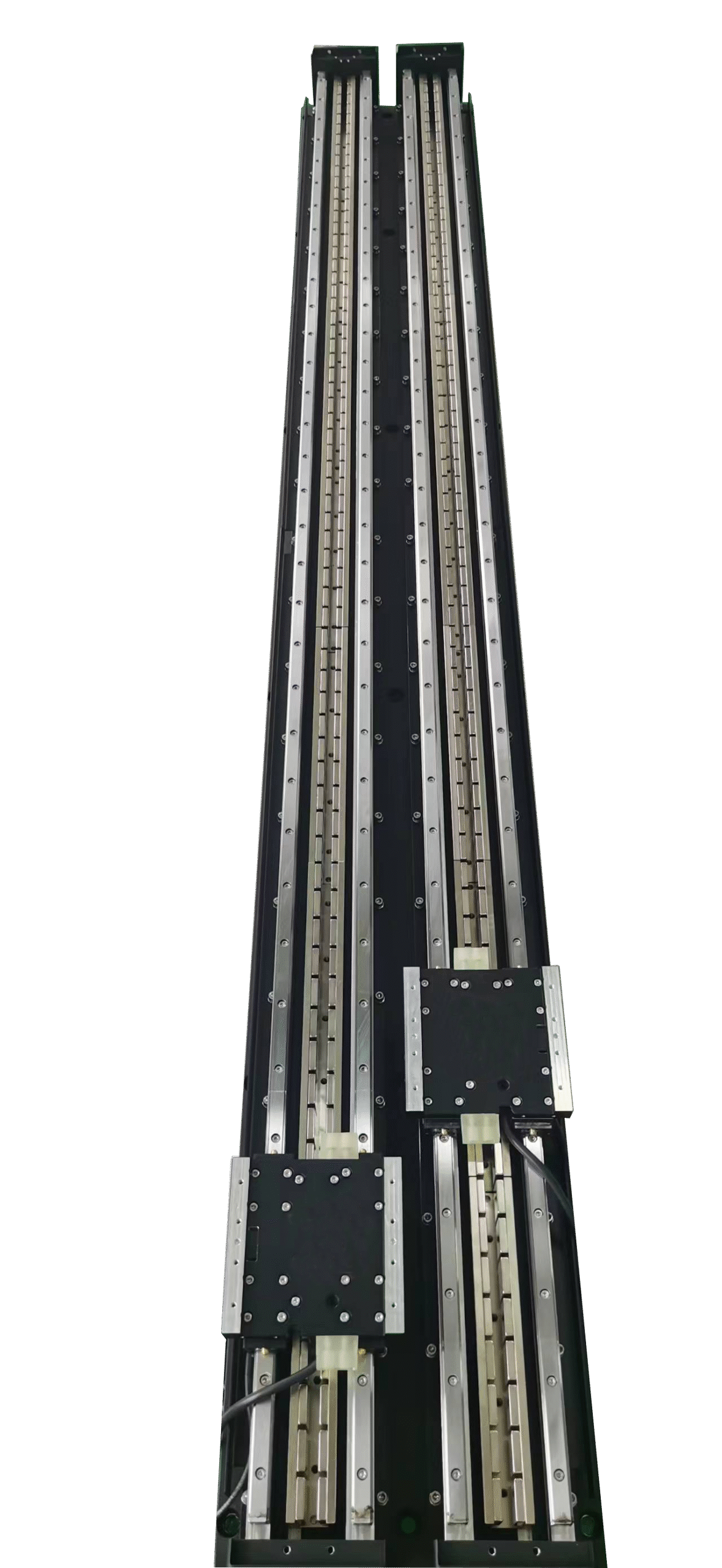

Sample
