Semiconductor packaging equipment Linear Motor

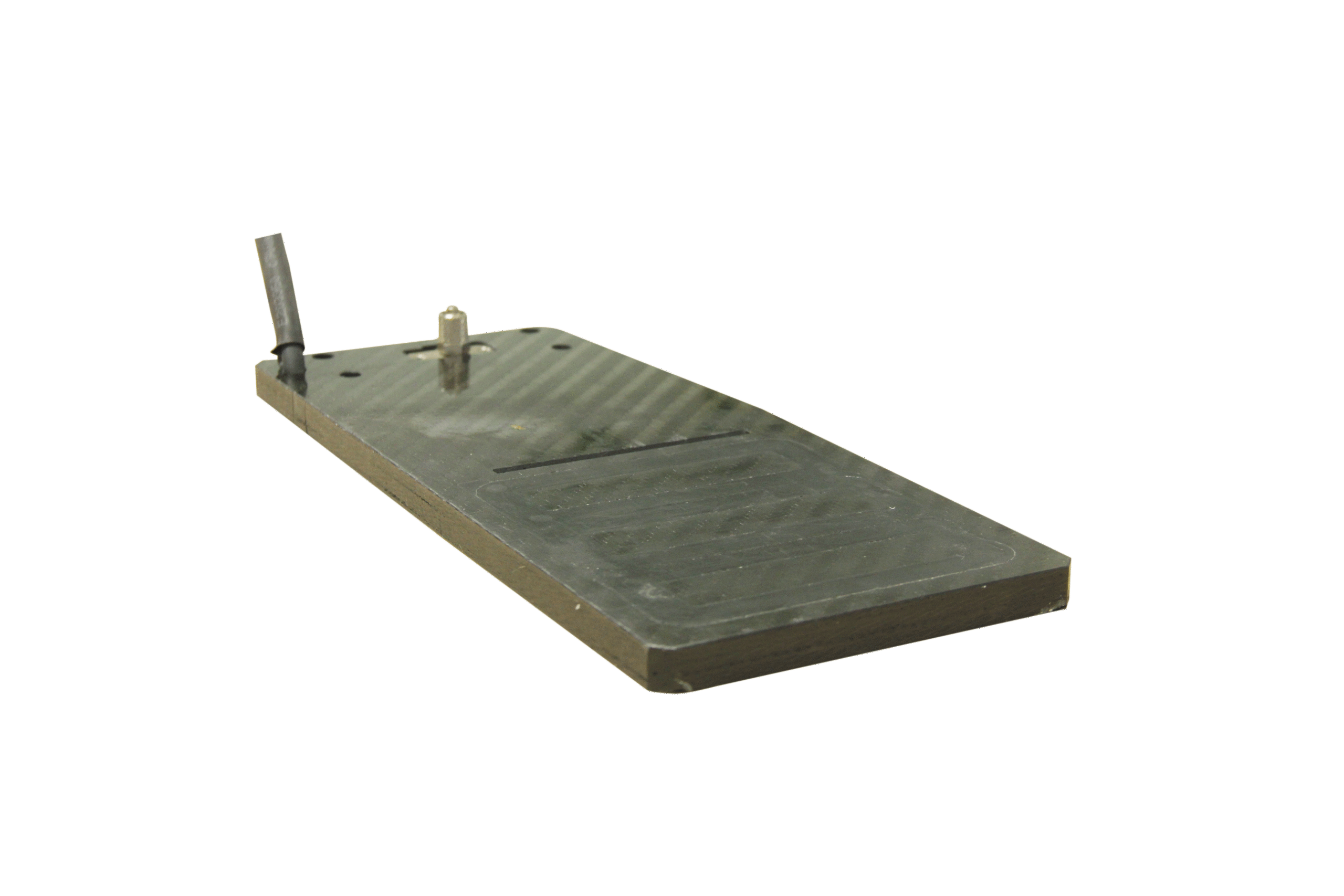

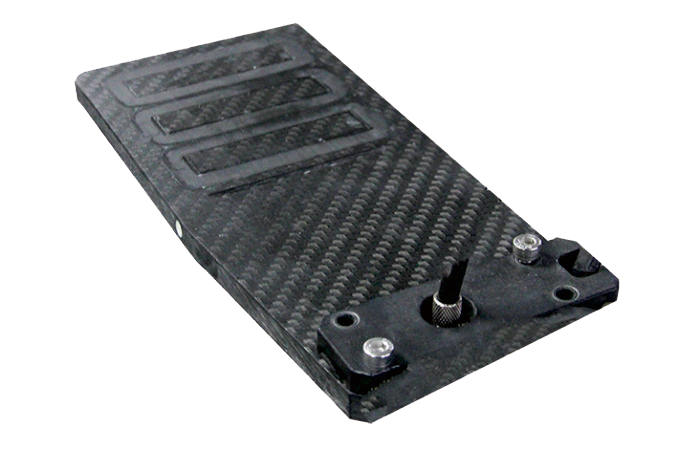

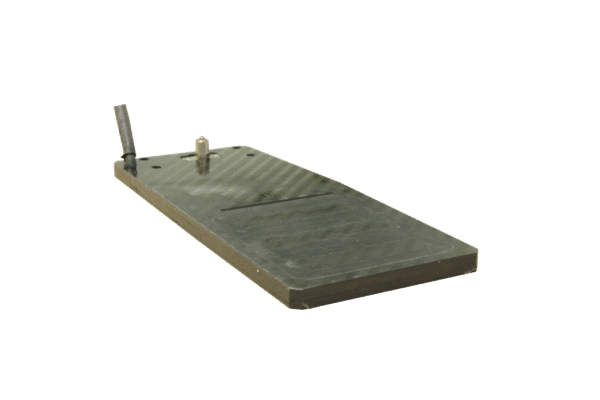

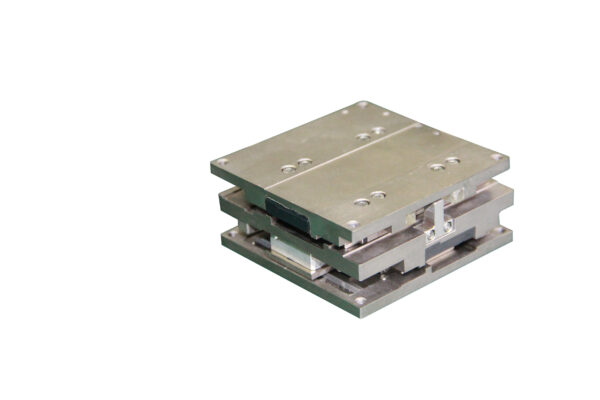

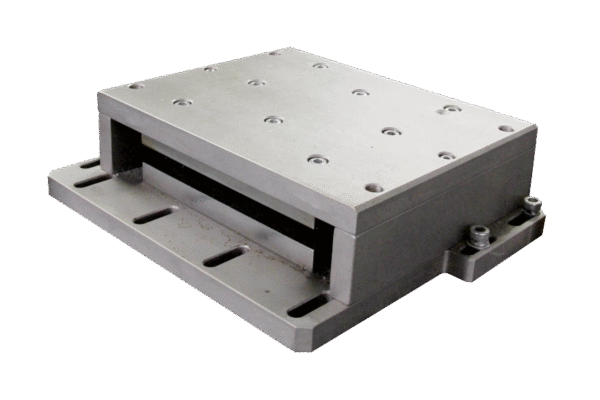

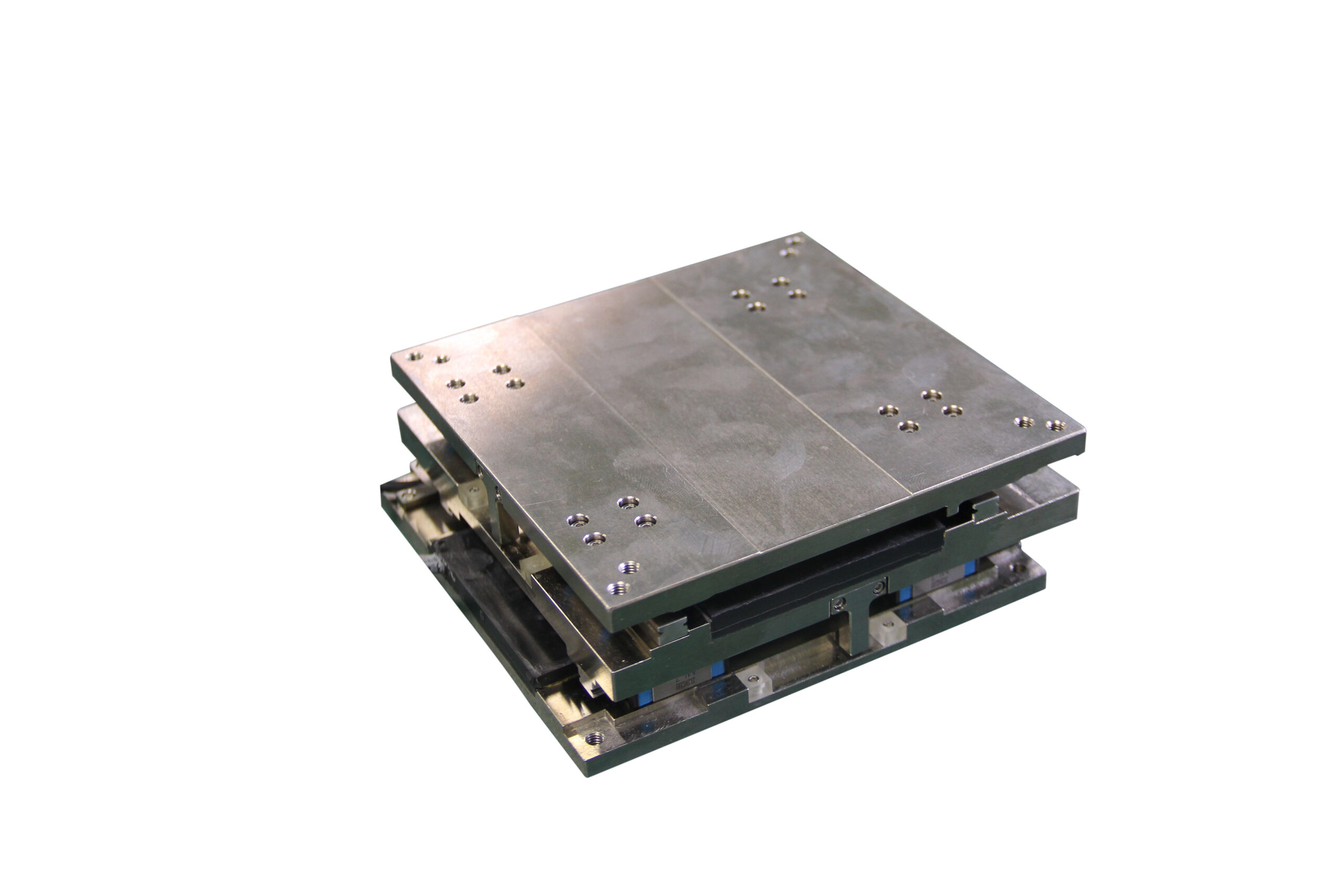

Semiconductor ironless lienar motor is also called carbon fiber board motor with feature high speed, high acceleration, high thrust density and efficient heat dissipation, enabling stable high-performance operation in semiconductor applications.
Brand:
Order(MOQ):
1
Product Detail
Feature:
1. High thrust density
Ironcore design delivers large continuous force.
2. Superior cooling performance
Integrated gas-cooling significantly reduces temperature rise for stable long-term operation.
3. High dynamic response
Supports high speed, high acceleration, and frequent reciprocating motion.
4. Energy saving and low noise
Compared with air cooling, water cooling is more efficient and quieter, suitable for cleanroom environments.
5. Wide applicability
Maintains performance even under high power density or high temperature conditions.
Application:
These motors are widely used in semiconductor equipment, high-speed laser cutting machines, precision machine tools, and industrial automation systems, especially in high-speed handling scenarios that demand both stability and efficiency.
Specification
| Mover Spec.：LSMU910xxxx-x-H-AC | 101A-P | 102A-P | ||
| PERFORMANCE PARAMETERS | Symbol | Unit | ||
| Stroke | S | mm | 70 | 80 |
| Accelaration | a | m/s² | 200 | 200 |
| Continuous Force (Tmax） | Fc | N | 206 | 130 |
| Peak Force | Fp | N | 2062 | 1300 |
| Motor Constant | Km | N/Sqrt(W) | 21.4 | 16.6 |
| Max.Continuous Power Dissipation | Pc | W | 93 | 61 |
| Continuous Current (Tmax） | Ic | Arms | 2.5 | 2.5 |
| Peak Current (1S) | Ip | Arms | 25.0 | 25.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 82.5 | 52.0 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 27.5 | 17.3 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 7.0 | 6.5 |
| Inductance(25℃，±20%）P-P | L | mH | 8.6 | 4.2 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 60.0 | 48.0 |
| Magnetic Attraction | Fa | kN | 0.0 | 0.0 |
| Max.DC Bus Voltage | Ubus | V | 330 | 330 |
| Vmax,Fc@Ubus=310Vdc | Vmax,Fc | m/s | 4.1 | 6.5 |
| Vmax,Fp@Ubus=310Vdc | Vmax,Fp | m/s | 0.1 | 0.6 |
| Vmax,0@Ubus=310Vdc | Vmax,0 | m/s | 4.5 | 7.2 |
| Mover Mass | Mp | Kg | 0.7 | 0.5 |
| Stator Mass within unit length | Ms | Kg/m | 28 | 20 |
