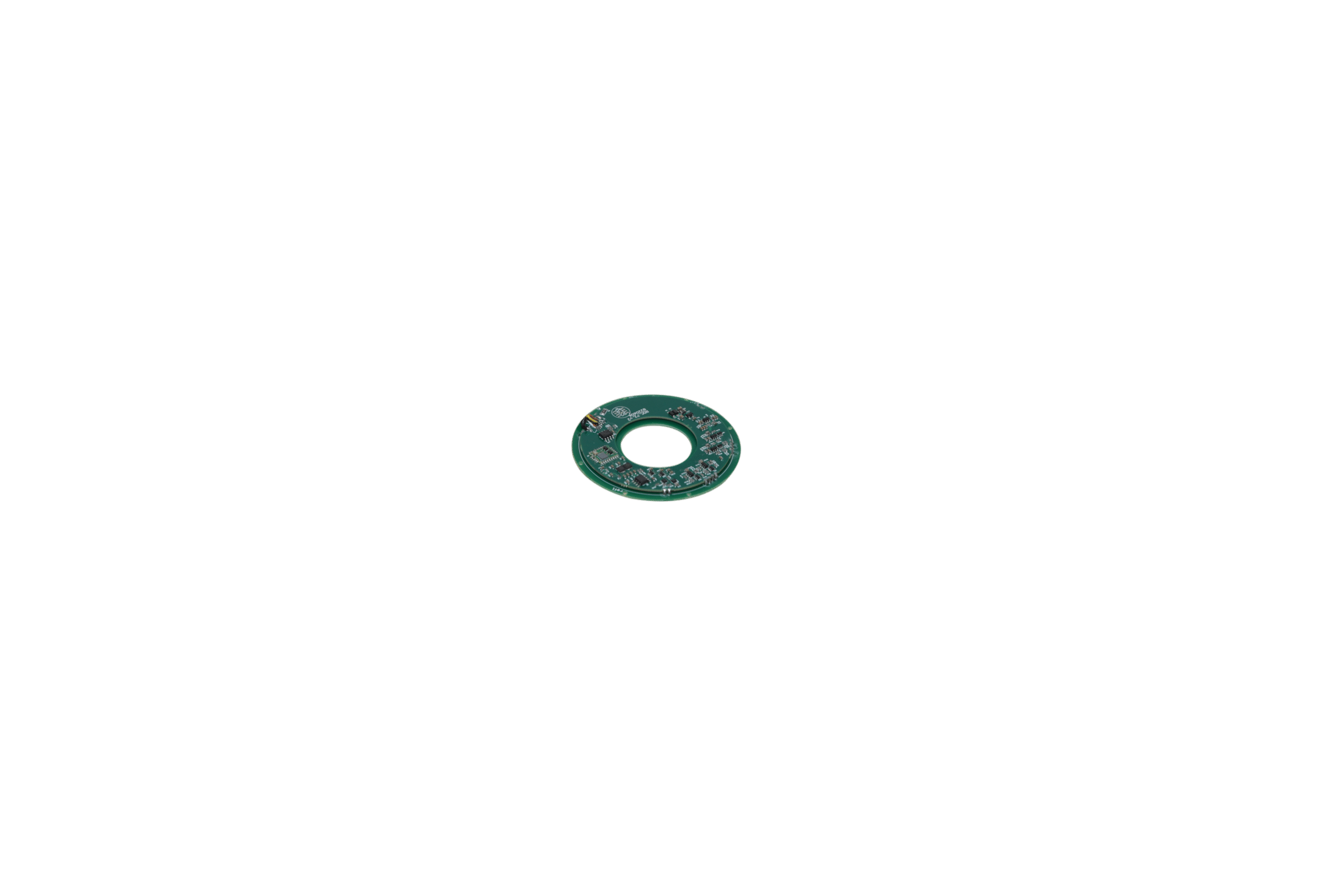

Rotary / Angular Time Grating Encoder
The Rotary & Angular Time Grating Encoder delivers ultra-high resolution, accuracy, and repeatability for absolute position measurement. Designed for high-speed operation, it features a compact structure, oil resistance, and excellent shock and vibration durability. Easy to install, it is ideal for machinery, automation systems, and devices requiring precise angular or rotary position detection.
Brand:
Order(MOQ):
1
Product Detail
Feature:
1. High-Precision Measurement
Our time grating encoders generate a high-quality, time-varying magnetic field to capture precise spatial position information. By decoding spatiotemporal features, they achieve ultra-accurate displacement measurements.
· Angular Accuracy (without housing): ±40″, ±30″, ±20″, ±10″
· Angular Accuracy (with housing): ±10″, ±5″, ±2″, ±1″
2. High-Speed Performance
Supports high-resolution measurement even at high speeds thanks to advanced subdivision technology.
· Maximum Angular Speed: up to 7000 rpm (at 223/turn resolution)
3. Ultra-High Resolution
Uses high-frequency time-varying magnetic fields as the sensing medium for excellent EMI resistance and high signal-to-noise ratio. Ensures fine subdivision for precise displacement detection.
· Angular Resolution Options: 21/turn (0.0027466°), 221/turn (0.000172°), 223/turn (0.000043°)
4. Fast Response Time
Provides ultra-fast response signals with measurements reacting within hundreds of nanoseconds. Position calculation is typically completed in a few microseconds.
· Linear/Angular Response: 5–10 μs
5. Reliable & Durable (SEO-friendly extra feature)
Designed for industrial environments, resistant to shock, vibration, and oil contamination, ensuring stable performance in demanding applications.
Highlights:
· Ultra-High Precision – Achieves micron-level displacement measurement for angular and rotary applications.
· High-Speed Operation – Supports angular speeds up to 7000 rpm without losing accuracy.
· Exceptional Resolution – Fine subdivisions down to 0.000043° for precise motion control.
· Rapid Response – Position signals processed within microseconds for real-time applications.
· Robust Industrial Design – Resistant to shock, vibration, and oil, ensuring reliable performance in harsh environments.
Application:
Time grating encoders provide high resolution, high accuracy, high repeatability, and fast-response absolute position measurement, with compact structure, oil- and dust-resistance, shock- and vibration-proof design, and easy installation. They are widely used in various industries, offering precise real-time position feedback for direct-drive and linear motors, CNC machine tool axes and accessories, automation equipment platforms and actuators, laser processing devices, testing and calibration instruments, as well as robotic joints and manipulators.
Specification
| Specifications | HTRA3-0072B-19-08 |
| Measuring Range | (Single-turn Absolute)0~360° |
| Resolution Ratio | 19bit |
| Accuracy | ±20” |
| Repeatability | ±3” |
| Rotational Speed | ≤7000rpm |
| Rotor(Outer Diameter/Inner Diameter/Thickness) | 64.6mm/21mm/1.6mm |
| Stator(Outer Diameter/Inner Diameter/Thickness) | 72mm/30.2mm/6.5mm |
| Stator-Rotor Clearance | 0.4mm±0.1mm |
| Radial Installation Tolerance | ≤0.05mm |
| Operating Voltage | 5V DC±10% |
| Operating Current | ≤200mA |
| Data Format | Natural Binary |
| Rotation Direction | (Default) Viewed from the rotor rear side, clockwise rotation increases the angular data. |
| Communication Type | BISS-C/SSI/UART |
| Communication Speed | BISS-C/SS:(Synchronous Clock) 100K~2.5M UART:9.6K~2.5M |
| Communication Interface | RS422/RS485/ABZ |
| Cable Exit Direction | Radial (customizable upon request) |
| Cable Length | 300mm |
| Operating Temperature | -10~70℃ |
| Operating Humidity | 0~95% |
| Ingress Protection (IP) Rating | IP65 |
Installation dimension
Sample
