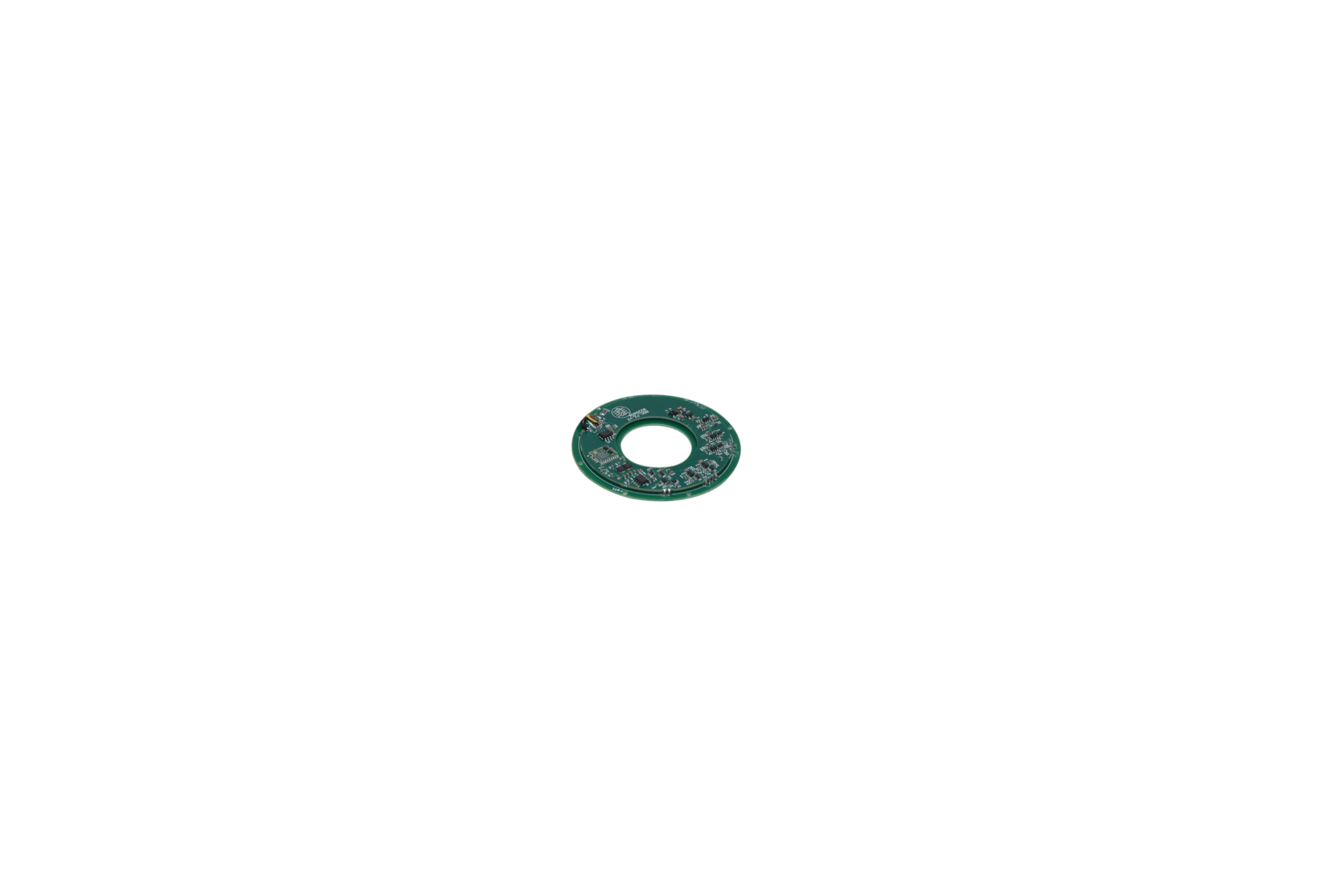

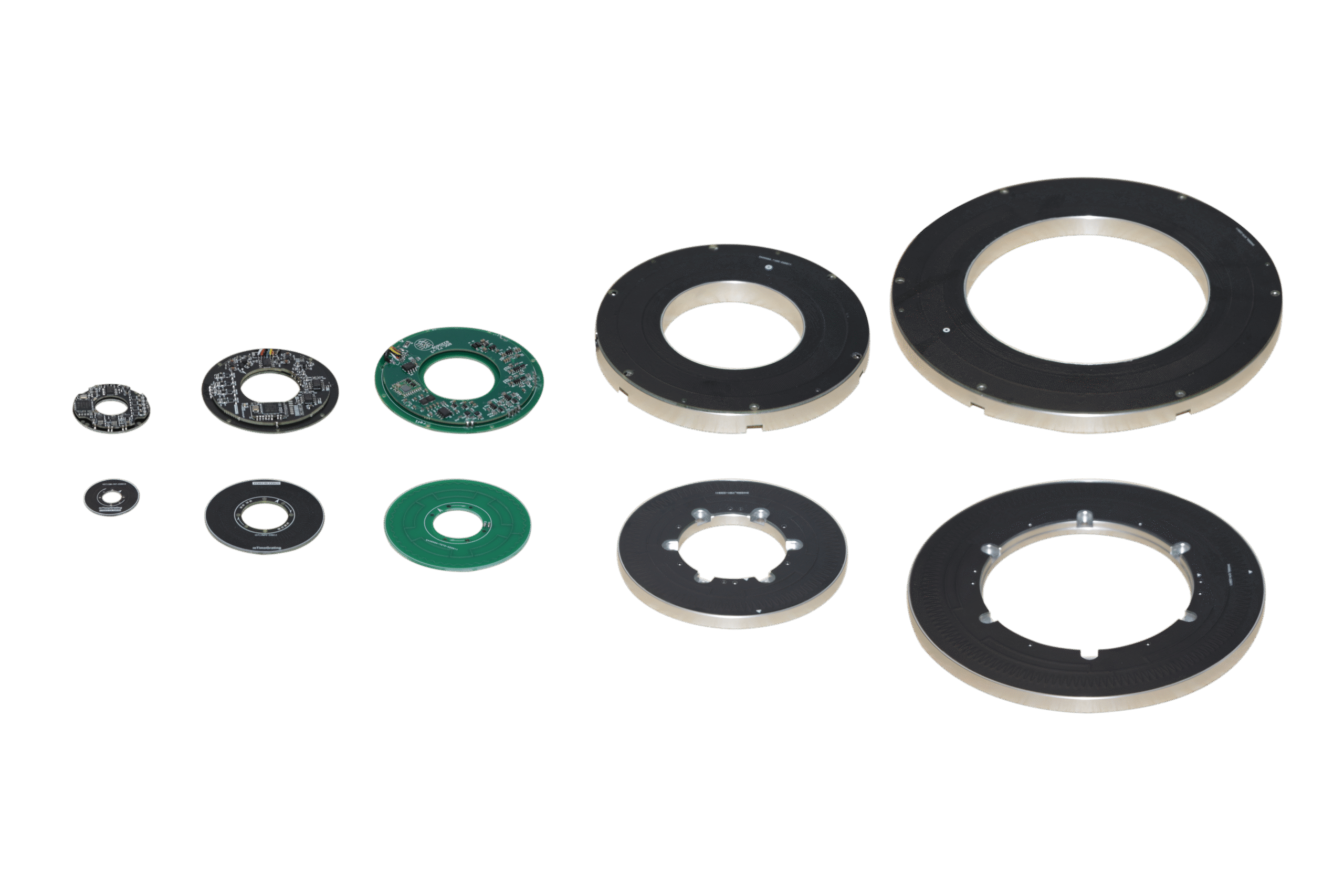

Rotary / Angular Time Grating Encoder
The Rotary & Angular Time Grating Encoder delivers exceptional resolution, accuracy, and repeatability for absolute position measurement. Its simple, robust design is oil-resistant, shock- and vibration-proof, and easy to install, making it ideal for devices, systems, and components that require precise angular or rotary position detection. Supports high-speed measurement with reliable performance.
Brand:
Order(MOQ):
1
Product Detail
Feature:
1. High-Precision Measurement
Time grating encoders generate a high-quality time-varying magnetic field to reflect precise spatial position information. By accurately decoding spatiotemporal features, they achieve exceptional displacement measurement accuracy.
· Angular Accuracy: ±40″, ±30″, ±20″, ±10″ (without housing); ±10″, ±5″, ±2″, ±1″ (with housing)
2. High-Speed Performance
Advanced high-subdivision technology ensures high-resolution measurement even at high rotational speeds.
· Angular Speed: Up to 7000 rpm (at 223/turn resolution)
3. Ultra-High Resolution
Using high-frequency time-varying magnetic fields as the sensing medium provides strong EMI resistance and a high signal-to-noise ratio, enabling precise fine subdivision and displacement detection.
· Angular Resolution: 21/turn (0.0027466°), 221/turn (0.000172°), 223/turn (0.000043°)
4. Ultra-Fast Responsiveness
Time grating encoders deliver rapid response times, with measurement signals reacting in hundreds of nanoseconds and position calculations completing in just a few microseconds.
· Response Time: 5–10 μs (Linear/Angular)
Highlights:
· Reliable Performance in Harsh Environments
Built to withstand oil, shock, and vibration, ensuring consistent operation in demanding industrial settings.
· Versatile Integration
Easily fits into a wide range of devices and systems requiring precise rotational or angular position tracking.
· Enhanced Productivity
Supports fast, accurate measurements that help improve system efficiency and workflow.
· Long-Term Durability
Robust construction guarantees reliable performance over extended use, reducing maintenance needs.
· Compact & User-Friendly Design
Simple installation and compact form factor make deployment quick and hassle-free.
Application:
Time grating encoders provide high resolution, high accuracy, high repeatability, and fast-response absolute position measurement, with compact structure, oil- and dust-resistance, shock- and vibration-proof design, and easy installation. They are widely used in various industries, offering precise real-time position feedback for direct-drive and linear motors, CNC machine tool axes and accessories, automation equipment platforms and actuators, laser processing devices, testing and calibration instruments, as well as robotic joints and manipulators.
Specification
| Specifications | HTRA3-0060B-19-09 |
| Measuring Range | (Single-turn Absolute)0~360° |
| Resolution Ratio | 19bit |
| Accuracy | ±30” |
| Repeatability | ±5” |
| Rotational Speed | ≤7000rpm |
| Rotor(Outer Diameter/Inner Diameter/Thickness) | 52.4mm/20mm/1.6mm |
| Stator(Outer Diameter/Inner Diameter/Thickness) | 60mm/26mm/6.5mm |
| Stator-Rotor Clearance | 0.4mm±0.1mm |
| Radial Installation Tolerance | ≤0.05mm |
| Operating Voltage | 5V DC±10% |
| Operating Current | ≤200mA |
| Data Format | Natural Binary |
| Rotation Direction | (Default) Viewed from the rotor rear side, clockwise rotation increases the angular data. |
| Communication Type | BISS-C/SSI/UART |
| Communication Speed | BISS-C/SS:(Synchronous Clock) 100K~2.5M UART:9.6K~2.5M |
| Communication Interface | RS422/RS485/ABZ |
| Cable Exit Direction | Radial (customizable upon request) |
| Cable Length | 300mm |
| Operating Temperature | -10~70℃ |
| Operating Humidity | 0~95% |
| Ingress Protection (IP) Rating | IP65 |
