Rotary / Angular Time Grating Encoder
Enhance precision in industrial automation with our High-Resolution Time Grating Encoder.Designed for high-speed absolute position measurement, this encoder delivers exceptional accuracy, repeatability, and robustness—even in challenging environments. Its compact, oil-resistant structure resists shock and vibration, ensuring reliable performance.With easy installation and dependable stability, it’s ideal for machinery, robotics, and motion-control systems demanding precise angular detection.
Brand:
Order(MOQ):
1
Product Detail
Feature:
1.High Precision
The time grating encoder utilizes a high-quality time-varying magnetic field to deliver highly accurate displacement and angular position measurement. By decoding spatiotemporal features with advanced algorithms, it achieves industry-leading precision.
· Angular accuracy: ±40″, ±30″, ±20″, ±10″ (without housing)
· Angular accuracy with housing: ±10″, ±5″, ±2″, ±1″
This makes it ideal for CNC machines, robotics, and precision motion control systems.
2.High Speed
With fine subdivision capability, the encoder ensures high-resolution measurement at high rotational speeds.
· Angular speed: up to 7000 rpm (at 2^23/turn resolution)
Perfect for high-speed automation and industrial equipment requiring fast and reliable feedback.
3.High Resolution
By using high-frequency magnetic fields as the sensing medium, the encoder offers strong EMI resistance, excellent signal-to-noise ratio, and extremely fine resolution for demanding applications.
· Angular resolution: 2^21/turn (0.000172°), 2^23/turn (0.000043°)
This guarantees smooth operation and ultra-fine motion control in sensitive environments.
4.High Responsiveness
The time grating encoder reacts in microseconds, ensuring real-time feedback for dynamic systems.
· Response time: 5–10 μs
· Signal reaction: within hundreds of nanoseconds
This ultra-fast responsiveness makes it suitable for servo motors, linear stages, and advanced automation systems.
Highlights:
· Absolute Position Measurement – Reliable angular and linear detection for precision machinery, automation, and robotics.
· Robust & Durable Design – Oil-resistant, shockproof, and vibration-resistant housing ensures stable performance in harsh industrial environments.
· Easy Integration – Compact structure with straightforward installation, reducing downtime and simplifying system upgrades.
· Strong EMI Resistance – Stable output even in high-interference conditions, ideal for sensitive electronics and complex automation systems.
· Versatile Applications – Perfect for CNC machines, servo systems, motion controllers, and advanced robotics requiring fine angular accuracy.
Application:
Time grating encoders provide high resolution, high accuracy, high repeatability, and fast-response absolute position measurement, with compact structure, oil- and dust-resistance, shock- and vibration-proof design, and easy installation. They are widely used in various industries, offering precise real-time position feedback for direct-drive and linear motors, CNC machine tool axes and accessories, automation equipment platforms and actuators, laser processing devices, testing and calibration instruments, as well as robotic joints and manipulators.
Specification
| Specifications | HTRA1-0058A-0019-09 |
| Measuring Range | (Single-turn Absolute)0~360° |
| Resolution Ratio | 19bit |
| Accuracy | ±30” |
| Repeatability | ±5” |
| Rotational Speed | ≤1000rpm |
| Mechanical Dimensions | 58mm/12mm/32mm |
| Radial Installation Tolerance | ±0.05mm |
| Operating Voltage | 5V DC±10% |
| Operating Current | ≤200mA |
| Data Format | Natural Binary |
| Rotation Direction | (Default) Viewed from the rotor rear side, clockwise rotation increases the angular data. |
| Communication Type | BISS-C/SSI/UART/ABZ |
| Communication Speed | BISS-C/SS:(Synchronous Clock) 100K~2.5M UART:9.6K~2.5M |
| Communication Interface | RS422/RS485 |
| Cable Exit Direction | Radial (customizable upon request) |
| Cable Length | 300mm |
| Operating Temperature | -10~70℃ |
| Operating Humidity | 0~95% |
| Ingress Protection (IP) Rating | IP65 |

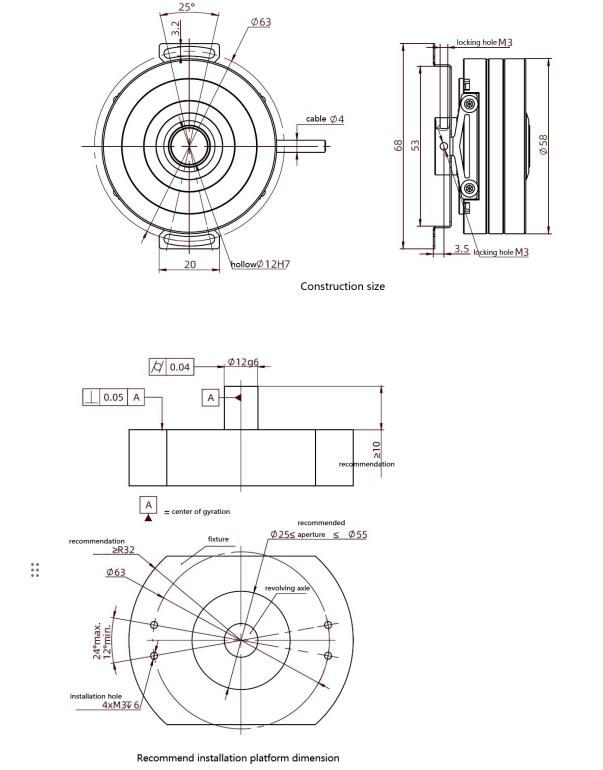

Installation Dimension

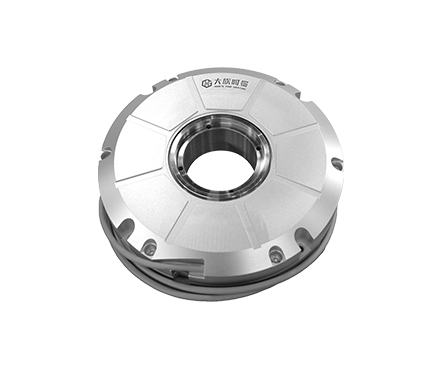

Sample
