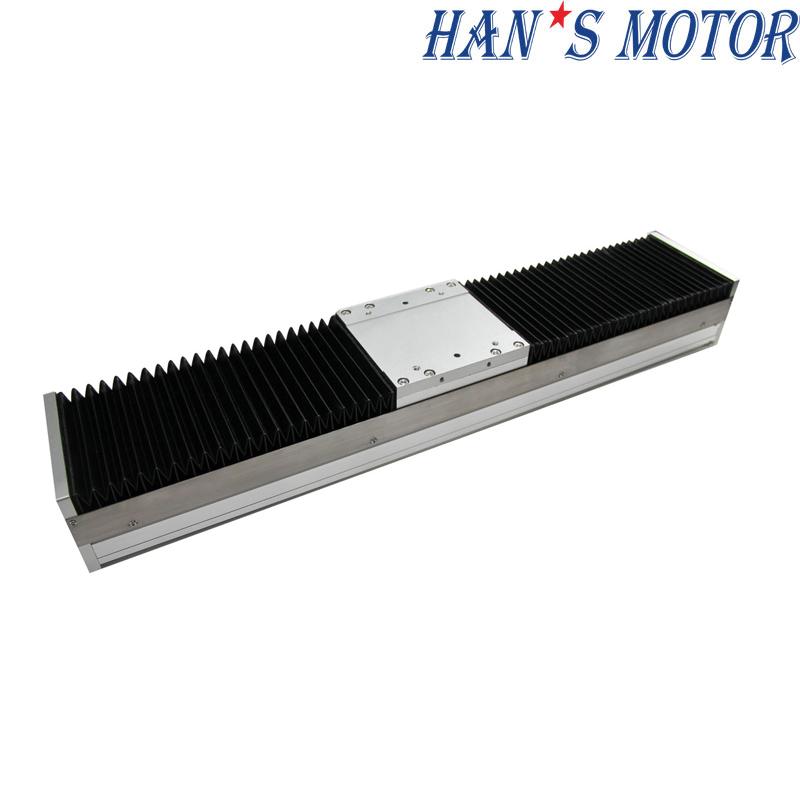

Protective Linear Motion Stage
This fully enclosed linear motion stage is designed for cleanroom environments with high-speed operation. Its sealed design prevents contamination and supports stable motion. Commonly used in semiconductor and medical equipment.
Brand:
Order(MOQ):
1
Product Detail
Full protect design for applications with cleanroom or anti-dust environment requirements
The LMP230 is a heavy-duty and highly dynamic linear stage for industrial applications. Its design is consistently geared to demanding industrial conditions and it is characterized by high stiffness and the use of high-quality components: THK guides, iron core linear motor, Renishaw grating. The high resolution of grating allows an excellent tracking performance, small tracking errors, and short settling times.
Linear motor with iron core
3-phase magnetic direct drives do not use mechanical components in the drivetrain, they transmit the drive force to the motion platform directly and without friction. The drives reach high velocities and accelerations. Iron core motors are particularly suitable for high thrust and high rigidity tasks. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely.
Application fields
Laser cutting, automation, biotechnology, sample manipulation, sample positioning, applications with severe environment and so on.
Selection Guide
Dimensions
Motor Model And Specifications
| ironless motor | |||||
| Parameter\Motor Model | Units | U53 | U54 | U55 | U56 |
| Continuous Force (Tmax） | N | 168 | 224 | 280 | 336 |
| Peak Force | N | 936 | 1248 | 1560 | 1872 |
| Motor Constant | N//SqrtW | 15 | 17.4 | 19.4 | 21.3 |
| Max.Continuous Power Dissipation | W | 125 | 166.6 | 208.3 | 250 |
| Continuous Current (Tmax） | Arms | 2.3 | 2.3 | 2.3 | 2.3 |
| Peak Current (1S) | Arms | 13 | 13 | 13 | 13 |
| Force Constant (25℃，±5%） | N/Arms | 73 | 96 | 120 | 144 |
| Back EMF Constant (25℃，±5%） | Vrms/rad/s | 24.3 | 32 | 40 | 48 |
| Resistance(25℃，±5%）P-P | Ω | 11.25 | 15 | 18.75 | 22.5 |
| Inductance(25℃，±20%）P-P | mH | 10.5 | 14 | 17.5 | 21 |
| Max Coil Temperature | ℃ | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) | mm | 60 | 60 | 60 | 60 |
| Magnetic Attraction | KN | 0 | 0 | 0 | 0 |
| Mover Mass | Kg | 1 | 1.3 | 1.65 | 2 |
| motor with iron core | |||||||||
| Parameter\Motor Model | Units | FJ22 | FJ23 | FL22 | FL32 | FL42 | FL23 | FL33 | FL43 |
| Continuous Force (Tmax） | N | 208 | 332 | 196 | 294 | 392 | 314 | 472 | 629 |
| Peak Force | N | 831 | 1329 | 517 | 776 | 1035 | 827 | 1237 | 1653 |
| Motor Constant | N//SqrtW | 27.5 | 24.4 | 18.9 | 23.4 | 27.2 | 25.3 | 31.0 | 36.2 |
| Max.Continuous Power Dissipation | W | 57.1 | 184.8 | 107.5 | 157.9 | 208.3 | 154.6 | 231.8 | 302.4 |
| Continuous Current (Tmax） | Arms | 2.2 | 4.4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Peak Current (1S) | Arms | 9 | 18 | 12 | 12 | 12 | 12 | 12 | 12 |
| Force Constant (25℃，±5%） | N/Arms | 94.8 | 75.6 | 49 | 73.5 | 98 | 78.5 | 118 | 157 |
| Back EMF Constant (25℃，±5%） | Vrms/rad/s | 31.6 | 25.2 | 16.3 | 24.5 | 32.7 | 26 | 39.3 | 52.4 |
| Resistance(25℃，±5%）P-P | Ω | 11.8 | 4.5 | 3.2 | 4.7 | 6.2 | 4.6 | 6.9 | 9 |
| Inductance(25℃，±20%）P-P | mH | 40 | 15.3 | 15 | 22.5 | 30 | 24 | 36 | 48 |
| Max Coil Temperature | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) | mm | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Magnetic Attraction | KN | 1.23 | 1.82 | 1.1 | 1.6 | 2.1 | 1.7 | 2.6 | 3.4 |
| Mover Mass | Kg | 1.7 | 2.4 | 2.5 | 3.7 | 4.9 | 3.8 | 5.5 | 7.3 |
LMP230-U53-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 420 | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 | 1520 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 23 | 27 | 31 | 35 | 39 | 43 | 47 | 51 | 55 | 59 | 63 | 67 |
| Sliding Table M (mm) | 250 | |||||||||||
| A | 8 | |||||||||||
| B | 1 | |||||||||||
| Motion Parts Weight (kg) | 7 | |||||||||||
LMP230-U54-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 470 | 570 | 670 | 770 | 870 | 970 | 1070 | 1170 | 1270 | 1370 | 1470 | 1570 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 | 58 | 62 | 66 | 70 |
| Sliding Table M (mm) | 300 | |||||||||||
| A | 16 | |||||||||||
| B | 2 | |||||||||||
| Motion Parts Weight (kg) | 8.5 | |||||||||||
LMP230-U55-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 1 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 390 | 630 | 730 | 830 | 930 | 1030 | 1130 | 1230 | 1330 | 1430 | 1530 | 1630 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 11.5 | 34 | 38 | 42 | 46 | 50 | 54 | 58 | 62 | 66 | 70 | 74 |
| Sliding Table M (mm) | 360 | |||||||||||
| A | 16 | |||||||||||
| B | 2 | |||||||||||
| Motion Parts Weight (kg) | 10 | |||||||||||
LMP230-U56-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 | 38 |
| N | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 | 8 |
| Stage Total Length (mm) | 590 | 690 | 790 | 890 | 990 | 1090 | 1190 | 1290 | 1390 | 1490 | 1590 | 1690 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 34 | 38 | 42 | 46 | 50 | 54 | 58 | 62 | 66 | 70 | 74 | 78 |
| Sliding Table M (mm) | 420 | |||||||||||
| A | 24 | |||||||||||
| B | 3 | |||||||||||
| Motion Parts Weight (kg) | 3.8 | |||||||||||
LMP230-FJ22-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 420 | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 | 1520 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 22.4 | 25.6 | 28.8 | 32 | 35.2 | 38.4 | 41.6 | 44.8 | 48 | 51.2 | 54.4 | 57.6 |
| Sliding Table M (mm) | 280 | |||||||||||
| A | 8 | |||||||||||
| B | 1 | |||||||||||
| Motion Parts Weight (kg) | 9 | |||||||||||
LMP230-FJ23-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 450 | 550 | 650 | 750 | 850 | 950 | 1050 | 1150 | 1250 | 1350 | 1450 | 1550 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 24.6 | 27.8 | 31 | 34.2 | 37.4 | 40.6 | 43.8 | 47 | 50.2 | 53.4 | 56.6 | 59.8 |
| Sliding Table M (mm) | 280 | |||||||||||
| A | 8 | |||||||||||
| B | 1 | |||||||||||
| Motion Parts Weight (kg) | 10.4 | |||||||||||
LMP230-FL22-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 510 | 610 | 710 | 810 | 910 | 1010 | 1110 | 1210 | 1310 | 1410 | 1510 | 1610 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 29.1 | 32.3 | 35.5 | 38.7 | 41.9 | 45.1 | 48.3 | 51.5 | 54.7 | 57.9 | 61.1 | 64.3 |
| Sliding Table M (mm) | 340 | |||||||||||
| A | 16 | |||||||||||
| B | 2 | |||||||||||
| Motion Parts Weight (kg) | 13.2 | |||||||||||
LMP230-FL32-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 420 | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 | 1520 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 22 | 25 | 28 | 31 | 34 | 37 | 40 | 43 | 46 | 49 | 52 | 55 |
| Sliding Table M (mm) | 250 | |||||||||||
| A | 8 | |||||||||||
| B | 1 | |||||||||||
| Motion Parts Weight (kg) | 9 | |||||||||||
LMP230-FL42-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 420 | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 | 1520 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 22 | 25 | 28 | 31 | 34 | 37 | 40 | 43 | 46 | 49 | 52 | 55 |
| Sliding Table M (mm) | 250 | |||||||||||
| A | 8 | |||||||||||
| B | 1 | |||||||||||
| Motion Parts Weight (kg) | 9 | |||||||||||
LMP230-FL23-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 420 | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 | 1520 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 22 | 25 | 28 | 31 | 34 | 37 | 40 | 43 | 46 | 49 | 52 | 55 |
| Sliding Table M (mm) | 250 | |||||||||||
| A | 8 | |||||||||||
| B | 1 | |||||||||||
| Motion Parts Weight (kg) | 9 | |||||||||||
LMP230-FL33-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 420 | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 | 1520 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 22 | 25 | 28 | 31 | 34 | 37 | 40 | 43 | 46 | 49 | 52 | 55 |
| Sliding Table M (mm) | 250 | |||||||||||
| A | 8 | |||||||||||
| B | 1 | |||||||||||
| Motion Parts Weight (kg) | 9 | |||||||||||
LMP230-FL43-□□□-□□□-A:
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 420 | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 | 1520 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 22 | 25 | 28 | 31 | 34 | 37 | 40 | 43 | 46 | 49 | 52 | 55 |
| Sliding Table M (mm) | 250 | |||||||||||
| A | 8 | |||||||||||
| B | 1 | |||||||||||
| Motion Parts Weight (kg) | 9 | |||||||||||
