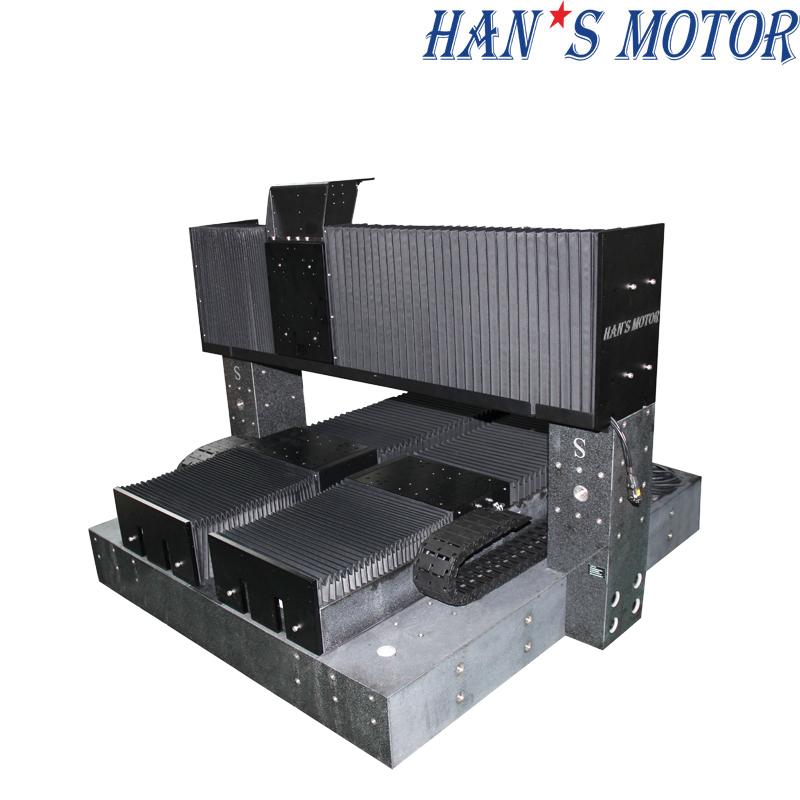

Precision Linear Motion Stage
Engineered for high-precision tasks, this linear motion stage delivers smooth acceleration and repeatable motion. The system features optimized drive integration and rigid construction. Ideal for inspection systems, laser processing, and automation lines.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
Parameter
| Product code | Stroke range | Load (Kg) | Velocity (m/s) | Acceleration (g) | Straightness (μm) | Verticality (μm) | Repeat accuracy(μm) |
| X-axis (crossbeam axis) | 100-1000 | 25 | 0.5 | 0.5 | 6/400 | 5/400 | ±1.5 |
| Y1-axis (Lower axis) | 100-1000 | / | 0.5 | 0.5 | 6/400 | 5/400 | ±1.5 |
| Y2-axis (Lower axis) | 100-1000 | / | 0.5 | 0.5 | 6/400 | 5/400 | ±1.5 |
1.Adopt Han’s brand U-type linear motor and ACS high-performance control system;
2.The base and beam are made of marble, double-drive gantry structure, strong load capacity and good stability;
3. Adopt high-precision optical ruler feedback system and ultra-high-precision linear guide;
4. It is suitable for high-end inspection equipment, welding and micro-cutting production;
5. It can be choose different types of linear motor models according to requirements, and the Z axis can be expanded;
Characteristics:
1.High stability
High quality materials to ensure the stable operation.
2.High precision
Applied high precision motor to remain a great position repeatability.
3.High load
Anodized aluminum base and parts, to be high rigidity to carry higher load.
4. Easy installation
Why choose us?
Q: What about your company’s situation?
A: Established in 2005, it is a subsidiaries of Han’s Laser (Stock Code: 002008), which is one of the global leaders which manufacture professional laser equipment. We are awarded for National High and New Tech Enterprise and National “SRDI” Enterprise.
Q: What’s your main products?
A: Specialized in direct drive system in the domestic R&D, promotion, application.Including linear motor、Torque motor 、Motion stage 、AC servo system 、 Variable-Frequency Drive etc. And linear motor market share reached leading level in China.
Passed ISO 9001 and ISO 14001 management system certification and CE certificate.
Aftersales Service:
Applications:
Applicable in automatic product lines, medical equipment, laser cutting equipment, spray machine equipment, dispenser, 3D printing machine etc.

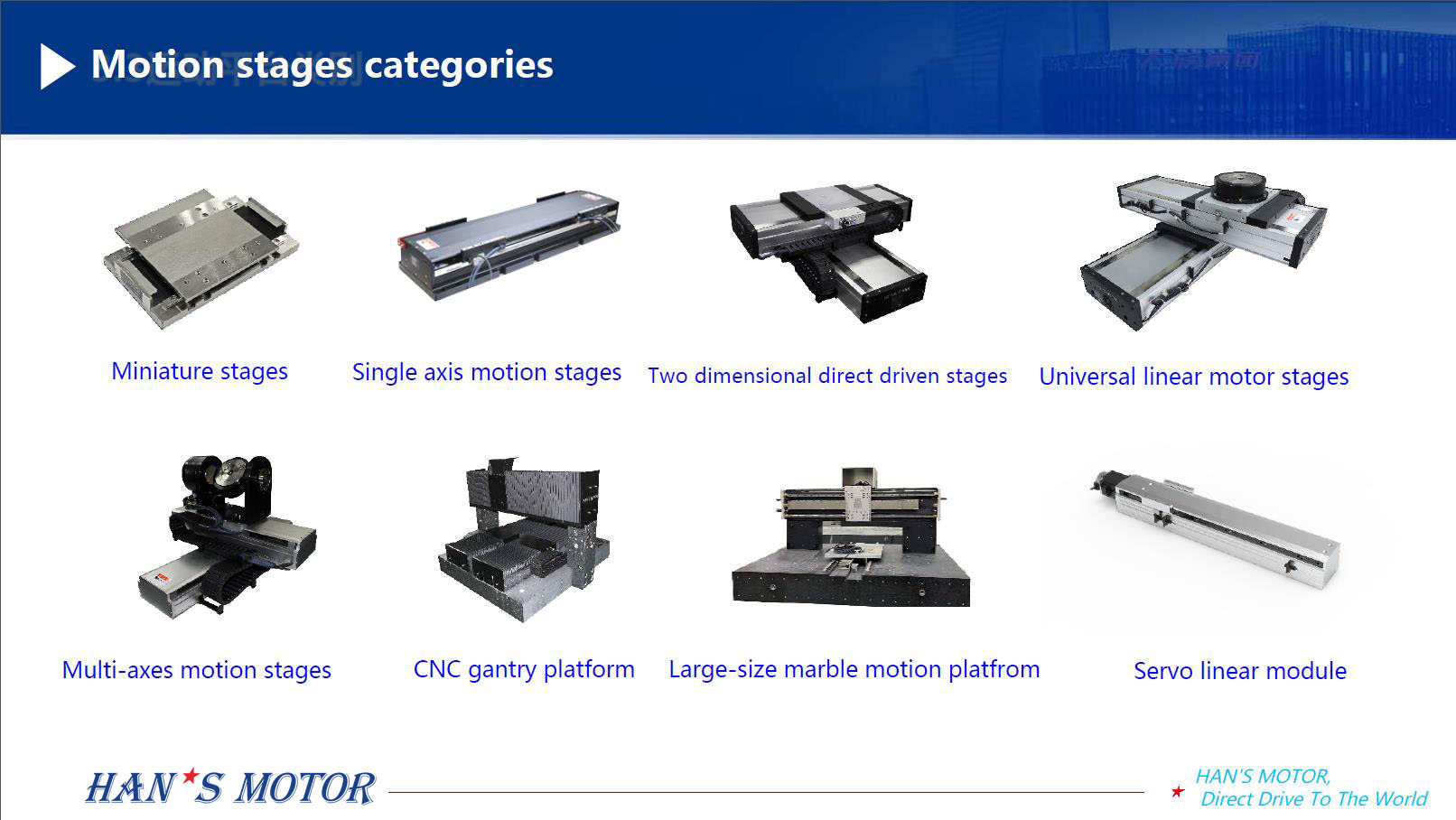

HAN’S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
Sample
