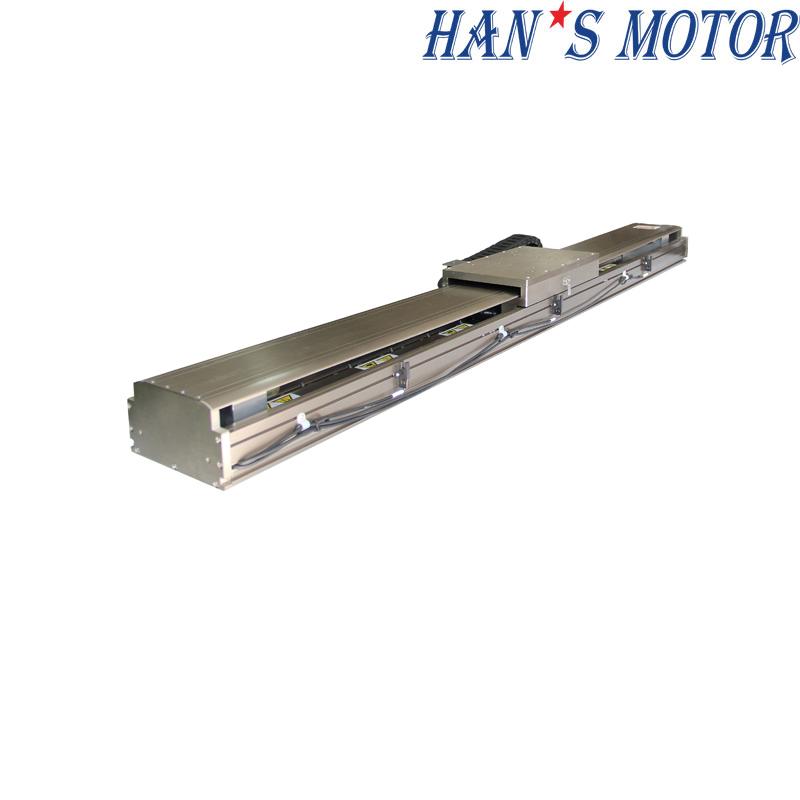

Moving Magnet Linear Motor Stage
This stage uses a moving magnet linear motor for smooth and consistent motion. Designed with high thrust capability and low noise performance. Suitable for high-efficiency automation and modular assembly systems.
Brand:
Order(MOQ):
1
Product Detail
Characteristics:
• Standard linear motor modules
• It can realize single-axis multi-mover to drive, the longest stroke can reach 2500mm
• Grating Positioning, Magnetic Grating Positioning or Time Grating Positioning
• warranty period is 1 year
Linear Motor Stages type:
Product Specifications
Motor Model/Parameter
| Flat-type Motor | U-type Motor | ||||||||
| Parameter\ Motor Model | Unit | FJ23 | FL23 | FL33 | FL43 | U53 | U54 | U55 | U56 |
| Continuous Force (Tmax） | N | 332 | 314 | 472 | 629 | 168 | 224 | 280 | 336 |
| Peak Force | N | 1329 | 827 | 1237 | 1653 | 936 | 1248 | 1560 | 1872 |
| Motor Constant | N//SqrtW | 24.4 | 25.3 | 31 | 36.2 | 15 | 17.3 | 19.4 | 21.3 |
| Max.Continuous Power Dissipation | W | 184.8 | 154.6 | 231.8 | 302.4 | 125 | 166.6 | 208.3 | 250 |
| Continuous Current (Tmax） | Arms | 4.4 | 4 | 4 | 4 | 2.3 | 2.3 | 2.3 | 2.3 |
| Peak Current (1S) | Arms | 18 | 12 | 12 | 12 | 13 | 13 | 13 | 13 |
| Force Constant (25℃，±5%） | N/Arms | 75.6 | 78.5 | 118 | 157 | 73 | 96 | 120 | 144 |
| Back EMF Constant (25℃，±5%） | Vrms/rad/s | 25.2 | 26 | 39.3 | 52.4 | 24.3 | 32 | 40 | 48 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 4.5 | 4.6 | 6.9 | 9 | 11.25 | 15 | 18.75 | 22.5 |
| Inductance(25℃，±20%）P-P | mH | 15.3 | 24.0 | 36.0 | 48 | 10.5 | 14 | 17.5 | 21 |
| Max Coil Temperature | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 20 | 20 | 20 | 20 | 60 | 60 | 60 | 60 |
| Magnetic Attraction | KN | 1.82 | 1.7 | 2.6 | 3.4 | 0 | 0 | 0 | 0 |
| Mover Mass | Kg | 2.4 | 3.8 | 5.5 | 7.3 | 1 | 1.3 | 1.65 | 2 |
Linear Motor Stages Selection
| LM210-FJ23-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 420 | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 | 1520 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 12.3 | 14.1 | 16.0 | 17.8 | 19.6 | 21.5 | 23.3 | 25.1 | 27.0 | 28.9 | 30.6 | 32.5 |
| Sliding Table M (mm) | 200 | |||||||||||
| A | 8 | |||||||||||
| B | 3 | |||||||||||
| Motion Parts Weight (kg) | 3.5 | |||||||||||
| LM210-FL23-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 390 | 490 | 590 | 690 | 790 | 890 | 990 | 1090 | 1190 | 1290 | 1390 | 1490 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 10.9 | 12.8 | 14.7 | 16.5 | 18.3 | 20.2 | 22.0 | 23.9 | 25.8 | 27.5 | 29.4 | 31.3 |
| Sliding Table M (mm) | 170 | |||||||||||
| A | 8 | |||||||||||
| B | 3 | |||||||||||
| Motion Parts Weight (kg) | 2.8 | |||||||||||
| LM210-FL33-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 450 | 550 | 650 | 750 | 850 | 950 | 1050 | 1150 | 1250 | 1350 | 1450 | 1550 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 13 | 14.9 | 16.8 | 18.6 | 20.4 | 22.2 | 24.1 | 26 | 27.7 | 29.6 | 31.5 | 33.2 |
| Sliding Table M (mm) | 230 | |||||||||||
| A | 12 | |||||||||||
| B | 5 | |||||||||||
| Motion Parts Weight (kg) | 3.7 | |||||||||||
| LM210-FL43-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 | 1520 | 1620 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 15.4 | 17.3 | 19.2 | 20.9 | 22.8 | 24.7 | 26.4 | 28.3 | 30.2 | 31.9 | 33.8 | 35.7 |
| Sliding Table M (mm) | 300 | |||||||||||
| A | 16 | |||||||||||
| B | 7 | |||||||||||
| Motion Parts Weight (kg) | 4.8 | |||||||||||
| LM210-U53-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 410 | 510 | 610 | 710 | 810 | 910 | 1010 | 1110 | 1210 | 1310 | 1410 | 1510 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 16.8 | 20 | 23.2 | 26.4 | 29.6 | 32.8 | 36.0 | 39.2 | 42.4 | 45.6 | 48.8 | 52.0 |
| Sliding Table M (mm) | 190 | |||||||||||
| A | 8 | |||||||||||
| B | 3 | |||||||||||
| Motion Parts Weight (kg) | 5 | |||||||||||
| LM210-U54-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 470 | 470 | 670 | 770 | 870 | 970 | 1070 | 1170 | 1270 | 1370 | 1470 | 1570 |
| Dowel Pin D1 (mm) | 50 | 50 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 20 | 20 | 26.4 | 29.6 | 32.8 | 36 | 39.2 | 42.4 | 45.6 | 48.8 | 52.0 | 55.2 |
| Sliding Table M (mm) | 250 | |||||||||||
| A | 12 | |||||||||||
| B | 5 | |||||||||||
| Motion Parts Weight (kg) | 5.5 | |||||||||||
| LM210-U55-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 530 | 630 | 730 | 830 | 930 | 1030 | 1130 | 1230 | 1330 | 1430 | 1530 | 1630 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 23.5 | 26.8 | 30.1 | 33.4 | 36.7 | 40 | 43.3 | 46.6 | 49.9 | 53.2 | 56.5 | 59.8 |
| Sliding Table M (mm) | 310 | |||||||||||
| A | 16 | |||||||||||
| B | 7 | |||||||||||
| Motion Parts Weight (kg) | 6.5 | |||||||||||
| LM210-U56-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 | 38 |
| N | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 | 8 |
| Stage Total Length (mm) | 590 | 690 | 790 | 890 | 990 | 1090 | 1190 | 1290 | 1390 | 1490 | 1590 | 1690 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 27.0 | 30.3 | 33.6 | 36.9 | 40.2 | 43.5 | 46.8 | 50.1 | 53.4 | 56.7 | 60.0 | 63.3 |
| Sliding Table M (mm) | 370 | |||||||||||
| A | 16 | |||||||||||
| B | 7 | |||||||||||
| Motion Parts Weight (kg) | 7.5 | |||||||||||
Kindly provide below parameters, then we can provide 2D/3D drawing and a reasonable price to you.
1. Effective stroke
2. Maximum speed
3. Maximum acceleration
4. Load
5. Repeatability accuracy
Industry Applications:
It is mainly used for the handling shaft (loading and unloading shafts) of automation equipment.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen, guangzhou, xiamen ( BY SEA, AIR，TNT, UPS, FedEx and DHL ect.)
Leading time: According to order quantity, 7-10 days for sample order and 20-35 days for bulk order
