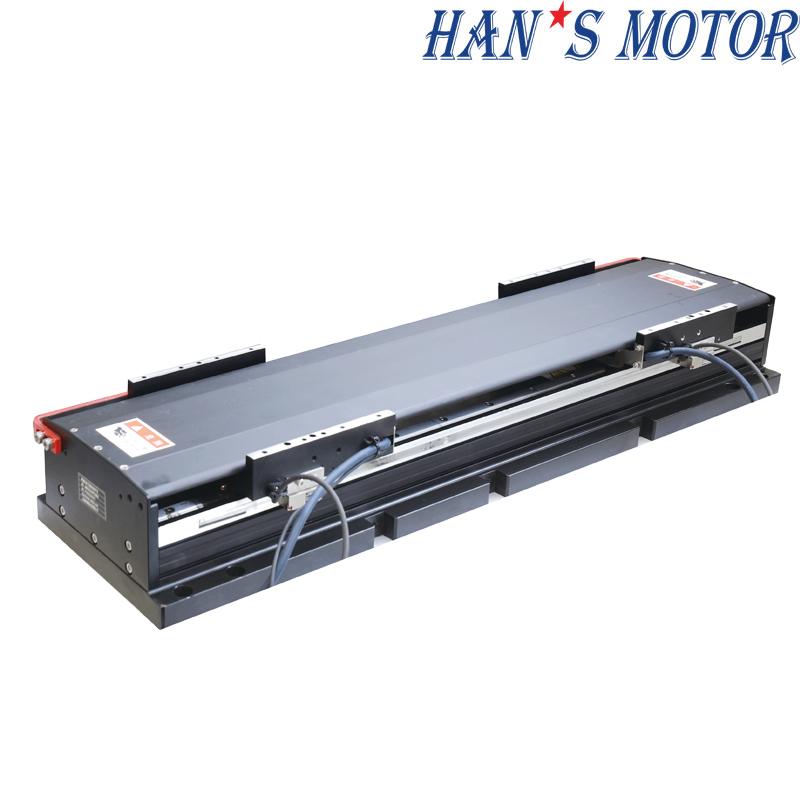

Motorized Linear Slide Stage
Combining direct drive motor and ball screw system, this motorized slide stage delivers efficient linear motion. The linear rail ensures smooth movement with reduced backlash. Ideal for equipment requiring consistent positioning and load stability.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
Motor Model/Parameter
| Parameter\ Motor Model | Unit | U44 |
| Continuous Force (Tmax） | N | 144 |
| Peak Force | N | 576 |
| Motor Constant | N//SqrtW | 12.8 |
| Max.Continuous Power Dissipation | W | 126.6 |
| Continuous Current (Tmax） | Arms | 2.3 |
| Peak Current (1S) | Arms | 9.2 |
| Force Constant (25℃，±5%） | N/Arms | 62.8 |
| Back EMF Constant (25℃，±5%） | Vrms/rad/s | 20.9 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 10.6 |
| Inductance(25℃，±20%）P-P | mH | 8.0 |
| Max Coil Temperature | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 60 |
| Magnetic Attraction | KN | 0 |
| Mover Mass | Kg | 1.2 |
Multi-axis Linear Motor Stages Parameters
LML150-U44-___-G05/C10-A
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 |
| K | 14 | 14 | 18 | 18 | 22 |
| N | 4 | 4 | 6 | 6 | 8 |
| Stage Total Length (mm) | 460 | 560 | 660 | 760 | 860 |
| Dowel Pin D1 (mm) | 16.1 | 19 | 21.8 | 24.1 | 27 |
| Stage Weight (kg) | 250 | ||||
| A | 12 | ||||
| B | 5 | ||||
| Motion Parts Weight (kg) | 4.2 | ||||

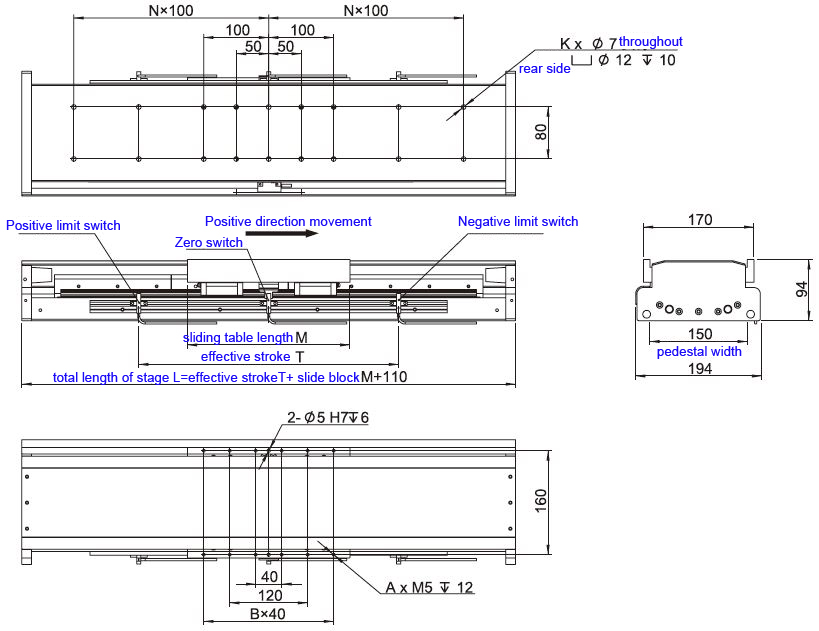

Dimension
Characteristics:
1.Optimal design/ complete specifications / High precision/ High rigidity
2.Professional production team, high precision production equipment, focused on motor of direct drive for 18 years
Why choose us?
Q: What’s your main products?
A: Our main products including linear motors, torque motors, motor modules, motion stages, AC servo systems, variable frequency drives and so on.
Q: When can I get the quotation?
A: Usually quote within 24 hours after we get your inquiry, please inform us for any emergency.
Q: How can we get a sample to check your quality?
A: Please check the quality after we confirmed price and solution.
We have won Guangdong Provincial and municipal science and technology projects in many times, and won the Government science and Technology Awards.
Passed ISO 9001 and ISO 14001 management system certification and CE certificate.
Warranty Statement:
Packing: Firm wooden package to protect the damage during transportation
Transport: Ship it in fast and easy way to shorten the delivery time

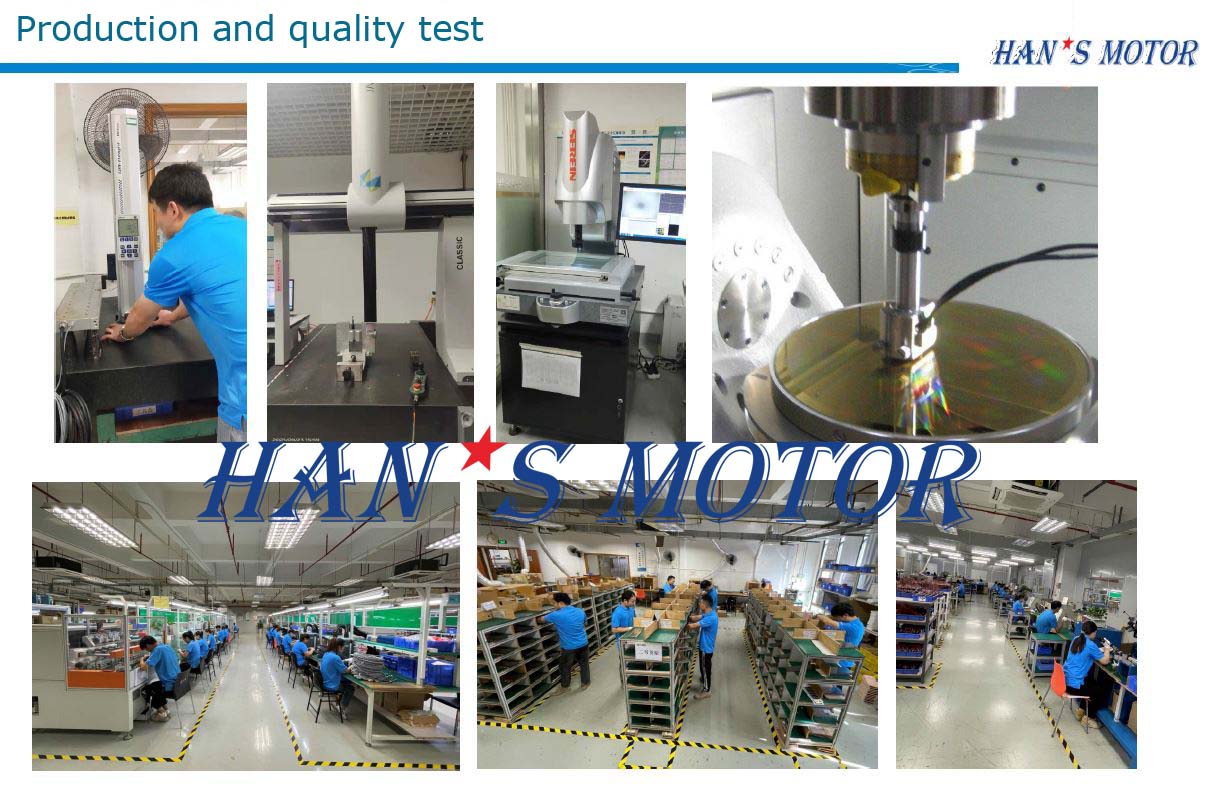

Quality assurance: Manufactured in clean workshop to ensure the performance of products
Applications:
Automatic machine, Semi-conductor industry, General industry machinery, Medical equipment, Solar energy equipment, Machine tool
HAN’S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
