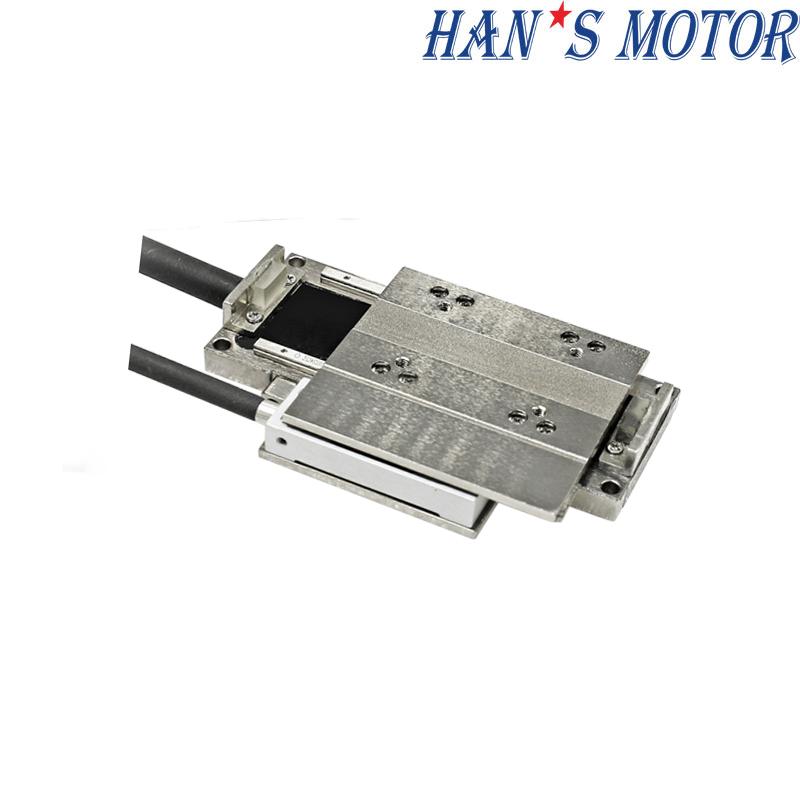

Miniature Linear Stage
This stage is engineered for applications where space is constrained but motion precision is critical. Its compact body integrates linear guidance with minimal deflection. Ideal for optics, medical devices, and automated inspection tools. Capable of delivering high-resolution positioning in micro-movement tasks. The platform ensures minimal vibration and long-term durability.
Brand:
Order(MOQ):
1
Product Detail
Introduce
Miniature stages are essential in positioning tasks where available space is limited. HAN’S Motor solutions like LMA series allow for the most compact stages due to their direct drive principle.
Welcome to inquiry for your customization!
Application fields
Micromanipulation, automation, biotechnology, sample manipulation, sample positioning, applications with limited space and so on.
Motor and Stage Specifications
| Model： | LMA38-10-XXX–A | |
| G01 | Grating feedback, resolution: 0.1μm | |
| G05 | Grating feedback, resolution: 0.5μm | |
| Motor specifications | ||
| Units | Value | |
| Continuous Force (Tmax） | N | 0.6 |
| Peak Force | N | 3 |
| Motor Constant | N√W | 0.5 |
| Max.Continuous Power Dissipation | W | 1.42 |
| Continuous Current (Tmax） | Arms | 0.15 |
| Peak Current (1S) | Arms | 0.8 |
| Force Constant (25℃，±5%） | N/Arms | 4 |
| Back EMF Constant (25℃，±5%） | Vrms/m/s | 1.3 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 30 |
| Inductance(25℃，±20%）P-P | μm | 0.25 |
| Max Coil Temperature | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 24 |
| Magnetic Attraction | N | 11 |
| Stage specifications | ||
| Units | Value | |
| Max. Load | kg | 1 |
| Effective Stroke | mm | 10 |
| Resolution | μm | 0.1 |
| Max.Speed（1） | mm/s | 200 |
| Repeat accuracy | μm | ±0.5 |
| Weight | kg | 0.1 |
Working environment temperature and humidity | 0-40℃、20-80%RH | |

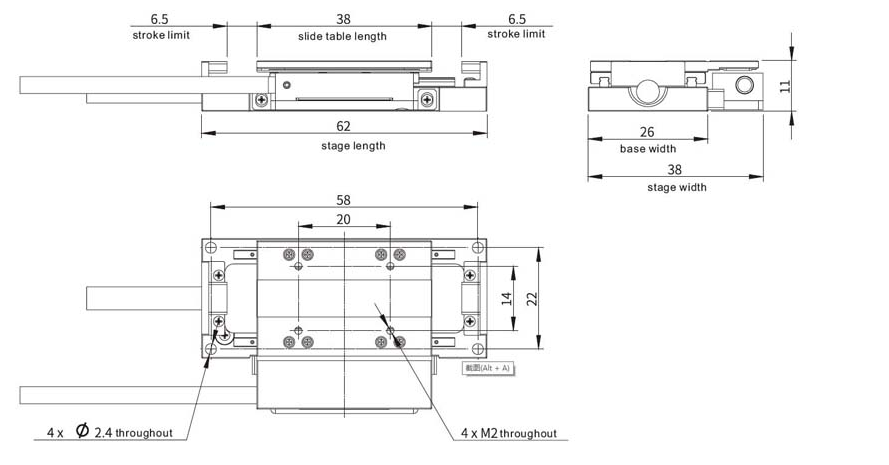

Dimensions
