Miniature Linear Stage
Compact and adaptable, this miniature linear stage enables accurate motion in tight installation spaces. Its low-profile structure is ideal for precision automation setups. Features zero-contact travel and high resolution positioning. Suitable for light-load, high-precision environments.
Brand:
Order(MOQ):
1
Product Detail
Stage Introduce:

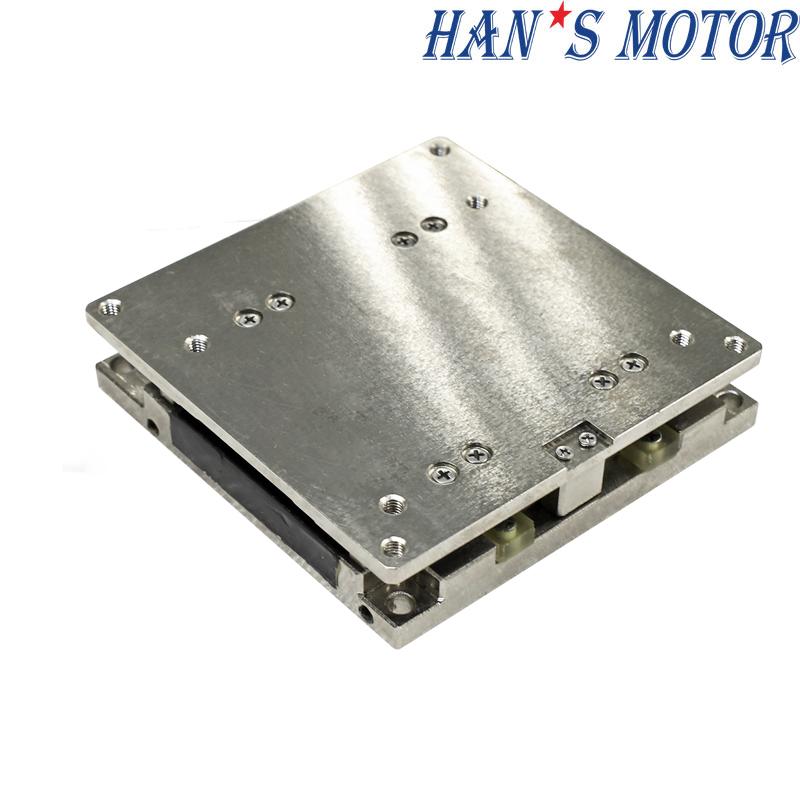

The LMA series miniature stages are designed for applications requiring high positioning accuracy. Two stutures are available: stainless steel and aluminum alloy. With precise mounting surface, high resolution linear encoder.
1. 1G acceleration
2. repeated positioning accuracy ±0.5m
3. stainless steel or aluminum alloy structure
4. precise mounting surface
5. surface coating protection
Selection Rules
LMA120-25-XXX-A
XXX = G01 Grating feedback, resolution: 0.1μm
G05 Grating feedback, resolution: 0.5μm
Motor and Stage Specifications
| Motor specifications | ||
| Units | Value | |
| Continuous Force (Tmax） | N | 17 |
| Peak Force | N | 85 |
| Motor Constant | N√W | 4.77 |
| Max.Continuous Power Dissipation | W | 12.71 |
| Continuous Current (Tmax） | Arms | 0.5 |
| Peak Current (1S) | Arms | 2.5 |
| Force Constant (25℃，±5%） | N/Arms | 34 |
| Back EMF Constant (25℃，±5%） | Vrms/m/s | 11.3 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 24.2 |
| Inductance(25℃，±20%）P-P | μm | 0.72 |
| Max Coil Temperature | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 40 |
| Magnetic Attraction | N | 300 |
| Stage specifications | ||
| Units | Value | |
| Max. Load | kg | 4 |
| Effective Stroke | mm | 25 |
| Resolution | μm | 0.1 |
| Max.Speed（1） | mm/s | 700 |
| Repeat accuracy | μm | ±0.5 |
| Weight | kg | 1.7 |
Working environment temperature and humidity | 0-40℃、20-80%RH | |

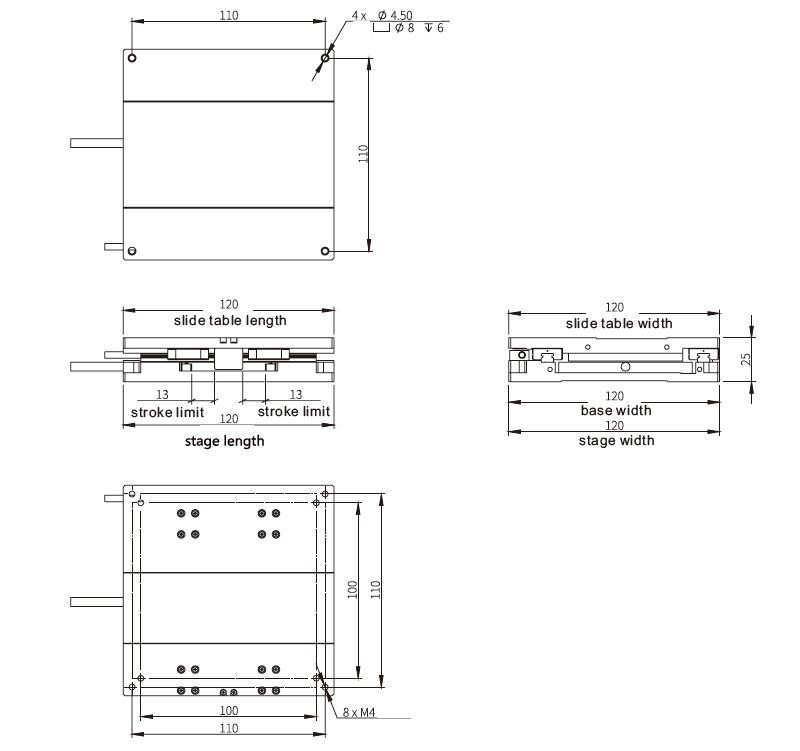

Installation dimensions

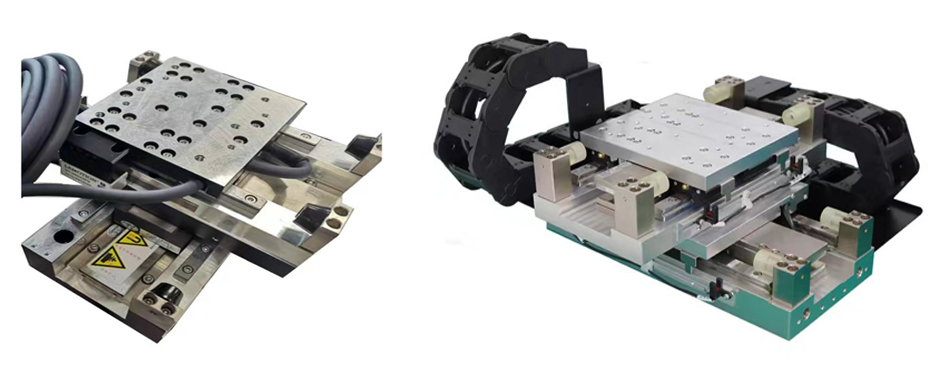

X-Y Platform Case
