Miniature Linear Stage
Designed for precision microassembly, this miniature stage delivers smooth and repeatable motion. Features compact structure with high positional resolution. Used in electronics, optics, and laboratory automation systems.
Brand:
Order(MOQ):
1
Product Detail

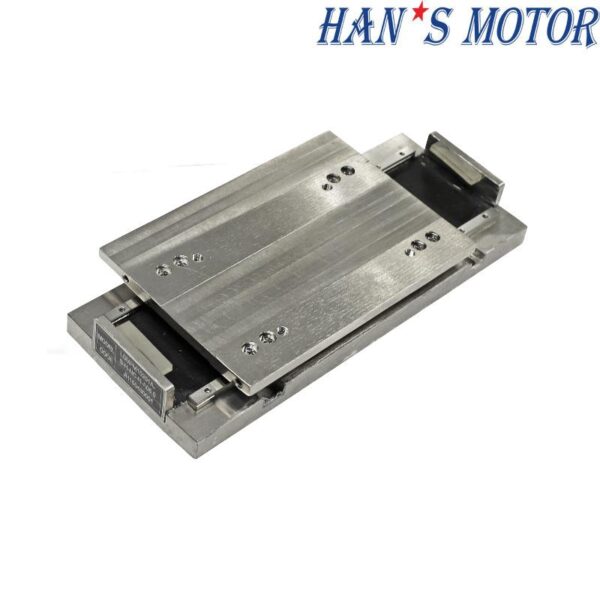

Precision-class miniature linear stage
The miniature linear stage has an ironless linear motor that ensures smooth running. The combination of stress-relieved aluminum base ensures good performance data. Built-in high precision grating, repeated accuracy up to ±1μm.
Application fields
Industry and research. Metrology. Photonics and precision scanning in semiconductor or flat panel display manufacturing.
Motor and Stage Specifications
| Model： | LMA55-25-XXX–A | |
| G01 | Grating feedback, resolution: 0.1μm | |
| G05 | Grating feedback, resolution: 0.5μm | |
| Motor specifications | ||
| Units | Value | |
| Continuous Force (Tmax） | N | 8 |
| Peak Force | N | 32 |
| Motor Constant | N√W | 1.74 |
| Max.Continuous Power Dissipation | W | 21.1 |
| Continuous Current (Tmax） | Arms | 0.8 |
| Peak Current (1S) | Arms | 3.2 |
| Force Constant (25℃，±5%） | N/Arms | 10.0 |
| Back EMF Constant (25℃，±5%） | Vrms/m/s | 3.3 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 15.7 |
| Inductance(25℃，±20%）P-P | μm | 0.43 |
| Max Coil Temperature | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 36 |
| Magnetic Attraction | N | 84 |
| Stage specifications | ||
| Units | Value | |
| Max. Load | kg | 3.5 |
| Effective Stroke | mm | 25 |
| Resolution | μm | 0.1 |
| Max.Speed（1） | mm/s | 700 |
| Repeat accuracy | μm | ±0.5 |
| Weight | kg | 0.5 |
Working environment temperature and humidity | 0-40℃、20-80%RH | |

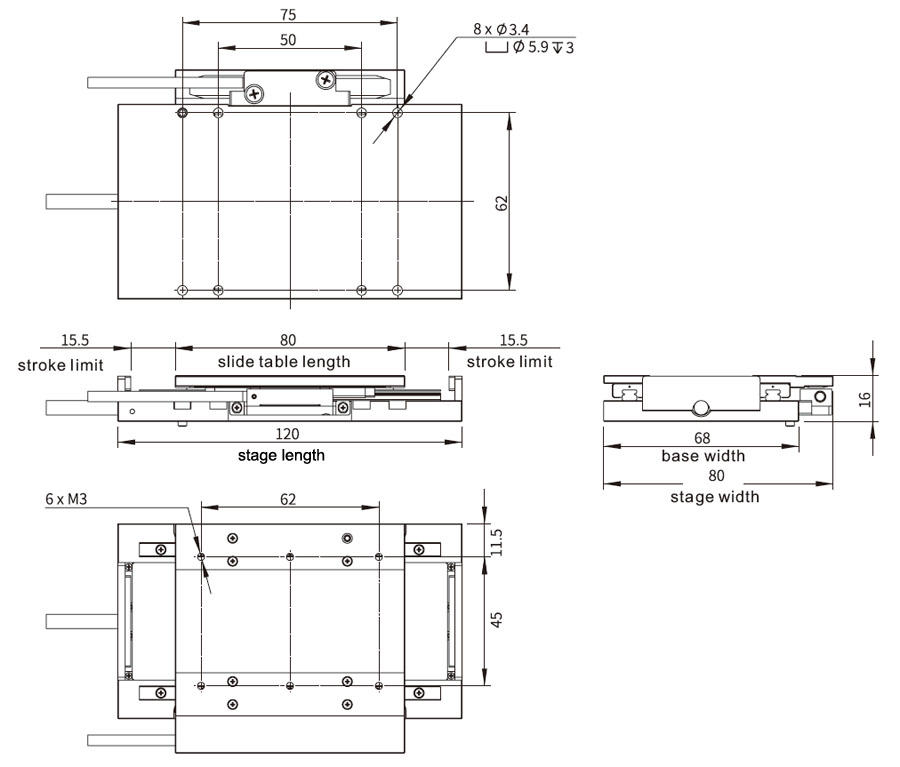

Dimensions
