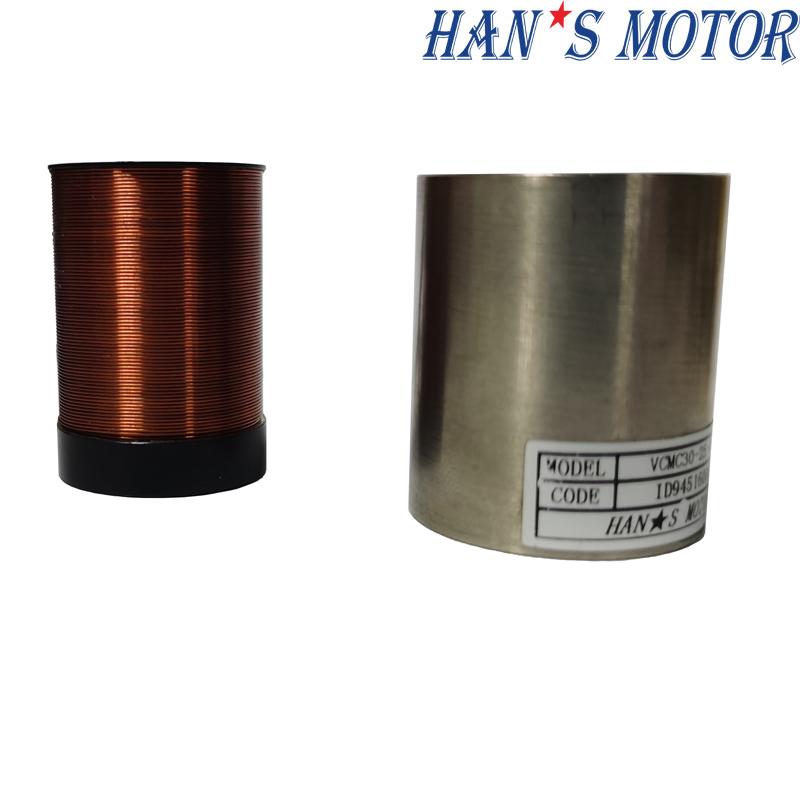

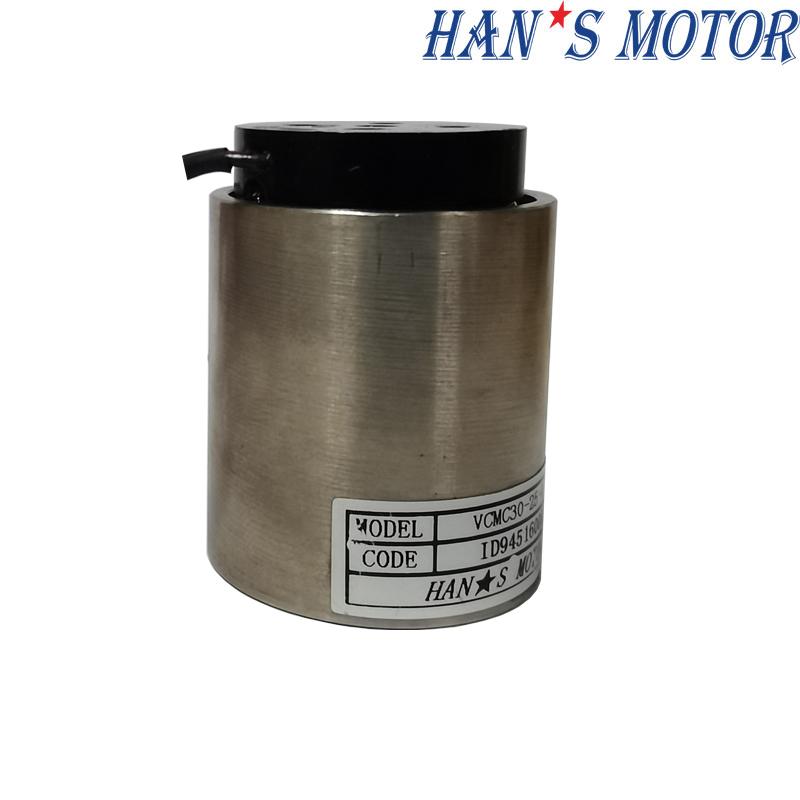

Mini Voice Coil Motor
This mini permanent magnet voice coil motor features high acceleration, quick response, and compact design. It enables dynamic motion control with minimal inertia and high precision. Perfect for space-limited setups and high-speed operation environments.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Motor model | VCMC100101A | VCMC30-25-0.5 | VCMC40-20.0.5 | VCMI1-035-6520-L0.5 | ||
| PERFORMANCE PARAMETERS | Symbol | Units | ||||
| Stroke | S | mm | 10 | 25 | 20 | 20 |
| Continuous Force (Tmax） | Fc | N | 12 | 7 | 10 | 35 |
| Peak Force | Fp | N | 29.0 | 47.0 | 58.0 | 165.0 |
| Motor Constant | Km25 | N/Sqrt(W) | 4 | 2 | 4 | 7 |
| Max.Continuous Power Dissipation | Pc | W | 8.7 | 15.6 | 7.3 | 27.6 |
| Continuous Current | Ic | Arms | 1.6 | 1.6 | 0.8 | 3.2 |
| Peak Current (1S) | Ip | Arms | 3.4 | 10.0 | 4.5 | 15.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 9.0 | 4.7 | 12.9 | 11.0 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 9.0 | 4.7 | 12.9 | 11.6 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 4.8 | 6.1 | 12.3 | 2.7 |
| Inductance(25℃，±20%）P-P | L | mH | 3 | 2 | 5 | 3 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 |
| Mover Mass | Mp | Kg | 0.1 | 0.0 | 0.1 | 1.1 |
| Stator Mass | Ms | Kg | 0 | 0 | 0 | 0 |

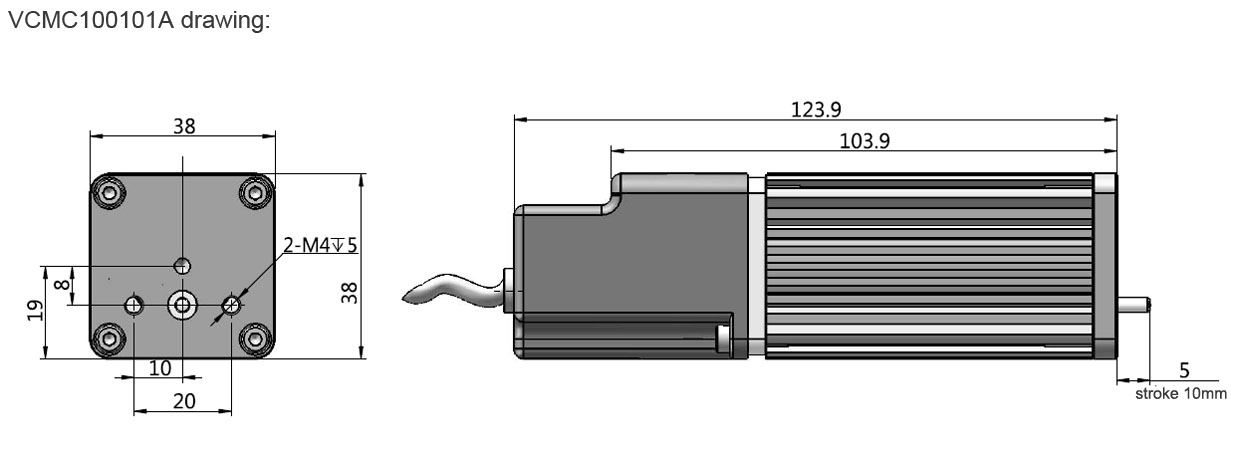

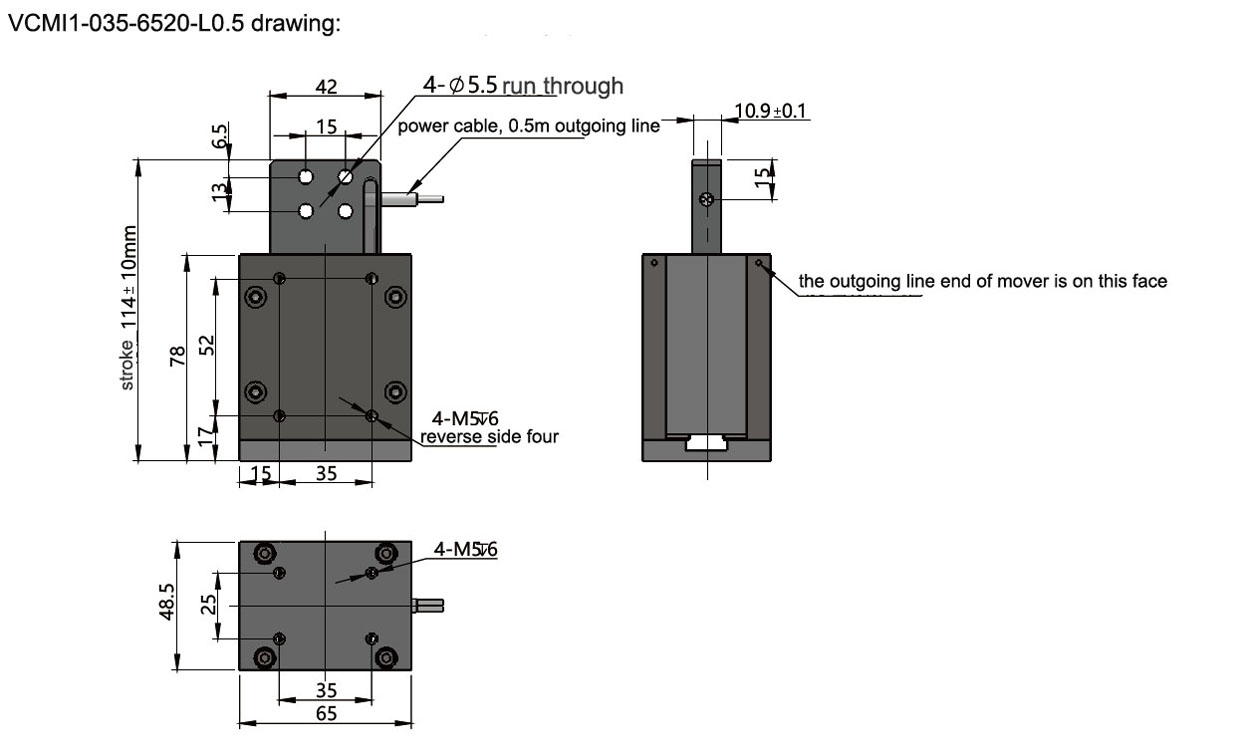

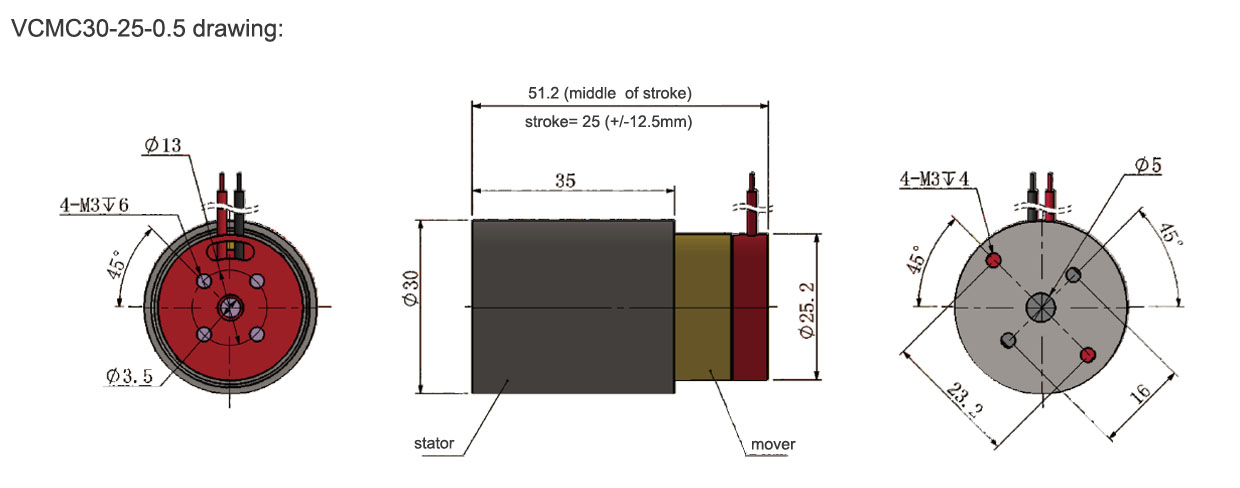

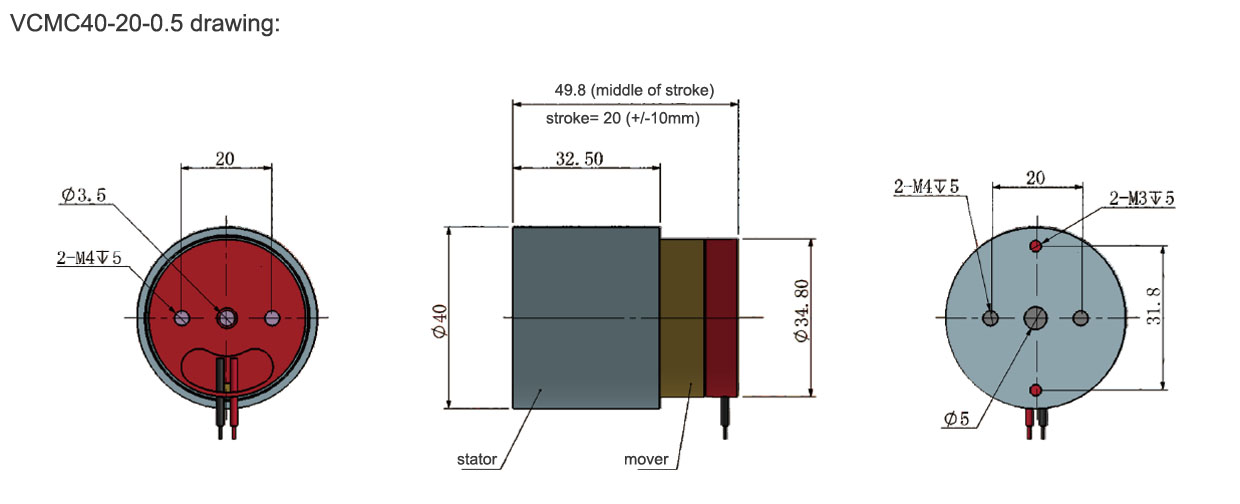

Dimension
Advantages：
Simple structure, high precision, high efficiency, high response, maintenance-free, no cogging effect, no need for reversing, the repeated positioning accuracy of up to ±1µm, especially suitable for short stroke, fast response, high precision closed-loop servo control.
Mian application:
1. Vibration System: Shaking table, vibration platform.
2. Semiconductor industry: Wiring, cutting, drilling, welding etc.
3. Micro Machine industry: Feed systems, micro drilling, precision stamping.
4. Medical field: Micro-injection system, respiratory equipment, testing equipment.
5. Valve operation in the field: pressure test systems, pneumatic valve chemistry injection system.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order.
