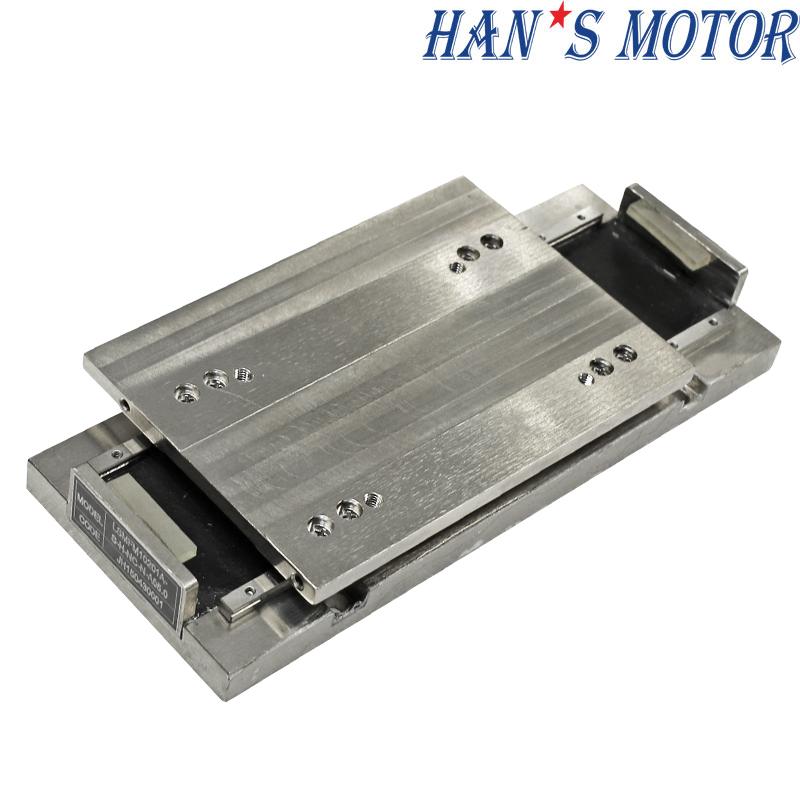

Mini Linear Motion Stage
Compact linear motion stage with integrated direct drive system for space-limited automation setups. Offers accurate control and smooth operation. Applicable to micro-assembly lines and testing systems.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
Motor Model/Parameter
| Motor Parameters | ||
| Performance | Unit | Data |
| Continuous Force (Tmax） | N | 15 |
| Peak Force | N | 150 |
| Max. Load | kg | 5 |
| Effective Stroke | mm | 100-2200 |
| Resolution | μm | 0.5 |
| Max.Speed (1) | mm/s | 1500 |
| Repeat accuracy | μm | ±1 |
| Weight | kg | 1.8 |
| Working environment temperature and humidity | 0-40℃、20-80%RH | |
Performance
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 6 | 8 | 10 | 12 | 14 | 14 | 16 | 26 | 18 | 20 | 24 | 24 |
| N | 2 | 3 | 5 | 5 | 6 | 6 | 7 | 5 | 8 | 9 | 11 | 11 |
| Stage Total Length (mm) | 380 | 480 | 580 | 680 | 780 | 880 | 980 | 1080 | 1180 | 1280 | 1380 | 1480 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached,
so the specific speed should be communicated with the engineer
Dimension
Characteristics:
1.High rigidity,high accuracy,saving space linear motion stage;
2.Smooth running, low noise and non-pollution,high speed;
3.High accurancy and easy setting up;
4.Low friction, smooth, accurate motion for normal loading condition.
Why choose us?
Q1: What’s property of your company?

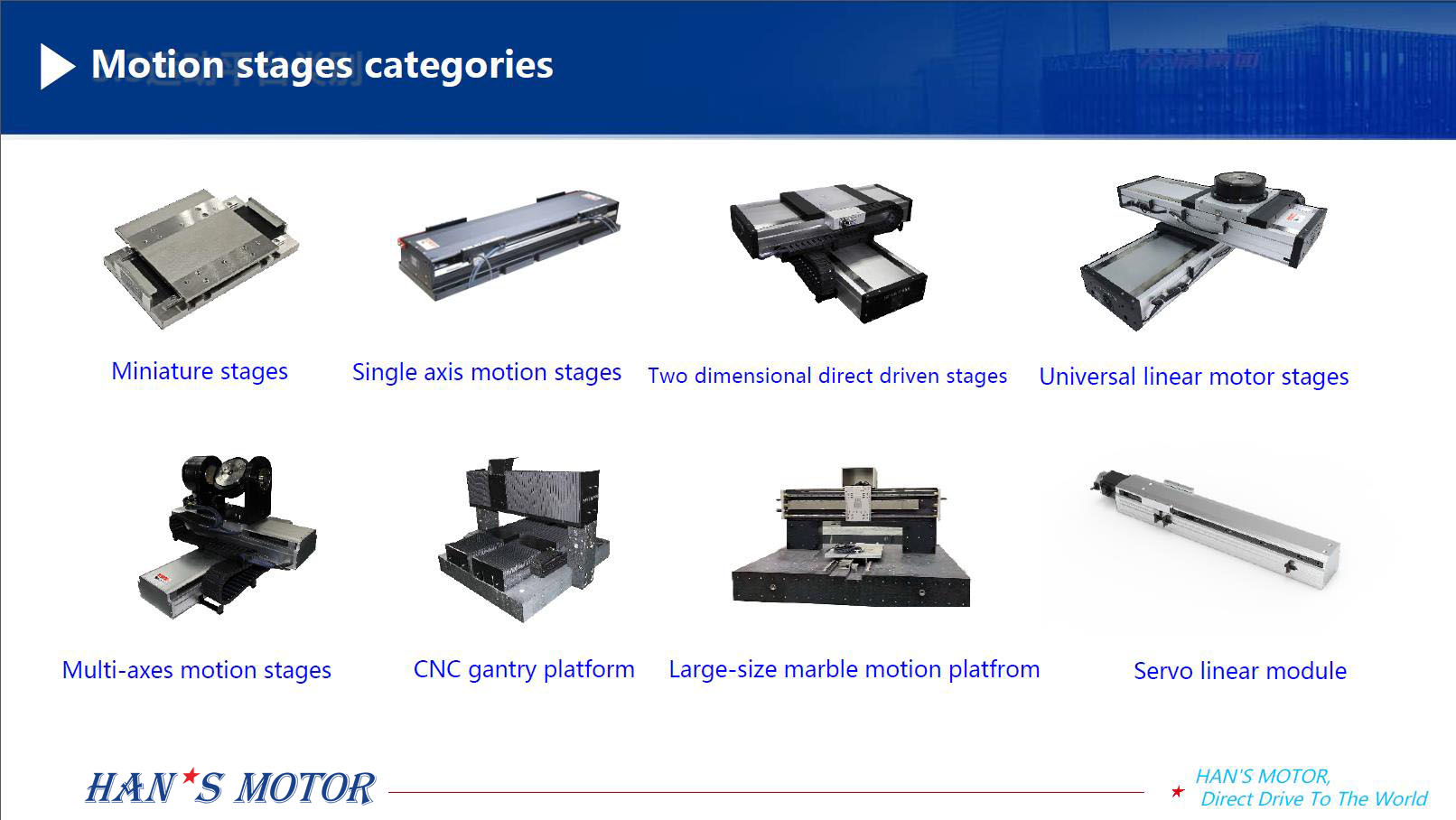

A: We are an integrated company specializing in manufacturing linear motors, DDR torque motors,
motor modules, motion stages, AC servo systems, variable frequency drives and so on.
Q2: How long is your delivery time and shipment?
Sample leading-time: Generally 10 workdays
Delivery time: 20 days after confirmed order according to production season and order quantity.
Q3: How about your company’s quality control?
A: HAN’S motor has strong design with R&D capabilities, high production capabilities and excellent service team based on Quality Management System Certification.: ISO9001:2000
Achievements as national “Specialized Refinement Differential Innovation” Enterprise

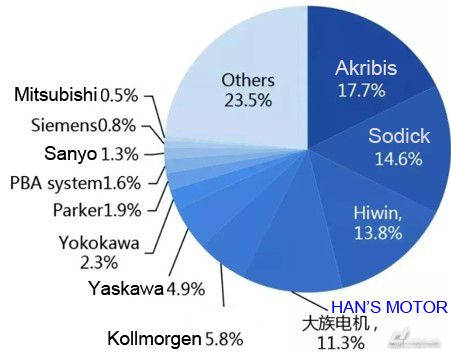

for the leader of linear motor market share.
