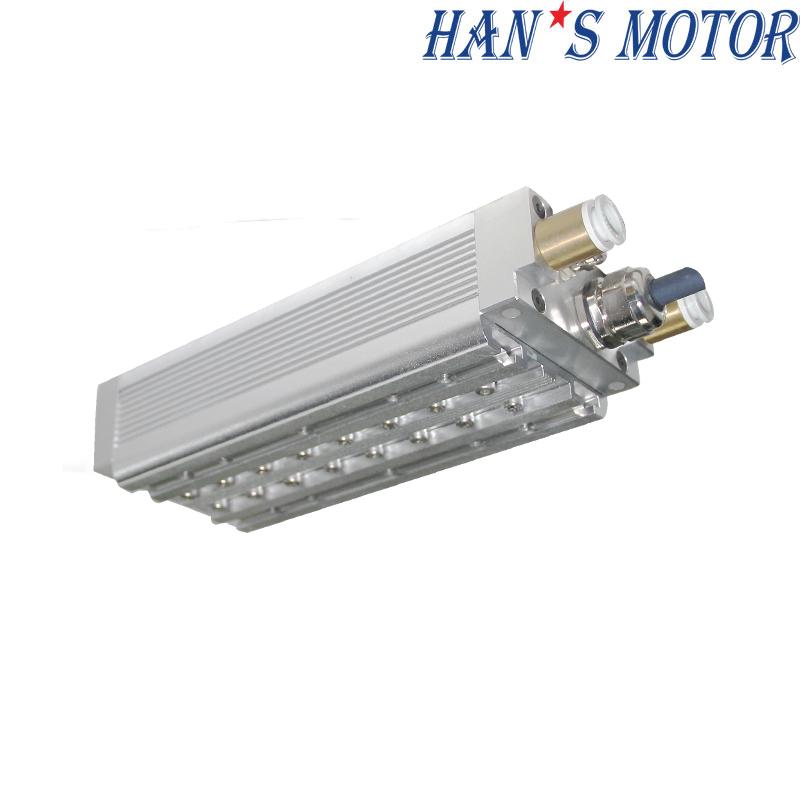

Medium-Force Iron Core Linear Motor
Delivering 1030–2100N thrust, this iron core linear motor offers reliable water-cooled operation and efficient acceleration. It is optimized for long-term durability and high-frequency motion cycles. Excellent thermal control supports stable linear performance.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec.：LSMF510xxxx-x-H-WC | 201C-S | 401C-S | ||
| PERFORMANCE PARAMETERS | Symbol | Units | ||
| Continuous Force (Tmax） | Fc | N | 505 | 1030 |
| Peak Force | Fp | N | 1200 | 2100 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 29.1 | 42.5 |
| Max.Continuous Power Dissipation | Pc | W | 302 | 586 |
| Continuous Current (Tmax） | Ic | Arms | 7.3 | 7.3 |
| Peak Current (1S) | Ip | Arms | 14.6 | 14.6 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 71.0 | 141.0 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 23.7 | 47.0 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 2.7 | 5.2 |
| Inductance(25℃，±20%）P-P | L | mH | 30.0 | 57.0 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 47.6 | 47.6 |
| Minimum flow of cold water | Wmin | L/min | 4.0 | 4.0 |
| Temperature difference between inlet and outlet | △T | ℃ | 2.1 | 2.1 |
| Pressure drop (stator loop series) | △P | Bar | 0.2 | 0.2 |
| Magnetic Attraction | Fa | kN | 2.5 | 5.0 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 7.4 | 3.5 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 5.3 | 2.4 | |
| Vmax,0@Vbus=310Vdc | m/s | 9.2 | 4.6 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 4.6 | 2.1 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 3.2 | 1.4 | |
| Vmax,0@Vbus=537Vdc | m/s | 5.9 | 3.0 | |
| Mover Mass | Mp | Kg | 8.0 | 14.5 |
| Stator Mass within unit length | Ms | Kg/m | 10.5 | 10.5 |

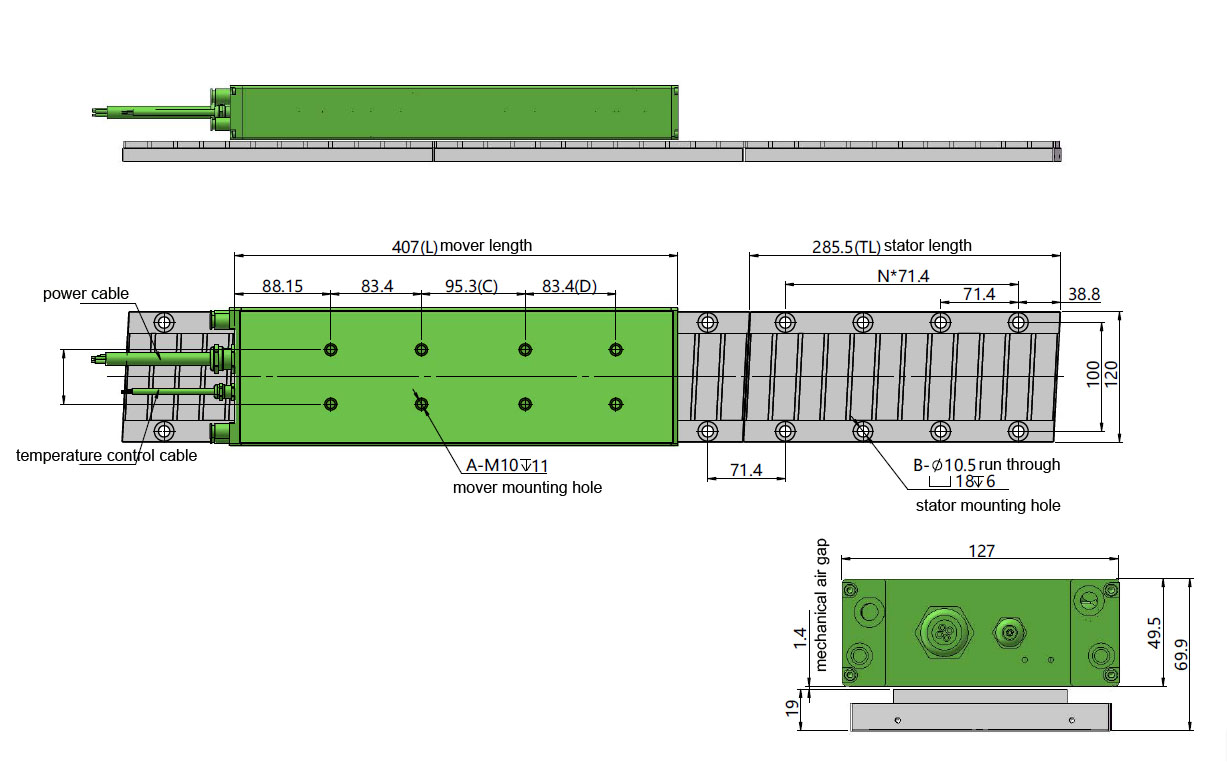

Dimension
| Mover Length | ||||
| Mover model | Mover length L | C | D | Mover mounting hole A |
| LSMF510201C-S-H-WC | 228 | 0 | 0 | 4 |
| LSMF510401C-S-H-WC | 407 | 95.3 | 83.4 | 8 |
Remarks: 1. Standard cable length is 5m, maximum outer diameter(d) of motor cable is d= 12mm, minimum bending radius within chain is 90mm, the length can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMF5201A | 285.5 | 3 | 8 |
| LSMF5203A | 142.8 | 1 | 4 |
Suitable for any mover of this series.

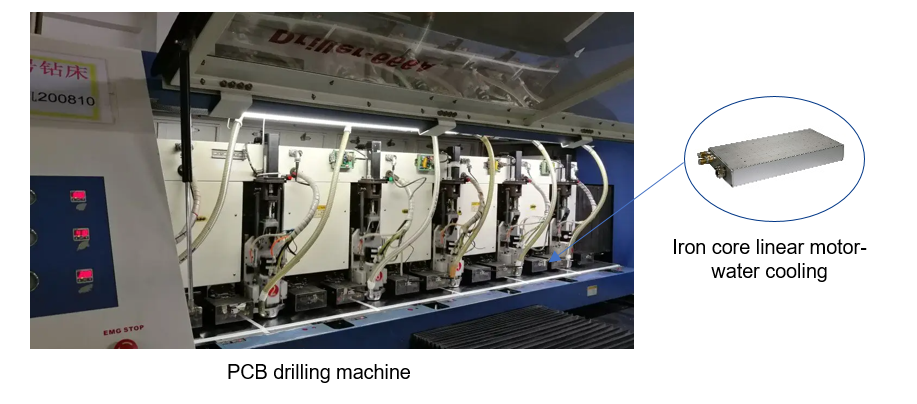

Application Case：PCB Drilling industry
Advantages: large thrust, excellent acceleration performance, unique water-cooling technology, built-in overheat protection.
Cumulative usage of iron core linear motors exceeds 100,000 axes. The customer’s market share of drilling machine is No. 1 in the world.
Industry Applications:
it is widely used in wafer cutting, glass scribing, UV printingmachine and measurement system,six-axis drilling machine, single-axis drilling machine, two-axis drilling machine, forming machine, laser direct imaging machine (LDI), automatic optical inspection machine (AOI), reinforcement machine (FPC).
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
