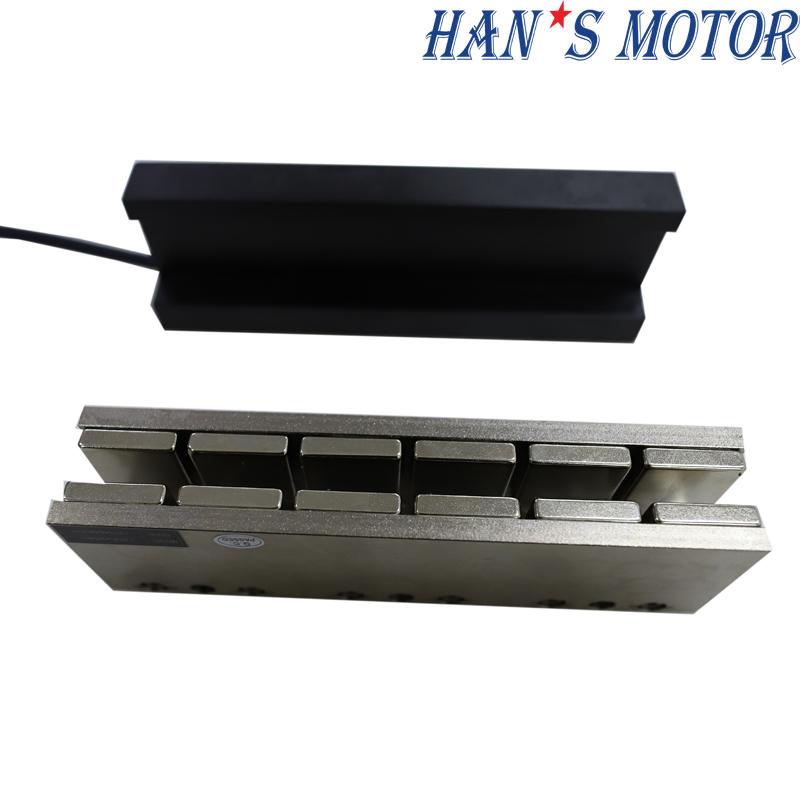

Compact Ironless Linear Motor
This LSMU series ironless linear motor features slim dimensions of 35.5mm thickness and 68.5mm width, delivering high thrust in a compact form. It supports high-speed and accurate positioning in robotics and automation systems. The motor’s low inertia and ironless design ensure smooth operation with minimal heat generation. Perfect for space-constrained precision applications.
Brand:
Order(MOQ):
1
Product Detail

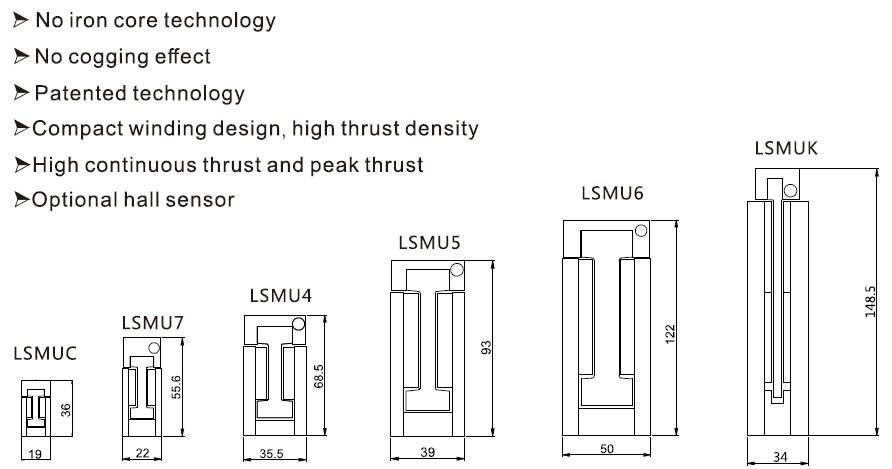

Ironless Linear Motor LSMU Series
Specifications
| Mover Spec: LSMU410xxxx-x-H-NC-N-D00.5 | 101A-S | 201A-S | 201A- P | 301A-S | 301A- P | 401A-S | 401A- P | 601A-S | 601B- P | ||
| Performance Parameters | Symbol | Unit | Series | Series | Parallel | Series | Parallel | Series | Parallel | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 36 | 72 | 72 | 108 | 108 | 144 | 144 | 216 | 216 |
| Peak Force | Fp | N | 144 | 288 | 288 | 432 | 432 | 576 | 576 | 864 | 864 |
| Motor Constant | Km25 | N//Sqrt (W) | 7.8 | 11.0 | 10.8 | 13.5 | 13.2 | 15.6 | 15.6 | 19.2 | 18.9 |
| Max.Continuous Power Dissipation | Pc | W | 29.4 | 58.8 | 61.0 | 88.2 | 91.5 | 116.6 | 117.7 | 174.3 | 178.7 |
| Continuous Current (Tmax） | Ic | Arms | 2.3 | 2.3 | 4.6 | 2.3 | 4.6 | 2.3 | 4.6 | 2.3 | 4.6 |
| Peak Current (1S) | Ip | Arms | 9.2 | 9.2 | 18.4 | 9.2 | 18.4 | 9.2 | 18.4 | 9.2 | 18.4 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 15.7 | 31.4 | 15.7 | 47.1 | 23.6 | 62.8 | 31.4 | 94.2 | 47.1 |
| Back EMF Constant (25℃，±5%） | Ke | Vrm/rad /s | 5.2 | 10.5 | 5.2 | 15.7 | 7.9 | 20.9 | 10.5 | 31.3 | 15.7 |
| Electrical Resistance (25℃，±5%）P-P | R | Ω | 2.7 | 5.4 | 1.4 | 8.1 | 2.1 | 10.7 | 2.7 | 16.0 | 4.1 |
| Inductance (25℃，±20%）P-P | L | mH | 2.0 | 4.0 | 1.0 | 6.0 | 1.5 | 8.0 | 2.0 | 12.0 | 3.0 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Magnetic Attraction | Fa | kN | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Max.DC Bus Voltage | Ubus | V | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 | 330 |
| Vmax,Fc@Vbus=310Vdc | Vmax,Fc | m/s | 23.1 | 11.1 | 23.1 | 7.1 | 15.0 | 5.1 | 11.1 | 3.1 | 7.1 |
| Vmax,Fp@Vbus=310Vdc | Vmax,Fp | m/s | 20.3 | 8.5 | 20.2 | 4.6 | 12.3 | 2.6 | 8.5 | 0.7 | 4.5 |
| Vmax,0@Vbus=310Vdc | Vmax,0 | m/s | 23.9 | 11.9 | 23.9 | 7.9 | 15.9 | 5.9 | 11.9 | 3.9 | 7.9 |
| Mover Mass | Mp | Kg | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 1.2 | 1.2 | 1.8 | 1.8 |
| Stator Mass within unit length | Ms | Kg/m | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 |

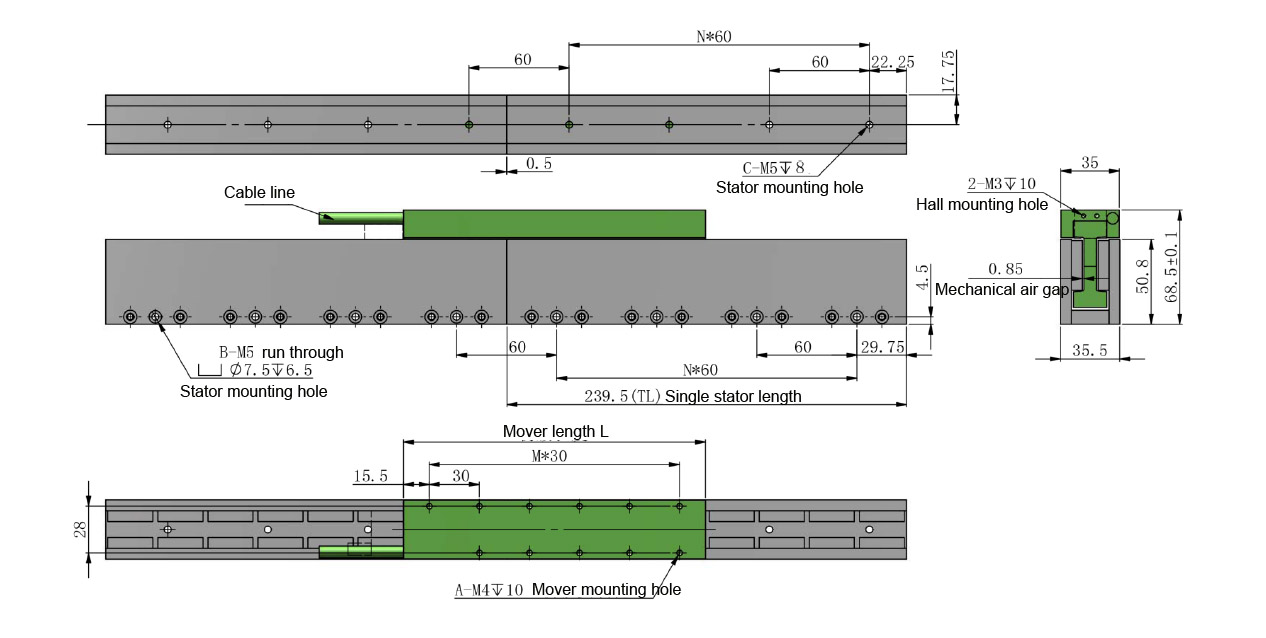

Dimension
| Mover Length | |||
| Mover model | Mover length L | M | Mover mounting hole A |
| LSMU410101A-S-H-NC-N-D00.5 | 61 | 1 | 3 |
| LSMU410201A-S-H-NC-N-D00.5 | 121 | 3 | 7 |
| LSMU410201A-P-H-NC-N-D00.5 | 7 | ||
| LSMU410301A-S-H-NC-N-D00.5 | 181 | 5 | 11 |
| LSMU410301A-P-H-NC-N-D00.5 | 11 | ||
| LSMU410401A-S-H-NC-N-D00.5 | 241 | 7 | 15 |
| LSMU410401A-P-H-NC-N-D00.5 | 15 | ||
| LSMU710601A-S-H-NC-N-D00.5 | 361 | 11 | 23 |
| LSMU710601A-P-H-NC-N-D00.5 | 23 | ||
Remark: 1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter d of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
2. optional temperature sensor.
| Stator Length | ||||
| Stator model | Stator length TL | N | Stator mounting hole B | Stator mounting hole C |
| LSMU4202A | 119.5 | 1 | 2 | 2 |
| LSMU4203A | 179.5 | 2 | 3 | 3 |
| LSMU4204A | 239.5 | 3 | 4 | 4 |
| LSMU4205A | 299.5 | 4 | 5 | 5 |
| LSMU4206A | 599.5 | 9 | 10 | 10 |
Suitable for any mover of series mover, stator installation mode can be selected.
