Long Stroke Linear Module
This linear module leverages ball screws and guide rails to achieve extended stroke and high travel stability. Built for CNC and high-speed motion systems. Provides smooth operation across long distances with minimal deflection. Suitable for industrial-grade automation needs.
Brand:
Order(MOQ):
1
Product Detail
Characteristic:

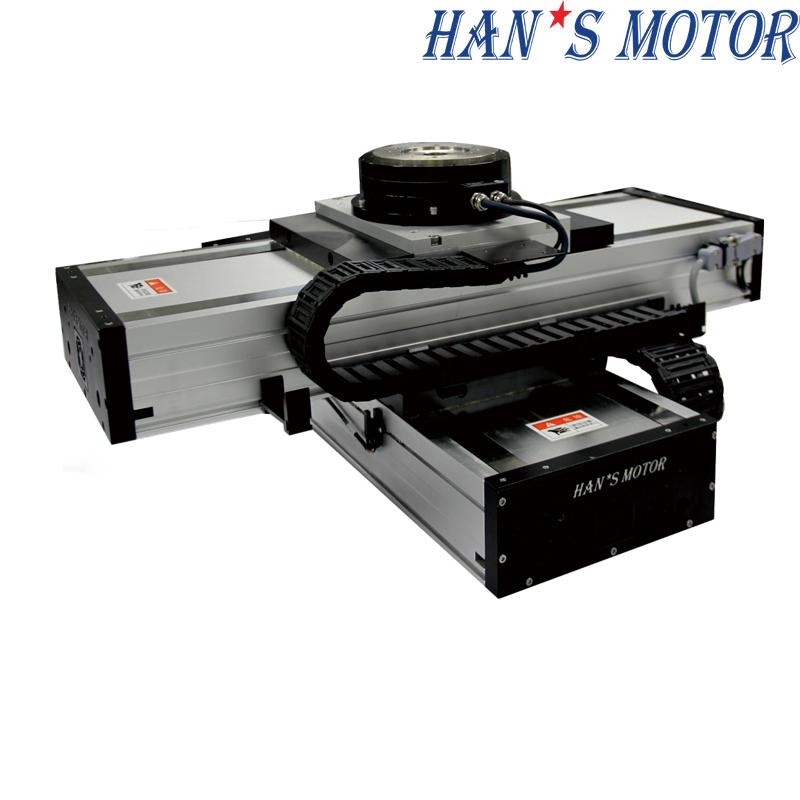

• It is composed of a stardard cross-type stage and a DDR motor,which is fully protected and has good dust-proof etc
• Continuous current 2.6Arms, peak current 7.8Arms
• Adopt HAN’s self-developed encoders and adtech driver
• Base width is 230mm, stroke 450mm, which can be used in medium and large loads of machine
• High precision optical grating feedback system, repeatability position accuracy ±1um
• Han’s production capacity 5000-10000 pieces per month
Motor and Stage Specifications
| Stage parameters | X-axis | Y-axis | T-axis |
| Effective stroke（mm） | 450 | 450 | 180° |
| Limit stroke（mm） | 480 | 480 | \ |
| Max. speed（m/s） | 1 | 1 | 500rpm |
| Acceleration(g) | 1 | 1 | \ |
| Repeatabiltiy postioning accuracy（μm） | ±5 | ±5 | ±5arcsec |
| Payload（kg） | \ | \ | 10 |
| Motor type | FL22 | FL21 | HANS-H-005 |
| Continuous force（N） | 196 | 118 | 5 |
| Peak force（N） | 517 | 314 | 15 |
| Continuous current（Arms） | 2.6 | 2.6 | 2.3 |
| Peak Current（Arms） | 7.8 | 7.8 | 7 |
| Polar distance (N-N) mm | 20 | 20 | 0.0021Kg*m2 |
Kindly instruct us your requirements of linear motion stage, and we would provide product manual and 3D model to you. Some parameters you can provide:
1. Effective stroke
2. Maximum speed
3. Maximum acceleration
4. Load
5. Repeatability accuracy
6. Straightness
7. Stages structure
Free product manual and 3D model and good quality with a reasonable price can be provided.
Industry Applications:
Laser marking machine motion system, automatic assembly, testing equipment, semiconductor precision inspection equipment, etc .

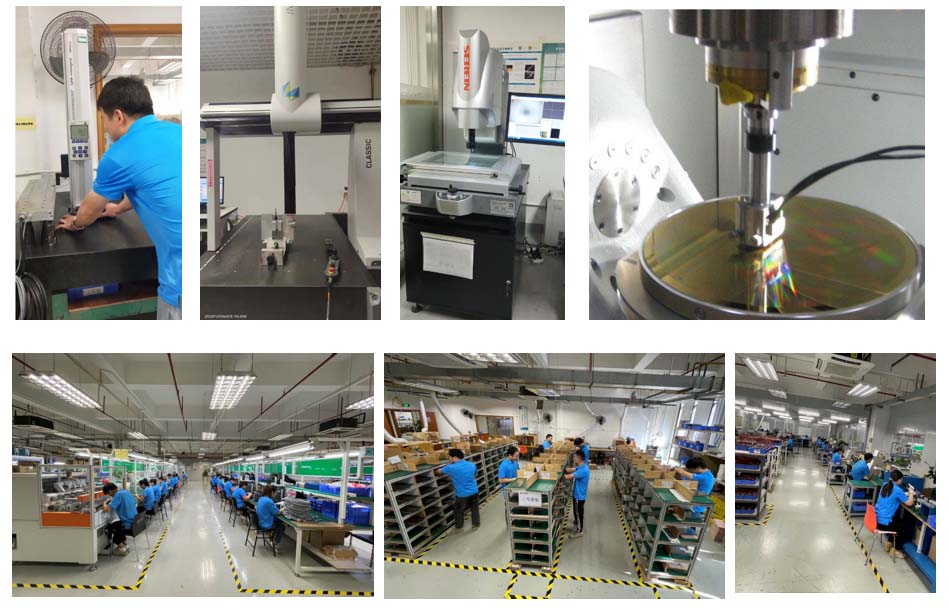

Laser Group Show
