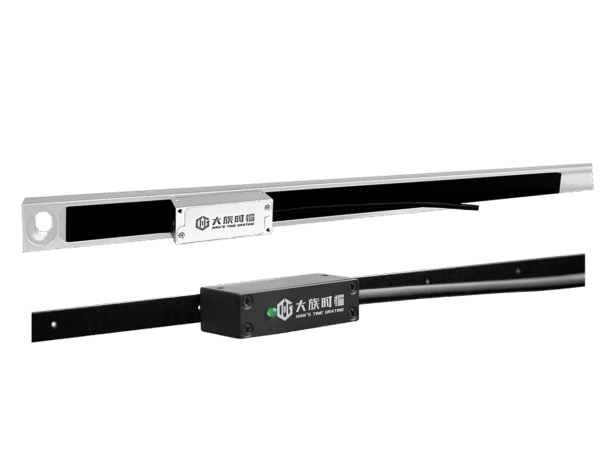

Linear Time Grating Encoder
The Linear Time Grating Encoder delivers high-resolution, high-accuracy, and high-repeatability absolute position measurement. Designed with a simple, compact structure, it is oil-resistant, shock- and vibration-proof, and easy to install. Ideal for devices, systems, and components that require precise position detection, it ensures reliable performance in demanding industrial applications.
Brand:
Order(MOQ):
1
Product Detail
Feature:
1.High-Precision Position Measurement
Linear Time Grating Encoders generate a high-quality time-varying magnetic field, precisely decoding spatiotemporal features to achieve ultra-accurate displacement measurement.
Linear Accuracy: ±20 μm/m, ±10 μm/m, ±5 μm/m, ±3 μm/m
2.High-Speed Operation
Supports high-resolution measurement even at fast motion speeds, ensuring reliable position detection for dynamic applications.
Linear Speed: up to 600 m/min (50 nm resolution)
3.Ultra-High Resolution
Uses high-frequency time-varying magnetic fields as sensing medium for strong EMI resistance and high signal-to-noise ratio, enabling fine subdivision and precise displacement measurement.
Linear Resolution: 250 nm, 100 nm, 50 nm, 10 nm
4.Fast Responsiveness
Provides ultra-fast signal response within hundreds of nanoseconds, with position calculations completed in just a few microseconds.
Linear/Angular Response Time: 5–10 μs
5.Robust and Reliable Design
Compact, oil-resistant, and shock-/vibration-proof, suitable for industrial devices and systems requiring precise and durable position measurement.
Highlights:
· Compact and oil-resistant structure for long-term stability in harsh industrial environments
· Shock and vibration resistant design ensures reliable performance under dynamic conditions
· Absolute position measurement without cumulative error, suitable for high-precision systems
· Easy installation and integration into a wide range of devices and automation equipment
· Ideal for CNC machines, robotics, semiconductor equipment, and advanced positioning applications
Application:
Time grating encoders provide high resolution, high accuracy, high repeatability, and fast-response absolute position measurement, with compact structure, oil- and dust-resistance, shock- and vibration-proof design, and easy installation. They are widely used in various industries, offering precise real-time position feedback for direct-drive and linear motors, CNC machine tool axes and accessories, automation equipment platforms and actuators, laser processing devices, testing and calibration instruments, as well as robotic joints and manipulators.
Specification
| Specifications | HTLIU- 05-00-0000-A-05-D9-F |
| Resolution Ratio | 0.25μm (customizable) |
| Repeat Precision | ±2μm |
| Positioning Accuracy | ±20μm/m |
| Measurement Range | customization |
| Movement Speed | Max.8m/s |
| Reference Signal | Generate a reference (index) signal every 4 mm |
| Installation Clearance | 0.4mm±0.2mm |
| Readhead Size | 50mm×14mm×20mm(Length, width, height) |
| Readhead Weight | 25g |
| Cable Outlet Type | Single-sided exit |
| Cable Length | 0.5m (customizable) |
| Cable Termination Type | DB9 (customizable) |
| Operating Voltage | 5V DC ±10% |
| Communication Interface | RS422 |
| Communication Type | ABZ |
| Operating Current | Max.80mA |
| Operating Temperature | 0℃~+70℃ |
| Protection Rating | IP65 |
Installation dimension

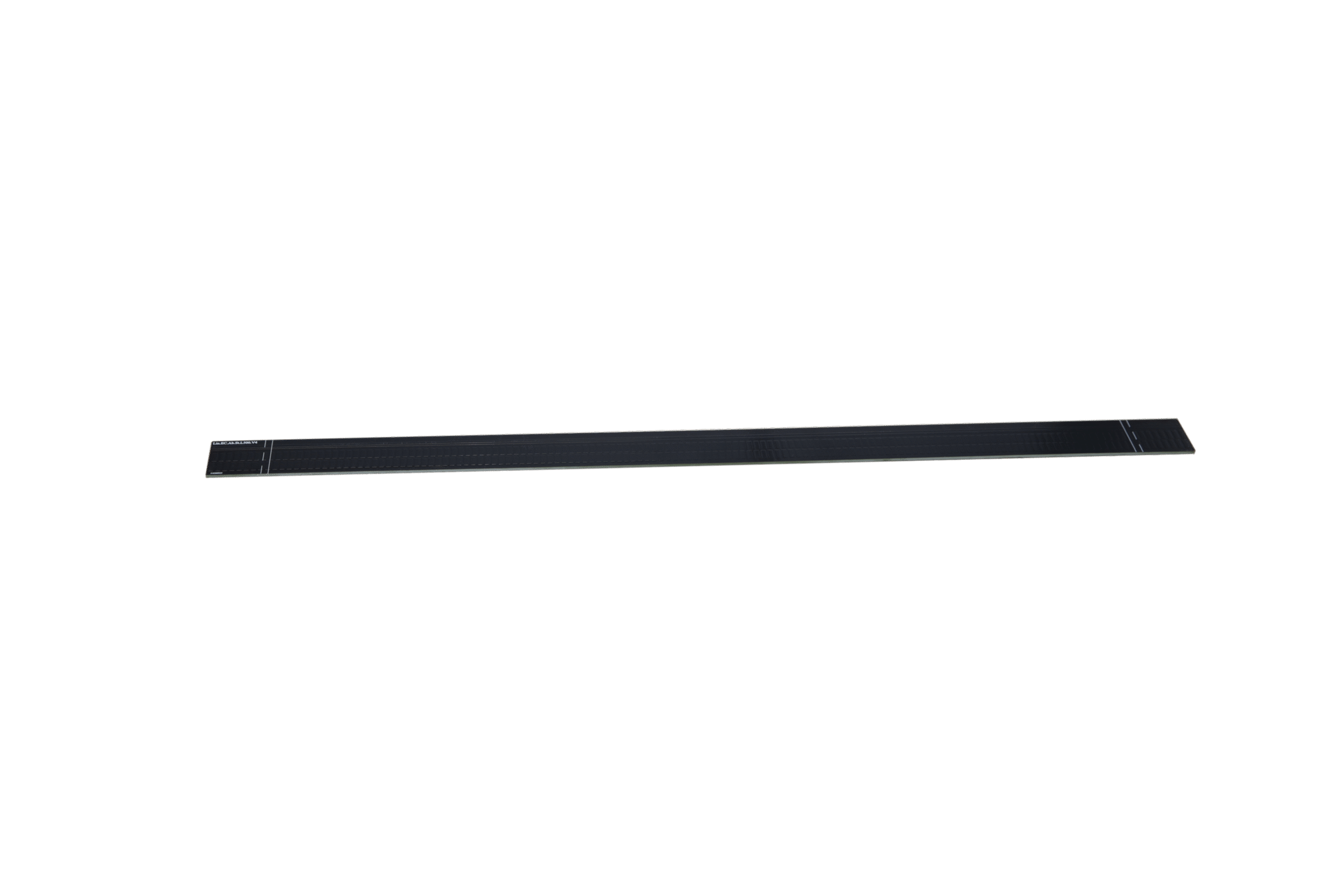

Sample
