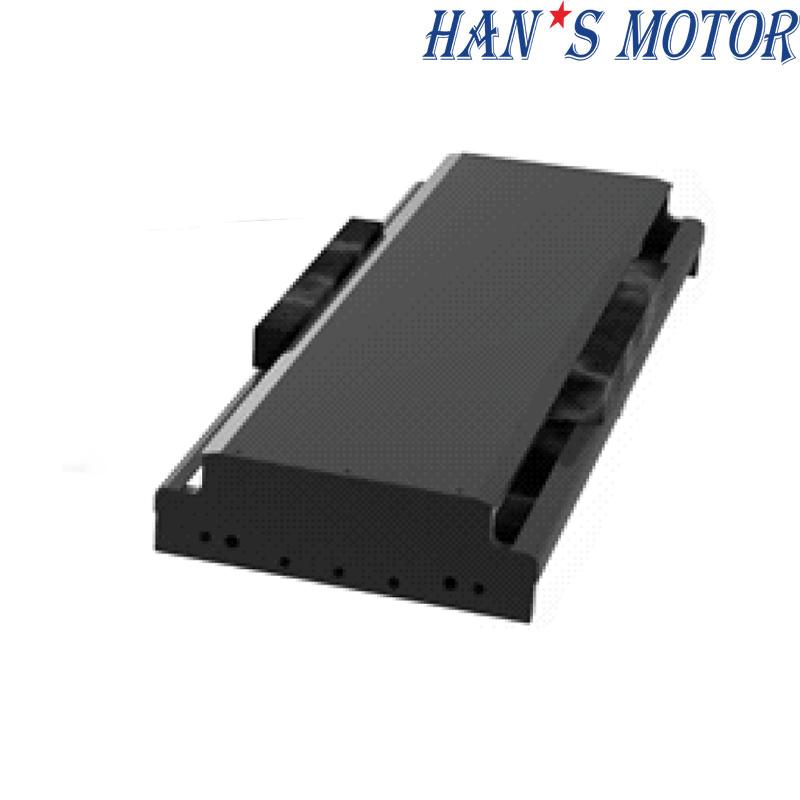

Linear Motor Stage Assembly
This linear motor stage includes magnet and forcer components, supporting 1-meter travel. It delivers accurate, frictionless motion with high responsiveness. Well-suited for integration in modular automation platforms.
Brand:
Order(MOQ):
1
Product Detail
Characteristics:
• Standardmarble materials with good rigidity and good stability
• High precision, high acceleration, high moving speed
• Zero backlash error
Product Specifications
Motor Model/Parameter
| Parameter\ Motor Model | Unit | U42 | U43 | U44 | U46 |
| Continuous Force (Tmax） | N | 72 | 108 | 144 | 216 |
| Peak Force | N | 288 | 432 | 576 | 864 |
| Motor Constant | N//SqrtW | 8.8 | 11 | 12.8 | 15.8 |
| Max.Continuous Power Dissipation | W | 66.7 | 96.6 | 126.6 | 186.6 |
| Continuous Current (Tmax） | Arms | 2.3 | 2.3 | 2.3 | 2.3 |
| Peak Current (1S) | Arms | 9.2 | 9.2 | 9.2 | 9.2 |
| Force Constant (25℃，±5%） | N/Arms | 31.4 | 47.1 | 62.8 | 94.2 |
| Back EMF Constant (25℃，±5%） | Vrms/rad/s | 10.5 | 15.7 | 20.9 | 31.3 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 6 | 8.7 | 11.4 | 16.8 |
| Inductance(25℃，±20%）P-P | mH | 4.0 | 6.0 | 8.0 | 10 |
| Max Coil Temperature | ℃ | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 60 | 60 | 60 | 60 |
| Magnetic Attraction | KN | 0 | 0 | 0 | 0 |
| Mover Mass | Kg | 0.6 | 0.9 | 1.2 | 1.8 |
Linear Motor Stages Selection
| LMH300-U42-xxx-xxx-A | |||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 |
| K | 6 | 6 | 6 | 10 | 10 |
| N | 1 | 1 | 1 | 2 | 2 |
| Stage Total Length (mm) | 410 | 510 | 610 | 710 | 810 |
| Stage Weight (kg) | 28.2 | 33.1 | 38.1 | 43.1 | 48 |
| Sliding Table M (mm) | 190 | ||||
| A | 8 | ||||
| B | 3 | ||||
| Motion Parts Weight (kg) | 8 | ||||
| LMH300-U43-xxx-xxx-A | |||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 |
| K | 6 | 6 | 6 | 10 | 10 |
| N | 1 | 1 | 1 | 2 | 2 |
| Stage Total Length (mm) | 410 | 510 | 610 | 710 | 810 |
| Stage Weight (kg) | 28.5 | 33.4 | 38.4 | 43.4 | 48.3 |
| Sliding Table M (mm) | 190 | ||||
| A | 8 | ||||
| B | 3 | ||||
| Motion Parts Weight (kg) | 8.3 | ||||
| LMH300-U44-xxx-xxx-A | |||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 |
| K | 6 | 6 | 10 | 10 | 10 |
| N | 1 | 1 | 2 | 2 | 2 |
| Stage Total Length (mm) | 470 | 570 | 670 | 770 | 870 |
| Stage Weight (kg) | 31.4 | 36.4 | 41.3 | 46.3 | 51.3 |
| Sliding Table M (mm) | 250 | ||||
| A | 12 | ||||
| B | 5 | ||||
| Motion Parts Weight (kg) | 10.4 | ||||
| LMH300-U46-xxx-xxx-A | |||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 |
| K | 6 | 10 | 10 | 10 | 14 |
| N | 1 | 2 | 2 | 2 | 3 |
| Stage Total Length (mm) | 590 | 690 | 790 | 890 | 990 |
| Stage Weight (kg) | 37.2 | 42.2 | 47.2 | 52.1 | 57.1 |
| Sliding Table M (mm) | 370 | ||||
| A | 16 | ||||
| B | 7 | ||||
| Motion Parts Weight (kg) | 14.6 | ||||
Module several types:
miniature stages, single axis Stages, general linear motor stages, multi-axis stages, gantry stages, extra large marble stages, servo motor stages.
Kindly instruct us your requirements, you can provide below parameters to our engineer, free product manual and 3D model and a reasonable price will send to you anytime.
1. Effective stroke
2. Maximum speed
3. Maximum acceleration
4. Load
5. Repeatability accuracy
Industry Applications:
It is suitable for high precision, high straightness PCB drilling machine,wafer cutting machine, glass scribing machine.
Packaging & Delivery:
Packaging Details.: plywood packing
Price terms: FOB Shenzhen
Leading time: According to the order quantity, 5-7 days for sample order and 20 days for bulk order
