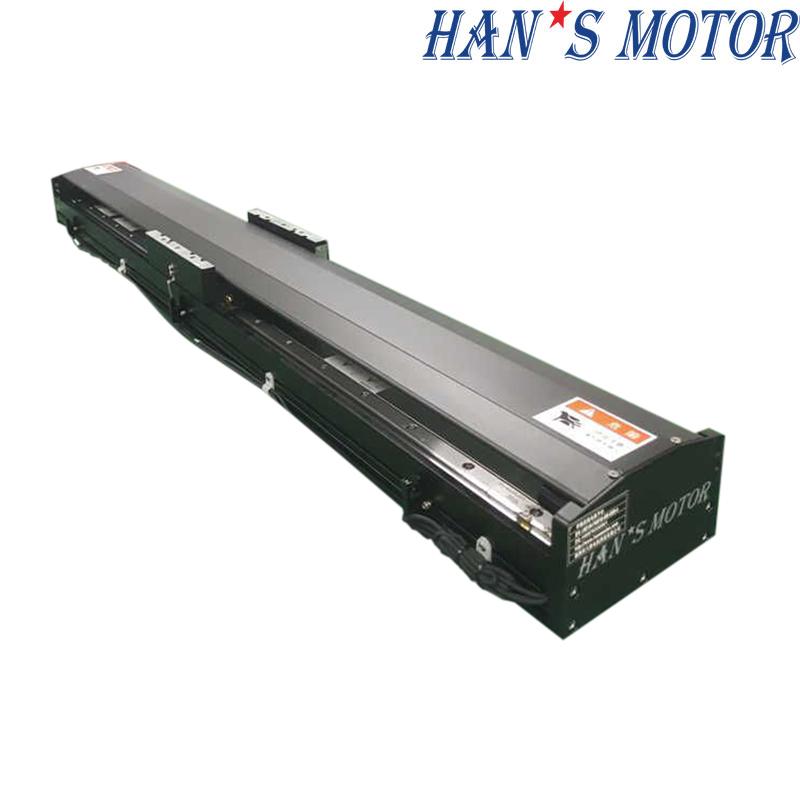

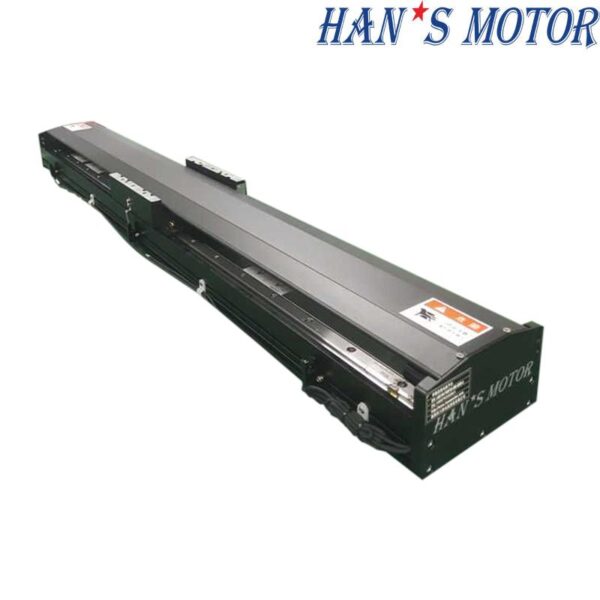

Linear Motor Motion Stage
This linear motor motion stage delivers stable and precise movement for advanced control systems. Built for speed and durability with integrated high-precision guides. Ideal for environments requiring high throughput and reliability.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
Motor parameter
| Ironless Linear Motor | Iron core Linear Motor | |||||||
| Parameter\ Motor Model | Unit | U42 | U43 | U44 | FL22 | FL32 | FL42 | FJ22 |
| Continuous Force (Tmax） | N | 72 | 108 | 144 | 196 | 294 | 392 | 208 |
| Peak Force | N | 288 | 432 | 576 | 517 | 776 | 1035 | 831 |
| Motor Constant | N//SqrtW | 8.8 | 11 | 12.8 | 18.9 | 23.4 | 27.2 | 27.5 |
| Max.Continuous Power Dissipation | W | 66.7 | 96.6 | 126.6 | 107.5 | 157.9 | 208.3 | 57.1 |
| Continuous Current (Tmax） | Arms | 2.3 | 2.3 | 2.3 | 4 | 4 | 4 | 2.2 |
| Peak Current (1S) | Arms | 9.2 | 9.2 | 9.2 | 12 | 12 | 12 | 9 |
| Force Constant (25℃，±5%） | N/Arms | 31.4 | 47.1 | 62.8 | 49 | 73.5 | 98 | 94.8 |
| Back EMF Constant (25℃，±5%） | Vrms/rad/s | 10.5 | 15.7 | 20.9 | 16.3 | 24.5 | 32.7 | 31.6 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 5.9 | 8.7 | 10.6 | 3.2 | 4.7 | 6.2 | 11.8 |
| Inductance(25℃，±20%）P-P | mH | 4.0 | 6.0 | 8.0 | 15 | 22.5 | 30 | 40 |
| Max Coil Temperature | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 60 | 60 | 60 | 20 | 20 | 20 | 20 |
| Magnetic Attraction | KN | 0 | 0 | 0 | 1.1 | 1.6 | 2.1 | 1.23 |
| Mover Mass | Kg | 0.6 | 0.9 | 1.2 | 2.5 | 3.7 | 4.9 | 1.7 |
Linear Motor Stages Selection
| LM170-U42-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 360 | 460 | 560 | 660 | 760 | 860 | 960 | 1060 | 1160 | 1260 | 1360 | 1460 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 11 | 13.6 | 16.2 | 18.8 | 21.4 | 24 | 26.6 | 29.2 | 31.8 | 34.4 | 37 | 39.6 |
| Sliding Table M (mm) | 140 | |||||||||||
| A | 8 | |||||||||||
| B | 3 | |||||||||||
| Motion Parts Weight (kg) | 2.5 | |||||||||||
| LM170-U43-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 410 | 510 | 610 | 710 | 810 | 910 | 1010 | 1110 | 1210 | 1310 | 1410 | 1510 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 13.4 | 16.2 | 18..8 | 21 | 23.8 | 26.4 | 28.6 | 31.4 | 33 | 35.2 | 38 | 40.6 |
| Sliding Table M (mm) | 240 | |||||||||||
| A | 12 | |||||||||||
| B | 5 | |||||||||||
| Motion Parts Weight (kg) | 4.7 | |||||||||||
| LM170-U44-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 470 | 570 | 670 | 770 | 870 | 970 | 1070 | 1170 | 1270 | 1370 | 1470 | 1570 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 15.8 | 18.6 | 21.2 | 23.4 | 26.2 | 28.8 | 31 | 33.8 | 35.4 | 37.6 | 40.4 | 43.0 |
| Sliding Table M (mm) | 250 | |||||||||||
| A | 12 | |||||||||||
| B | 5 | |||||||||||
| Motion Parts Weight (kg) | 4.3 | |||||||||||
| LM170-FL22-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 390 | 490 | 590 | 690 | 790 | 890 | 990 | 1090 | 1190 | 1290 | 1390 | 1490 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34.0 |
| Sliding Table M (mm) | 170 | |||||||||||
| A | 8 | |||||||||||
| B | 3 | |||||||||||
| Motion Parts Weight (kg) | 3.8 | |||||||||||
| LM170-FL32-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 460 | 560 | 660 | 760 | 860 | 960 | 1060 | 1160 | 1260 | 1360 | 1460 | 1560 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 15 | 17 | 19 | 21 | 23 | 25 | 27 | 29 | 31 | 33 | 35 | 37.0 |
| Sliding Table M (mm) | 240 | |||||||||||
| A | 12 | |||||||||||
| B | 5 | |||||||||||
| Motion Parts Weight (kg) | 5.4 | |||||||||||
| LM170-FL42-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 530 | 630 | 730 | 830 | 930 | 1030 | 1130 | 1230 | 1330 | 1430 | 1530 | 1630 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 17.6 | 19.6 | 21.6 | 23.6 | 25.6 | 27.6 | 29.6 | 31.6 | 33.6 | 35.6 | 37.6 | 39.6 |
| Sliding Table M (mm) | 310 | |||||||||||
| A | 16 | |||||||||||
| B | 7 | |||||||||||
| Motion Parts Weight (kg) | 6.5 | |||||||||||
| LM170-FJ22-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 410 | 510 | 610 | 830 | 810 | 910 | 1010 | 1110 | 1210 | 1310 | 1410 | 1510 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 12.5 | 14.5 | 16.5 | 23.6 | 20.5 | 22.5 | 24.5 | 26.5 | 28.5 | 30.5 | 32.5 | 34.5 |
| Sliding Table M (mm) | 190 | |||||||||||
| A | 8 | |||||||||||
| B | 3 | |||||||||||
| Motion Parts Weight (kg) | 4.2 | |||||||||||
Kindly instruct us your requirements, and we would provide product manual and 3D model to you. Some parameters you can provide:
1. Effective stroke
2. Maximum Velocity
3. Maximum acceleration
4. Payload
5. Repeatability accuracy
6. Straightness
7. Protective fully sealed or semi-protected for optional
Motion Stage types:
Industry Applications:
LM semi-protection and LMP full-protection motion stages series, which the full-protection series LMP are apply to the dusty laser industry.
Packaging & Delivery:
Packaging Details.: plywood packing or carton packing
Port.: Shenzhen ( BY SEA, AIR，TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 5-10 days for trial order and 30-40 days for huge order
