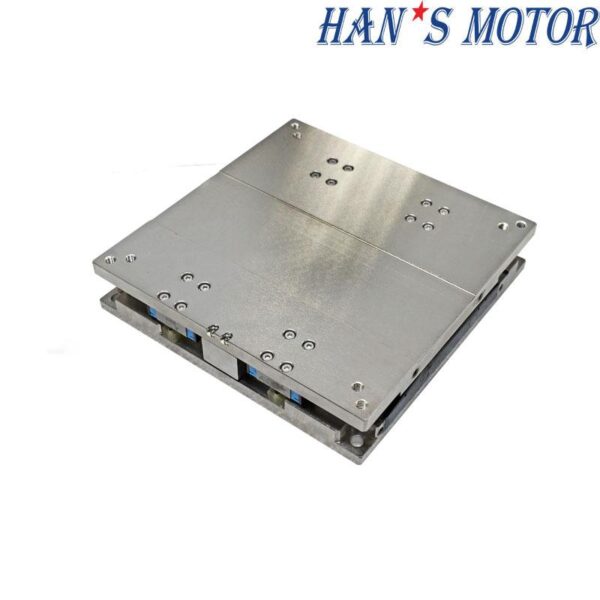

Linear Guide Rail Module
Equipped with precision guide rails and ball-screw actuation, this linear motion module ensures accurate travel. Ideal for multi-axis systems in 3D printing, robotics, and automation equipment. Offers consistent motion with dust-resistant structure. Suitable for compact and modular mechanical platforms.
Brand:
Order(MOQ):
1
Product Detail
Characteristic:
1. Fast response, higher acceleration (up to 25G) and shorter settling time, increase production efficiency.
2. High speed, up to 5m/s, reduce the production cycle.
3. High rigidity, direct drive load, no need for mechanical transmission such as gears, belts, ball screws etc.
4. High accuracy, direct measurement system, no distance/Angle conversion required.
5. No backlash, directly coupled power driven load, no mechanical conversion.
Motor and Stage Specifications
| Model： | LMA65-10-XXX–A | |
| G01 | Grating feedback, resolution: 0.1μm | |
| G05 | Grating feedback, resolution: 0.5μm | |
| Motor specifications | ||
| Units | Value | |
| Continuous Force (Tmax） | N | 3.5 |
| Peak Force | N | 24.5 |
| Motor Constant | N√W | 1.82 |
| Max.Continuous Power Dissipation | W | 3.68 |
| Continuous Current (Tmax） | Arms | 0.6 |
| Peak Current (1S) | Arms | 4.2 |
| Force Constant (25℃，±5%） | N/Arms | 5.8 |
| Back EMF Constant (25℃，±5%） | Vrms/m/s | 1.9 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 4.87 |
| Inductance(25℃，±20%）P-P | μm | 0.1 |
| Max Coil Temperature | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 36 |
| Magnetic Attraction | N | 67 |
| Stage specifications | ||
| Units | Value | |
| Max. Load | kg | 2.4 |
| Effective Stroke | mm | 10 |
| Resolution | μm | 0.1 |
| Max.Speed（1） | mm/s | 270 |
| Repeat accuracy | μm | ±0.5 |
| Weight | kg | 0.25 |
Working environment temperature and humidity | 0-40℃、20-80%RH | |
Installation dimensions
Appliaction Case
Assembly into XY cross stage and applied in wire bonder.
