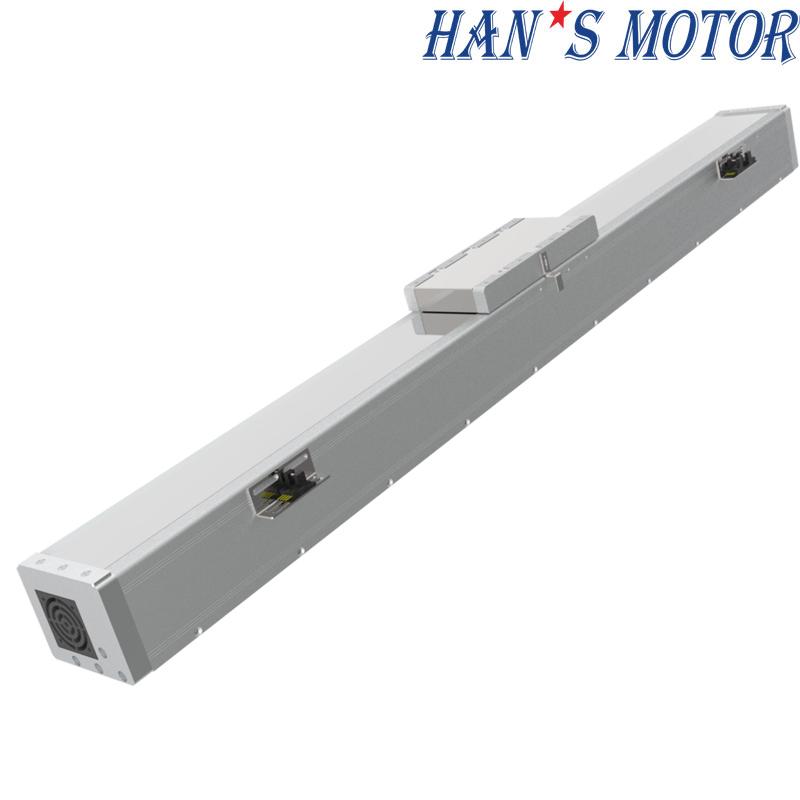

Linear Guide Motion Stage
This motion stage features a fully protective housing for clean and sealed operation. Its compact linear guide system offers high stiffness and precision. Designed to operate reliably in sensitive or dusty environments. It supports high-speed, high-frequency applications with minimal maintenance. Excellent for semiconductor, lab, or factory automation.
Brand:
Order(MOQ):
1
Product Detail
Characteristics:
• Grating positioning or magnetic grating positioning feedback system
• High precision, high acceleration, high moving velocity
• Imported brand ACS, ELMO, Servotronix driver for optional
• Free product manual and 3D model can be provided
• Motion motor stage types
Product Specifications
Motor model/Parameter
| U-type Motor | Flat type Motor | ||||||
| Parameter\ Motor Model | Unit | U74 | U78 | FL21 | FL31 | FL41 | FJ21 |
| Continuous Force (Tmax） | N | 28.8 | 57.5 | 118 | 176 | 236 | 125 |
| Peak Force | N | 144 | 288 | 314 | 466 | 628 | 498 |
| Motor Constant | N//SqrtW | 4.7 | 6.6 | 13.1 | 16.5 | 19.4 | 13.6 |
| Max.Continuous Power Dissipation | W | 38.2 | 76.3 | 80.6 | 114.2 | 147.8 | 84.2 |
| Continuous Current (Tmax） | Arms | 1.15 | 1.15 | 4 | 4 | 4 | 2.2 |
| Peak Current (1S) | Arms | 5.8 | 5.8 | 12 | 12 | 12 | 9 |
| Force Constant (25℃，±5%） | N/Arms | 25 | 50 | 29.5 | 44 | 59 | 56.8 |
| Back EMF Constant (25℃，±5%） | Vrms/rad/s | 8.2 | 16.4 | 9.8 | 14.7 | 19.7 | 18.8 |
| Electrical Resistance(25℃，±5%）P-P | Ω | 12.8 | 25.6 | 2.4 | 3.4 | 4.4 | 8.2 |
| Inductance(25℃，±20%）P-P | mH | 3.2 | 6.4 | 9.0 | 13.5 | 18 | 26 |
| Max Coil Temperature | ℃ | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | mm | 30 | 30 | 20 | 20 | 20 | 20 |
| Magnetic Attraction | KN | 0 | 0 | 0.68 | 0.98 | 1.3 | 0.75 |
| Mover Mass | Kg | 0.23 | 0.46 | 1.6 | 2.3 | 3.1 | 1 |
Linear Motor Stages Selection
| LMP150-U74-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 360 | 460 | 560 | 660 | 760 | 860 | 960 | 1060 | 1160 | 1260 | 1360 | 1460 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 12.4 | 13.6 | 14.8 | 16 | 17.2 | 18.4 | 19.6 | 20.8 | 22 | 23.2 | 24.4 | 25.6 |
| Sliding Table M (mm) | 190 | |||||||||||
| A | 1 | |||||||||||
| B | 50 | |||||||||||
| Motion Parts Weight (kg) | 3.6 | |||||||||||
| LMP150-U78-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 470 | 570 | 670 | 770 | 870 | 970 | 1070 | 1170 | 1270 | 1370 | 1470 | 1570 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 12.6 | 13.8 | 15 | 16.2 | 17.4 | 18.6 | 19.8 | 21 | 22.2 | 23.4 | 24.6 | 25.8 |
| Sliding Table M (mm) | 300 | |||||||||||
| A | 12 | |||||||||||
| B | 70 | |||||||||||
| Motion Parts Weight (kg) | 5.2 | |||||||||||
| LMP150-FL21-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 390 | 490 | 590 | 690 | 790 | 890 | 990 | 1090 | 1190 | 1290 | 1390 | 1490 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 11.5 | 12.7 | 13.9 | 15.1 | 16.3 | 17.5 | 18.7 | 19.9 | 21.1 | 22.3 | 23.5 | 24.7 |
| Sliding Table M (mm) | 220 | |||||||||||
| A | 1 | |||||||||||
| B | 50 | |||||||||||
| Motion Parts Weight (kg) | 4 | |||||||||||
| LMP150-FL31-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 450 | 550 | 650 | 750 | 850 | 950 | 1050 | 1150 | 1250 | 1350 | 1450 | 1550 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 13.2 | 14.4 | 15.6 | 16.8 | 18 | 19.2 | 20.4 | 21.6 | 22.8 | 24 | 25.2 | 26.4 |
| Sliding Table M (mm) | 280 | |||||||||||
| A | 2 | |||||||||||
| B | 60 | |||||||||||
| Motion Parts Weight (kg) | 4.8 | |||||||||||
| LMP150-FL41-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 | 34 |
| N | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | 7 |
| Stage Total Length (mm) | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 | 1520 | 1620 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 14.7 | 15.9 | 17.1 | 18.3 | 19.5 | 20.7 | 21.9 | 23.1 | 24.3 | 25.5 | 26.7 | 27.9 |
| Sliding Table M (mm) | 350 | |||||||||||
| A | 2 | |||||||||||
| B | 90 | |||||||||||
| Motion Parts Weight (kg) | 6 | |||||||||||
| LMP150-FJ21-xxx-xxx-A | ||||||||||||
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 10 | 14 | 14 | 18 | 18 | 22 | 22 | 26 | 26 | 30 | 30 | 34 |
| N | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 |
| Stage Total Length (mm) | 390 | 490 | 590 | 690 | 790 | 890 | 990 | 1090 | 1190 | 1290 | 1390 | 1490 |
| Dowel Pin D1 (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Stage Weight (kg) | 11.5 | 12.7 | 13.9 | 15.1 | 16.3 | 17.5 | 18.7 | 19.9 | 21.1 | 22.3 | 23.5 | 24.7 |
| Sliding Table M (mm) | 220 | |||||||||||
| A | 1 | |||||||||||
| B | 50 | |||||||||||
| Motion Parts Weight (kg) | 4 | |||||||||||
Product advantages
Industry Applications:
Long stroke, high speed, high reliability, rennishaw encoder single-axis motor stages which apply to lithium battery new energy machine applications.
Packaging & Delivery:
Packaging Details.: plywood packing
Port: Shenzhen, Guangzhou, Xiamen
Leading time: According to the order quantity, 10-15 days for the small order and 20-35 days for bulk order
