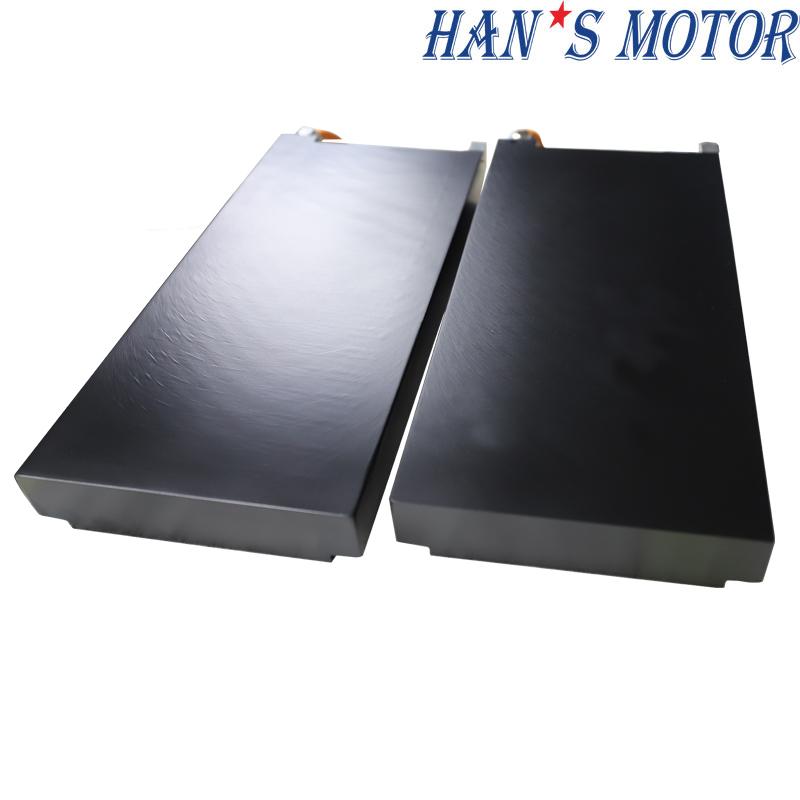

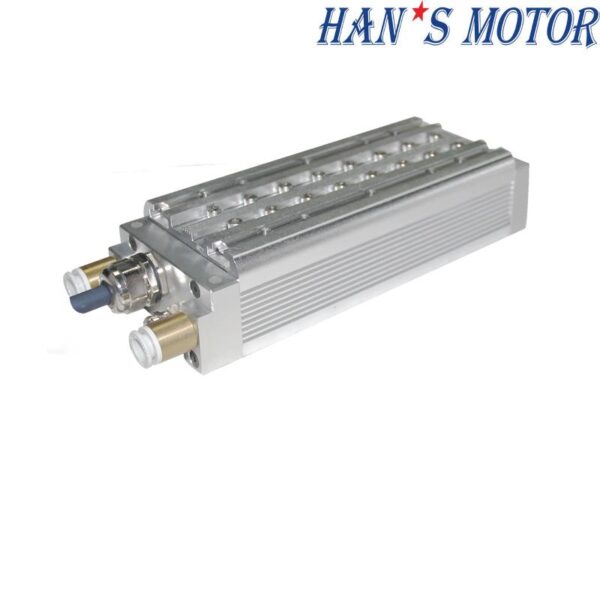

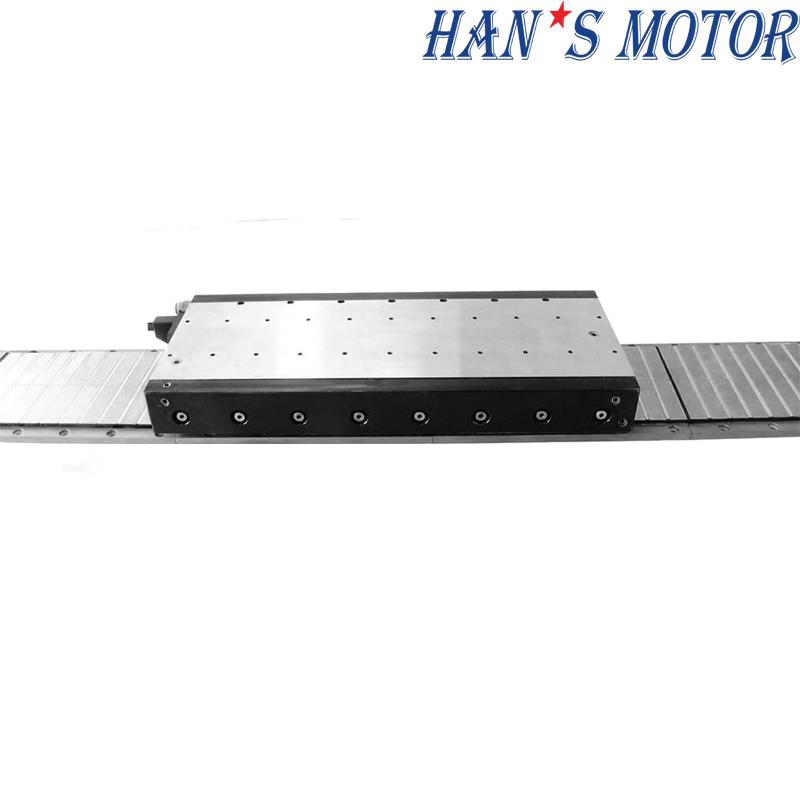

Large-Thrust Iron Core Linear Motor
This large-thrust iron core linear motor offers 4041–7800N force, built for heavy-duty motion systems. Its robust structure ensures high-speed, stable movement over extended operation. Water cooling enables consistent thermal control and reduced system wear.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec.：LSMF110205C | |||
| PERFORMANCE PARAMETERS | Symbol | Units | |
| Continuous Force (Tmax） | Fc | N | 340 |
| Peak Force | Fp | N | 680 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 30.6 |
| Max.Continuous Power Dissipation | Pc | W | 170 |
| Continuous Current (Tmax） | Ic | Arms | 5.0 |
| Peak Current (1S) | Ip | Arms | 10.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 68.0 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 22.0 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 3.3 |
| Inductance(25℃，±20%）P-P | L | mH | 15.0 |
| Max Coil Temperature | Tmax | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 48.0 |
| Minimum flow of cold water | Wmin | L/min | 3.0 |
| Temperature difference between inlet and outlet | △T | ℃ | 7.0 |
| Pressure drop (stator loop series) | △P | Bar | 3.0 |
| Magnetic Attraction | Fa | kN | 2.2 |
| Max.DC Bus Voltage | Ubus | V | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 8.9 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 7.9 | |
| Vmax,0@Vbus=310Vdc | m/s | 9.6 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 5.6 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 4.8 | |
| Vmax,0@Vbus=537Vdc | m/s | 6.2 | |
| Mover Mass | Mp | Kg | 2.8 |
| Stator Mass within unit length | Ms | Kg/m | 5.6 |

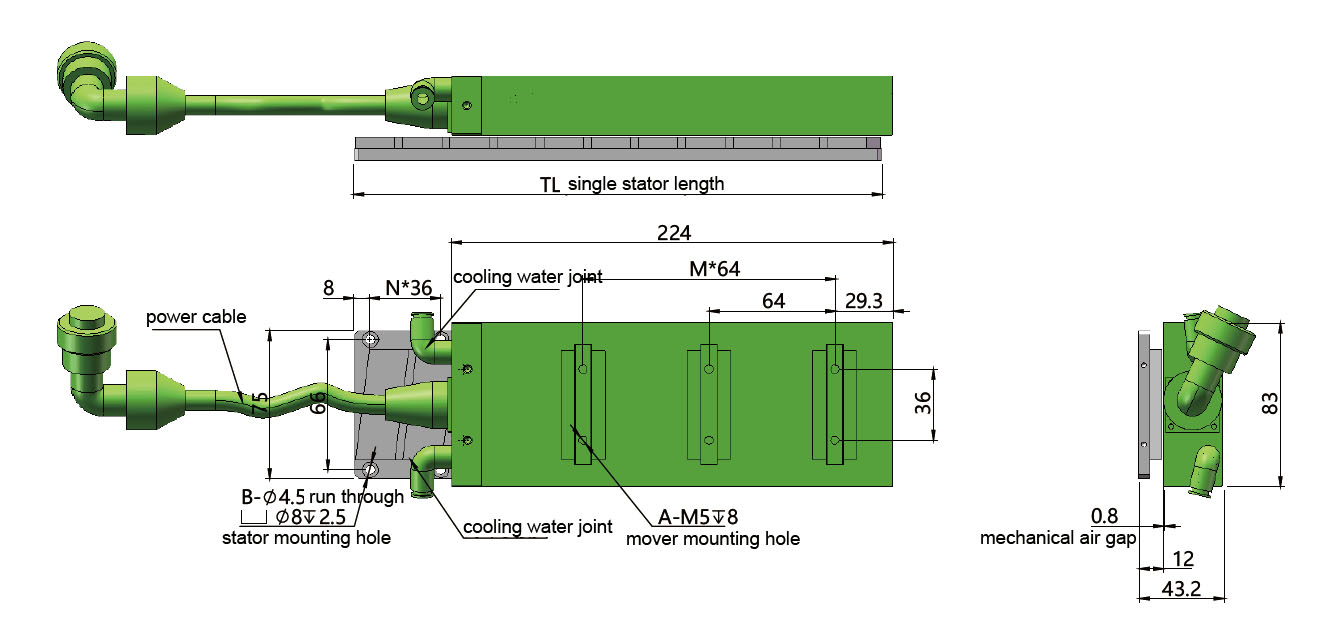

Dimension
| Mover Length | ||||
| Mover model | Mover length L | M | Mover mounting hole A | |
| LSMF110205C | 224 | 2 | 6 | |
Remarks: 1. Standard cable length is 6m, maximum outer diameter(d) of motor cable is d= 11.5mm, minimum bending radius within chain is 86.3mm, the length can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMF1218A | 268 | 7 | 16 |
Suitable for any mover of this series.

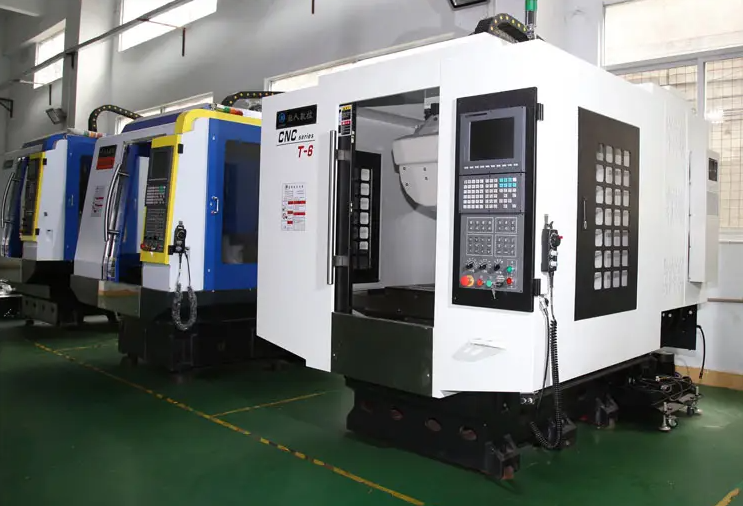

Application Case：CNC Machine Tool
