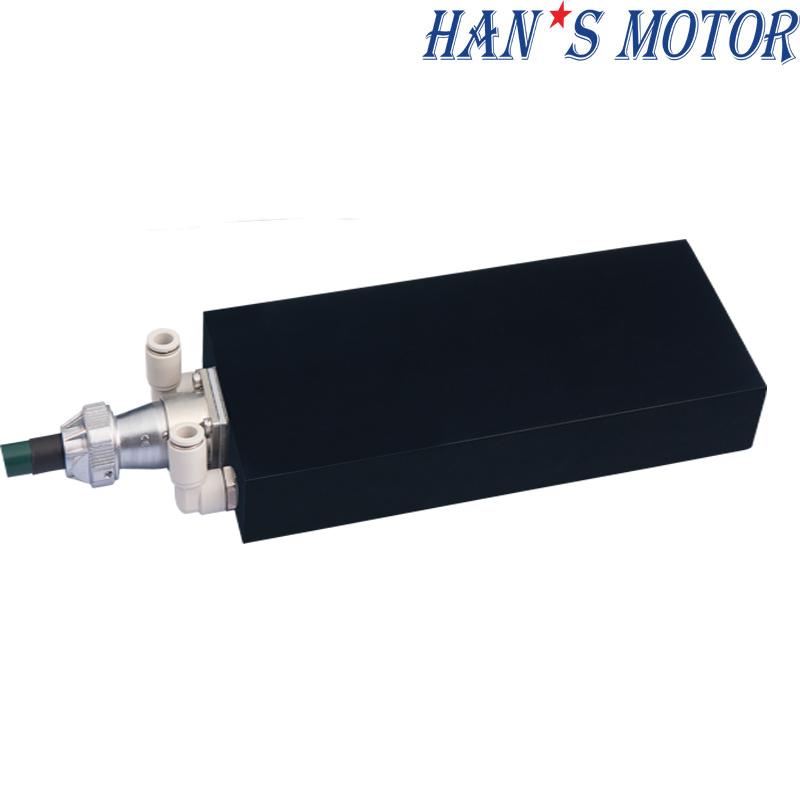

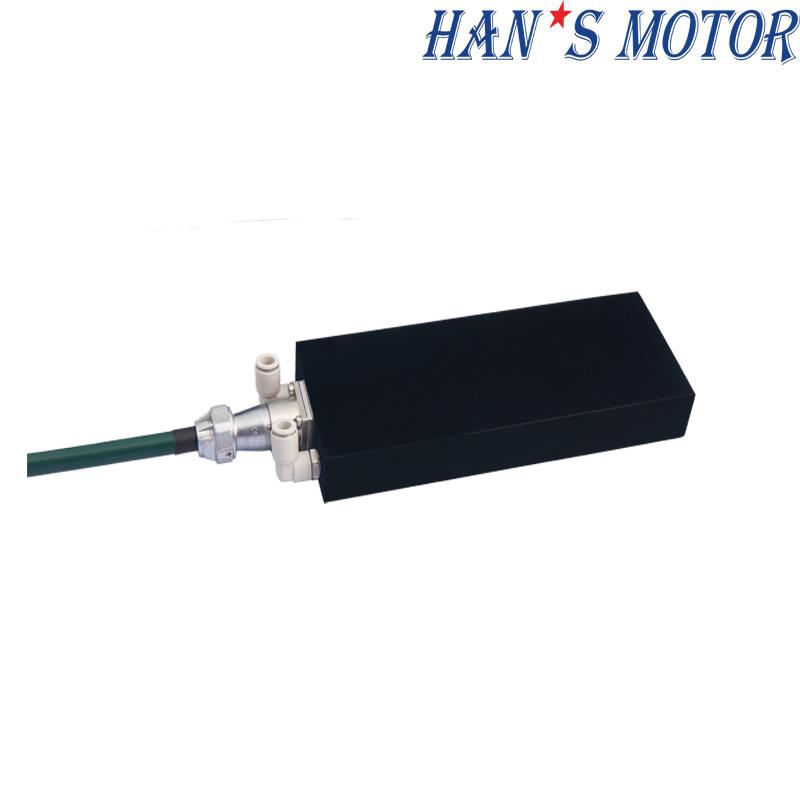

Iron Core Linear Motor with Water Cooling
This iron core linear motor with water cooling is ideal for CNC machining centers requiring high thrust and precision. The LSMF6-96 model ensures stable performance under continuous high loads. Efficient cooling extends service life and maintains optimal operating conditions. Perfect for heavy-duty, high-precision machine tools.
Brand:
Order(MOQ):
1
Product Detail
Introduce：
Water cooled linear motor is specially designed for machine tool, machining center or need large thrust, high protection and other applications. It has the advantages of high thrust, high precision and high protection.
Design features of water-cooled linear motor：
Water cooled series are designed for machine tools or need large thrust, high protection and other applications of linear motors. The maximum thrust can reach 1000N, meet the heavy load requirements, protection level up to IP67, meet the high protection requirements of machine tool cutting and other occasions, low groove force, speed fluctuation can be as low as 0.5%. Application equipment: machining center, carving and milling machine, highlighting machine, glass edging machine etc.
Specifications
| Mover Spec.：LSMF110205C | |||
| PERFORMANCE PARAMETERS | Symbol | Units | |
| Continuous Force (Tmax） | Fc | N | 340 |
| Peak Force | Fp | N | 680 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 30.6 |
| Max.Continuous Power Dissipation | Pc | W | 170 |
| Continuous Current (Tmax） | Ic | Arms | 5.0 |
| Peak Current (1S) | Ip | Arms | 10.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 68.0 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 22.0 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 3.3 |
| Inductance(25℃，±20%）P-P | L | mH | 15.0 |
| Max Coil Temperature | Tmax | ℃ | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 48.0 |
| Minimum flow of cold water | Wmin | L/min | 3.0 |
| Temperature difference between inlet and outlet | △T | ℃ | 7.0 |
| Pressure drop (stator loop series) | △P | Bar | 3.0 |
| Magnetic Attraction | Fa | kN | 2.2 |
| Max.DC Bus Voltage | Ubus | V | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 8.9 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 7.9 | |
| Vmax,0@Vbus=310Vdc | m/s | 9.6 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 5.6 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 4.8 | |
| Vmax,0@Vbus=537Vdc | m/s | 6.2 | |
| Mover Mass | Mp | Kg | 2.8 |
| Stator Mass within unit length | Ms | Kg/m | 5.6 |

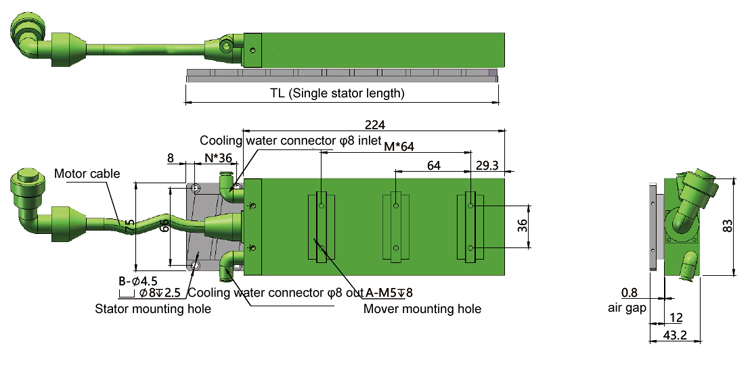

Dimension
| Mover Length | ||||
| Mover model | Mover length L | M | Mover mounting hole A | |
| LSMFH10201A-P-H-WC | 372 | 4 | 25 | |
Remarks: 1. Standard cable length is 7m, maximum outer diameter of motor cable is 14mm, minimum bending radius within chain is 140mm, the length can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMF1218A | 265 | 7 | 16 |
Suitable for any mover of this series.
Laser Group Show

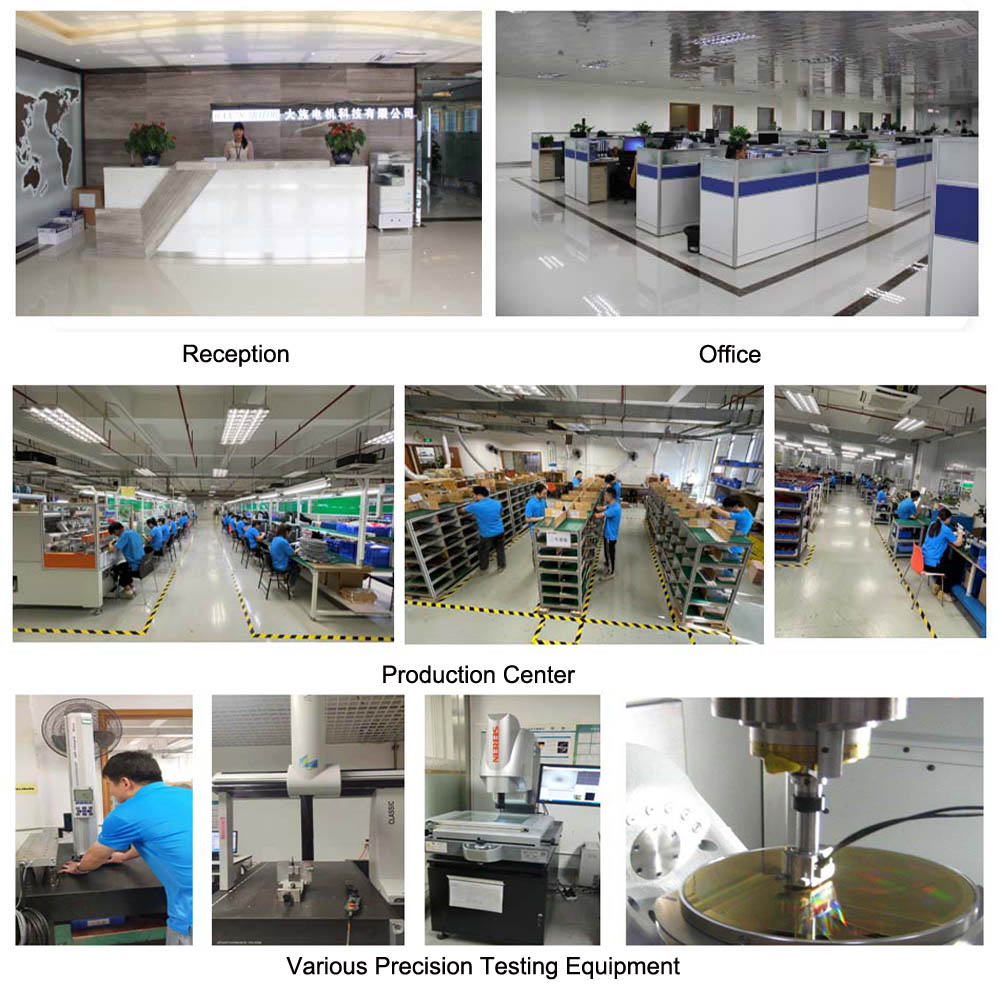

Our Company Show
Company Qualification
Inventive Patent
Honor
Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
