Iron Core Linear Motor

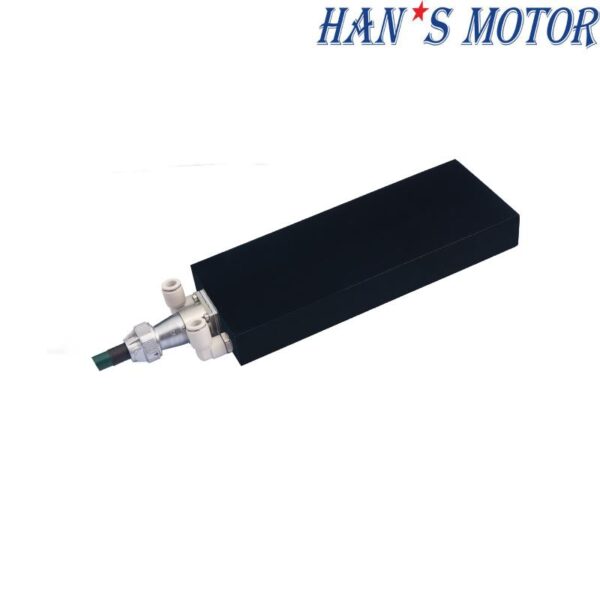

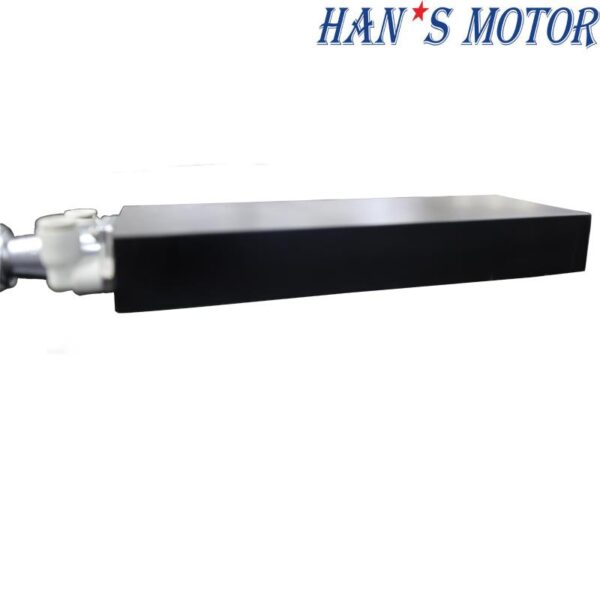

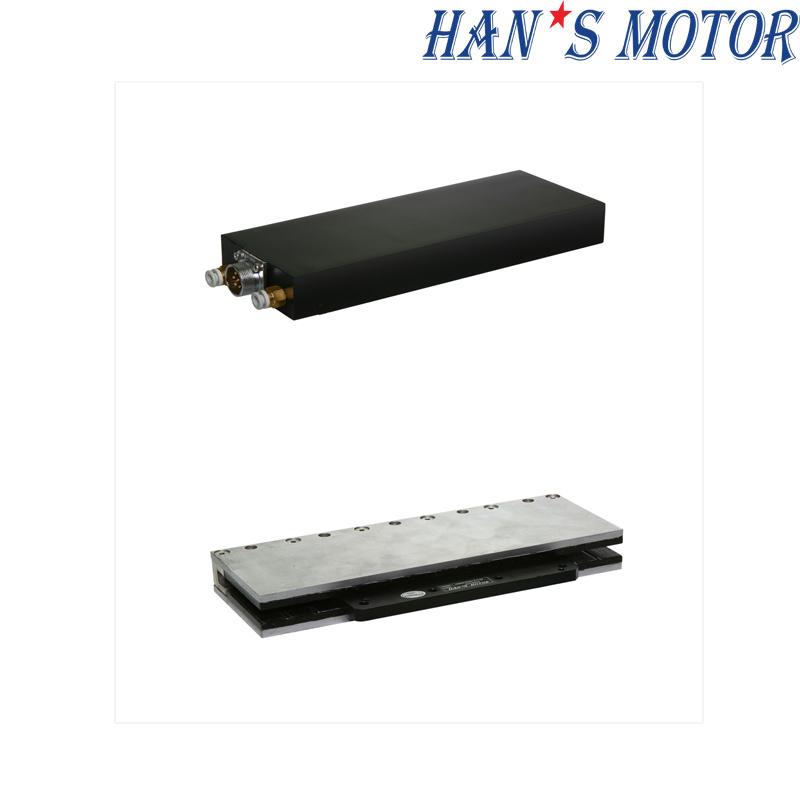

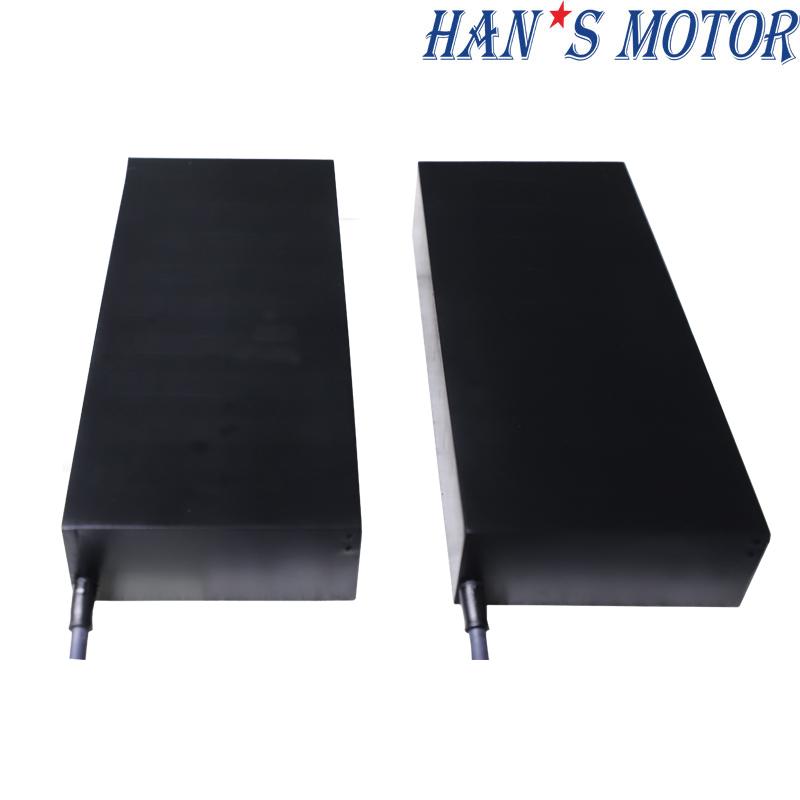

The LSMFJ-50 iron core linear motor is designed for CNC laser equipment, providing high speed and strong thrust. Water-cooled structure maintains stable operation under continuous duty. Ideal for high-precision laser machining, cutting, and engraving systems. Compact and robust for industrial integration.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec: LSMFL10xxxx-x-H-NC-N-C00.5 | 104A-S | 104B-S | 204A-S | 304A-S | 404A-S | 404A-P | ||
| Performance Parameters | Symbol | Units | Series | Series | Series | Series | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 196 | 196 | 393 | 589 | 785 | 785 |
| Peak Force | Fp | N | 518 | 518 | 1035 | 1553 | 2070 | 2070 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 24.3 | 24.3 | 34.8 | 42.8 | 49.5 | 48.8 |
| Max.Continuous Power Dissipation | Pc | W | 89 | 89 | 175 | 260 | 346 | 356 |
| Continuous Current (Tmax） | Ic | Arms | 4.0 | 2.6 | 4.0 | 4.0 | 4.0 | 8.0 |
| Peak Current (1S) | Ip | Arms | 12.0 | 7.8 | 12.0 | 12.0 | 12.0 | 24.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 49.0 | 75.4 | 98.3 | 147.0 | 196.3 | 98.1 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 16.3 | 25.4 | 32.8 | 49.0 | 65.4 | 32.7 |
| Resistance(25℃，±5%）P-P | R | Ω | 2.7 | 6.4 | 5.3 | 7.9 | 10.5 | 2.7 |
| Inductance(25℃，±20%）P-P | L | mH | 15.0 | 36.0 | 30.0 | 45.0 | 60.0 | 15.0 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 20 | 20 | 20 | 20 | 20 | 20 |
| Magnetic Attraction | Fa | kN | 1.1 | 1.1 | 2.2 | 3.3 | 4.4 | 4.4 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 | 600 | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 6.3 | 3.9 | 2.9 | 1.8 | 1.3 | 2.9 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 3.4 | 2.0 | 1.4 | 0.8 | 0.4 | 1.4 | |
| Vmax,0@Vbus=310Vdc | m/s | 7.6 | 4.9 | 3.8 | 2.5 | 1.9 | 3.8 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 11.2 | 7.1 | 5.4 | 3.5 | 2.5 | 5.4 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 6.3 | 3.9 | 2.9 | 1.8 | 1.2 | 2.9 | |
| Vmax,0@Vbus=537Vdc | m/s | 13.3 | 8.6 | 6.6 | 4.4 | 3.3 | 6.6 | |
| Mover Mass | Mp | Kg | 2.5 | 2.5 | 4.7 | 6.9 | 9.0 | 9.0 |
| Stator Mass within unit length | Ms | Kg/m | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 | 8.8 |

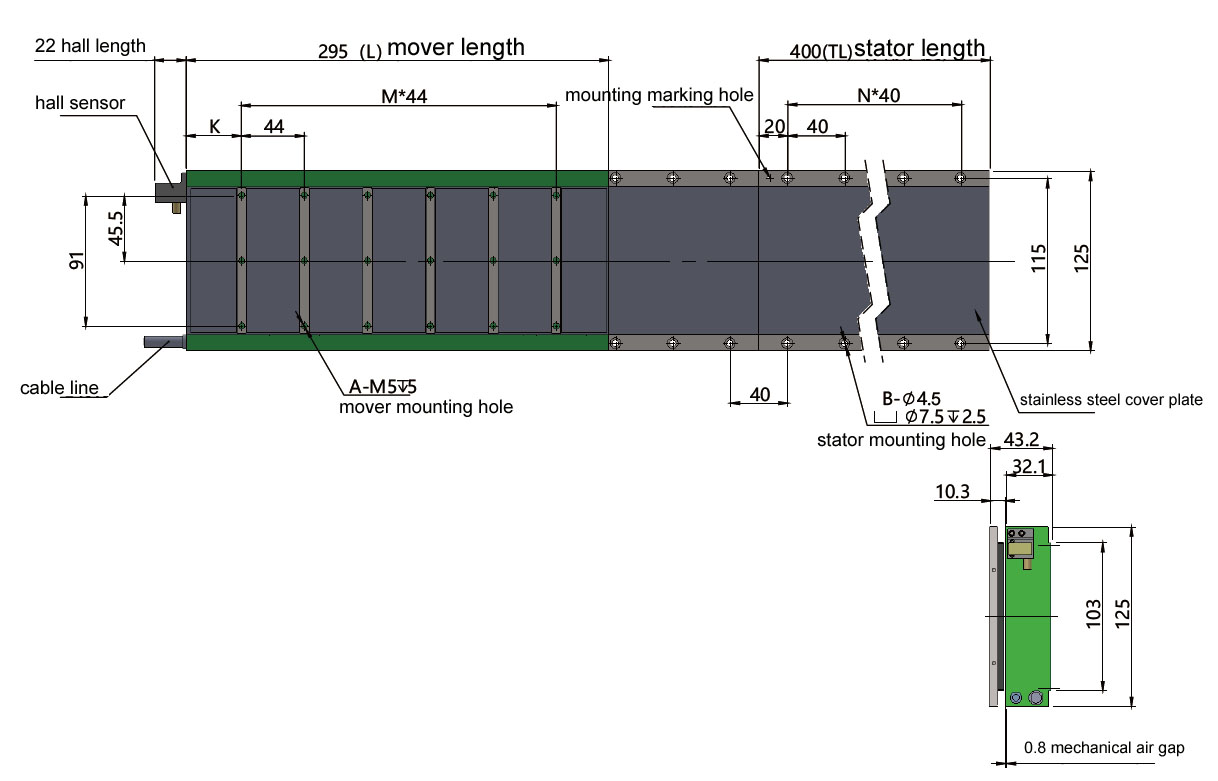

Dimension
| Mover Length | ||||
| Mover model | Mover length L | M | Mover mounting hole A | k |
| LSMFL10104A-S-H-NC-N-C00.5 | 85 | 1 | 6 | 21.5 |
| LSMFL10104B-S-H-NC-N-C00.5 | 85 | 1 | 6 | 21.5 |
| LSMFL10204A-S-H-NC-N-C00.5 | 155 | 2 | 9 | 34.5 |
| LSMFL10304A-S-H-NC-N-C00.5 | 225 | 4 | 15 | 25.5 |
| LSMFL10404A-S-H-NC-N-C00.5 | 295 | 5 | 18 | 38.5 |
| LSMFL10404A-P-H-NC-N-C00.5 | 295 | 5 | 18 | 38.5 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMFJ2A-W125-L40 | 40 | 0 | 2 |
| LSMFJ2A-W125-L80 | 80 | 1 | 4 |
| LSMFJ2A-W125-L200 | 200 | 4 | 10 |
| LSMFJ2A-W125-L320 | 320 | 7 | 16 |
| LSMFJ2A-W125-L400 | 400 | 9 | 20 |
Suitable for any mover of this series.
Application case：

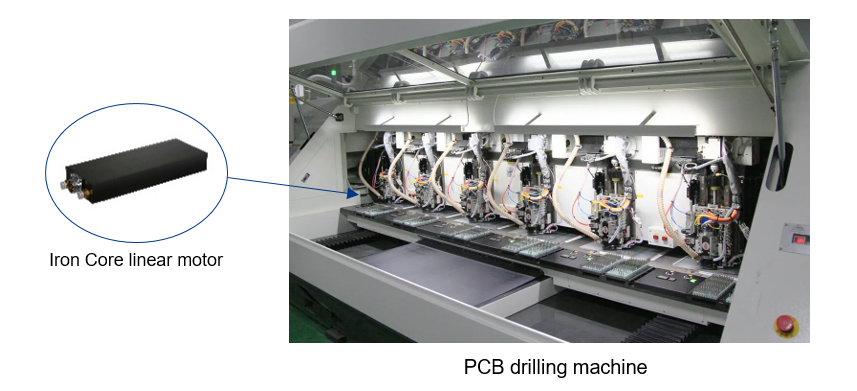

PCB industry: Smooth thrust, small inertia, large acceleration, strong overload capacity etc.
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
