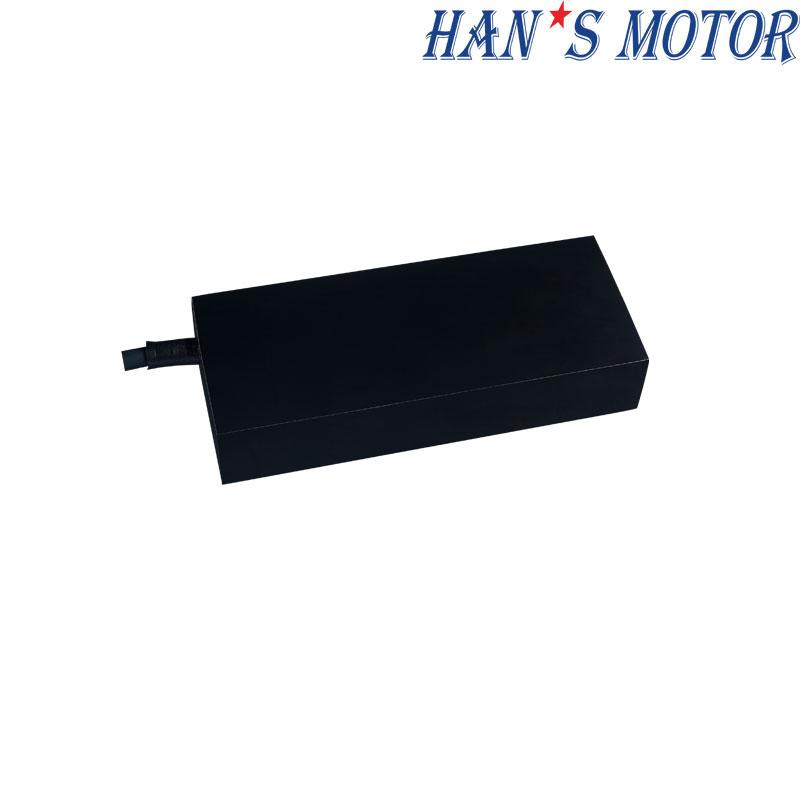

Iron Core Linear Motor
The LSMFJ-100 iron core linear motor delivers high acceleration and accuracy, making it ideal for UV printing machines and precision automation. It ensures fast dynamic response with efficient heat dissipation. The compact flat design supports smooth operation in high-duty cycles. Excellent for fast-moving print heads.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec: LSMFJ10xxxx-x-H-NC-N-D00.5 | 103A-S | 203A-P | ||
| Performance Parameters | Symbol | Units | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 174 | 332 |
| Peak Force | Fp | N | 593 | 1329 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 21.1 | 29.7 |
| Max.Continuous Power Dissipation | Pc | W | 94 | 171 |
| Continuous Current (Tmax） | Ic | Arms | 2.3 | 4.4 |
| Peak Current (1S) | Ip | Arms | 9.0 | 18.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 75.6 | 75.6 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 25.2 | 25.2 |
| Resistance(25℃，±5%）P-P | R | Ω | 8.6 | 4.3 |
| Inductance(25℃，±20%）P-P | L | mH | 30.6 | 15.3 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 20 | 20 |
| Magnetic Attraction | Fa | kN | 1.0 | 1.0 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 4.0 | 4.1 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 1.7 | 1.7 | |
| Vmax,0@Vbus=310Vdc | m/s | 4.9 | 4.9 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 7.4 | 7.5 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 3.7 | 3.7 | |
| Vmax,0@Vbus=537Vdc | m/s | 8.6 | 8.6 | |
| Mover Mass | Mp | Kg | 1.2 | 2.4 |
| Stator Mass within unit length | Ms | Kg/m | 7.0 | 7.0 |

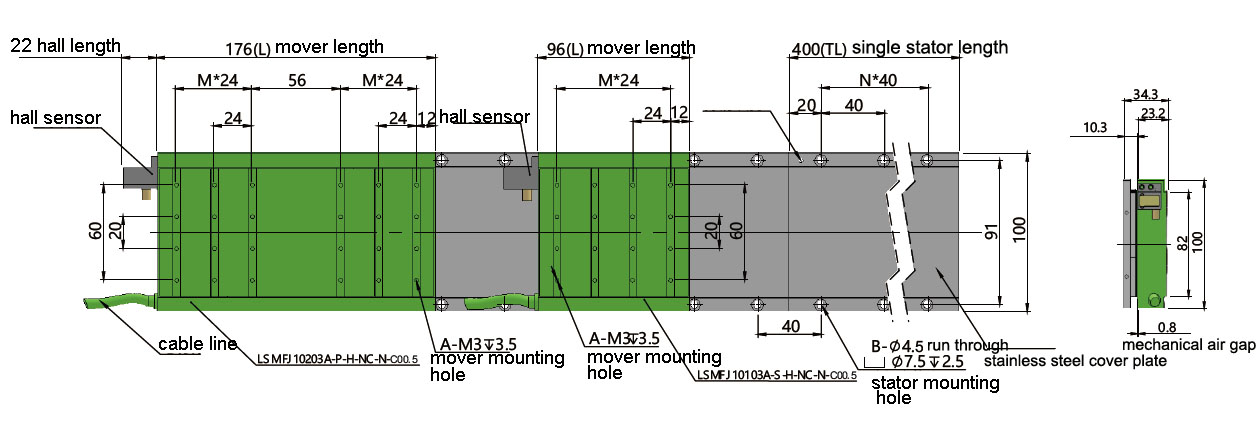

Dimension
| Mover Length | |||
| Mover model | Mover length L | M | Mover mounting hole A |
| LSMFJ10103A-S-H-NC-N-C00.5 | 96 | 3 | 16 |
| LSMFJ10203A-S-H-NC-N-C00.5 | 176 | 2 | 24 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMFJ2A-W100-L40 | 40 | 0 | 2 |
| LSMFJ2A-W100-L80 | 80 | 1 | 4 |
| LSMFJ2A-W100-L200 | 200 | 4 | 10 |
| LSMFJ2A-W100-L320 | 320 | 7 | 16 |
| LSMFJ2A-W100-L400 | 400 | 9 | 20 |
Suitable for any mover of this series.
Application case：Semiconductor Industry
In the semiconductor industry, linear motor with its high speed, high precision characteristics, widely used in photoengraving machine, IC bonding machine, IC molding machine and other processing equipment, and a single equipment often need more than one linear motor.
Industry Applications:
Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
