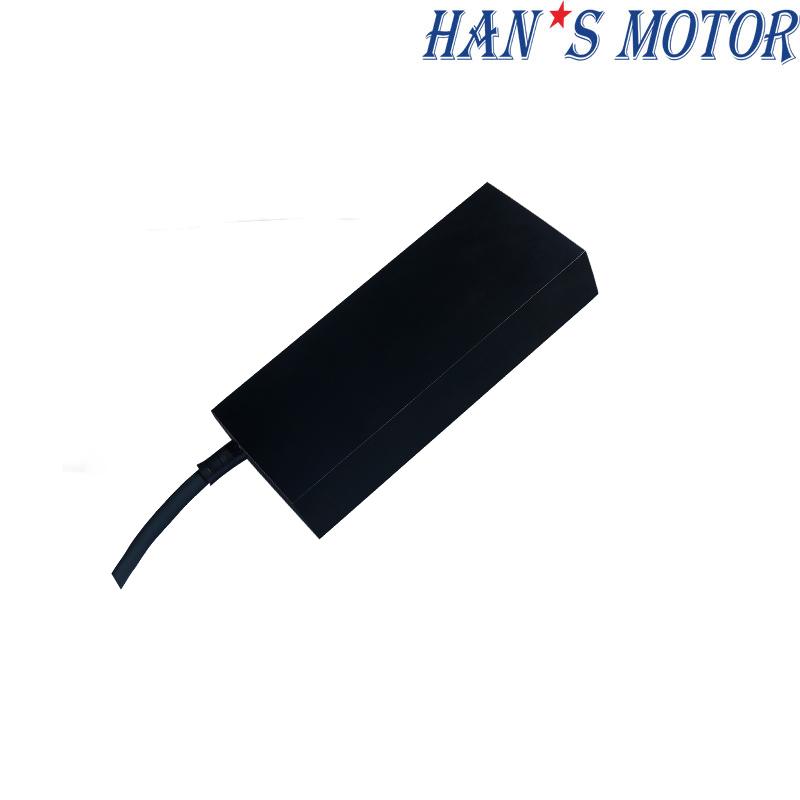

Iron Core Direct Drive Linear Motor
The LSMFL-125 direct drive linear motor offers high thrust and acceleration for demanding applications. Its iron core design delivers reliable motion with low heat buildup. Excellent for systems requiring fast starts and stops with tight control. Built to handle complex industrial workflows.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec: LSMFL10xxxx-x-H-NC-N-C00.5 | 103A-S | 103B-S | 203A-S | 303A-S | 303B-P | 403A-S | 403A-P | ||
| Performance Parameters | Symbol | Units | Series | Series | Series | Series | Parallel | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 157 | 157 | 314 | 472 | 472 | 629 | 629 |
| Peak Force | Fp | N | 413 | 413 | 827 | 1237 | 1237 | 1653 | 1653 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 21.7 | 21.4 | 30.0 | 37.3 | 36.9 | 43.3 | 43.3 |
| Max.Continuous Power Dissipation | Pc | W | 72 | 74 | 150 | 220 | 225 | 290 | 290 |
| Continuous Current (Tmax） | Ic | Arms | 4.0 | 2.6 | 4.0 | 4.0 | 7.8 | 4.0 | 8.0 |
| Peak Current (1S) | Ip | Arms | 12.0 | 7.8 | 12.0 | 12.0 | 23.4 | 12.0 | 24.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 39.0 | 60.4 | 78.5 | 118.0 | 60.5 | 157.0 | 78.6 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 13.0 | 20.1 | 26.0 | 39.3 | 20.0 | 52.4 | 26.2 |
| Resistance(25℃，±5%）P-P | R | Ω | 2.2 | 5.3 | 4.4 | 6.7 | 1.8 | 8.8 | 2.2 |
| Inductance(25℃，±20%）P-P | L | mH | 12.0 | 29.0 | 24.0 | 36.0 | 9.7 | 48.0 | 12.0 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Magnetic Attraction | Fa | kN | 0.9 | 0.9 | 1.7 | 2.6 | 2.6 | 3.4 | 3.4 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 7.9 | 5.0 | 3.7 | 2.4 | 4.9 | 1.7 | 3.7 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 4.4 | 2.6 | 1.9 | 1.1 | 2.6 | 0.6 | 1.9 | |
| Vmax,0@Vbus=310Vdc | m/s | 9.6 | 6.2 | 4.7 | 3.1 | 6.2 | 2.3 | 4.7 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 14.1 | 8.9 | 6.8 | 4.4 | 8.9 | 3.2 | 6.8 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 7.9 | 4.9 | 3.7 | 2.3 | 4.9 | 1.6 | 3.7 | |
| Vmax,0@Vbus=537Vdc | m/s | 16.7 | 10.8 | 8.3 | 5.5 | 10.8 | 4.1 | 8.3 | |
| Mover Mass | Mp | Kg | 2.0 | 2.0 | 3.8 | 5.5 | 5.5 | 7.3 | 7.3 |
| Stator Mass within unit length | Ms | Kg/m | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 |

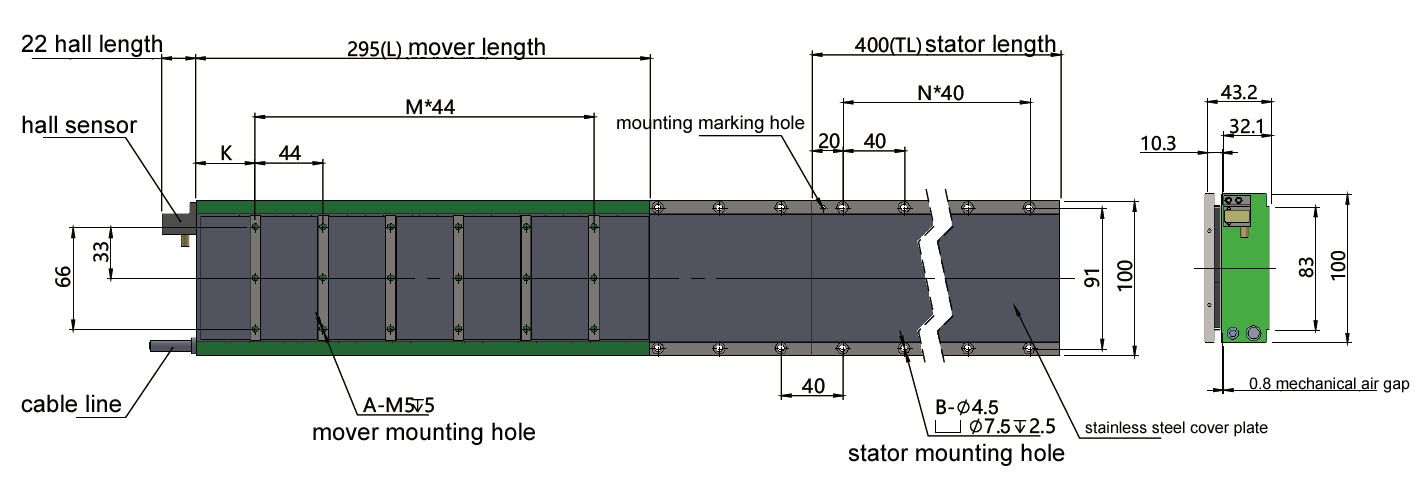

Dimension
| Mover Length | ||||
| Mover model | Mover length L | M | Mover mounting hole A | k |
| LSMFL10103A-S-H-NC-N-C00.5 | 85 | 1 | 6 | 21.5 |
| LSMFL10103B-S-H-NC-N-C00.5 | 85 | 1 | 6 | 21.5 |
| LSMFL10203A-S-H-NC-N-C00.5 | 155 | 2 | 9 | 34.5 |
| LSMFL10303A-S-H-NC-N-C00.5 | 225 | 4 | 15 | 25.5 |
| LSMFL10303B-P-H-NC-N-C00.5 | 225 | 4 | 15 | 25.5 |
| LSMFL10403A-S-H-NC-N-C00.5 | 295 | 5 | 18 | 38.5 |
| LSMFL10403A-P-H-NC-N-C00.5 | 295 | 5 | 18 | 38.5 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMFJ2A-W100-L40 | 40 | 0 | 2 |
| LSMFJ2A-W100-L80 | 80 | 1 | 4 |
| LSMFJ2A-W100-L200 | 200 | 4 | 10 |
| LSMFJ2A-W100-L320 | 320 | 7 | 16 |
| LSMFJ2A-W100-L400 | 400 | 9 | 20 |
Suitable for any mover of this series.

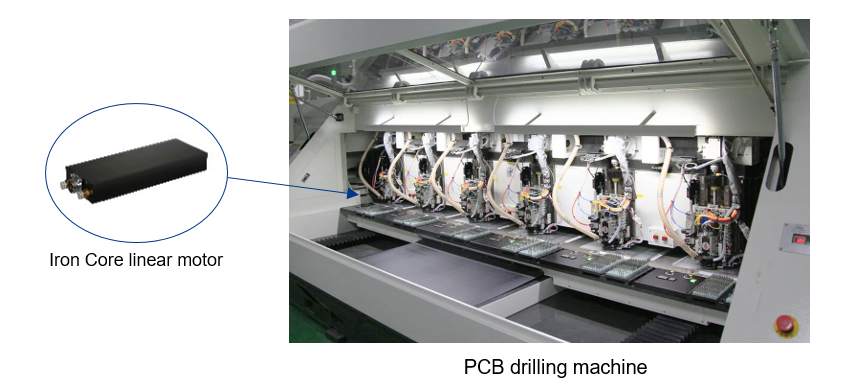

Application Case：
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
Sample
Contact Us
Experience our expert support, tailored solutions, and reliable global delivery.
Related Products
Features
Semiconductor ironless lienar motor is also called carbon fiber board motor with feature high speed, high acceleration, high thrust density and efficient heat dissipation, enabling stable high-performance operation in semiconductor applications.
Features
FE3 Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features
FI Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features
FI Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features
This linear motor is specially designed for semiconductor packaging equipment, featuring high precision, fast response, and stable performance to meet the demanding requirements of advanced packaging processes.
Features

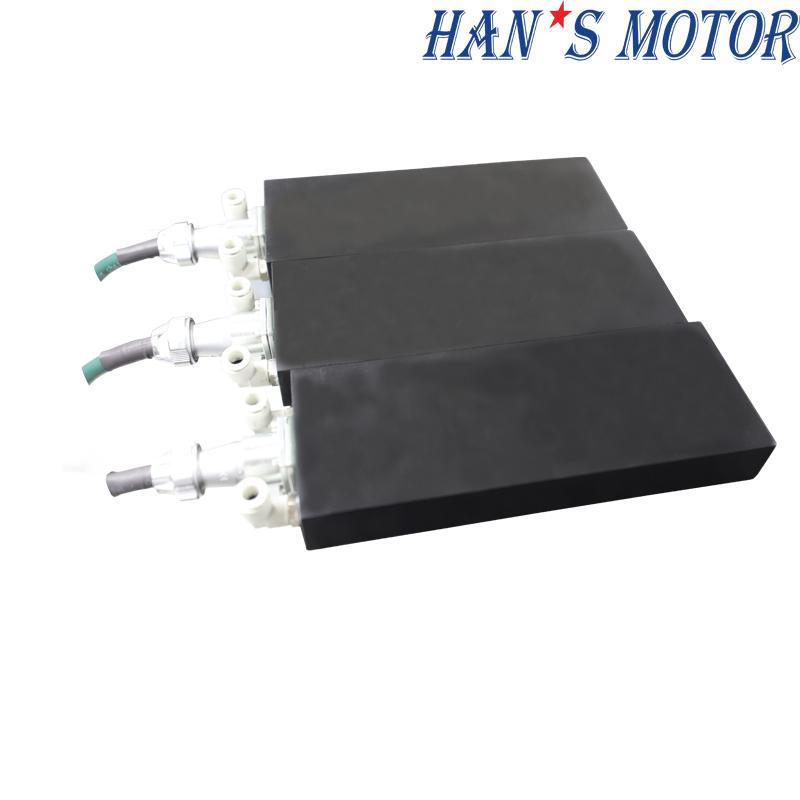

LSMFK series Water-Cooled Ironcore Linear Motors feature high thrust density 10000Nm and efficient heat dissipation, enabling stable high-performance operation in demanding applications.
