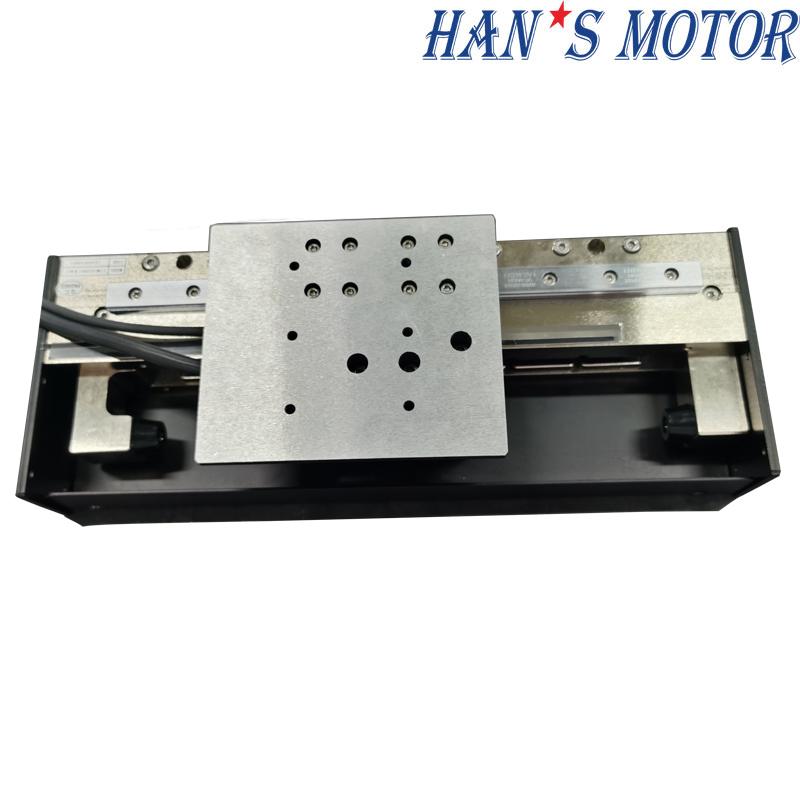

Industrial Linear Motion Stage
A reliable linear stage designed for industrial automation, featuring high efficiency and flexible integration. Developed by Han’s Motor, it balances performance with cost-effectiveness. Suitable for production lines and robotic platforms.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
Motor Model/Parameter
| Motor Parameters | ||
| Performance | Unit | Data |
| Continuous Force (Tmax） | N | 15 |
| Peak Force | N | 150 |
| Max. Load | kg | 5 |
| Effective Stroke | mm | 200 |
| Resolution | μm | 0.1 |
| Max.Speed | mm/s | 700 |
| Repeat accuracy | μm | ±0.6 |
| Weight | kg | 3.5 |
| Working environment temperature and humidity | 0-40℃、20-80%RH | |
Performance
| Parameter\ Stroke (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 |
| K | 6 | 10 | 14 | 14 | 18 | 18 | 22 | 26 | 26 | 30 | 34 | 34 |
| N | 1 | 2 | 3 | 3 | 4 | 4 | 5 | 6 | 6 | 7 | 8 | 8 |
| Stage Total Length (mm) | 320 | 420 | 520 | 620 | 720 | 820 | 920 | 1020 | 1120 | 1220 | 1320 | 1420 |
Note (1): According to the actual load, the maximum speed maybe cannot be reached,
so the specific speed should be communicated with the engineer

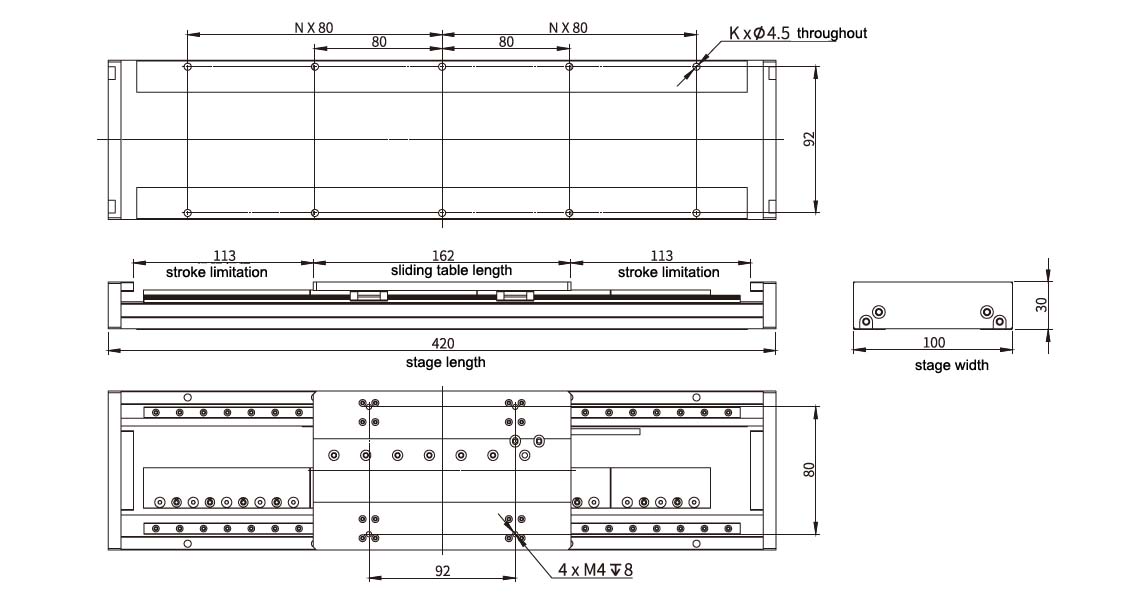

Dimension
Characteristics:
1. High precision and superior quality
2. Original export and factory direct sales with competitive price
3. high speed and smooth running for long life
4. Easy installation, it’s flexible and convenient to use
Why choose us?
Q1: When we can receive goods after placed orders?
A: Leading time 10 days with stock, shipping time 7-10 days by air.
Q2: What’s your payment terms?
A: Wire transfer and Western Union are available.
Q3: If your products can be customized?
A: It’s available according to the products (DDR/ Motion platform) according to the application requirement.
Q4: Can you provide STEP file?
A: Yes, no problem with it.
Q5: Do you provide control system?
A: Yes, we would confirm it with the order.
Achievements as national “Specialized Refinement Differential Innovation” Enterprise

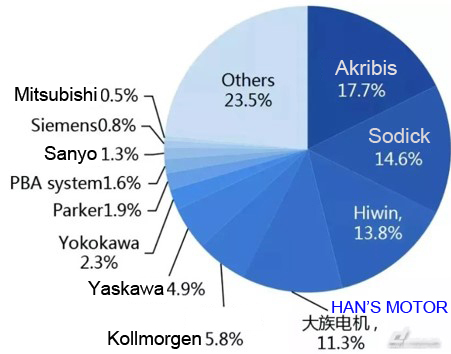

for the leader of linear motor market share.
Applications:
3D printer, CNC machines, Glue dispenser, SMT machine, Robotic arm, Laser cutting and engraving machine, Medical devices, CNC router machine, automatic cutting equipment etc.

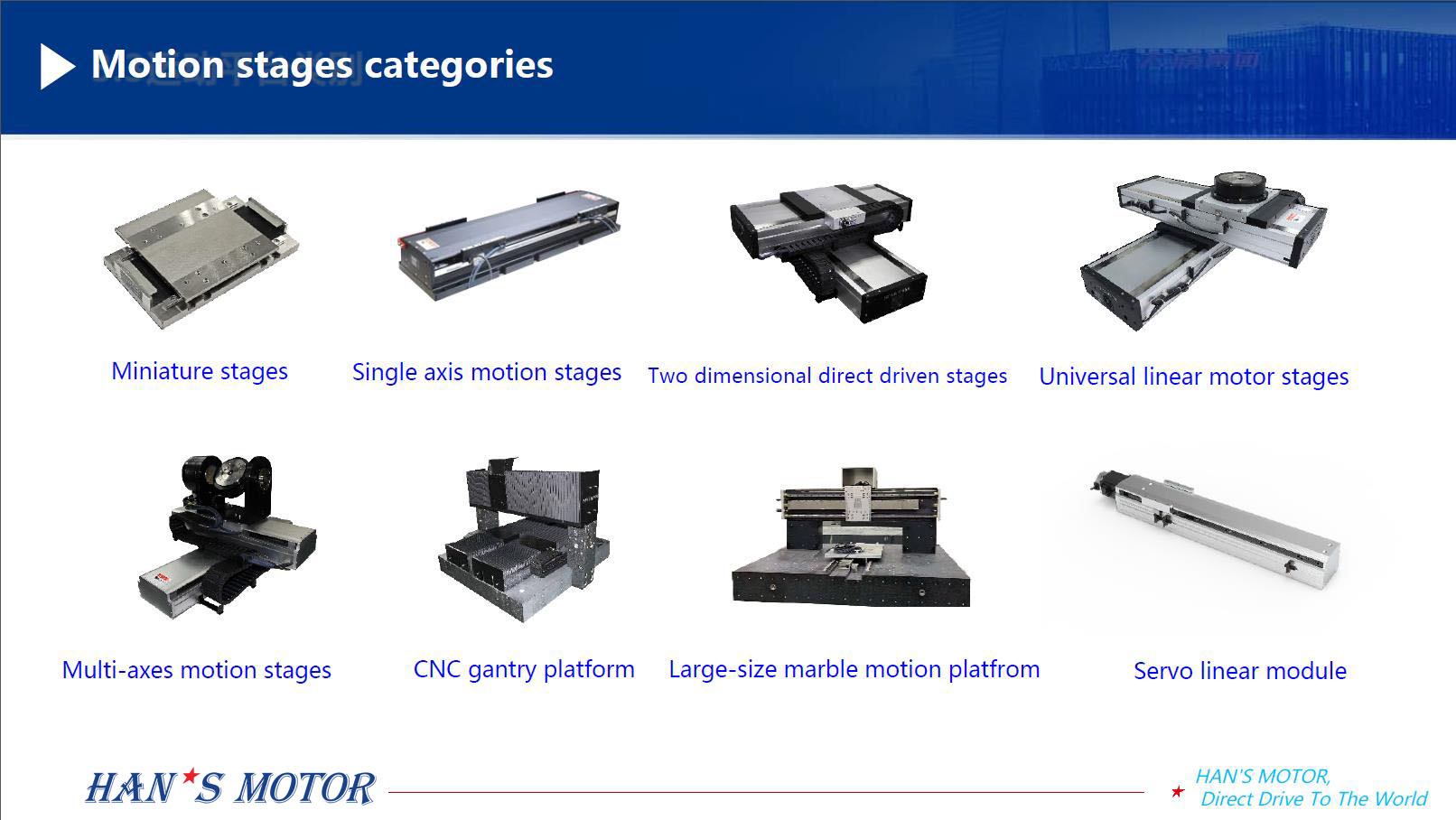

HAN’S Motor Motion Stages Products Series:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
