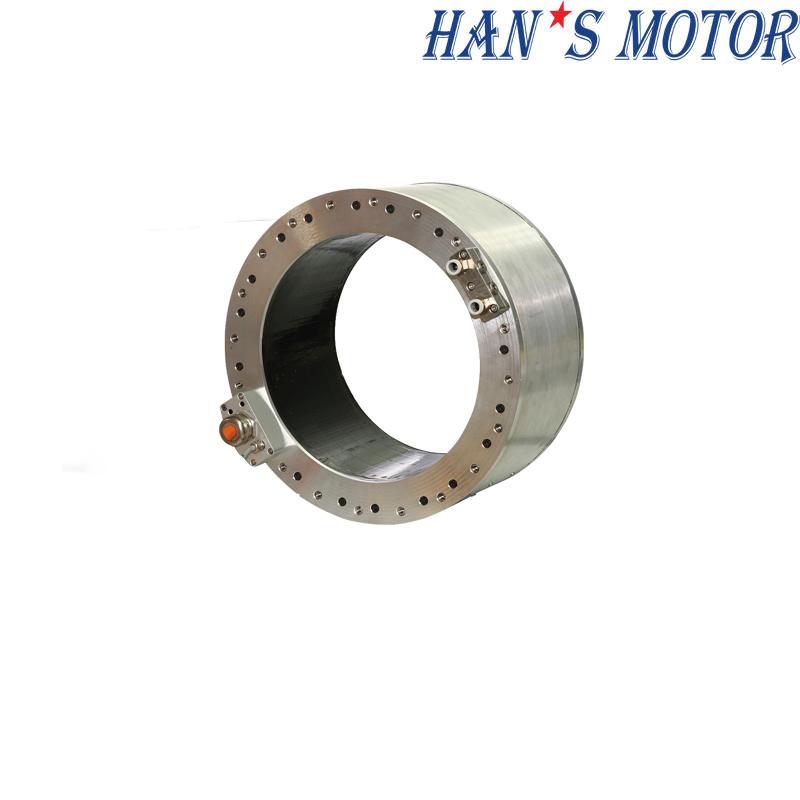

High Torque Frameless Motor
This inner rotor torque motor combines high power density with excellent thermal performance. Its frameless design allows seamless integration into tight mechanical systems. Supports high-speed, high-precision rotation with minimal noise and vibration.
Brand:
Order(MOQ):
1
Product Detail
Product Specifications
| Torque Motor BI10 Series Specification | ||||
| Motor Model No.：BI10-xxx-S-x-0-0 | 003-S-A-0 | 005-S-A-0 | ||
| Performance Parameters | Symbol | Unit | ||
| Pole pairs | p | — | 16 | 16 |
| Max.Working Bus Voltage | Vdc | V | 310 | 310 |
| Peak torque | Tp | Nm | 75 | 150 |
| Continuous torque (Water cooling) | Tcw | Nm | — | — |
| Continuous torque (Natural cooling) | Tc | Nm | 25 | 50 |
| Peak Current | Ip | Arms | 11 | 11 |
| Continuous current (Water cooling) | Icw | Arms | — | — |
| Continuous current ((Natural cooling) | Ic | Arms | 3.5 | 3.5 |
| Torque Constant | Kt | Nm/Arms | 7.3 | 14.5 |
| Back EMF Constant | Ke | Vrms/rad/s | 2.4 | 4.8 |
| Back EMF Constant | Ke | Vrms/(1000r/min) | 438.0 | 877.0 |
| Line Resistance | R | Ω | 4.4 | 8.0 |
| Line Inductance | L | mH | 11.0 | 18.0 |
| Max.speed,Tcw | Nmax,Tcw | rpm | — | — |
| Max.speed,Tc | Nmax,Tc | rpm | 410 | 200 |
| Max.speed,Tp | Nmax,Tp | rpm | 300 | 115 |
| Max.speed,0 | Nmax | rpm | 450 | 240 |
| Power consumption, output Tcw | Plw | W | — | — |
| Power consumption, output Tc | Plc | W | 113.0 | 206.0 |
| Motor constant | Km | Nm/√W | 2.4 | 3.5 |
| Cooling water flow | dV/dt | L/min | — | — |
| Cooling water temperature difference setting | △θ | k | — | — |
| Rated winding temperature | θ | ℃ | 120 | 120 |
| Motor Mass | Ms | Kg | 7.0 | 10.0 |
| Rotor Mass | Mr | Kg | 2.4 | 4.4 |
| Rotor Moment of Inertia | Jm | Kg*m2 | 0.0110 | 0.0209 |
| Cable length (Can be extended optional) | L | M | 3.0 | 3.0 |
| Cable Minimum bending radius | R | mm | 37.5 | 37.5 |
Dimension
| Model | Center Hole(mm) | Outer Diameter | Height/mm | Spec. | Continuous torque/Nm | Peak torque/Nm |
| BI10 (natural cooling) | 120 | 208 | 82 | BI10-003 | 25 | 75 |
| 122 | BI10-005 | 50 | 150 | |||
| 145 | BI10-007 | 69 | 207 |
Characteristics:
• Low-noise, and insulation of high temperature
• High-torque
• CE and EMC quality certification
Running smoothly, high quality and excellent performance
