High-Thrust Iron Core Linear Motor

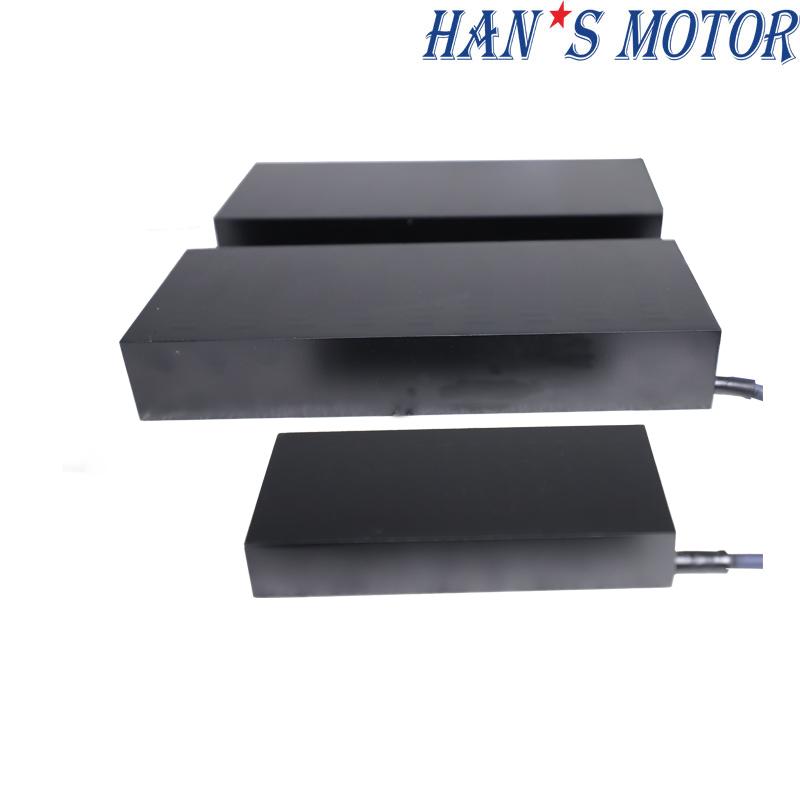

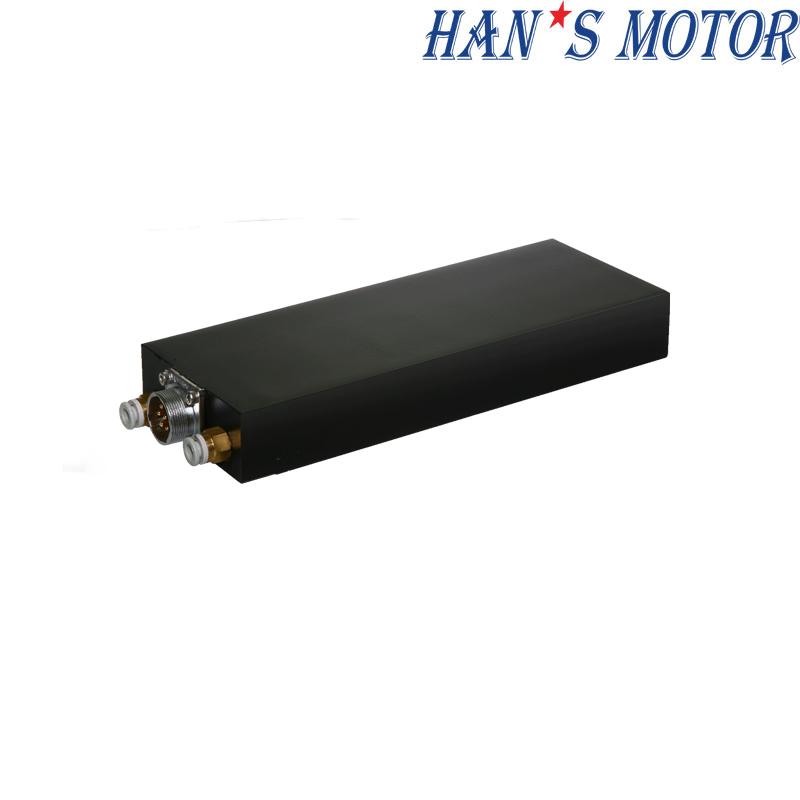

This water-cooled iron core linear motor delivers a thrust range of 3000–4000N, offering reliable performance in continuous heavy-load applications. The efficient cooling design ensures long-term thermal stability. Ideal for high-force industrial automation requiring fast acceleration and precision.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec: LSMFJ10xxxx-x-H-NC-N-D00.5 | 101A-S | 201A-S | 201A-P | ||
| Performance Parameters | Symbol | Units | Series | Series | Parallel |
| Continuous Force (Tmax） | Fc | N | 65 | 125 | 125 |
| Peak Force | Fp | N | 222 | 498 | 498 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 11.5 | 16.4 | 16.4 |
| Max.Continuous Power Dissipation | Pc | W | 44 | 80 | 80 |
| Continuous Current (Tmax） | Ic | Arms | 2.3 | 2.2 | 4.4 |
| Peak Current (1S) | Ip | Arms | 9.0 | 9.0 | 18.0 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 28.3 | 56.8 | 28.4 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/m/s | 9.4 | 18.8 | 9.4 |
| Resistance(25℃，±5%）P-P | R | Ω | 4.0 | 8.0 | 2.0 |
| Inductance(25℃，±20%）P-P | L | mH | 13.0 | 26.0 | 6.5 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 20 | 20 | 20 |
| Magnetic Attraction | Fa | kN | 0.4 | 0.8 | 0.8 |
| Max.DC Bus Voltage | Ubus | V | 600 | 600 | 600 |
| Vmax,Fc@Vbus=310Vdc | m/s | 11.3 | 5.4 | 11.4 | |
| Vmax,Fp@Vbus=310Vdc | m/s | 5.4 | 2.2 | 5.4 | |
| Vmax,0@Vbus=310Vdc | m/s | 13.3 | 6.6 | 13.2 | |
| Vmax,Fc@Vbus=537Vdc | m/s | 20.1 | 9.8 | 20.2 | |
| Vmax,Fp@Vbus=537Vdc | m/s | 9.9 | 4.6 | 9.9 | |
| Vmax,0@Vbus=537Vdc | m/s | 23.1 | 11.5 | 23.0 | |
| Mover Mass | Mp | Kg | 0.6 | 1.0 | 1.0 |
| Stator Mass within unit length | Ms | Kg/m | 3.3 | 3.3 | 3.3 |

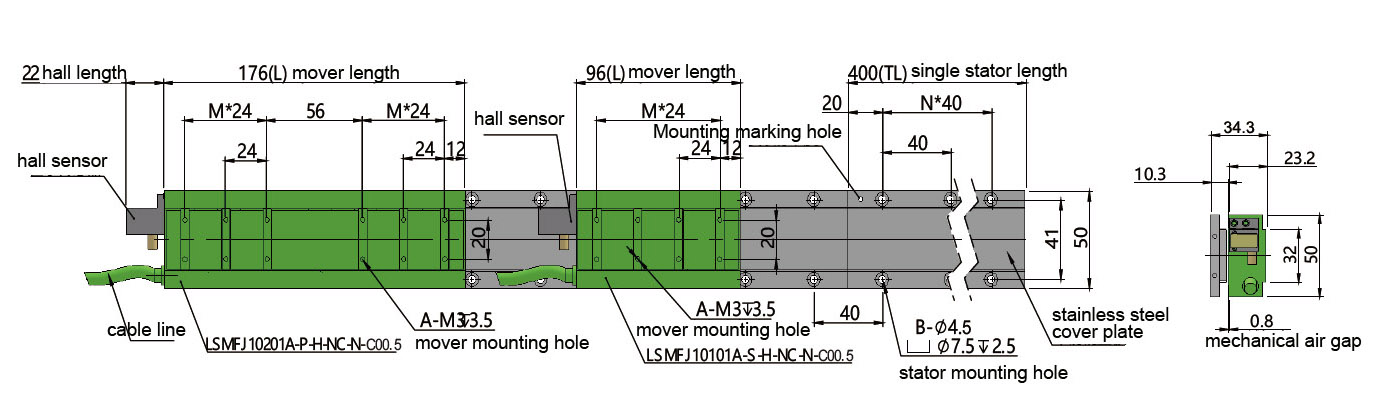

Dimension
| Mover Length | |||
| Mover model | Mover length L | M | Mover mounting hole A |
| LSMFJ10101A-S-H-NC-N-C00.5 | 96 | 3 | 8 |
| LSMFJ10201A-S-H-NC-N-C00.5 | 176 | 2 | 12 |
| LSMFJ10201A-P-H-NC-N-C00.5 | 176 | 2 | 12 |
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
| Stator Length | |||
| Stator model | Stator length TL | N | Stator mounting hole B |
| LSMFJ2A-W50-L40 | 40 | 0 | 2 |
| LSMFJ2A-W50-L80 | 80 | 1 | 4 |
| LSMFJ2A-W50-L200 | 200 | 4 | 10 |
| LSMFJ2A-W50-L320 | 320 | 7 | 16 |
| LSMFJ2A-W50-L400 | 400 | 9 | 20 |
Suitable for any mover of this series.
Advantages：
1. Wide range of feed speed
2. Good speed characteristics
3. High acceleration
4. High positioning accuracy
5. Simple structure, smooth movement, low noise, small friction
6. low wear of moving parts, long service life, safe and reliable
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
