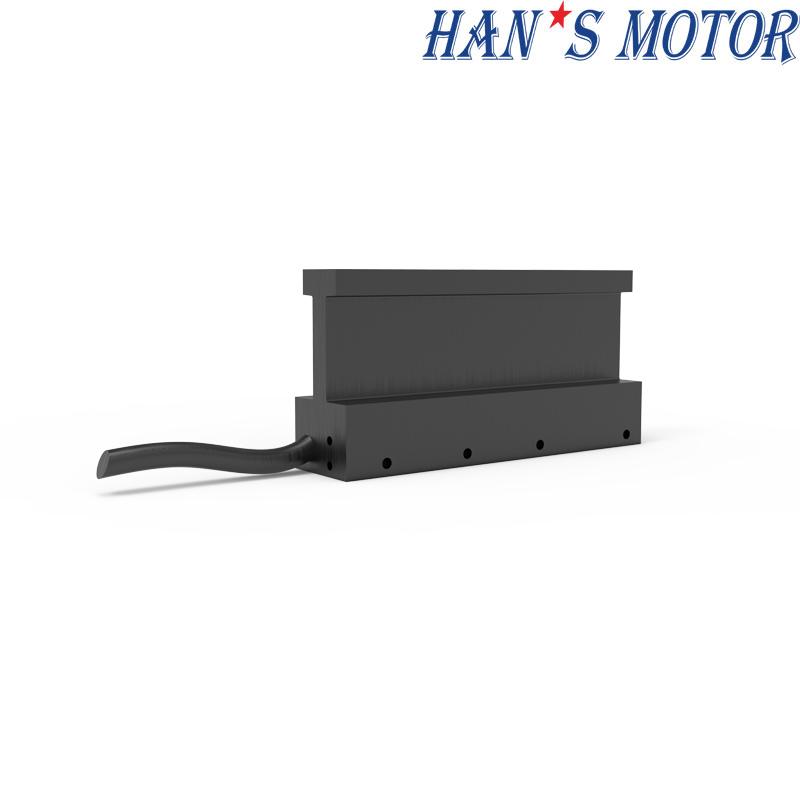

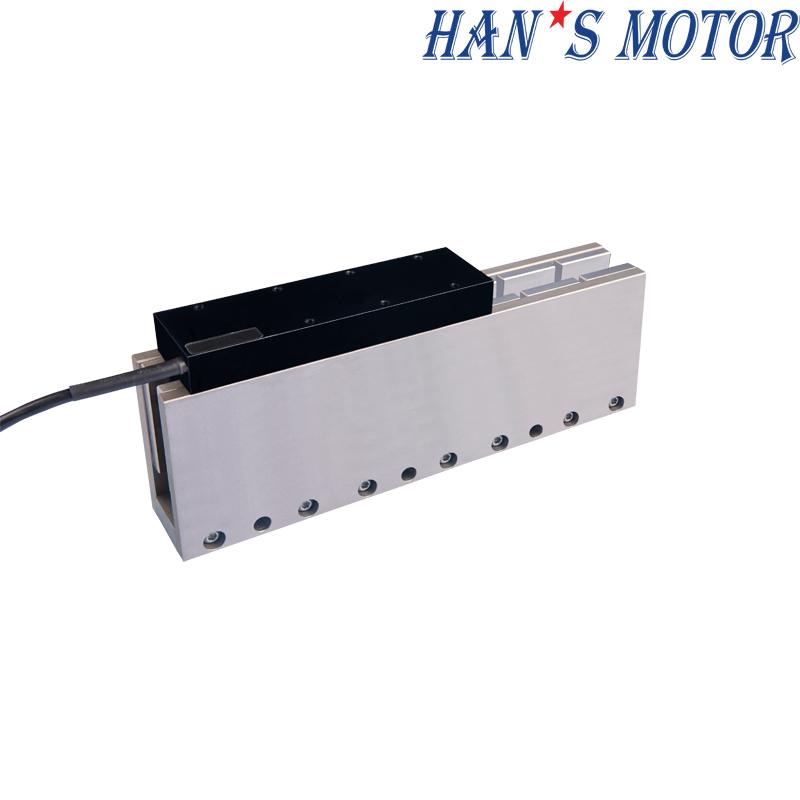

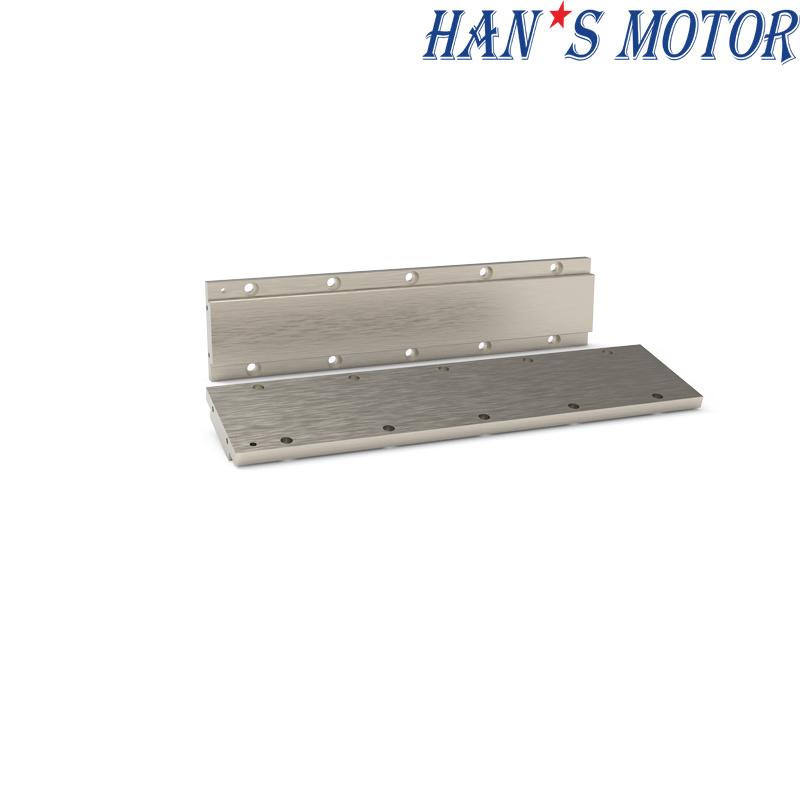

High Thrust Coreless Linear Motor
The LSMUC coreless linear motor provides strong continuous thrust and smooth linear motion. Its ironless design avoids cogging and mechanical wear, extending service life. Ideal for precision positioning systems in semiconductor tools and automation platforms. Ensures stable and reliable performance under heavy-duty conditions.
Brand:
Order(MOQ):
1
Product Detail
Specifications
| Mover Spec.: LSMUC10xxxx-x-H-NC-N-D00.5 | 101A-S | 201A-S | 301A-S | 401A-S | 501A-S | ||
| Performance Parameters | Symbol | Unit | Series | Series | Series | Series | Series |
| Continuous Force (Tmax） | Fc | N | 3 | 6 | 9 | 12 | 15 |
| Peak Force | Fp | N | 12 | 24 | 36 | 48 | 60 |
| Motor Constant (25℃) | Km25 | N/Sqrt(W) | 1.5 | 2.2 | 2.8 | 3.2 | 3.6 |
| Max.Continuous Power Dissipation | Pc | W | 5.4 | 9.9 | 14.5 | 19.1 | 23.7 |
| Continuous Current (Tmax） | Ic | Arms | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| Peak Current (1S) | Ip | Arms | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 |
| Force Constant (25℃，±5%） | Kf | N/Arms | 1.8 | 3.5 | 5.3 | 7.0 | 8.8 |
| Back EMF Constant (25℃，±5%） | Ke | Vrms/rad/s | 0.6 | 1.2 | 1.7 | 2.2 | 2.9 |
| Electrical Resistance(25℃，±5%）P-P | R | Ω | 0.9 | 1.7 | 2.4 | 3.2 | 4.0 |
| Inductance(25℃，±20%）P-P | L | mH | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 |
| Max Coil Temperature | Tmax | ℃ | 120 | 120 | 120 | 120 | 120 |
| Polar Distance (N-N) (360℃ Electrical cycle) | 2τ | mm | 21 | 21 | 21 | 21 | 21 |
| Magnetic Attraction | Fa | KN | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| Max.DC Bus Voltage | Ubus | V | 60 | 60 | 60 | 60 | 60 |
| Vmax,Fc@Vbus=310Vdc | Vmax,Fc | m/s | 29.2 | 14.2 | 8.9 | 6.3 | 4.7 |
| Vmax,Fp@Vbus=310Vdc | Vmax,Fp | m/s | 23.6 | 8.9 | 4.0 | 1.4 | 0.0 |
| Vmax,0@Vbus=310Vdc | Vmax,0 | m/s | 31.0 | 15.9 | 10.6 | 7.9 | 6.3 |
| Mover Mass | Mp | kg | 0.04 | 0.06 | 0.08 | 0.10 | 0.12 |
| Stator Mass within unit length | Ms | Kg/m | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 |

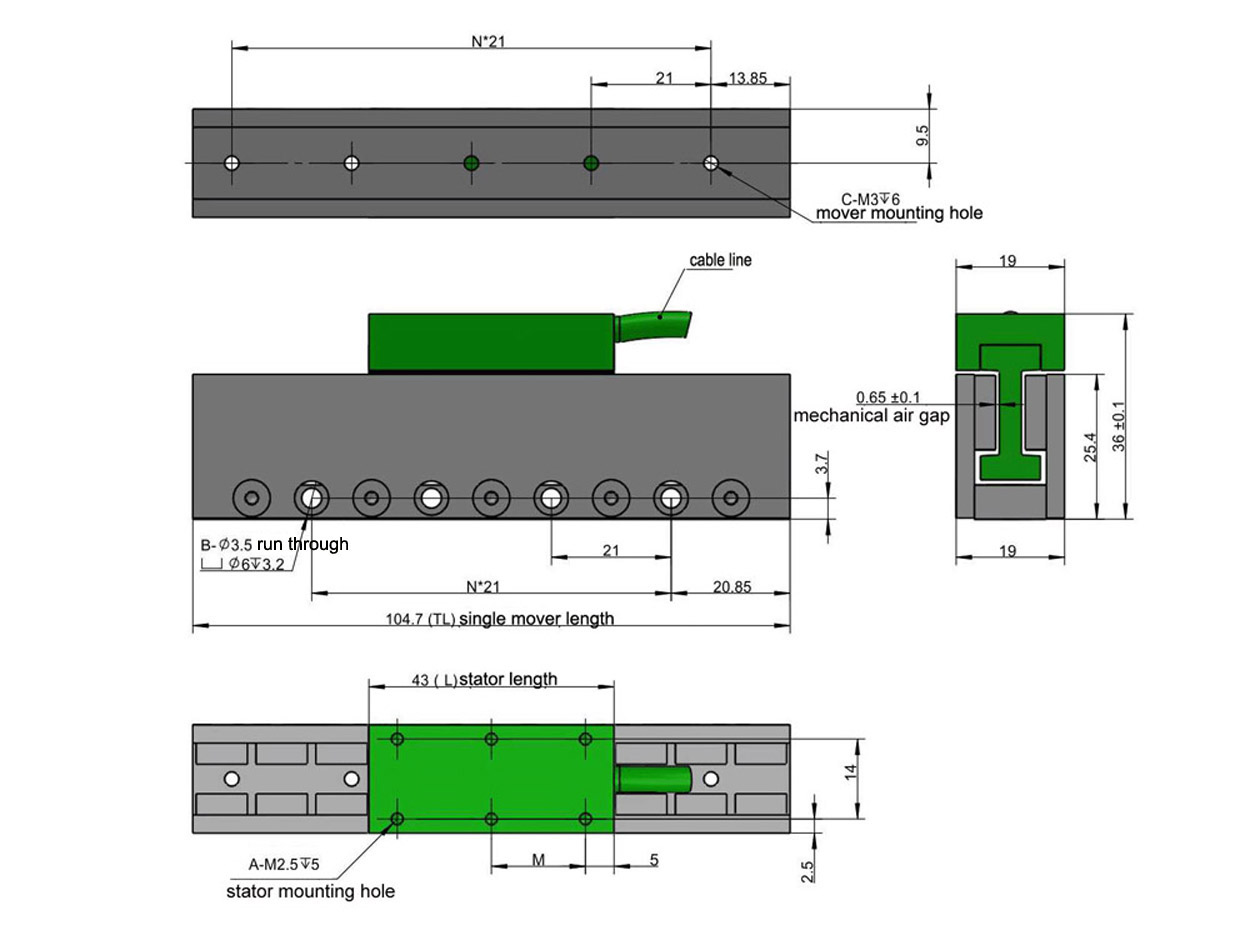

Dimension
| Mover Size | |||
| Mover model | Mover length | M | Mover mounting hole |
| LSMUC10101A-S-H-NC-D00.5 | 22 | 12 | 4 |
| LSMUC10201A-S-H-NC-D00.5 | 43 | 16.5 | 6 |
| LSMUC10301A-S-H-NC-D00.5 | 64 | 18 | 8 |
| LSMUC10401A-S-H-NC-D00.5 | 85 | 28 | 8 |
| LSMUC10501A-S-H-NC-D00.5 | 106 | 32 | 8 |
Remark: 1. standard cable length is 0.5m with D-type aviation plug, maximum outer diameter of cable is 7.0mm, minimum bending radius of fixed laying is 3*d, minimum bending radius of dragging chain movement is 5*d, cable length and terminal can be customized.
2. optional temperature sensor.
| Stator Length | ||||
| Stator model | Stator length TL | N | Stator mounting hole B | Stator mounting hole C |
| LSMUC2063A | 62.7 | 1 | 2 | 3 |
| LSMUC2084A | 83.7 | 2 | 3 | 4 |
| LSMUC2105A | 104.7 | 3 | 4 | 5 |
Suitable for any mover of this series, stator installation mode can be selected
Advantages:
1. High responsiveness, high precision
2. High transmission stiffness, thrust smoothly
3. High speed, short acceleration and deceleration process
4. Unlimited stroke length
5. Low noise during operation

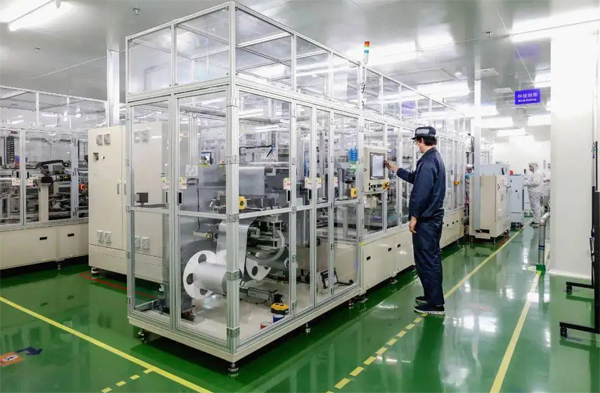

Application Case：New Energy Lithium Industry
In the lithium industry, the production efficiency is becoming higher and higher.Linear motor is widely used in lithium electric equipment because of its high speed, high precision and high response.
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
Sample
Contact Us
Experience our expert support, tailored solutions, and reliable global delivery.
Related Products
Features
Semiconductor ironless lienar motor is also called carbon fiber board motor with feature high speed, high acceleration, high thrust density and efficient heat dissipation, enabling stable high-performance operation in semiconductor applications.
Features

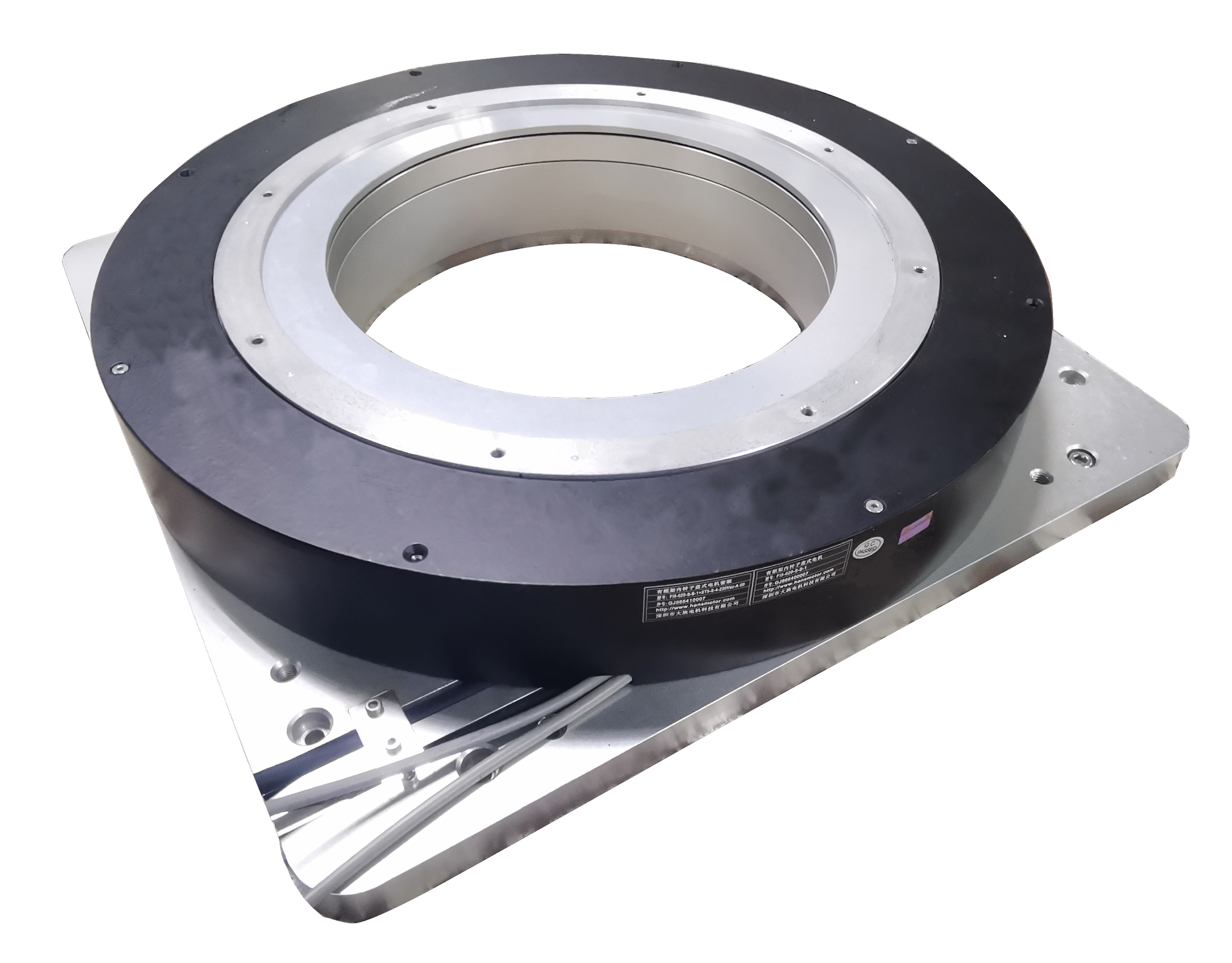

FE3 Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features

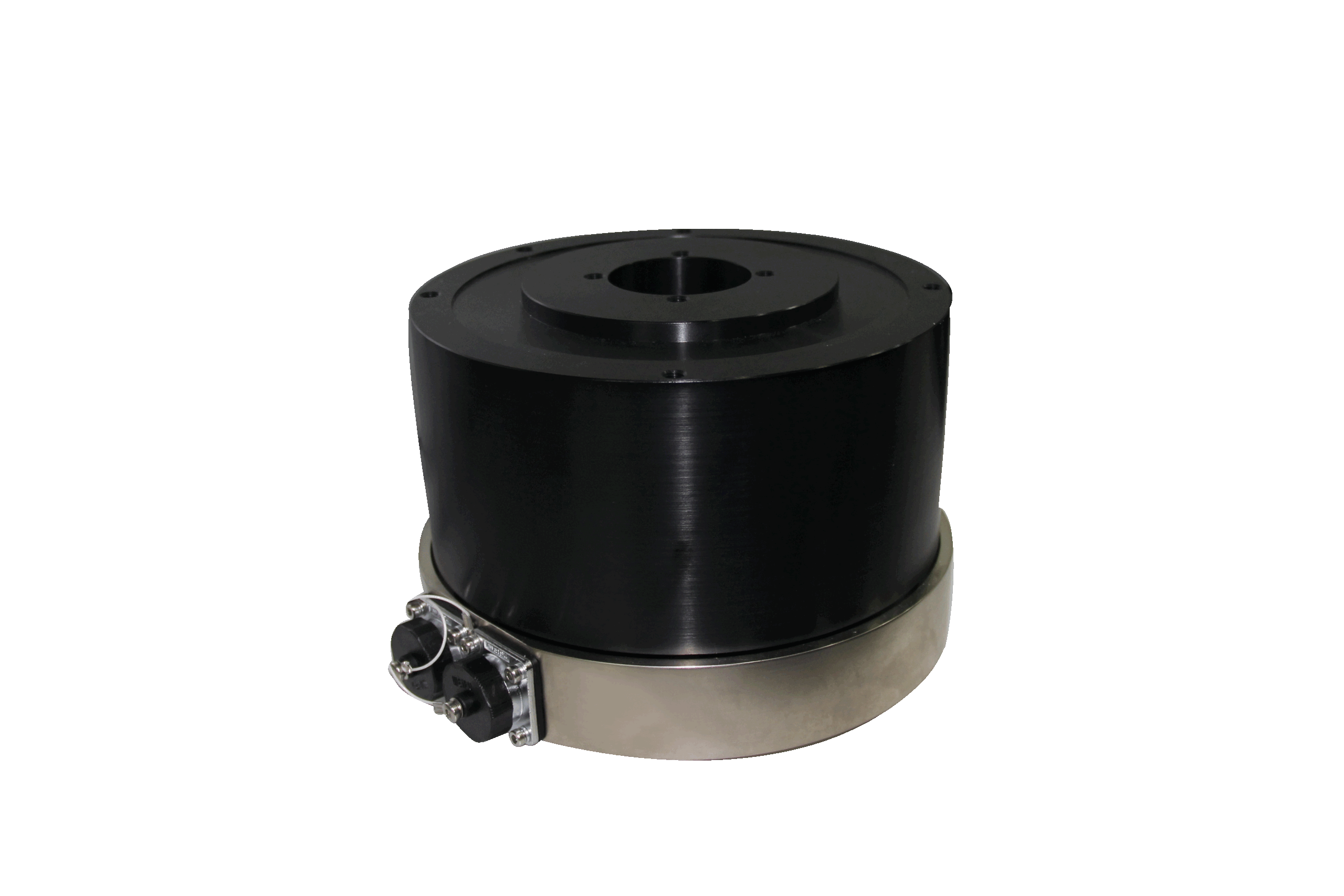

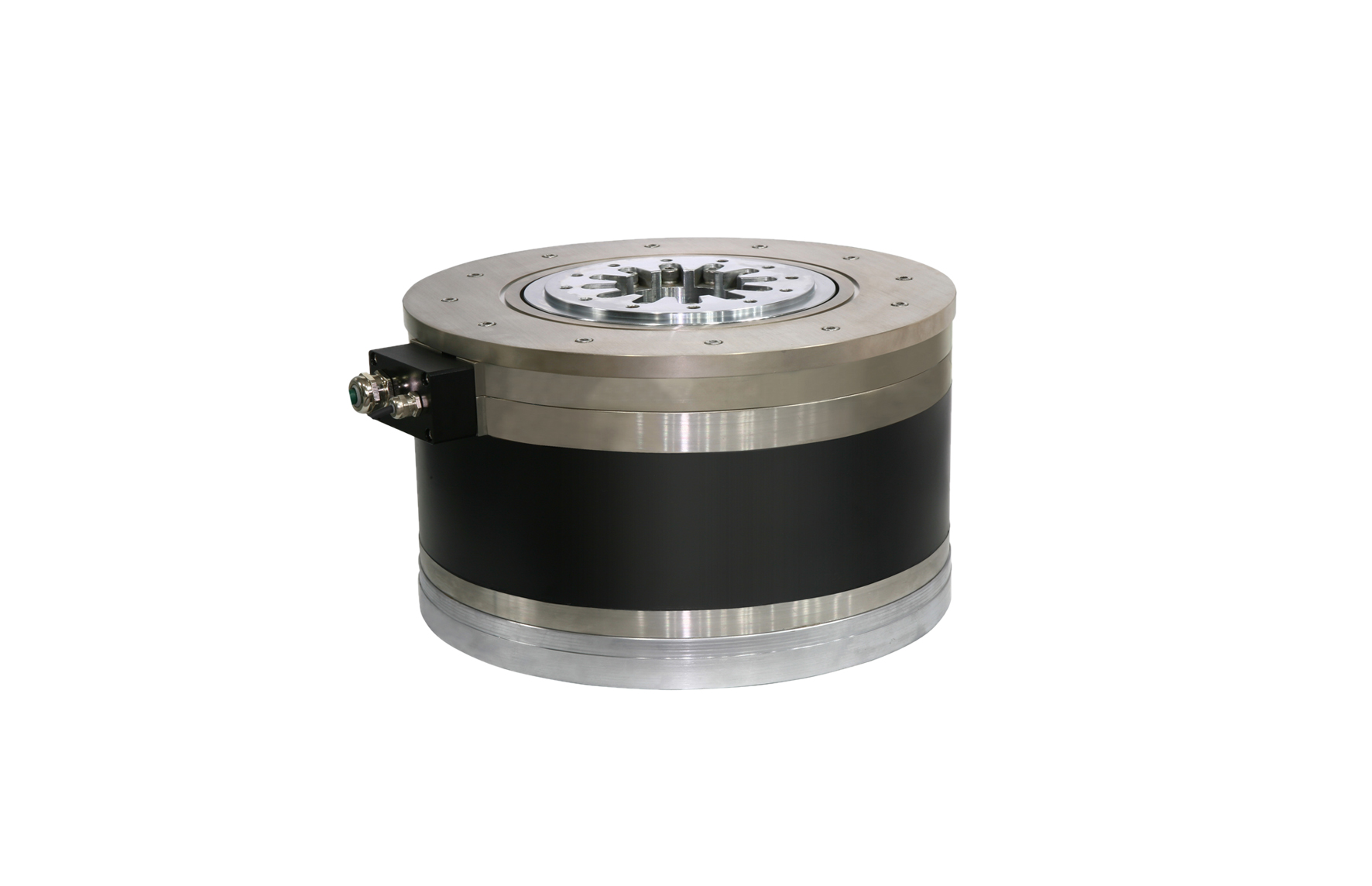

FI Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features
FI Series Torque motors are designed with industrial-grade quality, optimized for mass production and robust operation in demanding environments. Featuring high torque density, direct-drive architecture, and low maintenance, these motors deliver reliable, precise, and stable performance for industrial automation, robotics, machine tools, and semiconductor equipment. The design supports continuous operation under high load, making it ideal for large-scale industrial applications.
Features
This linear motor is specially designed for semiconductor packaging equipment, featuring high precision, fast response, and stable performance to meet the demanding requirements of advanced packaging processes.
Features

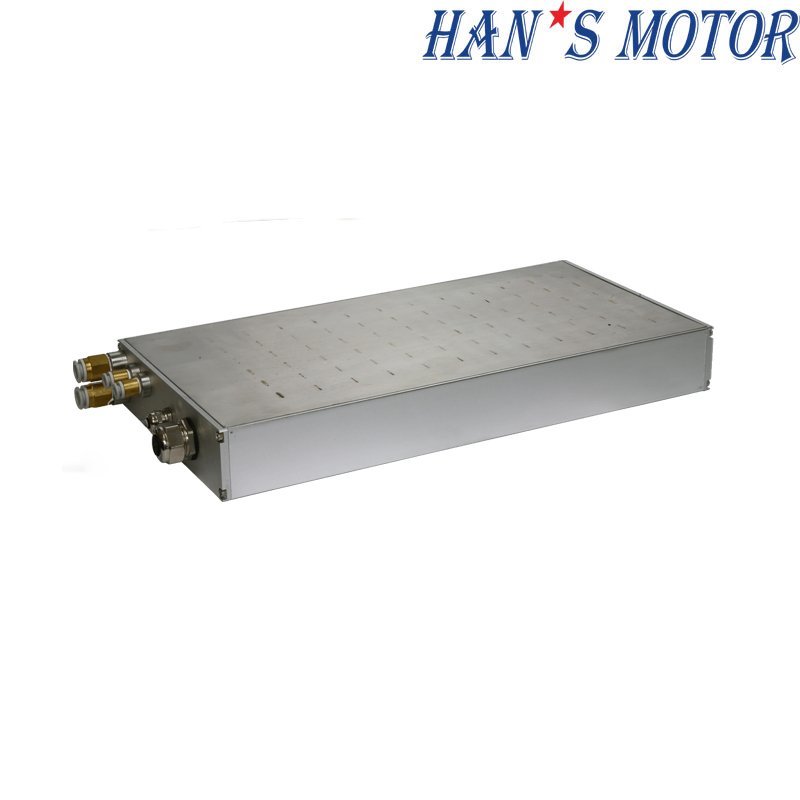

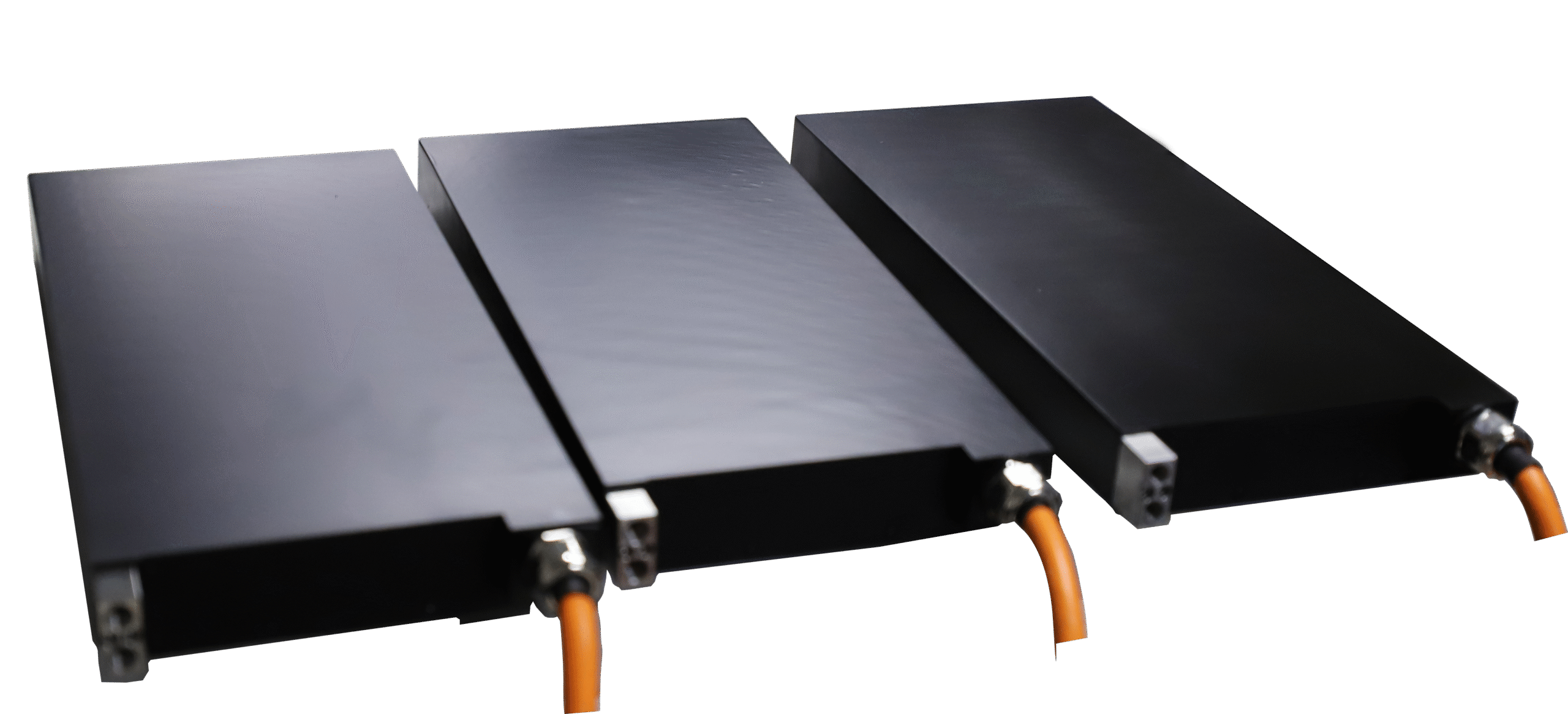

LSMFK series Water-Cooled Ironcore Linear Motors feature high thrust density 10000Nm and efficient heat dissipation, enabling stable high-performance operation in demanding applications.
